Audison APS 10 S4S 10" 4 Ohm Shallow Subwoofer

The Audison APS 10 S4S is a 10-inch shallow-mount subwoofer driver designed for compact car-audio bass upgrades. Its single 4-ohm voice coil and 400-watt continuous power rating make it suitable for systems that need controlled low-frequency output without requiring a large enclosure. It is optimized for sealed enclosures beginning at 10 liters, or about 0.35 cubic feet.

This subwoofer is intended for installers and enthusiasts working with limited mounting depth in trunks, custom side panels, under-floor spaces, or other compact locations. The 88 mm mounting depth helps make installation possible where conventional full-depth woofers may not fit. Its compact enclosure requirements also support space-conscious system designs.

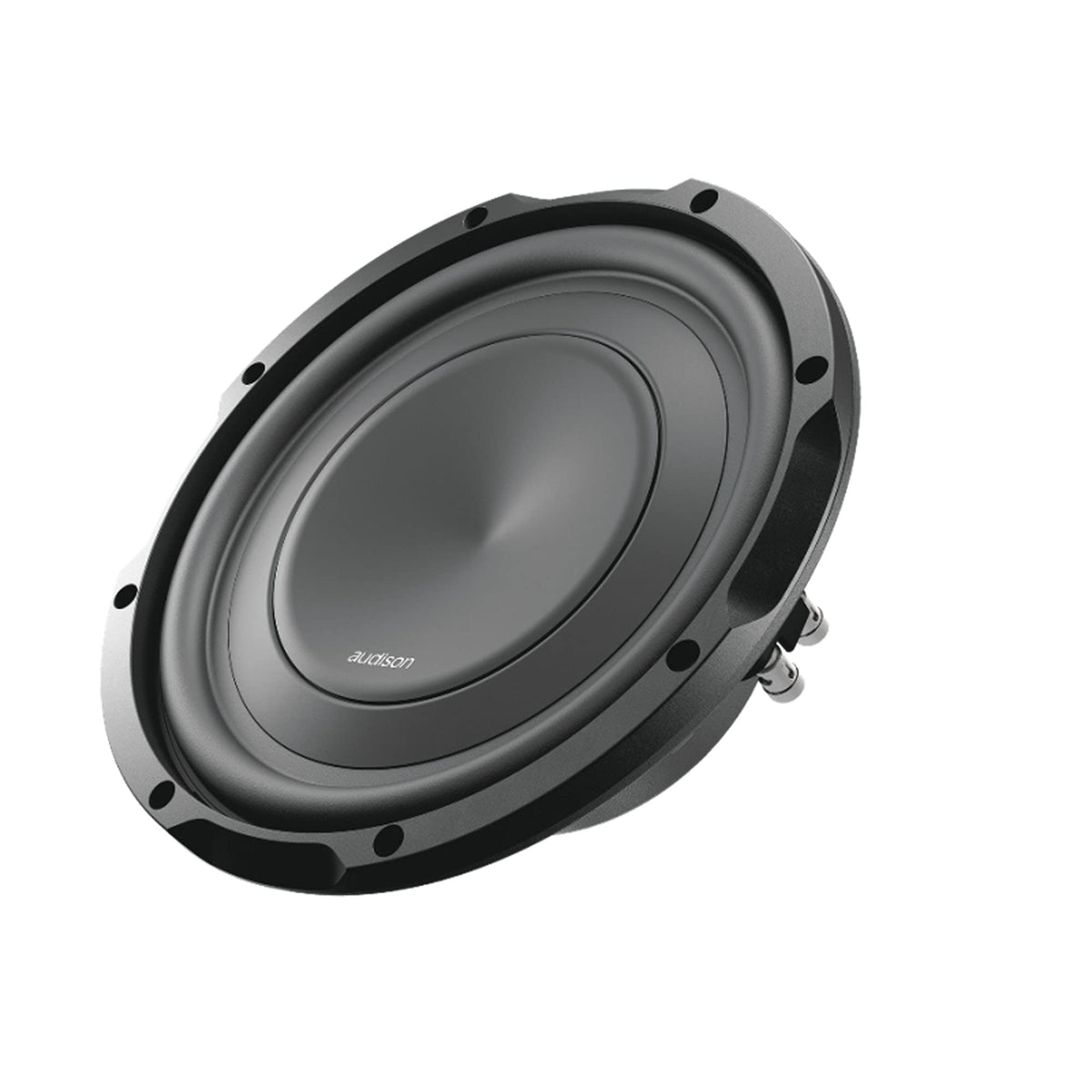

The APS 10 S4S is built to cover bass frequencies with a specified free-air resonance of 28.5 Hz and an excursion capability rated at 12.6 mm Xmax. Its water-repellent pressed-paper cone is engineered to provide a practical balance of low-frequency response and durability for mobile environments. A 60 mm voice coil and high-density flux ferrite motor support power handling and cone control.

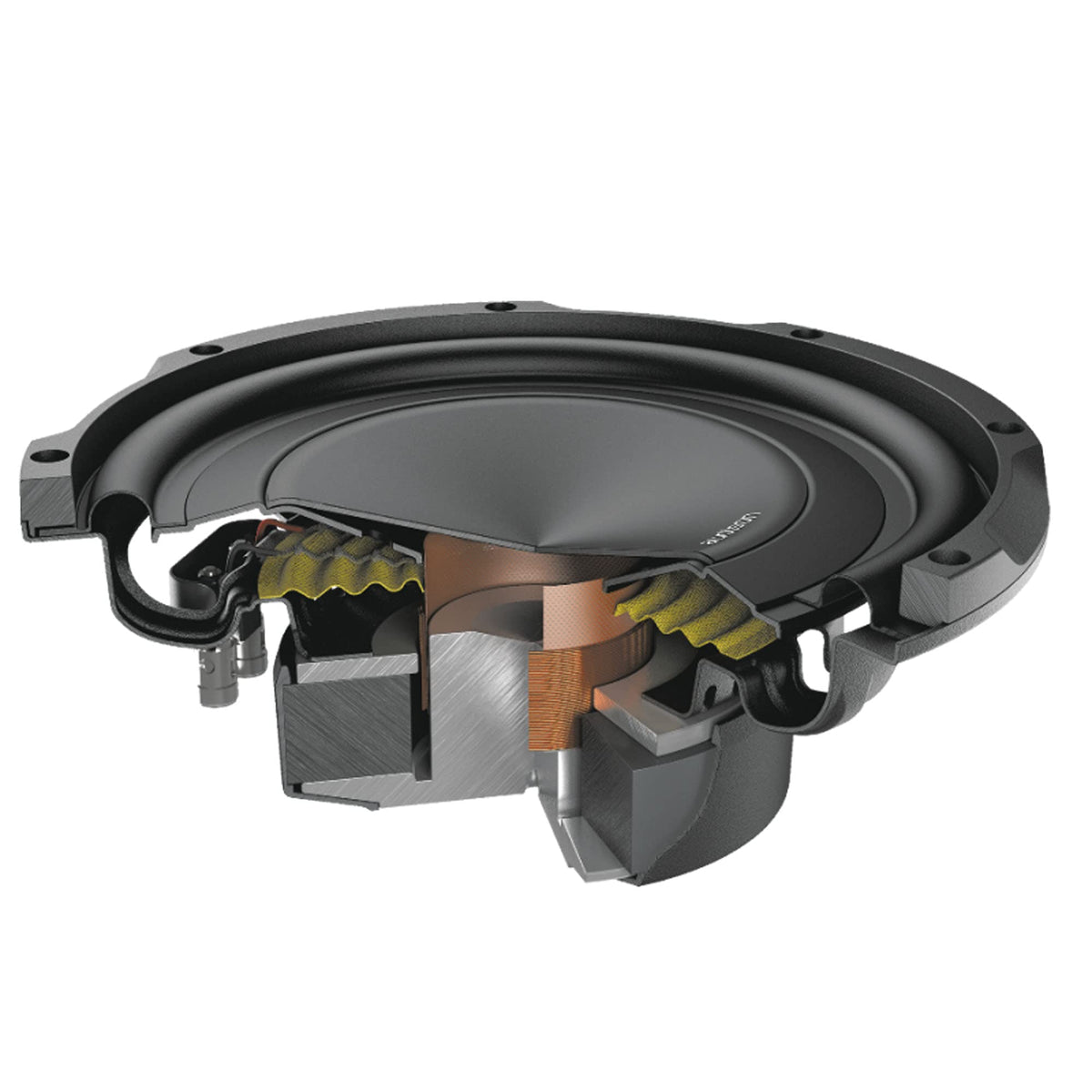

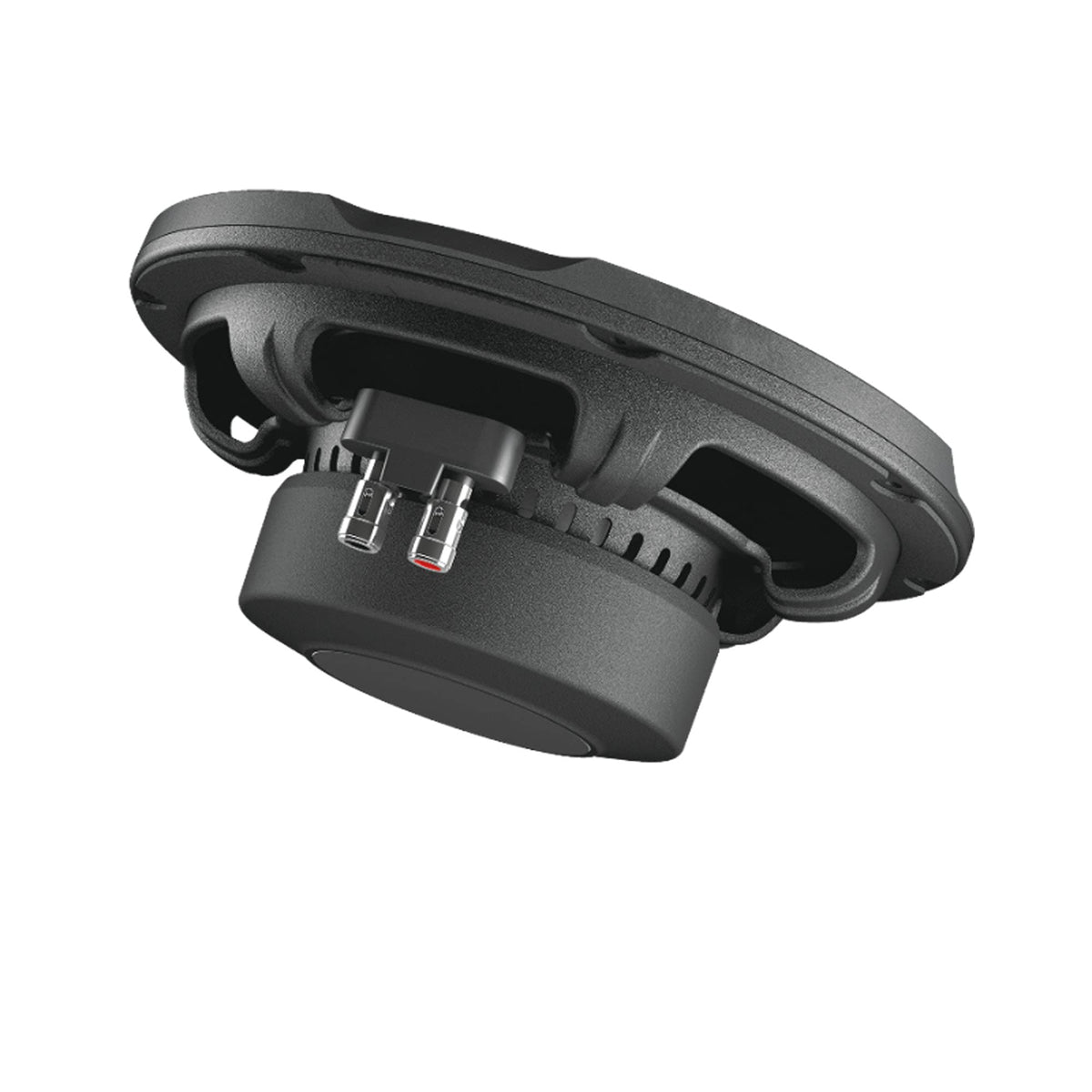

Audison uses a ventilated basket arrangement beneath the spider, eliminating the need for a center-pole vent. This design helps enable installation close to the rear wall of an enclosure while retaining a shallow overall profile. The cone and dust-cap geometry is also designed to support linear movement while keeping mounting depth low.

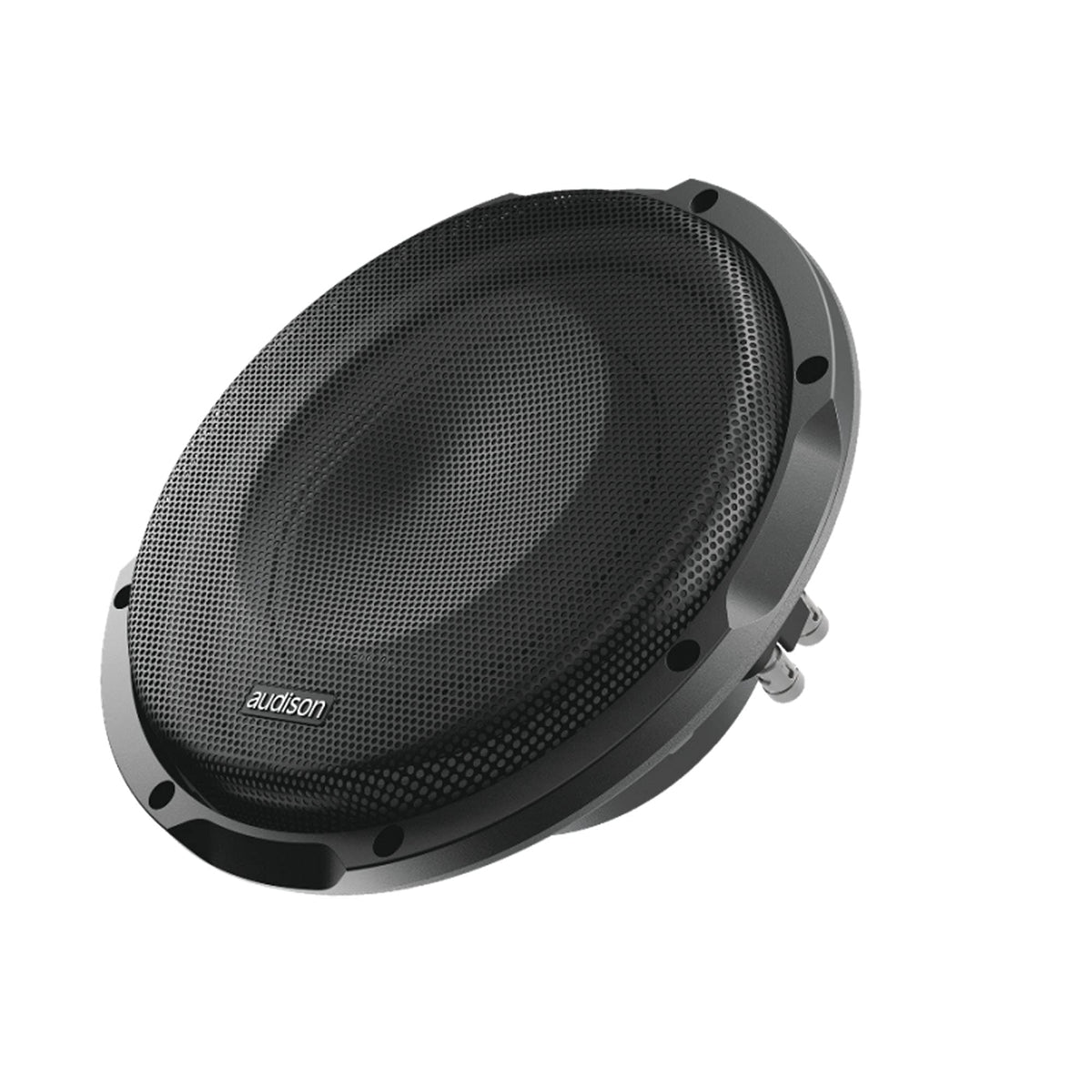

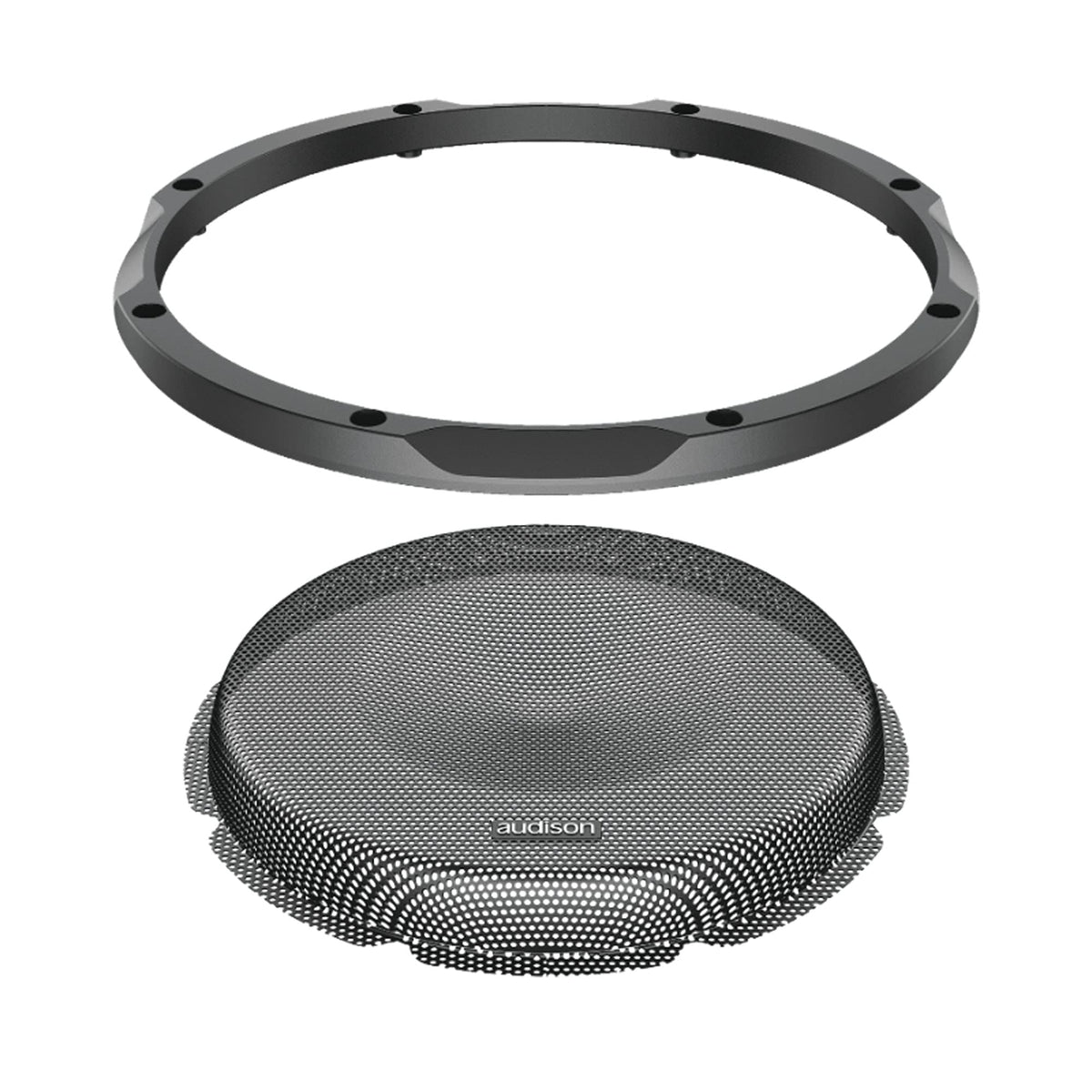

As a passive subwoofer driver, the APS 10 S4S requires a separate compatible amplifier and a properly built enclosure. It can be used as a single 4-ohm subwoofer, or two units can be wired in parallel for a 2-ohm load when matched with an appropriate amplifier. A steel mesh grille and plastic gasket are included to help protect the driver and finish the installation.

Key Features

• 10-Inch Shallow Driver: Fits compact custom subwoofer applications.
• 400W Continuous Power: Supports properly matched external amplification.
• Single 4-Ohm Voice Coil: Provides straightforward amplifier load matching.
• Sealed-Enclosure Design: Optimized for enclosures from 10 liters.
• Water-Repellent Paper Cone: Supports durable mobile-audio use.
• High-Density Ferrite Motor: Helps control the cone at excursion.

Design & Installation

The APS 10 S4S uses a water-repellent pressed-paper cone, a 60 mm voice coil, and a high-density flux ferrite magnet. Its basket includes air venting beneath the spider, while the motor assembly is designed for control under higher-excursion operation. The included steel mesh grille and plastic gasket provide added driver protection and installation finishing hardware.

Install this driver in a sealed enclosure with an internal volume of at least 10 liters (approximately 0.35 cubic feet). Confirm the available mounting depth of 88 mm and the listed driver dimensions before cutting a mounting opening. Use an amplifier designed to operate safely with a 4-ohm speaker load, observe correct polarity, and ensure the enclosure is rigid and airtight for intended performance.
