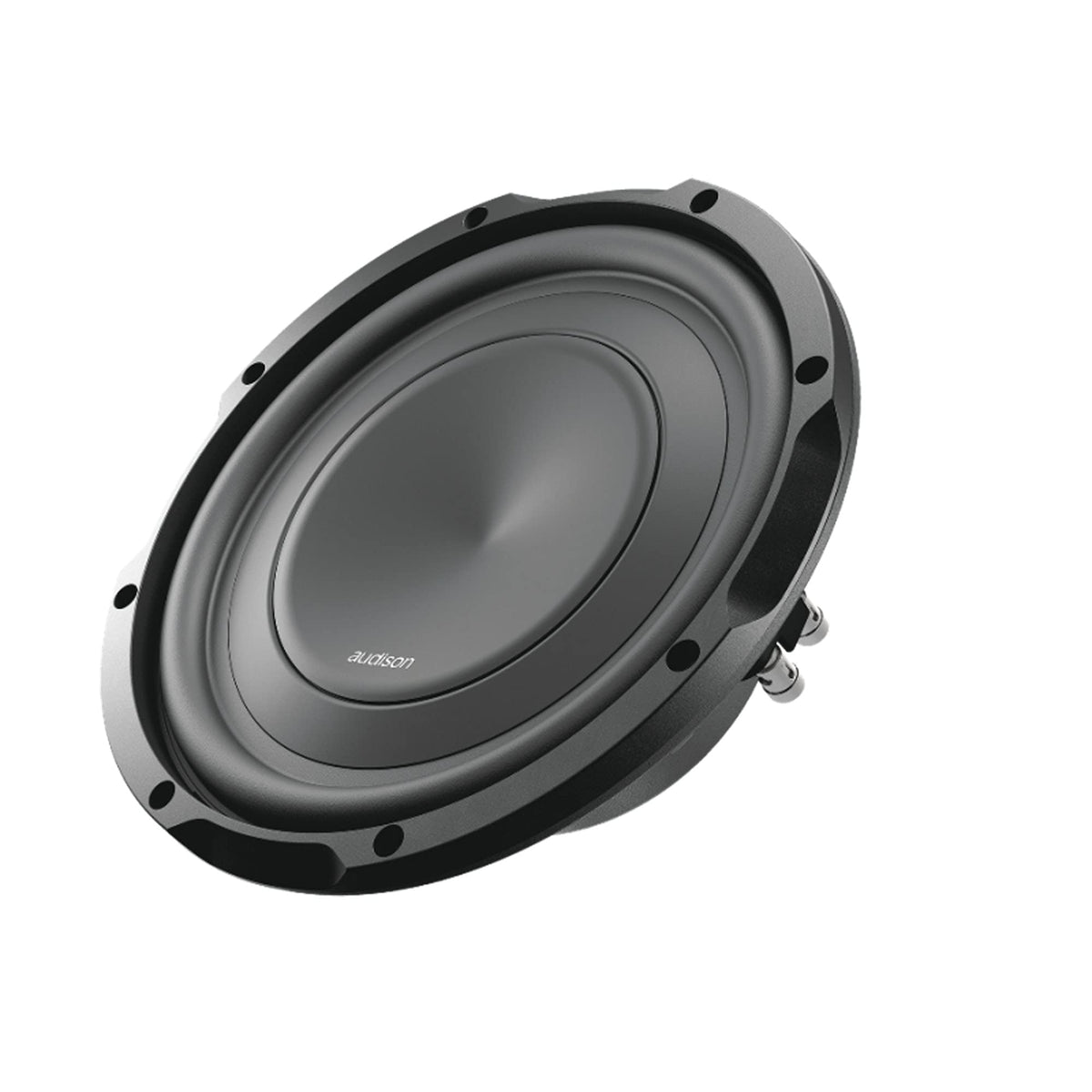

Audison APS 10 S4S 10" 4-Ohm Shallow Subwoofer

The Audison APS 10 S4S is a 10-inch shallow subwoofer driver designed for car-audio systems that need meaningful low-frequency reinforcement without requiring a large enclosure. Its single 4-ohm voice coil configuration makes it a straightforward choice for a dedicated subwoofer amplifier channel or a bridged amplifier setup. It is intended for custom sealed enclosures with internal volume starting at 10 liters.

This Prima-series subwoofer addresses installations where mounting depth and enclosure space are limited, such as compact trunks, underfloor areas, and vehicle-specific build locations. Its 120 mm ultra-low-profile design helps reduce the space required behind the driver. Basket ventilation beneath the spider also eliminates the need for a central pole vent, helping support close placement to an enclosure’s rear wall.

Rated for 400 watts continuous power and 800 watts peak power, the APS 10 S4S is built for properly amplified bass duty in a sealed system. Its 4-ohm nominal impedance and single voice coil simplify amplifier matching compared with multi-coil wiring arrangements. The driver uses a 60 mm voice coil, a high-density-flux ferrite motor, and a water-repellent pressed-paper cone.

Audison engineers the cone, dustcap, and basket geometry to support long linear excursion while maintaining a compact mounting profile. The driver has 12.6 mm Xmax and an 18 mm mechanical excursion specification. Its motor assembly is optimized using finite-element modeling for control under high-power, high-excursion operating conditions.

The APS 10 S4S is a component subwoofer, so a separate enclosure, amplifier, wiring, and installation hardware are needed to complete a system. It can serve as a compact bass upgrade alongside factory or aftermarket speakers when installed in a correctly sized sealed enclosure. A steel mesh grille and plastic gasket are included to help protect the driver and finish the installation.

Key Features

• 10-Inch Shallow Design: Provides compact bass capability with a 120 mm ultra-low profile.
• 400W Continuous Rating: Supports sustained subwoofer power handling in a properly configured system.
• Single 4-Ohm Voice Coil: Simplifies wiring to a compatible 4-ohm amplifier channel.
• Sealed-Enclosure Optimization: Designed for sealed enclosures starting at 10 liters.
• Water-Repellent Paper Cone: Uses treated pressed paper for the moving cone assembly.

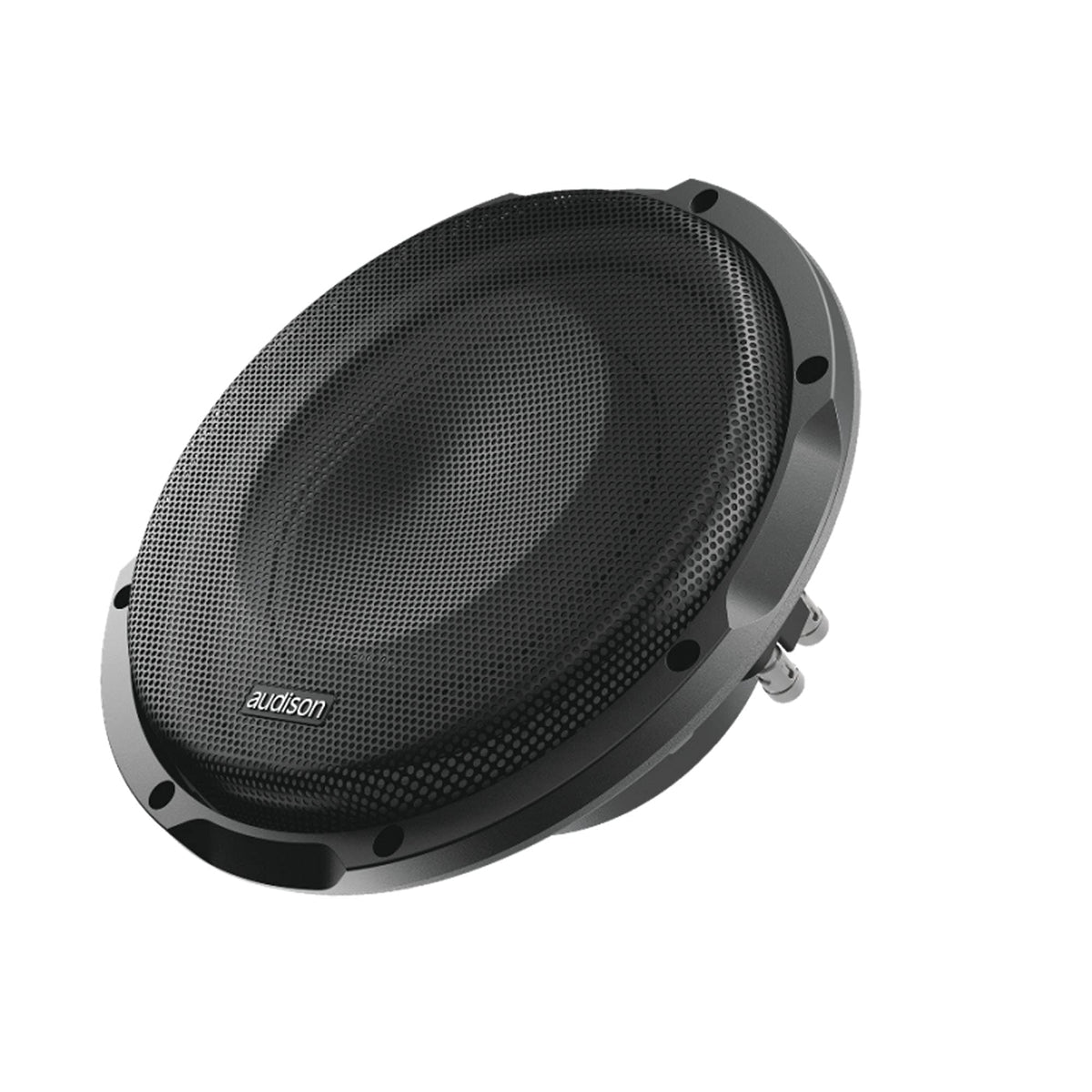

• Included Protection Grille: Steel mesh grille helps protect the installed subwoofer driver.

Design & Installation

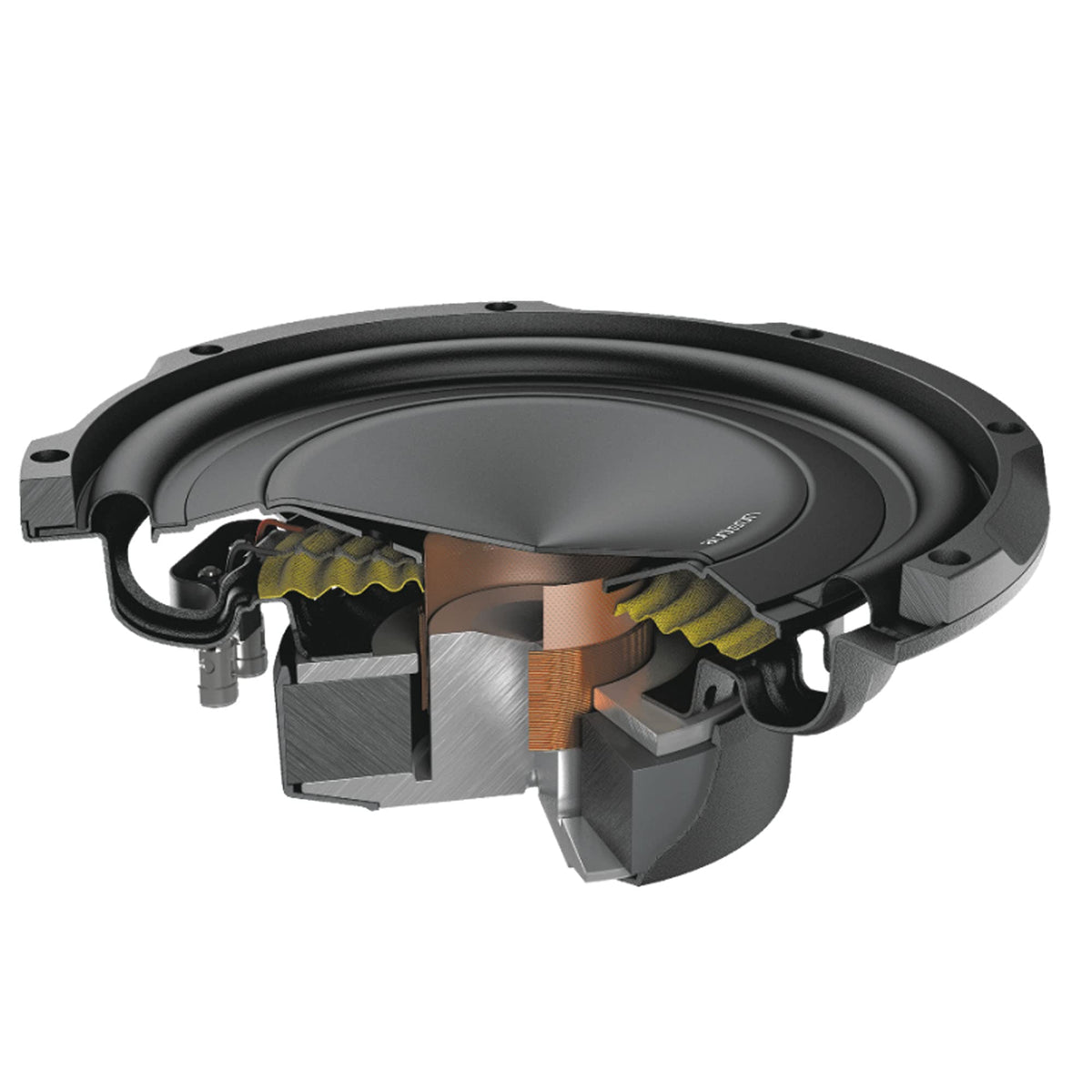

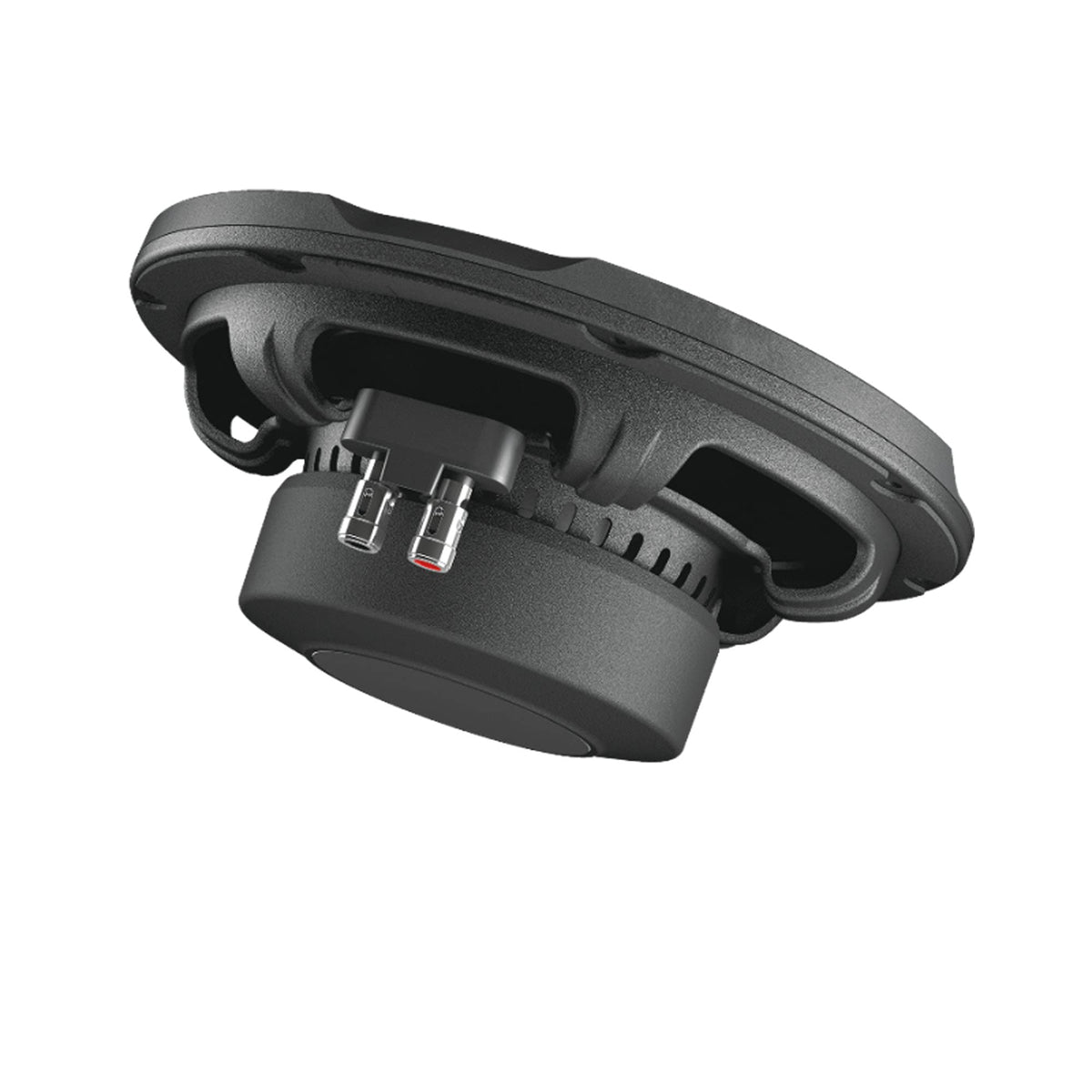

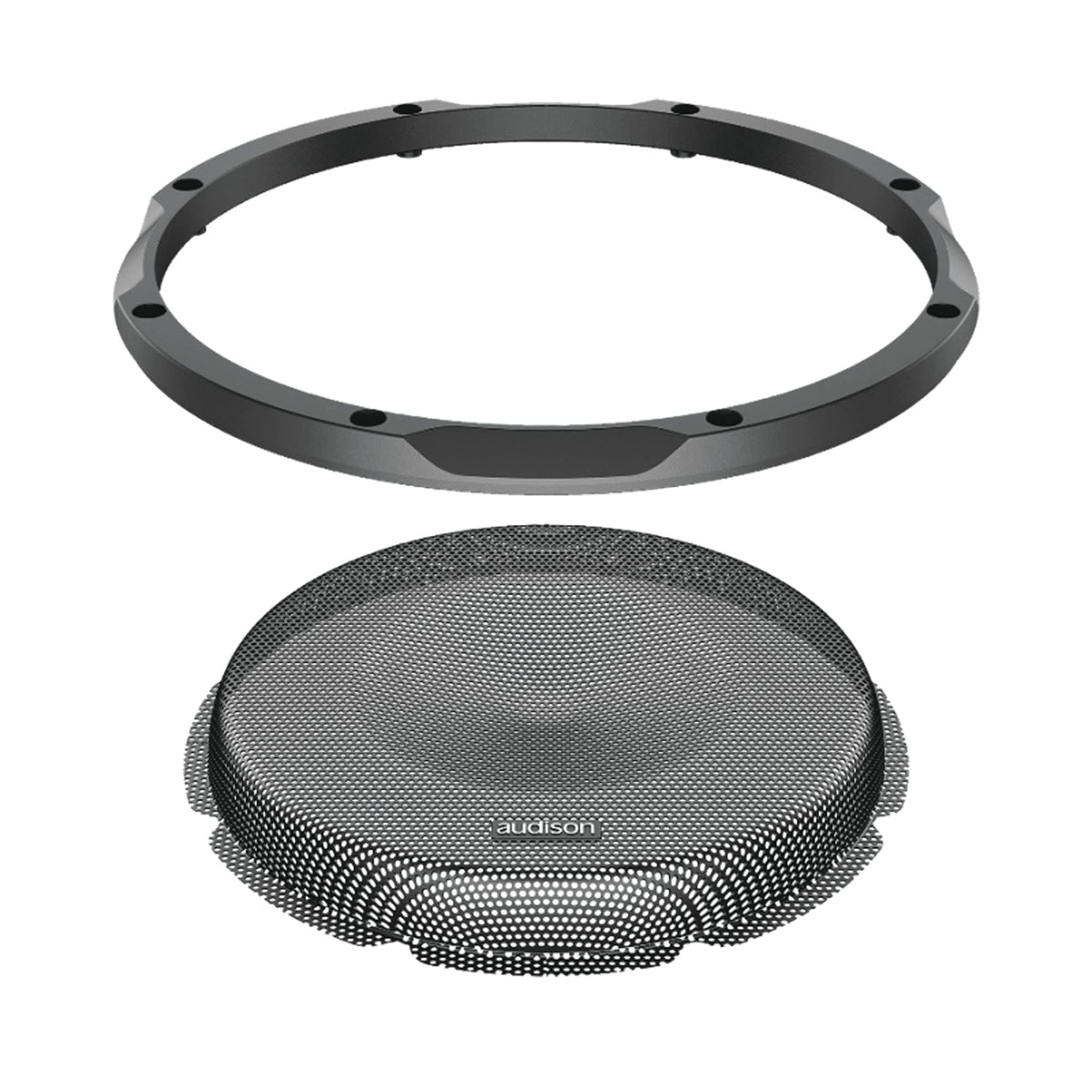

The APS 10 S4S combines a high-density-flux ferrite magnet with a 60 mm voice coil and water-repellent pressed-paper cone. Its basket includes vents beneath the spider, while the shallow geometry is designed to retain excursion capability in a compact format. The supplied steel mesh grille and plastic gasket provide practical finishing and protection components.

Install this driver in a custom sealed enclosure with at least 10 liters of volume, allowing for the driver’s 1.12-liter displacement during enclosure planning. Verify the 270 mm outside diameter, 233 mm Dimension B, and 88 mm mounting-depth measurement against the available mounting location before cutting. Use an amplifier that is stable at 4 ohms, set gains carefully, and configure the system’s crossover and enclosure construction for subwoofer use.
