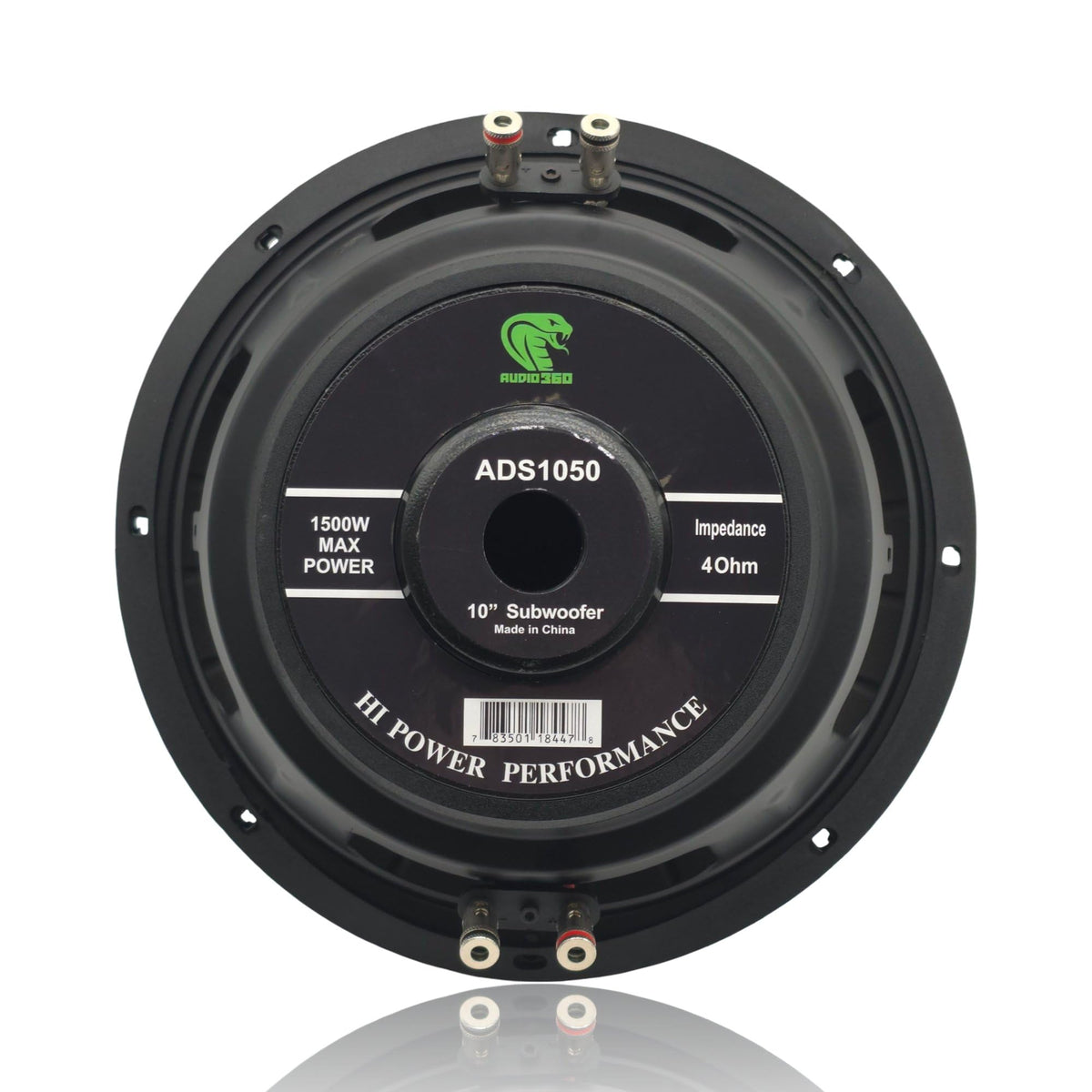

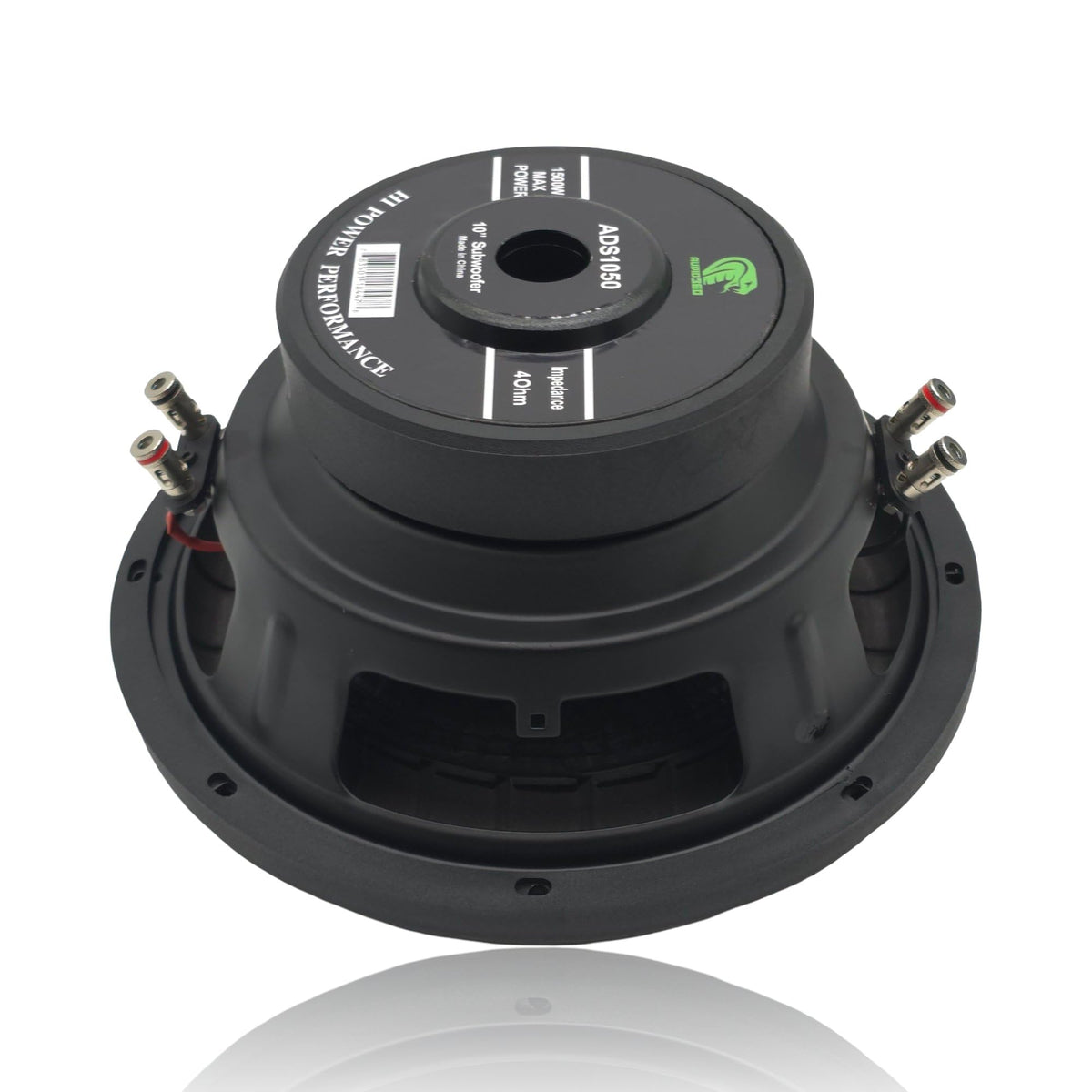

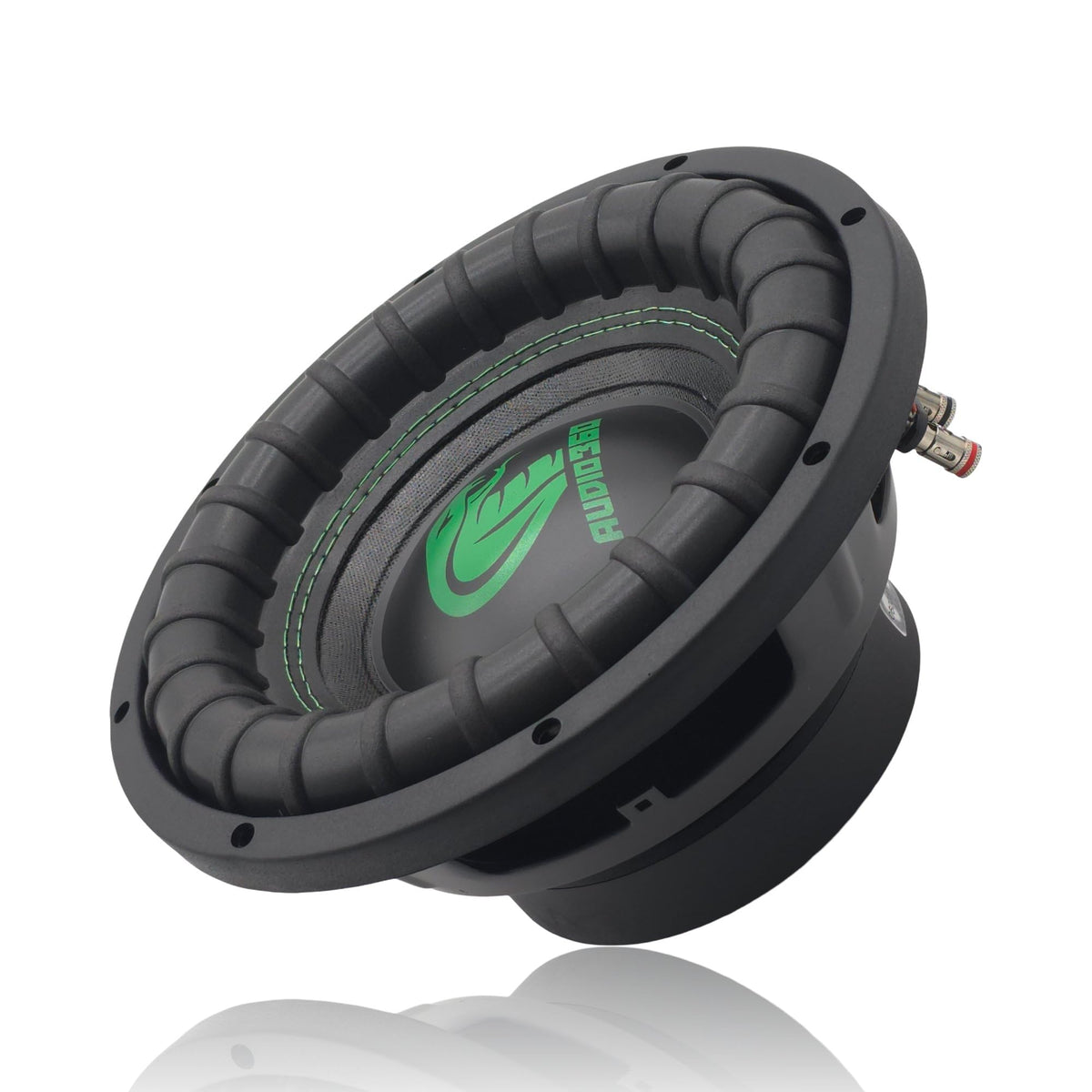

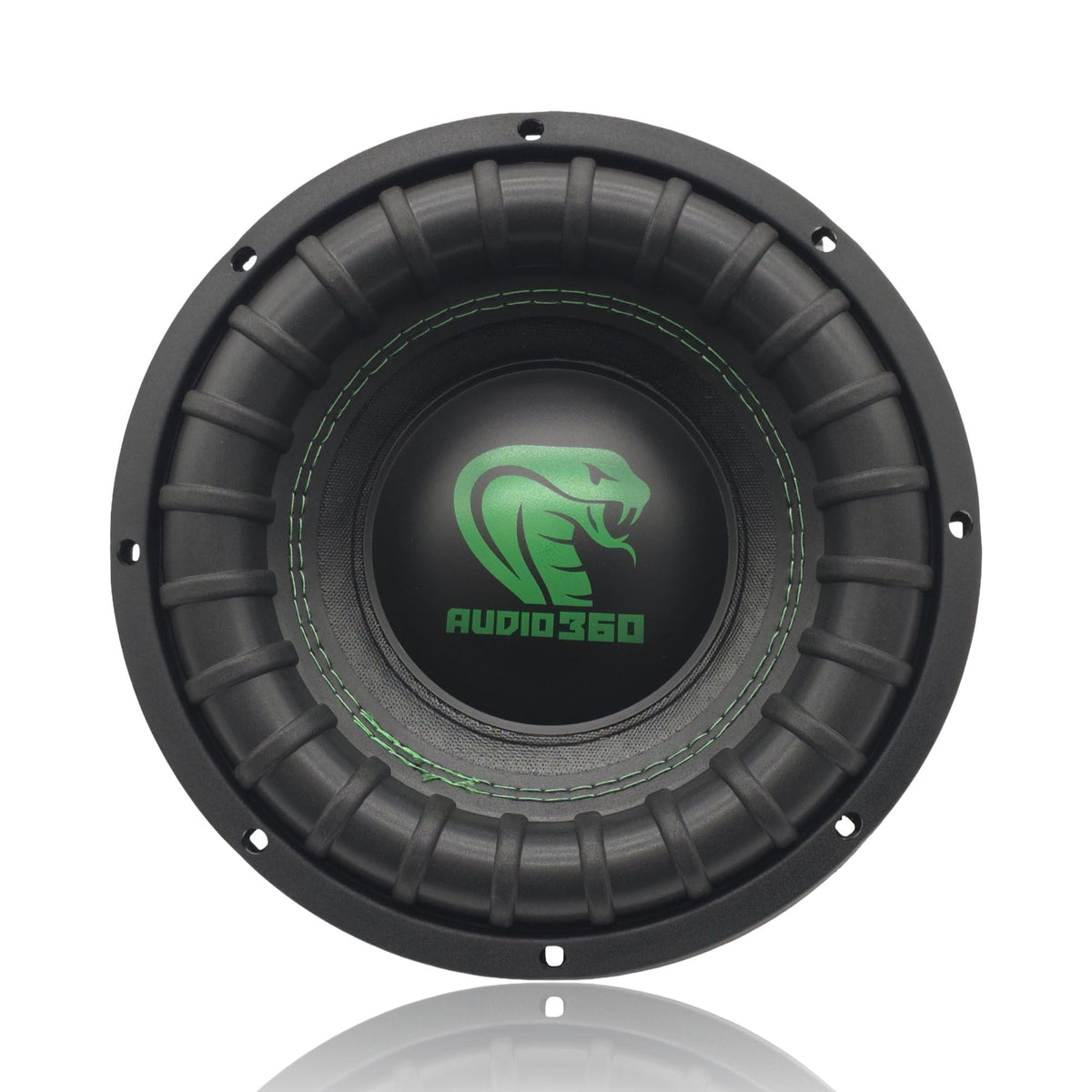

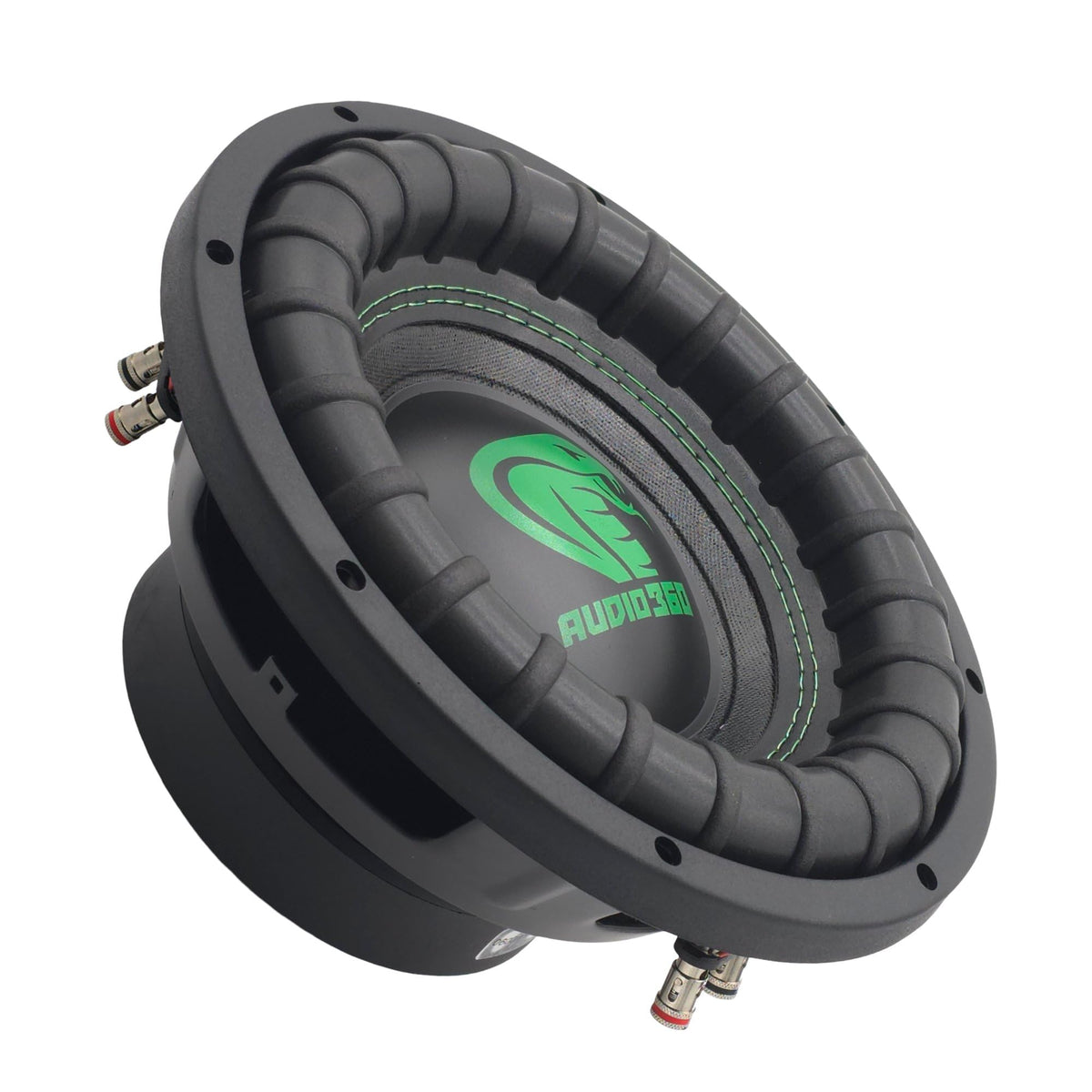

Audio360 ADS1050 10-Inch Car Subwoofer

The Audio360 ADS1050 is a 10-inch car subwoofer designed for adding dedicated low-frequency output to a custom vehicle audio system. It is a raw subwoofer driver, so it is intended to be installed in a compatible enclosure and powered by an external amplifier. Its 4-ohm impedance and 750-watt RMS power-handling rating make it suited to systems planned around a single subwoofer channel.

This model is for listeners who want to supplement factory or aftermarket full-range speakers with deeper bass reproduction. The 10-inch format offers a compact alternative to larger subwoofers while still supporting substantial power handling. It can be used in a range of vehicle applications when enclosure space and mounting clearance are verified first.

The ADS1050 is rated for 750 watts RMS and 1,500 watts maximum power handling. These ratings help guide amplifier selection, with the RMS figure being the more useful number for continuous power matching. A properly adjusted amplifier and correctly configured crossover are important for dependable system operation.

Audio360 specifies the ADS1050 for either sealed or ported enclosures. A sealed enclosure is generally chosen when a more controlled bass character is desired, while a ported enclosure can be selected when the enclosure is designed for greater output. Enclosure volume, port tuning, and installation details are not specified in the confirmed product data and should be planned separately.

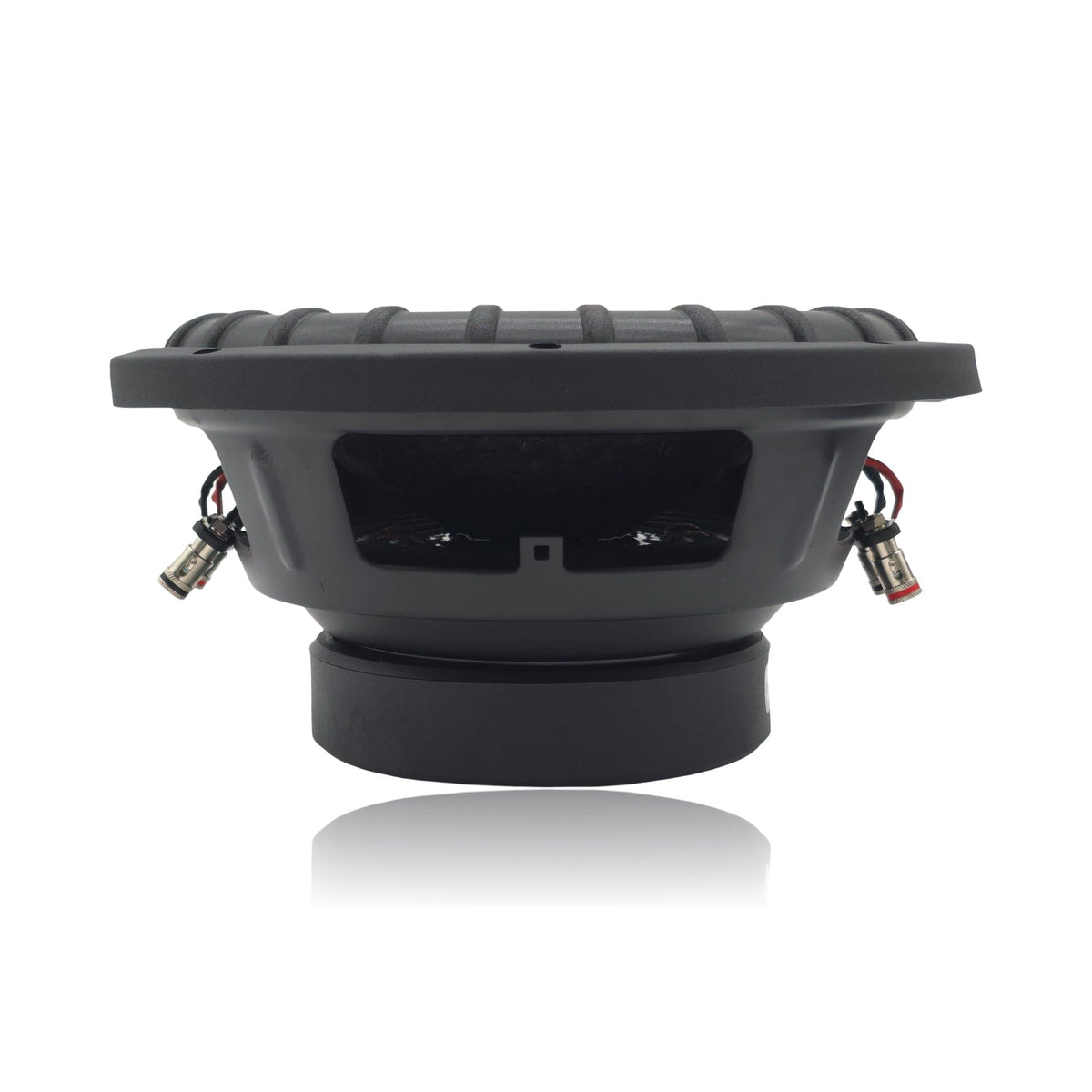

The subwoofer uses heavy-duty cone and surround construction for high-output use. Its 5.12-inch mounting depth and 9.06-inch cutout diameter provide the key fitment measurements needed when selecting or building an enclosure. Confirm available depth, cutout size, mounting-hole pattern, and enclosure suitability before installation.

Key Features

• 750W RMS Handling: Supports amplifier matching based on continuous power capacity.
• 1500W Maximum Power: Provides a stated peak power-handling reference.
• 10-Inch Driver: Adds dedicated bass capability in a space-conscious format.
• 4-Ohm Impedance: Works with compatible aftermarket amplifier configurations.
• Sealed or Ported Use: Supports different enclosure approaches for system tuning.
• Compact Fitment: Uses a 5.12-inch mounting depth and 9.06-inch cutout.

Design & Installation

The ADS1050 is built around a heavy-duty cone and surround assembly intended for car-audio subwoofer duty. Audio360 identifies the driver as suitable for high-output conditions, while the 10-inch size helps it fit installations where larger subwoofers may not be practical. Specific cone material, surround material, voice-coil details, magnet specifications, and sensitivity are not confirmed in the available product information.

Install the ADS1050 in a properly constructed sealed or ported enclosure that accommodates its 9.06-inch cutout diameter and at least 5.12 inches of mounting depth. Pair it with a compatible external amplifier, set gain conservatively, and use appropriate filtering to limit the driver to bass frequencies. An enclosure, amplifier, wiring, and mounting hardware should be planned separately unless supplied by the selling package.
