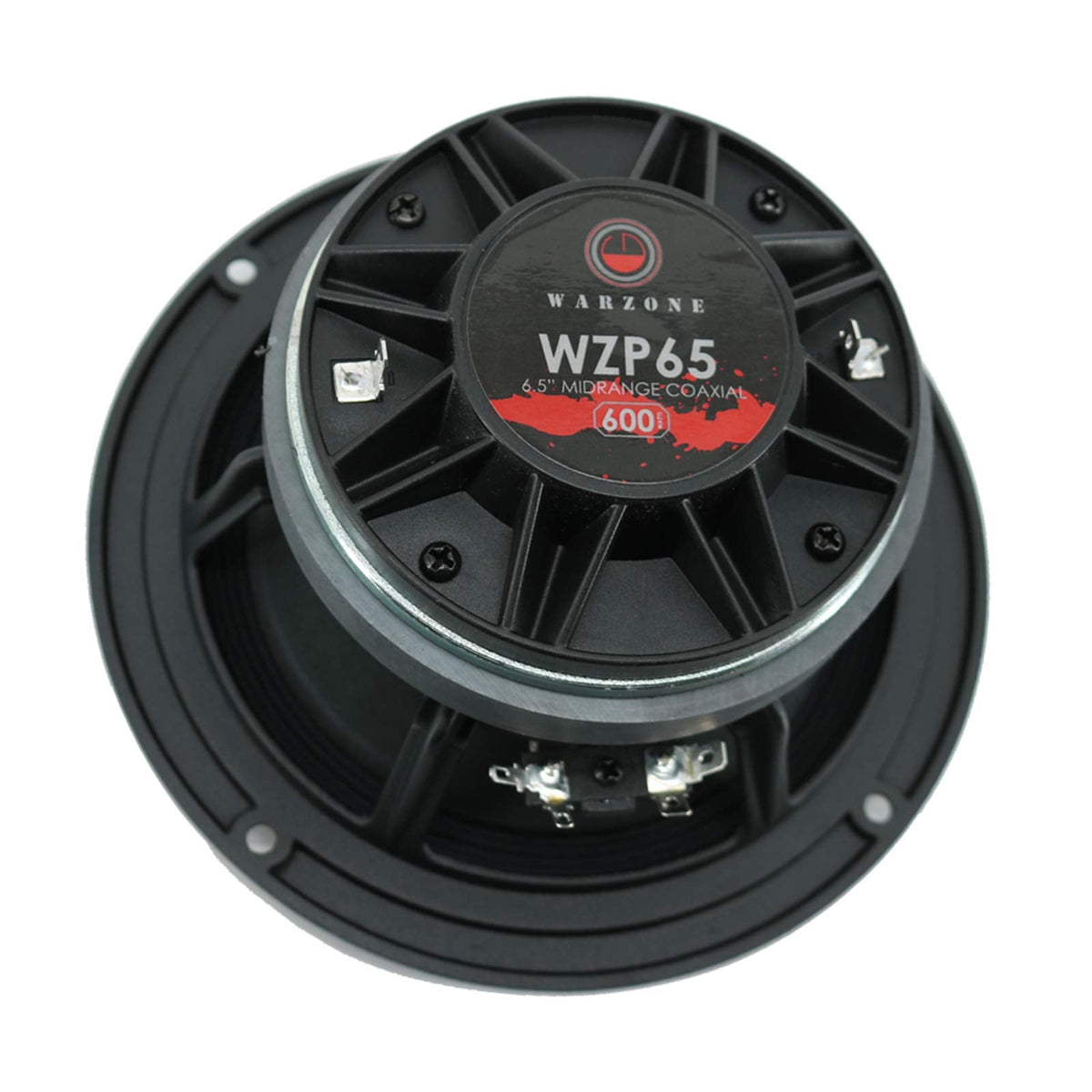

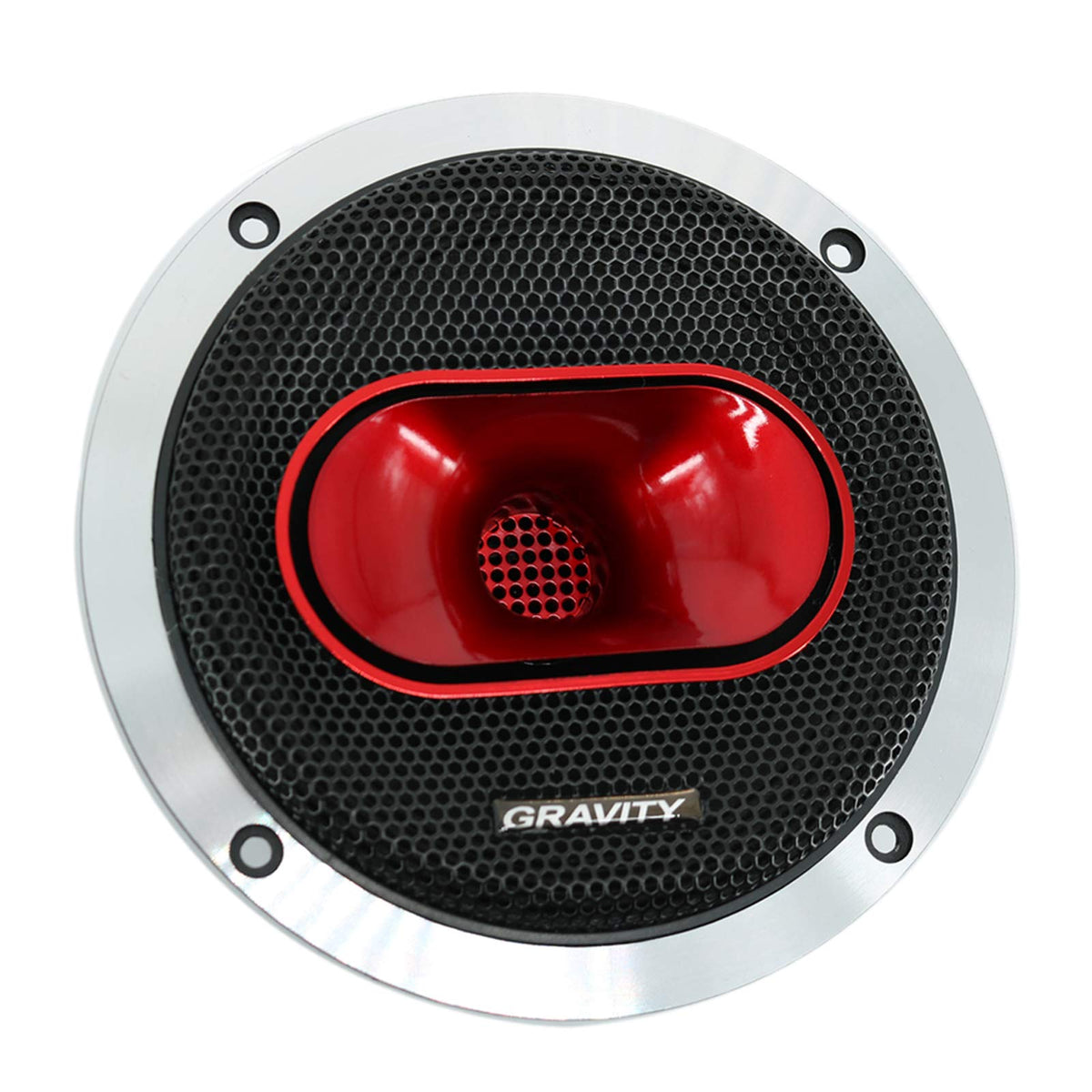

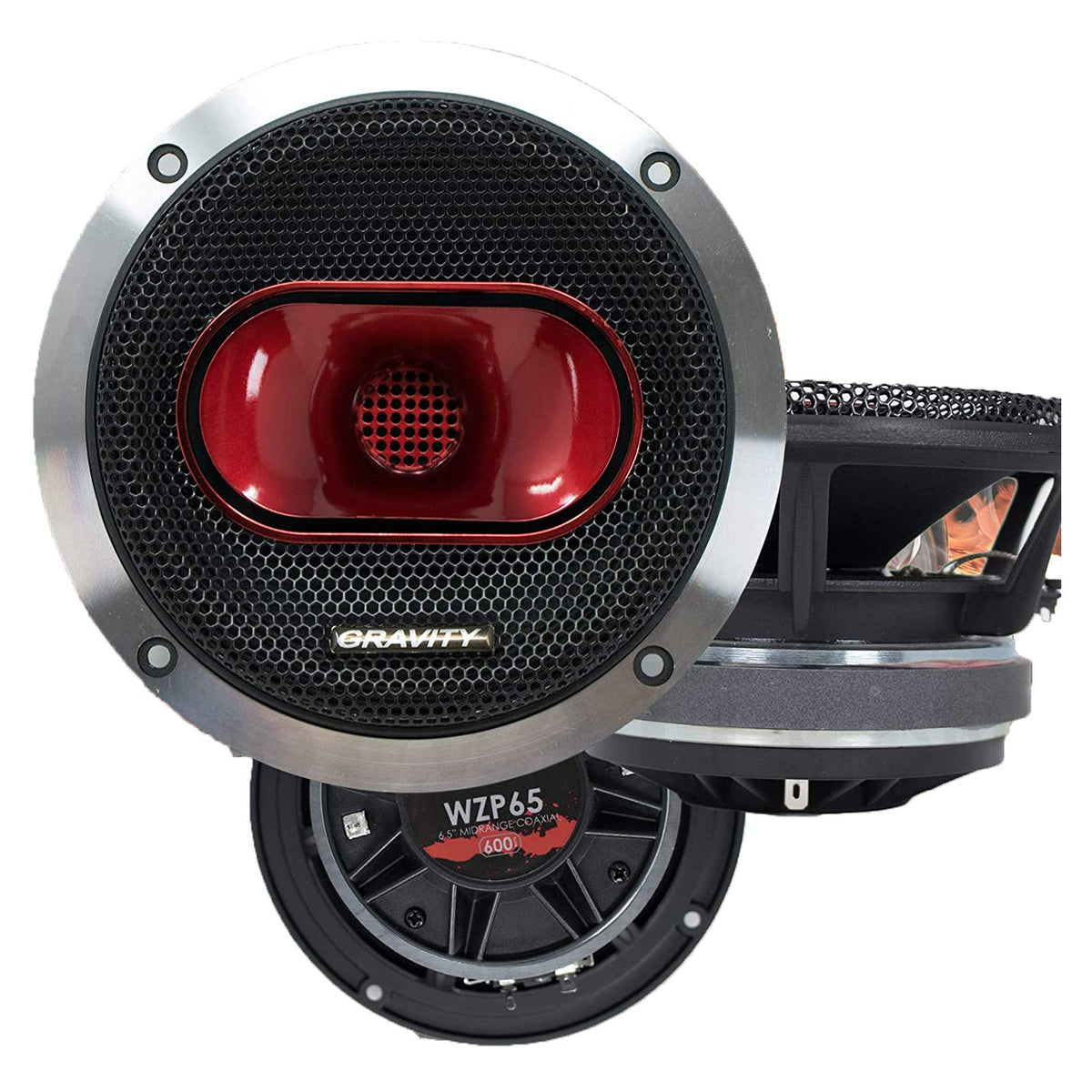

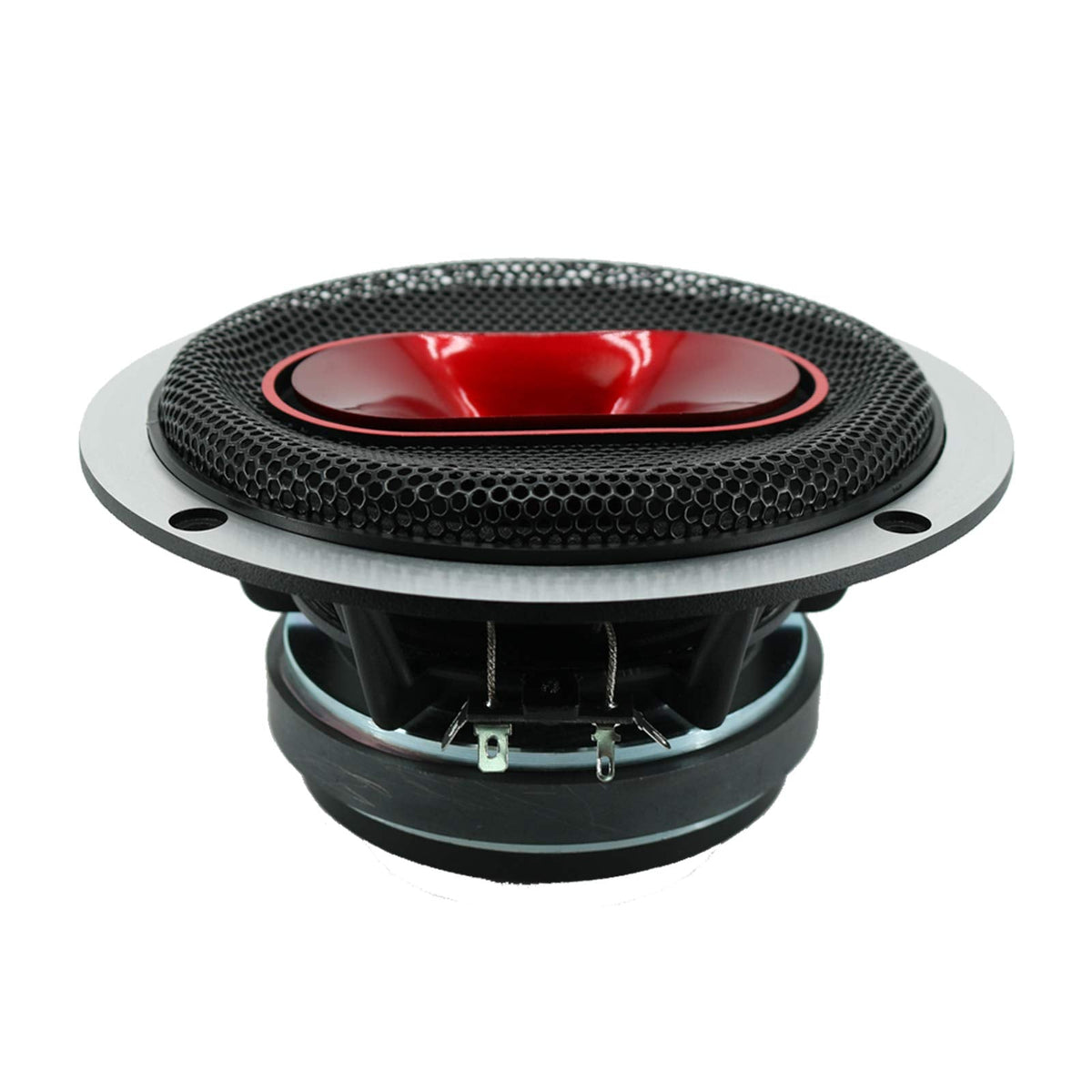

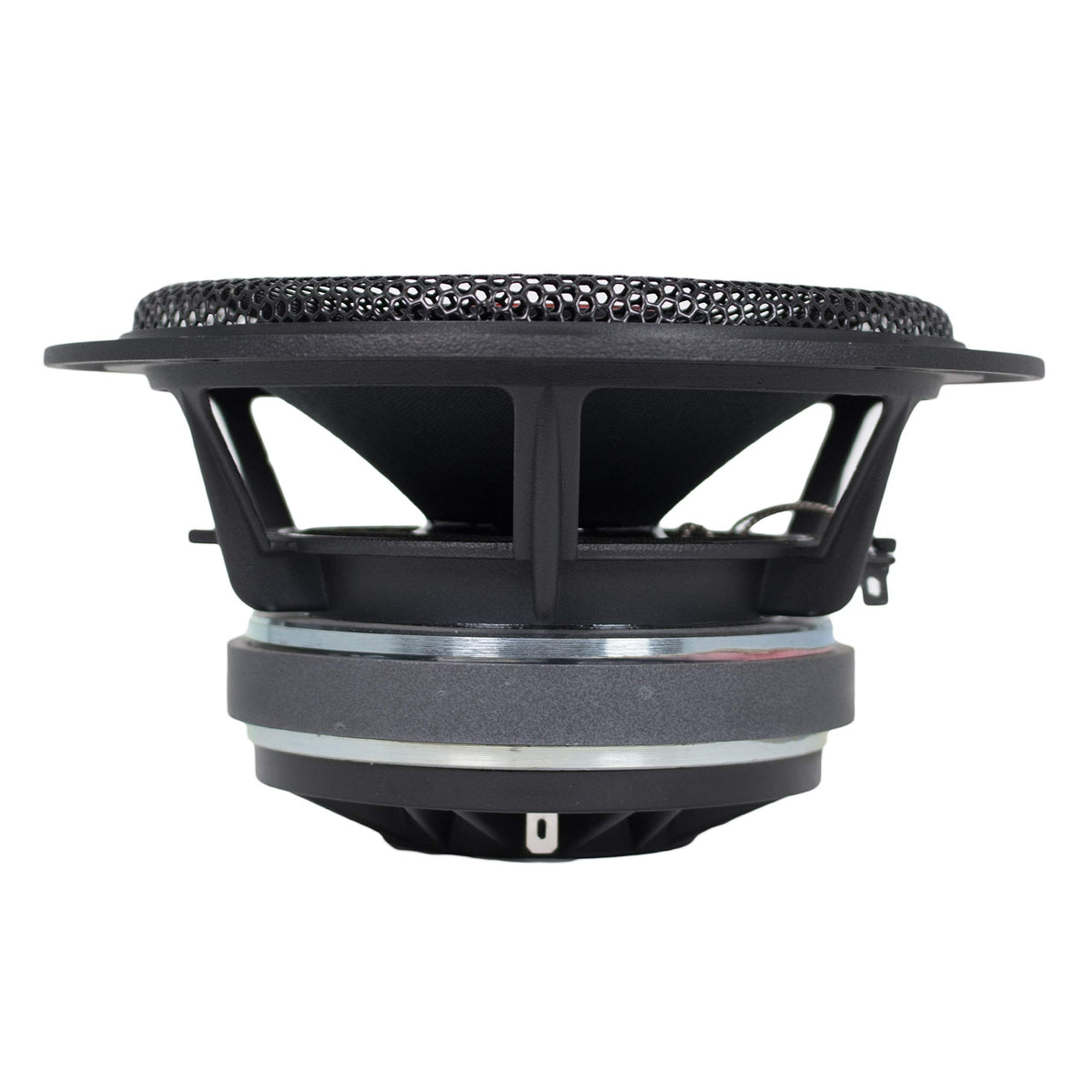

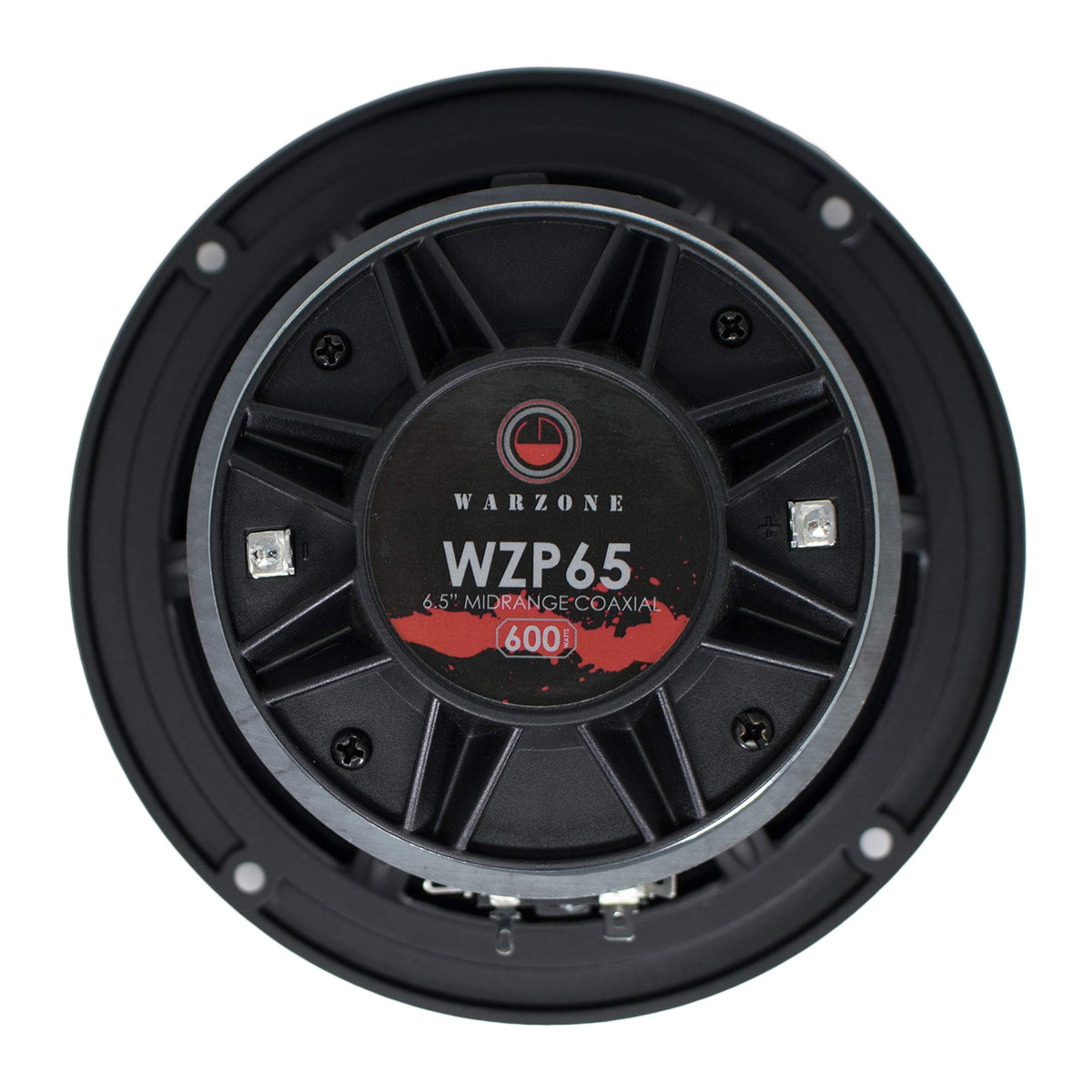

WARZONE WZP65 6.5" Pro Midrange Coaxial Speaker

The WARZONE WZP65 is a 6.5-inch pro midrange coaxial loudspeaker intended for car-audio systems that need dedicated vocal and instrument-range output. Its 4-ohm nominal impedance supports use with compatible aftermarket amplification. The speaker is sold as a single unit for custom installations, replacement applications, or multi-speaker builds.

This model is rated for up to 600 watts maximum power and has a listed frequency response of 90 Hz to 22 kHz. That range places its focus on midrange presence while extending into upper-frequency detail through its coaxial design. A listed 95 dB sensitivity can help it produce useful output with appropriately matched amplifier power.

The WZP65 uses a 1.5-inch voice coil and a 20-ounce magnet. Its oversized magnet motor structure is intended to support the driver during higher-output use. A corrugated surround is also part of the speaker design.

For listeners building a high-output system, the WZP65 can be used for front-stage, door-panel, kick-panel, or custom-panel midrange duty where physical fitment allows. Its 6.5-inch format is common in aftermarket car-audio locations, but actual vehicle fitment should always be measured. Because its listed low-frequency limit is 90 Hz, pairing it with a subwoofer can help cover deeper bass frequencies.

The WZP65 is a passive speaker, so it needs a compatible amplified audio signal and proper speaker wiring. Match the amplifier to the speaker's 4-ohm load and set crossover points thoughtfully for the application. Confirm available mounting depth and cutout space before beginning an installation.

Key Features

• 6.5-Inch Coaxial Design: Combines midrange and high-frequency reproduction in one speaker assembly.
• 600W Maximum Power: Supports use in appropriately configured higher-output audio systems.
• 4-Ohm Nominal Impedance: Works with amplifiers designed for a 4-ohm speaker load.
• 90 Hz–22 kHz Response: Covers midrange content and extends into upper frequencies.
• 20-Ounce Magnet: Provides the magnetic motor structure specified for this driver.
• Corrugated Surround: Forms part of the driver suspension and speaker construction.

Design & Installation

The WZP65 is built around a paper cone, corrugated surround, 1.5-inch voice coil, and oversized magnet motor structure. Its coaxial layout places the high-frequency driver within the main 6.5-inch speaker assembly. The listed mounting style is flush mount, with a nominal basket diameter of 7.13 inches.

Verify a mounting depth of at least 3.58 inches and a cutout near the listed 5.71-inch diameter before installation. Use secure mounting hardware and correctly polarized speaker wiring, then pair the speaker with a compatible 4-ohm amplifier channel. For a fuller system, use suitable crossover settings and add a subwoofer for frequencies below the WZP65's stated response range.
