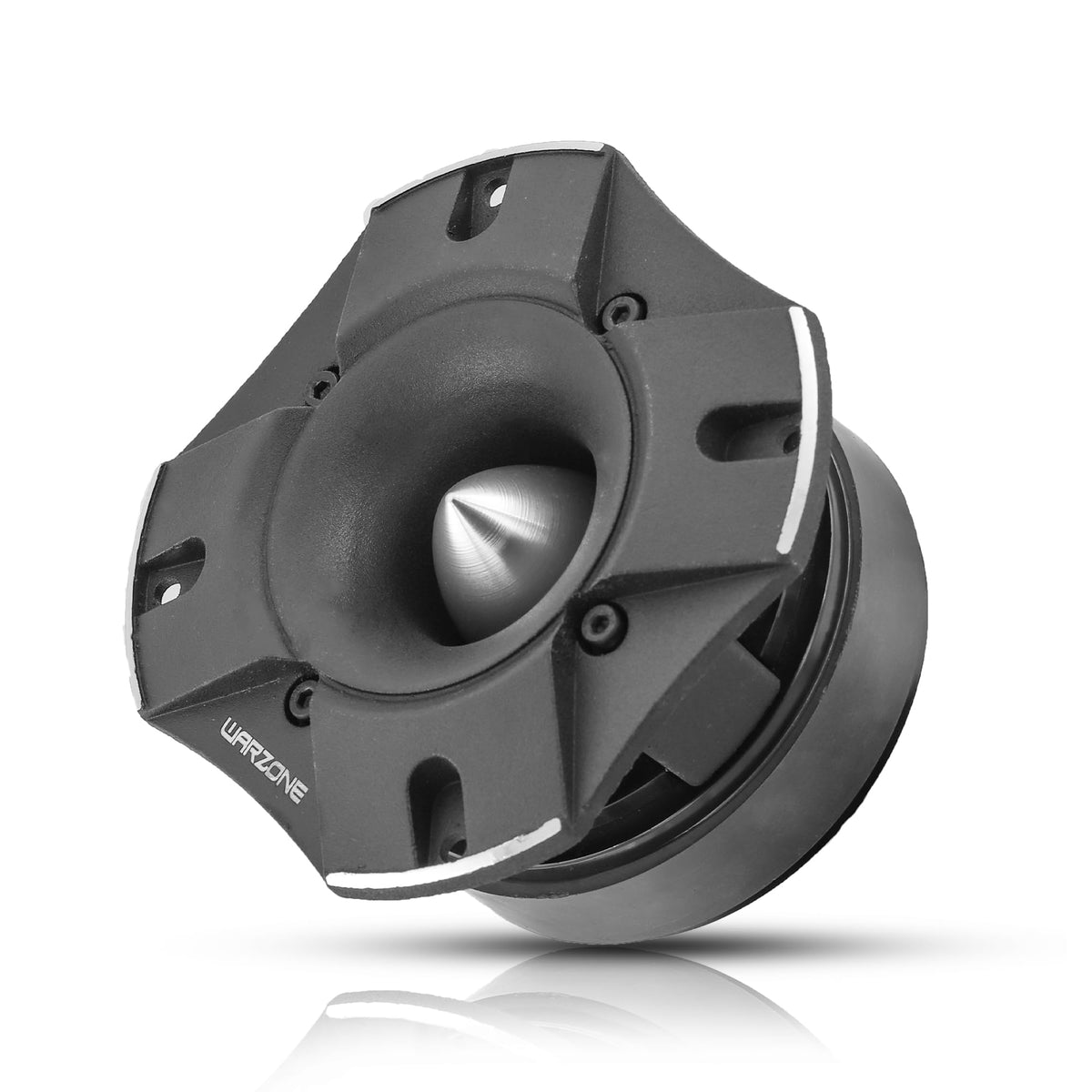

Warzone WZ80TW 4.81-Inch Super Tweeter

The Warzone WZ80TW is a 4.81-inch super tweeter designed to add dedicated high-frequency output to a car-audio system. It is suited to listeners building or upgrading systems that need more presence and detail in the upper-frequency range. With a 4-ohm nominal impedance, it is intended for use in compatible wired car-audio installations.

This tweeter is specified with a 103 dB sensitivity rating, allowing it to produce substantial output from relatively modest amplifier power. Its character is aimed at clear, forward high-frequency reproduction for systems where larger midrange drivers, subwoofers, or full-range speakers need added treble support. It is a focused high-frequency driver rather than a replacement for a complete speaker system.

The WZ80TW carries a stated maximum power rating of 1800 watts. Because no RMS power specification is published, amplifier selection should be based on careful system tuning rather than the maximum rating alone. Proper level matching helps keep the tweeter balanced with the rest of the system.

A titanium diaphragm is used for the sound-producing element, while the voice coil uses CCAW construction. These materials are specified as part of the driver design and support the tweeter's intended high-frequency role. The listed 20.3-ounce magnet adds substantial motor assembly mass for a compact super-tweeter format.

The WZ80TW can be used as part of a custom car-audio upgrade where dedicated high-frequency drivers are desired. Pair it with appropriately selected midrange, midbass, or subwoofer components to cover the rest of the audible range. A suitable high-pass crossover or other system filtering should be used to protect a tweeter during installation.

Key Features

• 4.81-Inch Format: Compact super-tweeter size for custom car-audio installations.
• 4-Ohm Impedance: Designed for compatible 4-ohm speaker amplification systems.
• 1800W Maximum Rating: Published maximum-power specification for system planning.
• 103 dB Sensitivity: High sensitivity supports strong high-frequency output.
• Titanium Diaphragm: Purpose-built diaphragm material for tweeter reproduction.
• CCAW Voice Coil: Copper-clad aluminum wire voice-coil construction.

Design & Installation

The WZ80TW uses a titanium diaphragm, CCAW voice coil, and a listed 20.3-ounce magnet. Its 4.81-inch speaker size makes it a dedicated high-frequency component for installations that use separate drivers instead of relying on a single full-range speaker. The published retail package measures 6.0 x 5.0 x 4.0 inches.

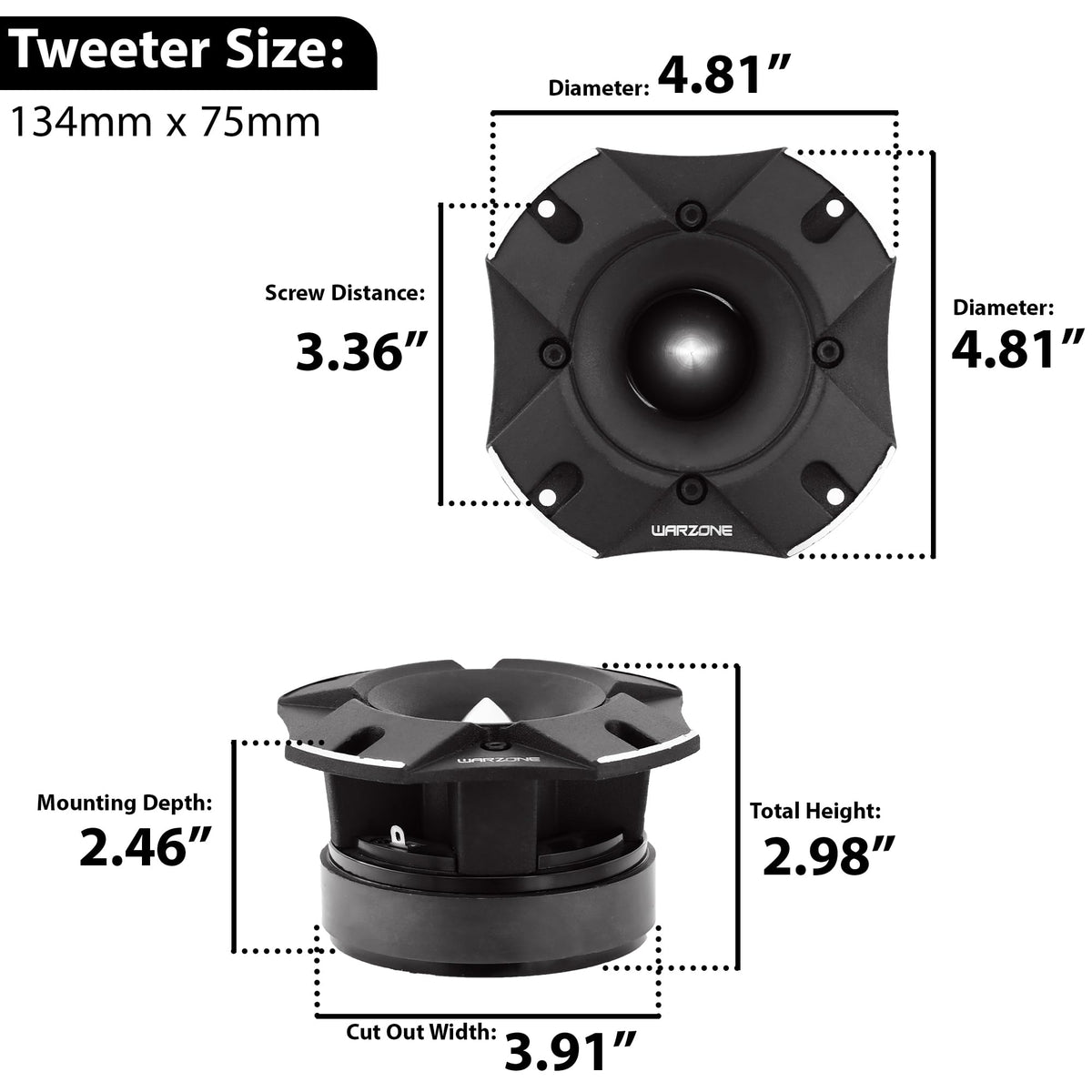

Install the tweeter in a location that supports clear forward sound while keeping it safely secured. Connect it through a compatible wired 4-ohm car-audio system and use appropriate high-pass filtering or crossover protection; crossover specifications are not published for this model. Confirm the available mounting space before purchase, as cutout diameter and mounting depth are not published.
