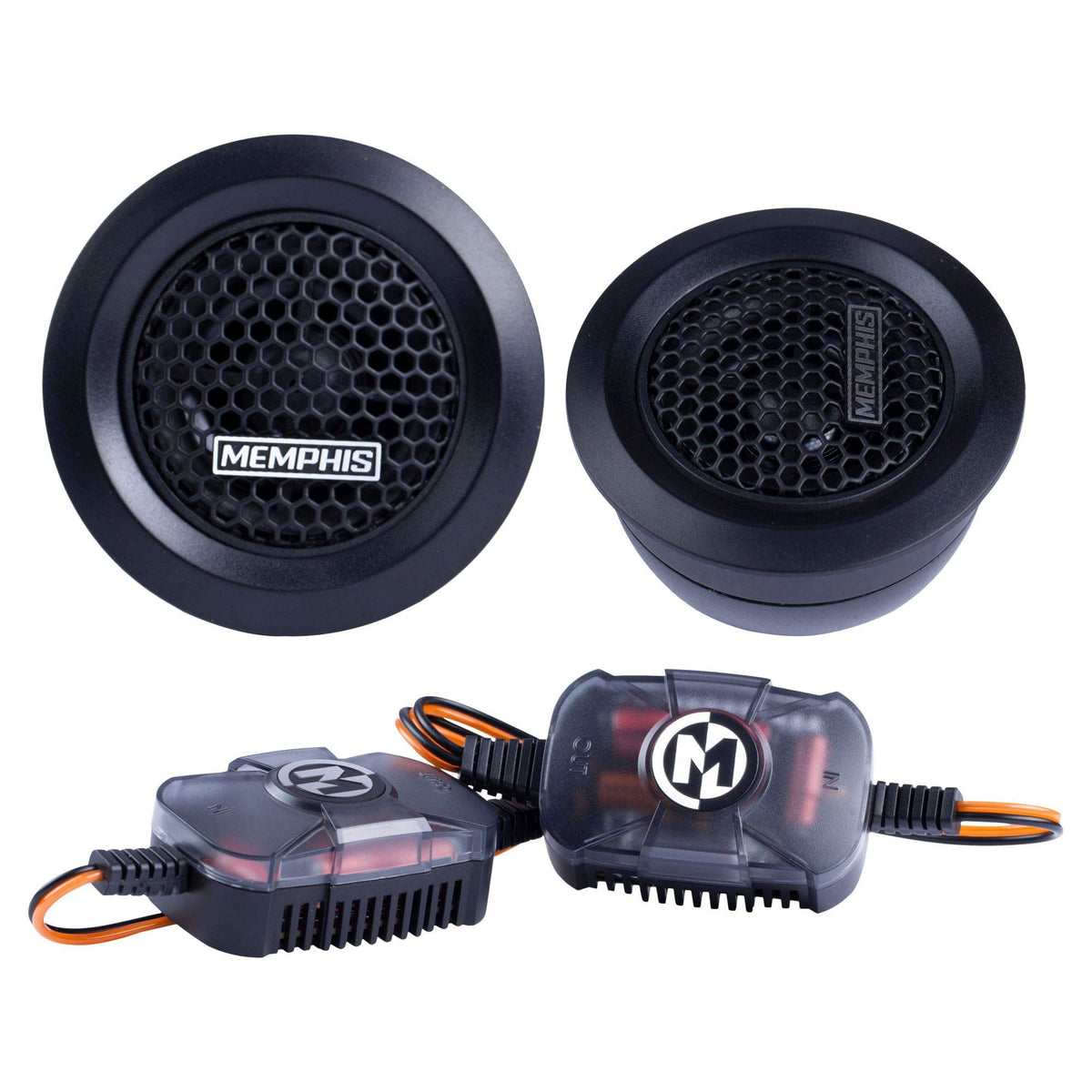

Memphis PRX10 1" PEI Dome Car Tweeters with Crossovers

The Memphis PRX10 is a pair of 1-inch car audio dome tweeters designed to add high-frequency detail to a factory or aftermarket sound system. They are intended for vehicles where existing speakers lack clarity in vocals, cymbals, and other upper-frequency information. With a compact format and multiple mounting options, they can be used in many dash, door, sail-panel, or custom-install locations.

These tweeters use PEI dome diaphragms and are rated for 50 watts RMS and 100 watts peak power. Their 4-ohm impedance supports integration with many common car audio amplifiers and speaker systems. The 3,200-20,000 Hz frequency response focuses performance on the upper range where tweeters are most effective.

A multi-direction pivot tweeter system allows the listening angle to be adjusted after installation. This can help direct high frequencies toward the listening area instead of firing away from occupants. The result is a more deliberate installation approach when replacing factory tweeters or building a component-style system.

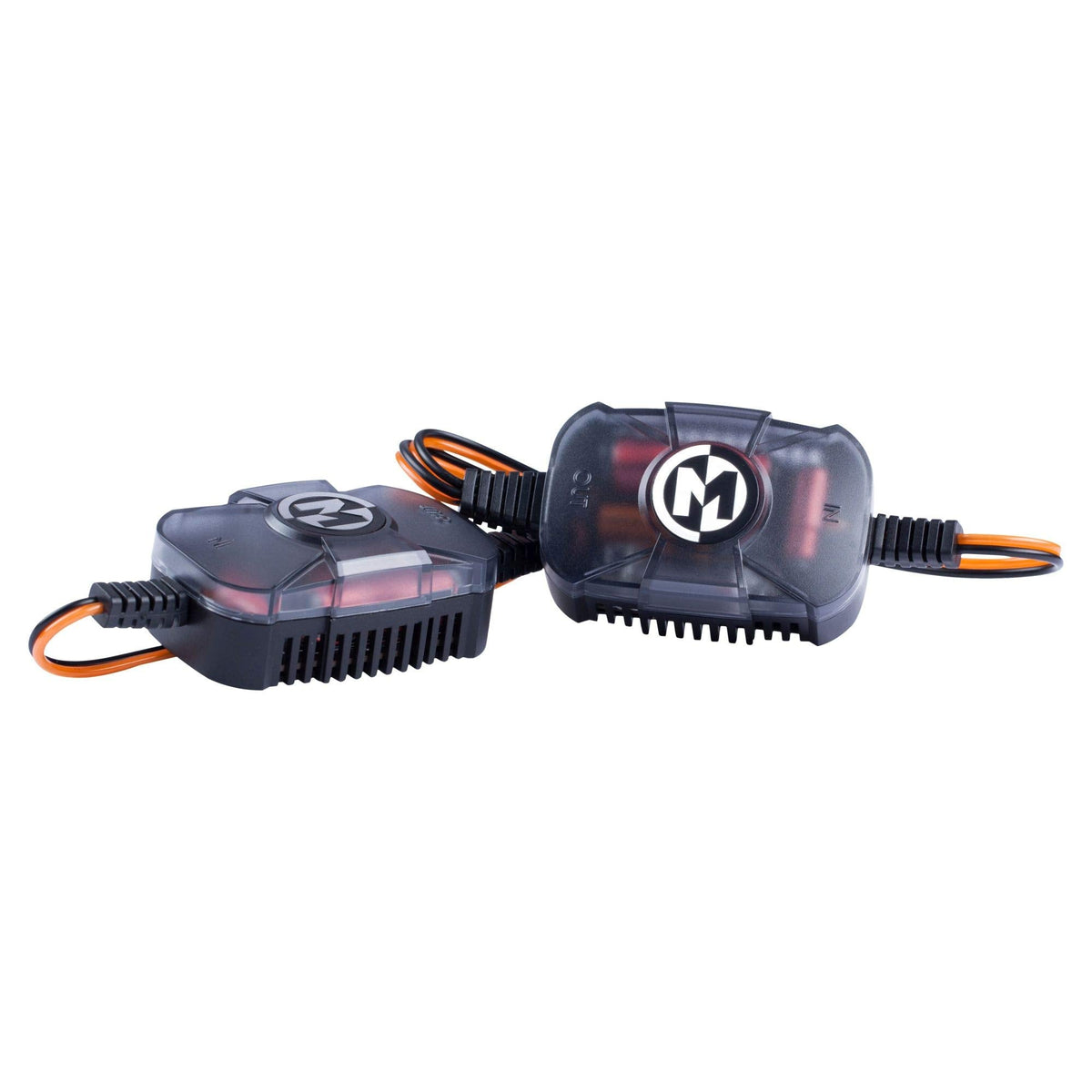

The PRX10 package includes separate external crossovers to route appropriate frequencies to the tweeters. This helps protect the tweeters from lower-frequency content that they are not designed to reproduce. The included quick-slide wire connections and mounting hardware support a cleaner installation process.

These Memphis Power Reference tweeters are suited to listeners upgrading dull or damaged factory high-frequency drivers, as well as installers adding dedicated tweeters to a compatible speaker system. Flush-mount and angled surface-mount hardware allow placement choices based on the vehicle and desired aiming position. They can be paired with compatible full-range speakers and an appropriately configured amplifier or factory system.

Key Features

• 1-Inch PEI Dome: Produces dedicated high-frequency output in a compact format.
• 50W RMS Handling: Supports systems with up to 50 watts RMS.
• 4-Ohm Impedance: Integrates with many car audio speaker circuits.
• External Crossovers: Direct appropriate frequencies to the tweeters.
• Pivoting Tweeter Design: Allows aiming toward the listening area.
• Multiple Mounting Options: Includes flush and angled surface-mount hardware.

Design & Installation

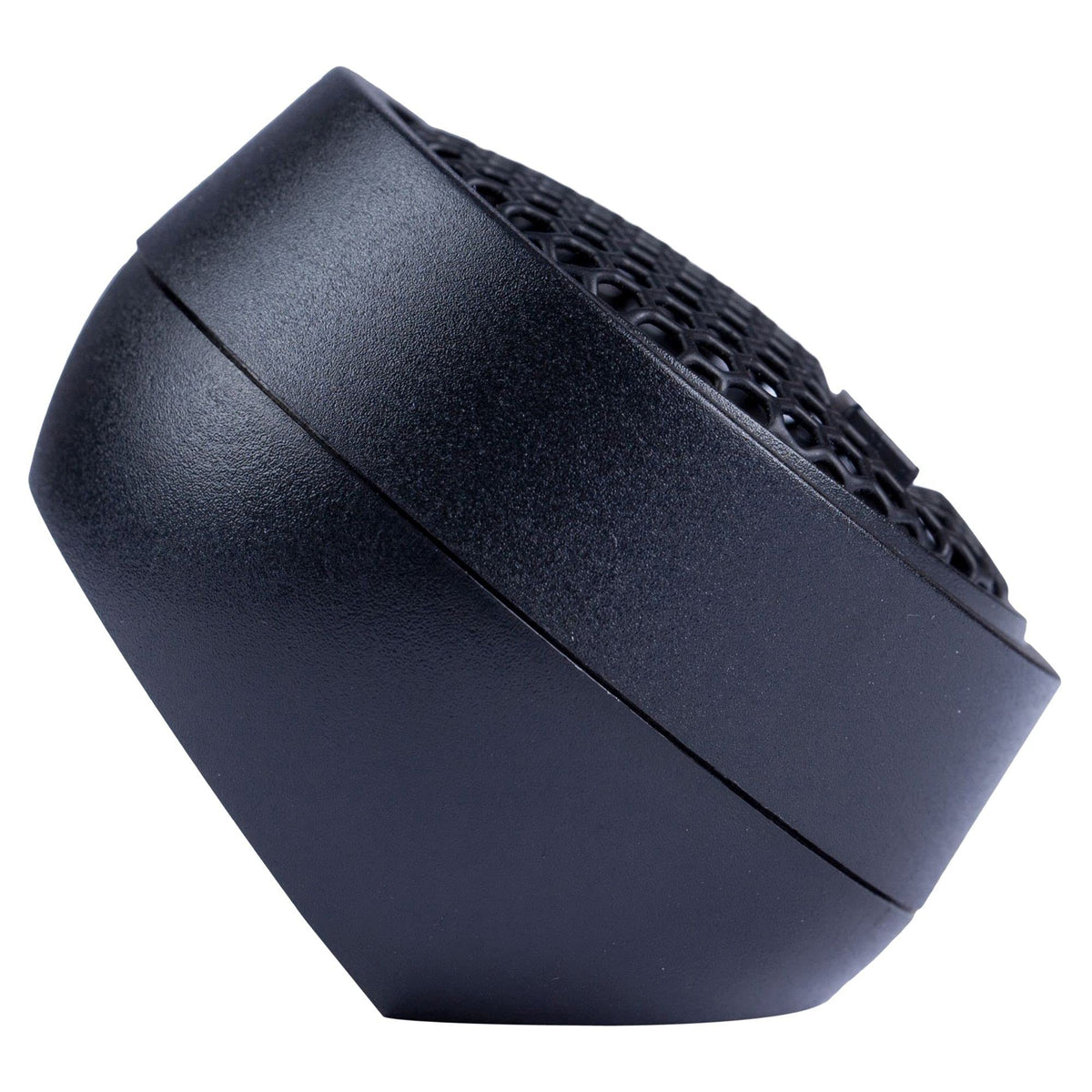

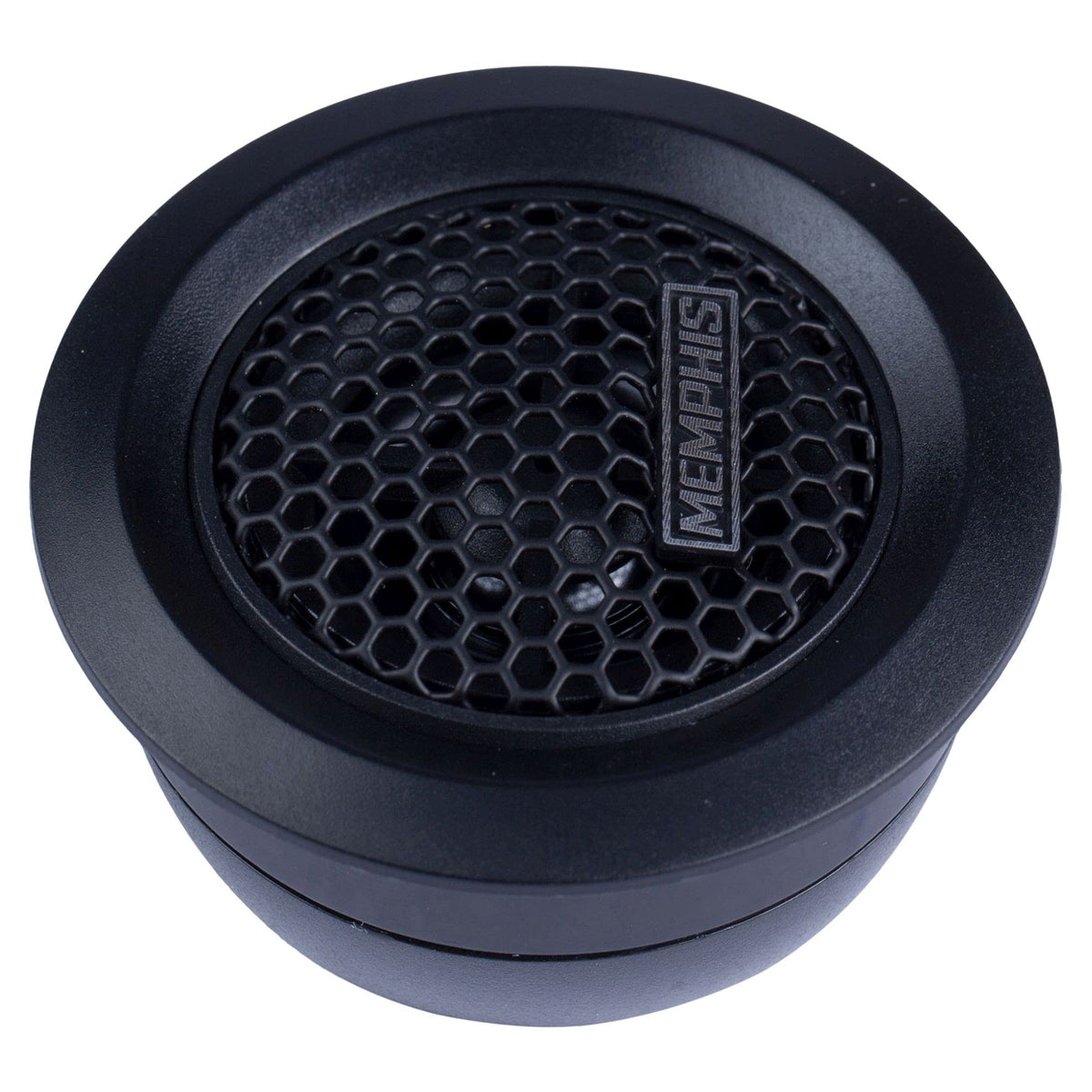

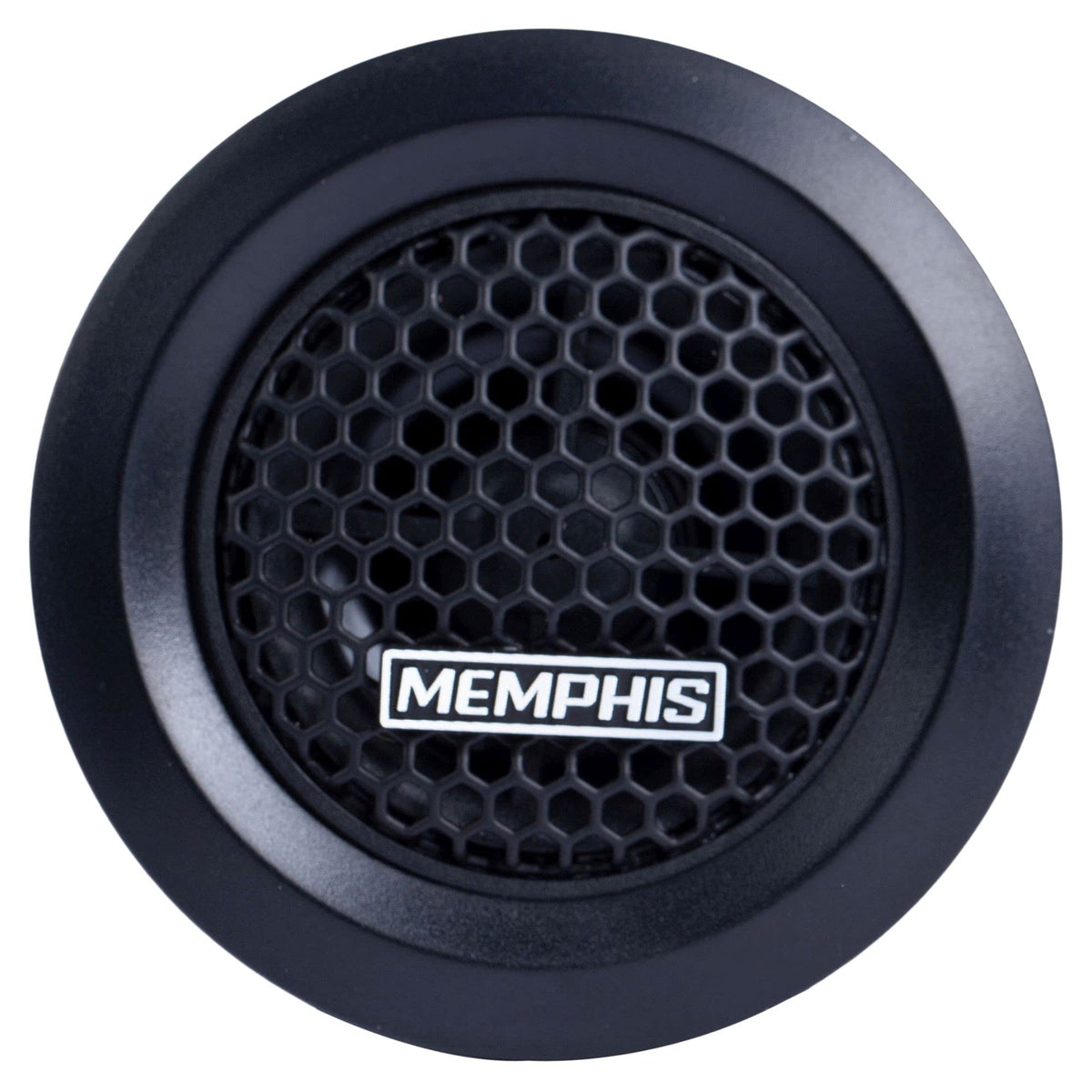

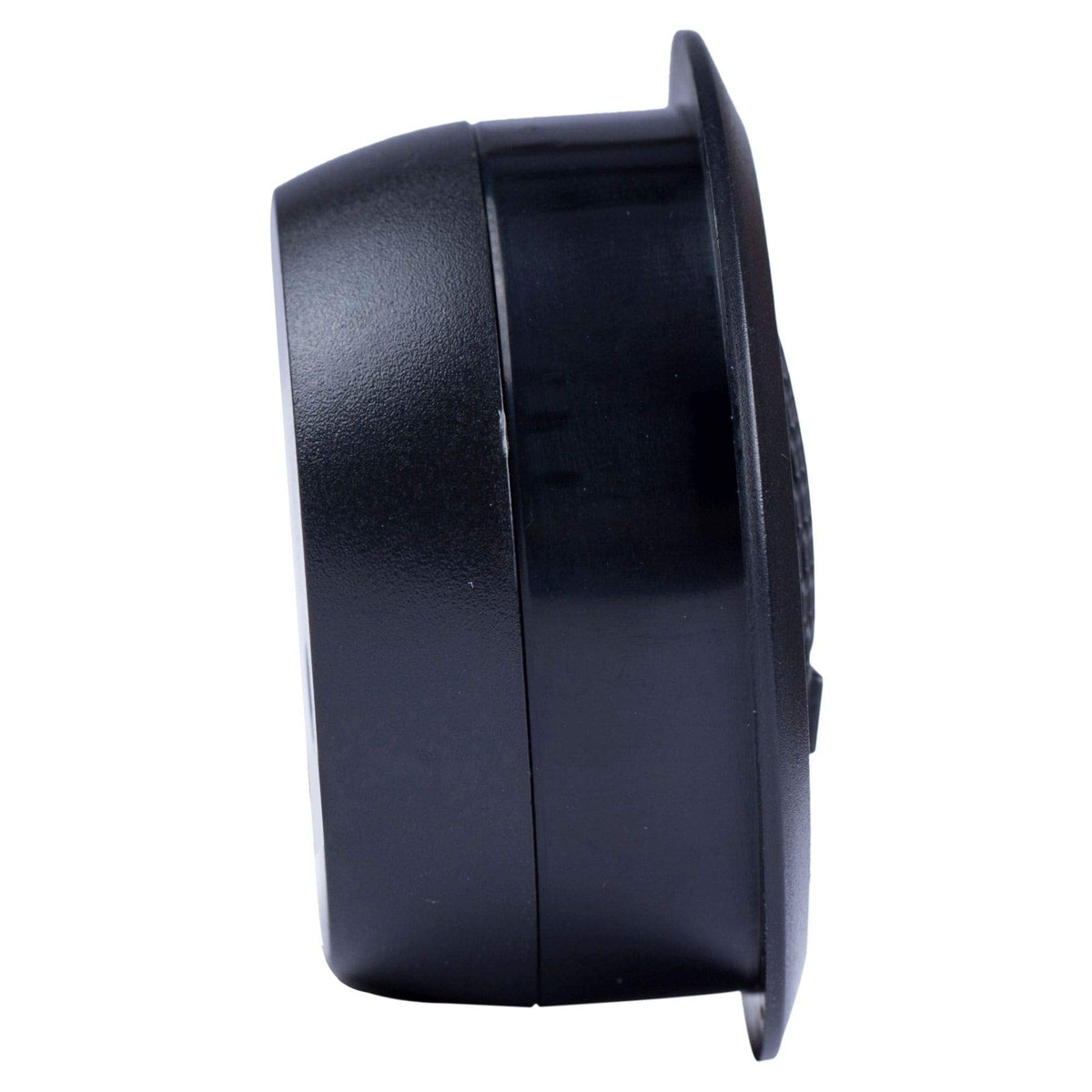

The PRX10 uses a 1-inch PEI dome tweeter design with a compact 0.75-inch listed mounting depth and a 0.75-ounce magnet. Its pivoting assembly is designed to make aiming more flexible than a fixed-position tweeter. The package includes flush-mount housings, retaining rings, and angled surface-mount housings for different installation approaches.

For installation, mount the tweeters high in the vehicle when practical and aim them toward the listeners for more direct high-frequency delivery. Connect each tweeter through its included crossover rather than wiring it directly to a full-range output. Confirm available mounting depth, cutout space, wiring polarity, and system power before installation; factory locations may require vehicle-specific adaptation.
