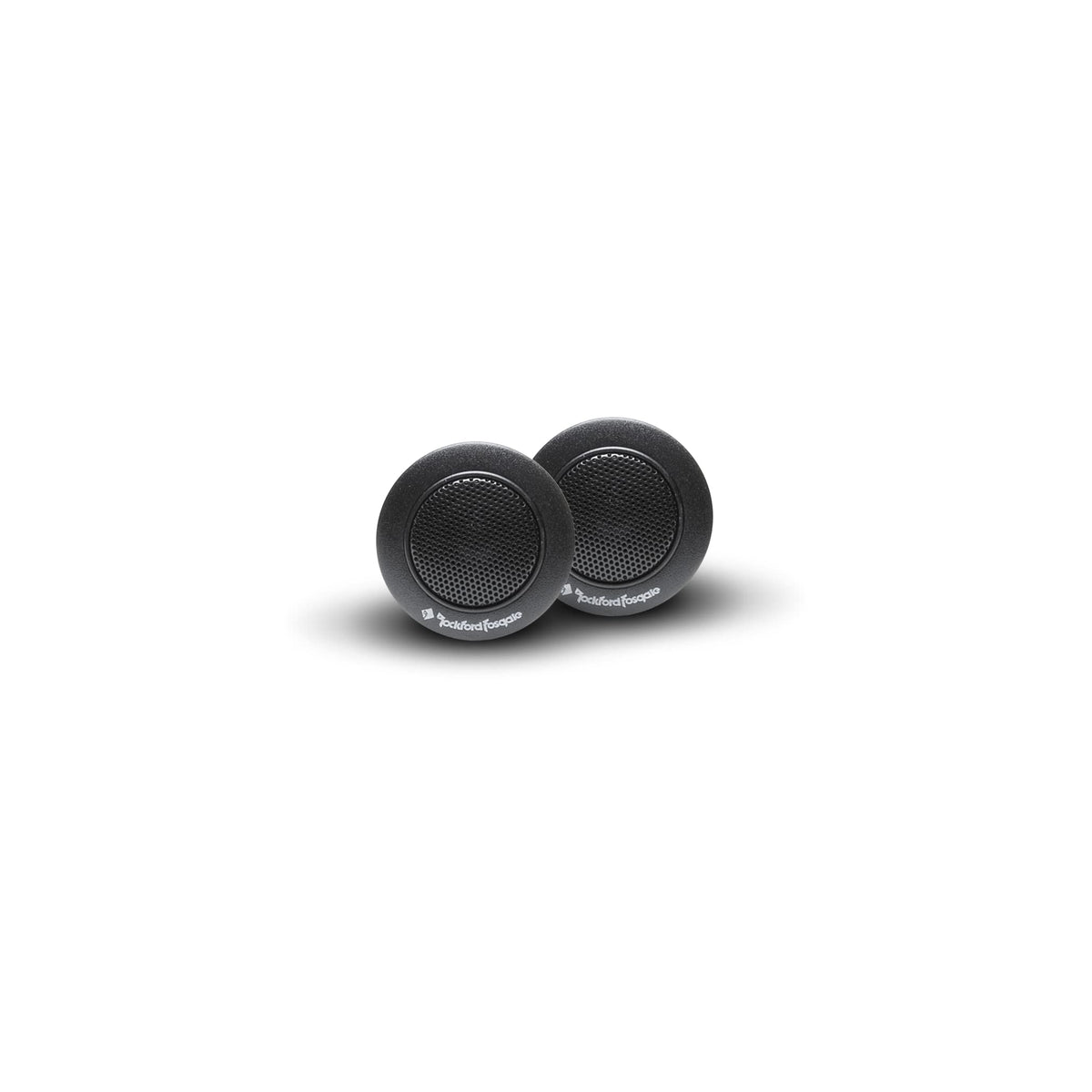

Rockford Fosgate R1T-S 1" Tweeter Kit (Pair)

The Rockford Fosgate Prime R1T-S is a pair of compact 1-inch car-audio tweeters designed to add dedicated high-frequency detail to an existing speaker system. It is a practical option when factory speakers lack clarity in vocals, cymbals, and other upper-range content. The kit uses 4-ohm tweeters and is intended for vehicle audio installations.

This kit is suited to listeners building a basic component-style front stage or replacing damaged factory tweeters. Its compact size and included mounting options make it useful for locations such as sail panels, door panels, dash locations, or custom pods where space permits. Flush, surface, and angle-mount hardware supports different installation approaches.

The R1T-S uses Mylar balanced-dome tweeters, a lightweight diaphragm design intended to reproduce upper frequencies with controlled detail. Its specified frequency response is 2.5 kHz to 22 kHz, covering the high-frequency range that smaller full-range door speakers may not reproduce as effectively. Sensitivity is rated at 72.5 dB at 1 watt/1 meter.

Each tweeter has an integrated passive high-pass crossover, so the driver is filtered from lower frequencies that are better handled by a midrange or woofer. The crossover is specified at 4.5 kHz with a 6 dB-per-octave slope. This simplifies adding the tweeters to a compatible speaker system while maintaining the intended high-frequency role.

With 40 watts RMS and 80 watts maximum power handling, the R1T-S can be matched with modest aftermarket amplification or an appropriately powered head-unit system. The kit is sold as a pair and includes grilles, trim rings, mounting hardware, and flush/surface/angle mounts. It can serve as a focused high-frequency upgrade alongside compatible door speakers or component-system midrange drivers.

Key Features

• 1-Inch Tweeter Kit: Adds dedicated high-frequency output to a vehicle sound system.
• Mylar Balanced Dome: Lightweight diaphragm supports extended high-frequency reproduction.
• Integrated High-Pass Crossover: Helps protect the tweeters from lower-frequency content.
• 40W RMS Handling: Matches appropriately powered aftermarket audio systems.

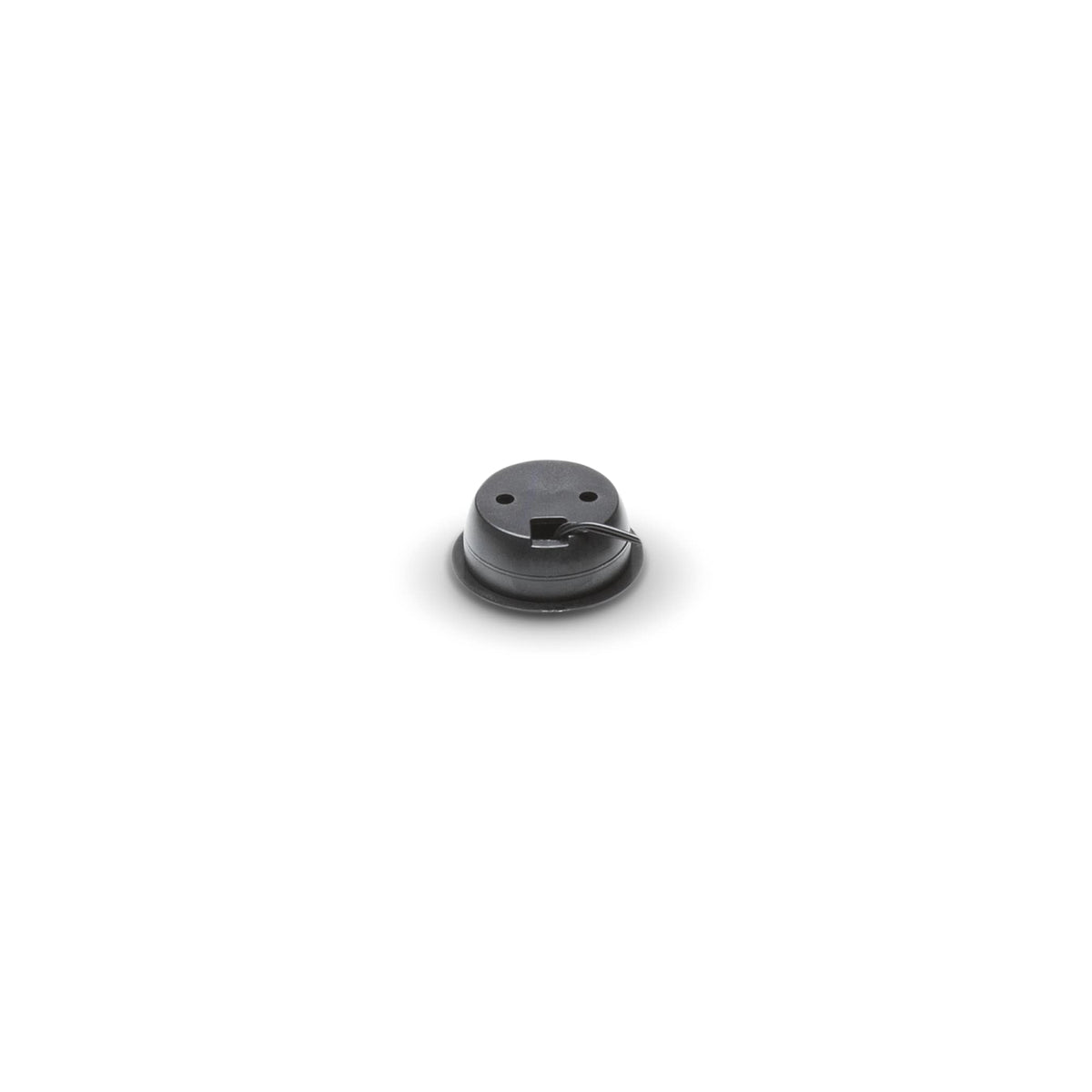

• Multiple Mounting Options: Supports flush, surface, and angle installation configurations.

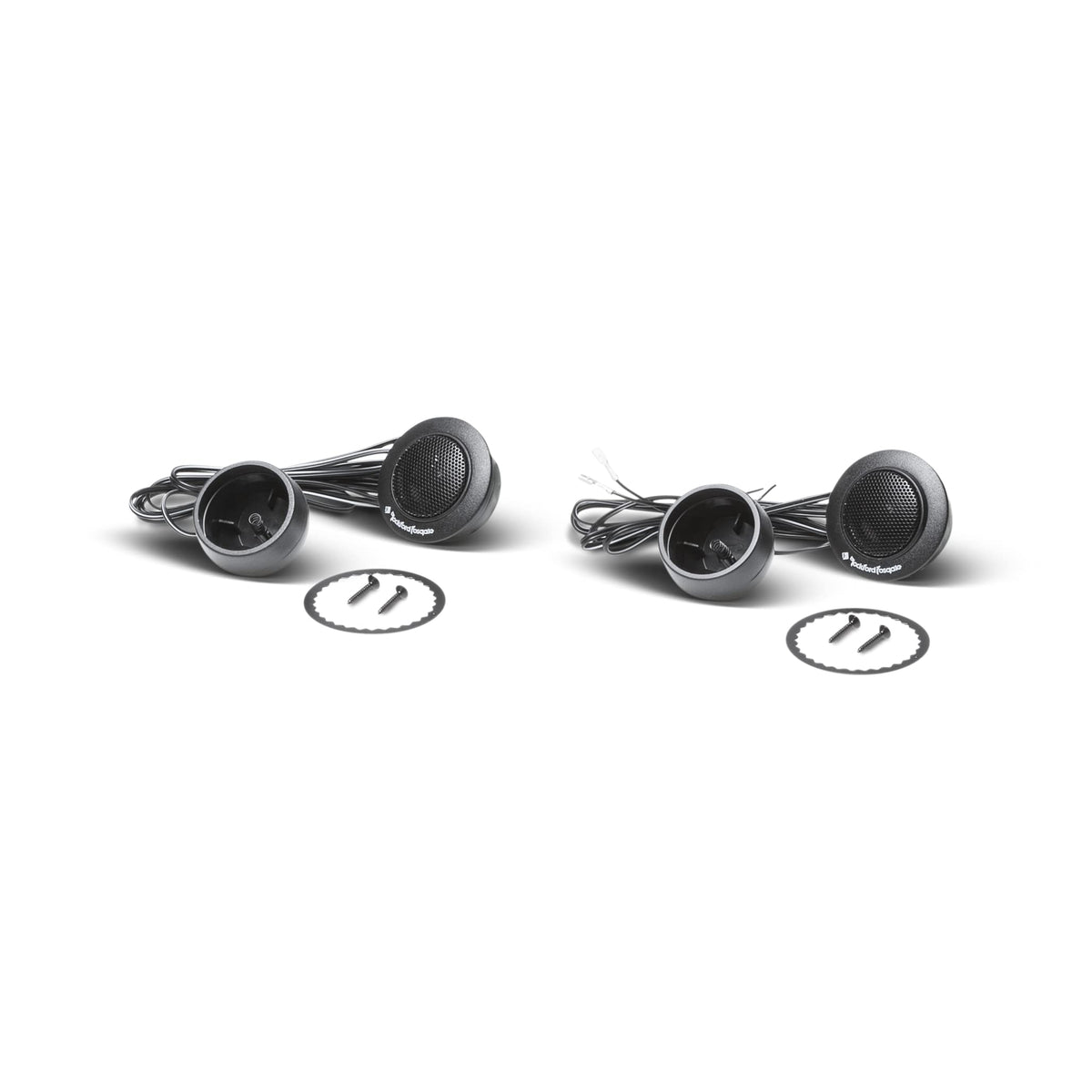

• Pair With Installation Hardware: Includes mounts, grilles, trim rings, and mounting hardware.

Design & Installation

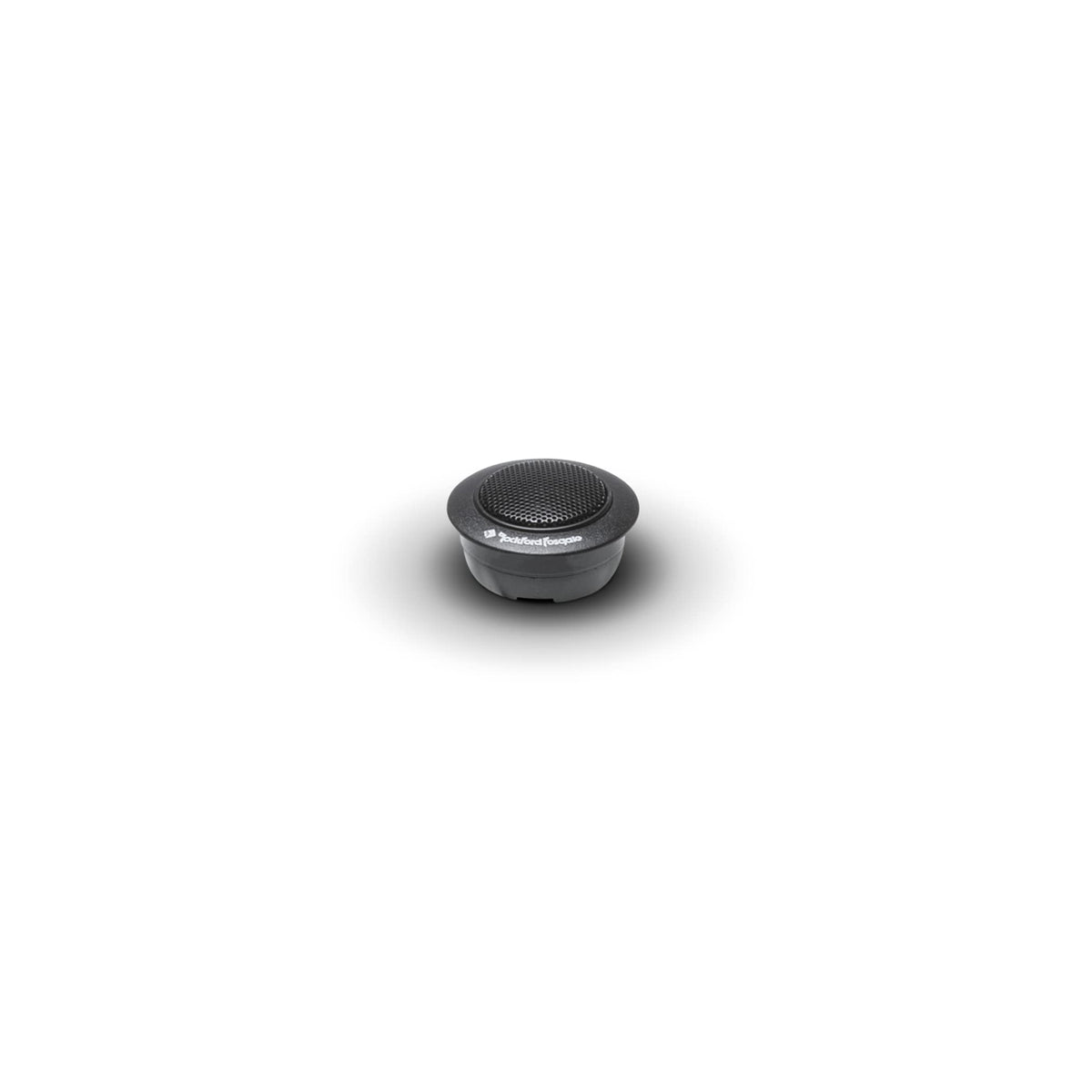

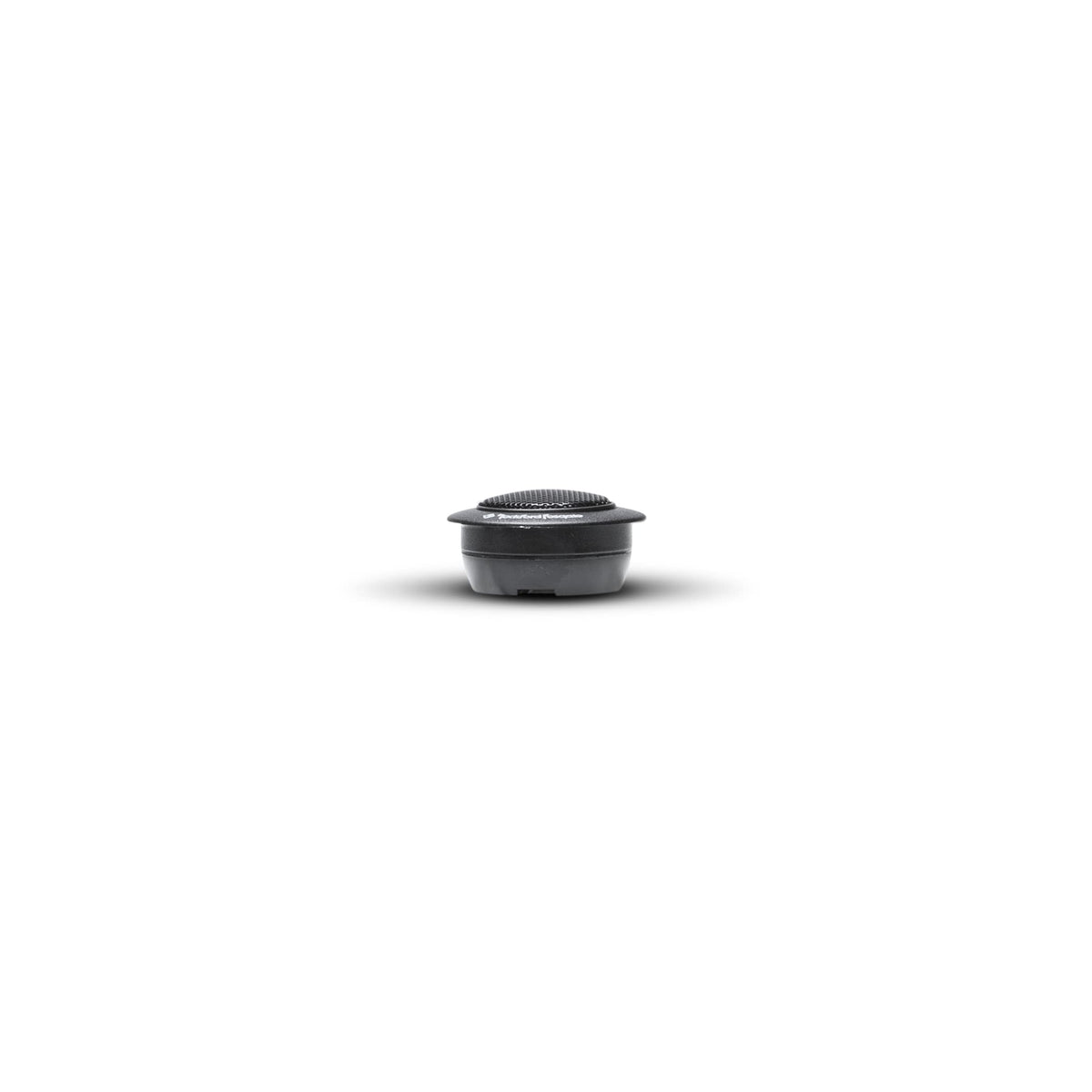

The R1T-S uses black Mylar balanced-dome tweeters with included grilles and trim rings for a finished appearance. The compact kit is built around a 0.5-inch voice coil and 1-inch nominal tweeter format. Its supplied mounting pieces allow the installer to select a mounting presentation appropriate to the vehicle panel and listening position.

For flush mounting, allow for a 0.76-inch mounting depth and a 1.83-inch mounting diameter; the flush-mount assembly has a 2.13-inch outside diameter. Surface or angle mounting requires 1.06 inches of depth, with a 1.81-inch mounting diameter. Maintain correct speaker polarity and use the integrated high-pass crossover when wiring the tweeters into a compatible system.
