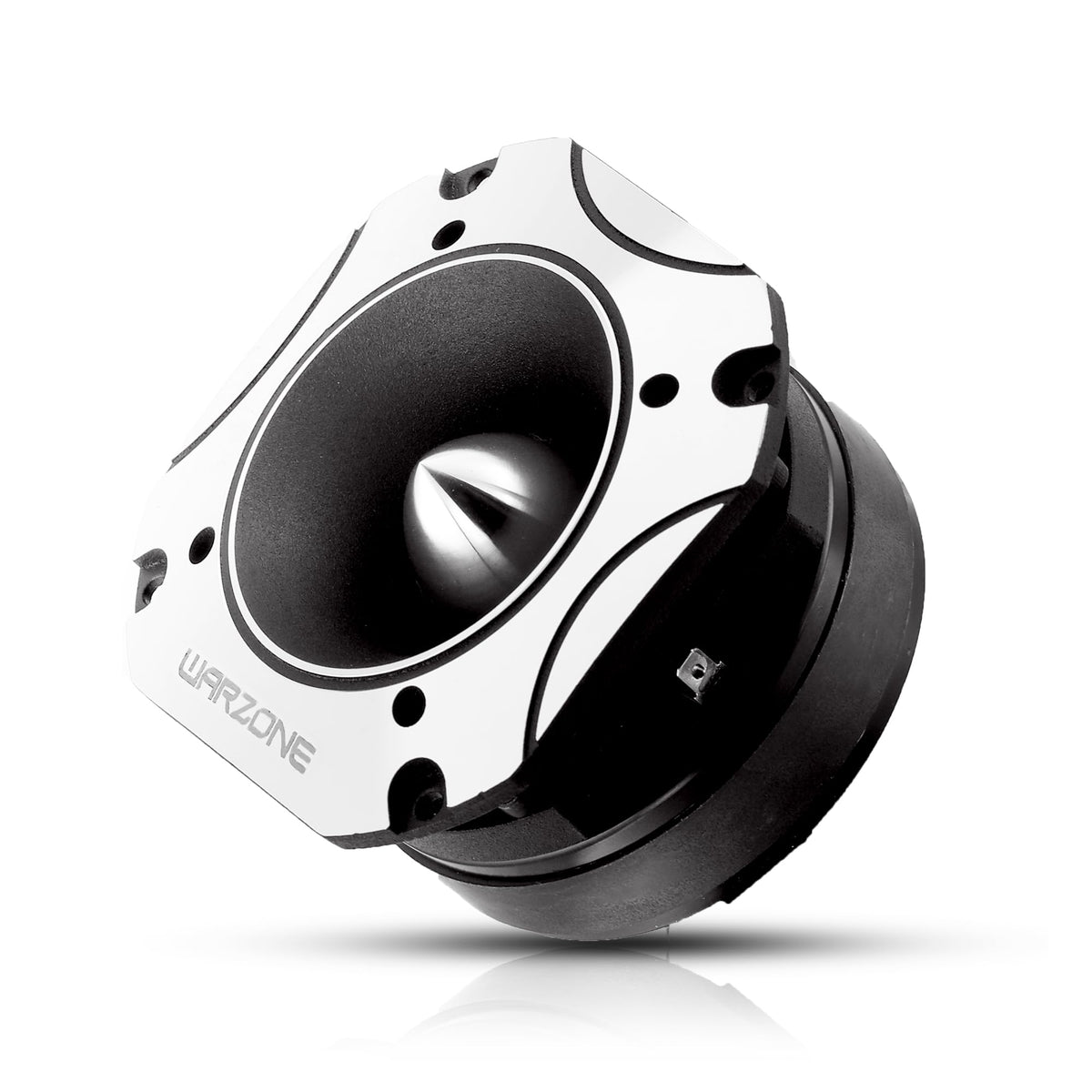

Warzone WZ60TW 4.02" Super Tweeter

The Warzone WZ60TW is a 4.02-inch super tweeter designed to add high-frequency output to a car-audio system. It is intended for systems that need dedicated treble reproduction above the range typically handled by larger midrange speakers or subwoofers. With a 4-ohm nominal impedance, it is suited to compatible car-audio amplification and speaker configurations.

This model is rated for up to 1600 watts maximum power and has a listed sensitivity of 105 dB. Its specified 2 kHz to 20 kHz frequency range focuses on upper-midrange and high-frequency detail. That makes it appropriate for listeners building a multi-speaker system with separate drivers for bass, midrange, and treble.

A titanium diaphragm is used for the sound-producing element, while the voice coil uses CCAW construction. These materials are specified as part of the WZ60TW's driver design. The tweeter also uses a 12.3-ounce magnet assembly.

The WZ60TW is a purpose-built car-audio tweeter rather than a full-range replacement speaker. It can be used in custom speaker panels, door builds, dash installations, or other vehicle-specific locations where its physical fit and aiming can be planned. Its 4.02-inch stated size should be checked against the available mounting area before installation.

For a balanced system, pair the WZ60TW with compatible midrange speakers and bass speakers that cover frequencies below its operating range. Use appropriate filtering and amplification matched to the system design, and follow the amplifier or crossover manufacturer's wiring guidance. Exact mounting depth, cutout dimensions, RMS power handling, and included-installation hardware are not specified in the confirmed product information.

Key Features

• 4.02-Inch Super Tweeter: Adds dedicated high-frequency reproduction to a car-audio system.
• 4-Ohm Impedance: Supports use with compatible 4-ohm speaker channels.
• 1600W Maximum Power: Listed maximum-power capacity for the individual tweeter.
• 105 dB Sensitivity: Indicates high output efficiency from the driver.
• Titanium Diaphragm: Forms the specified high-frequency driver diaphragm.
• CCAW Voice Coil: Uses copper-clad aluminum wire in the voice coil.

Design & Installation

The WZ60TW combines a titanium diaphragm, CCAW voice coil, and 12.3-ounce magnet assembly in a compact super-tweeter format. Its published 4.02-inch size is useful for planning a custom installation, but the manufacturer information confirmed for this model does not state a mounting cutout or mounting depth. Measure the intended mounting location and confirm clearance before cutting or fabricating a panel.

Connect the WZ60TW only to a compatible car-audio setup and use a properly configured high-pass crossover or equivalent system filtering to keep lower frequencies out of the tweeter's operating range. Match amplifier configuration to the 4-ohm nominal impedance and avoid treating the 1600-watt maximum rating as an RMS rating. Installation accessories, wiring, crossover components, and mounting hardware should be confirmed with the seller or installer because they are not identified in the confirmed product details.
