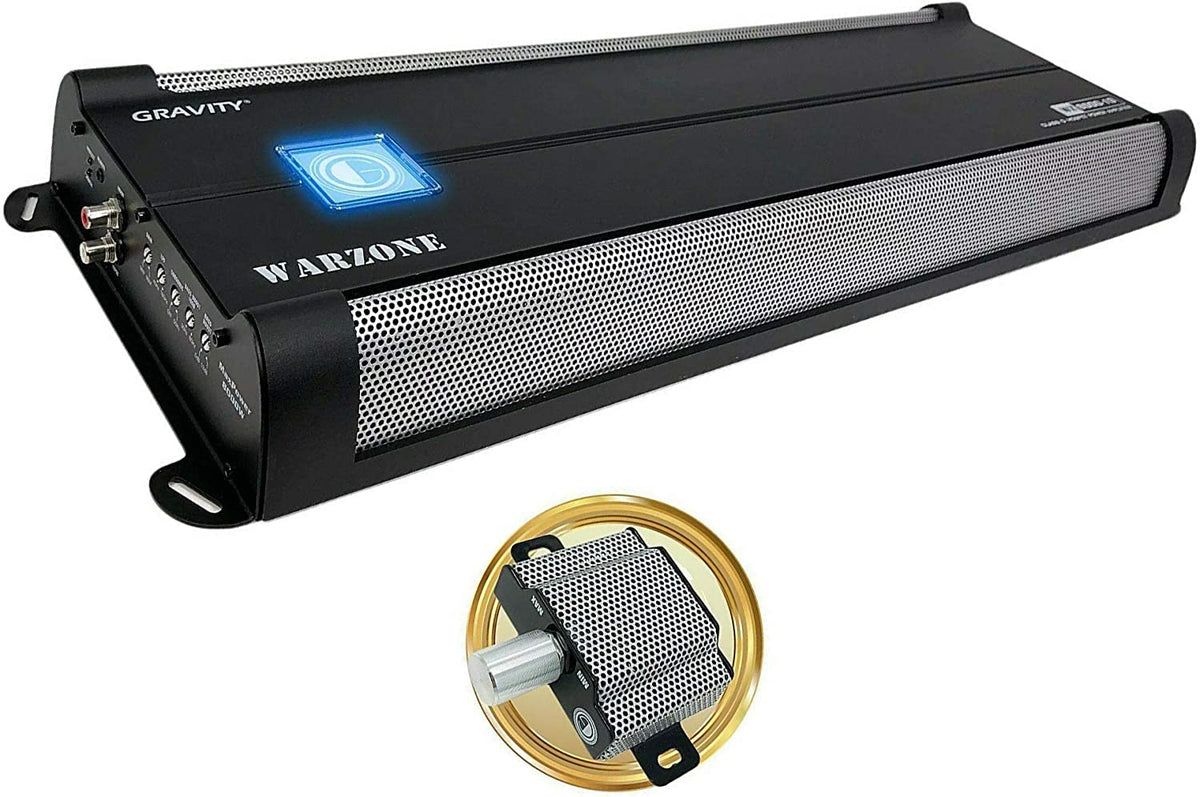

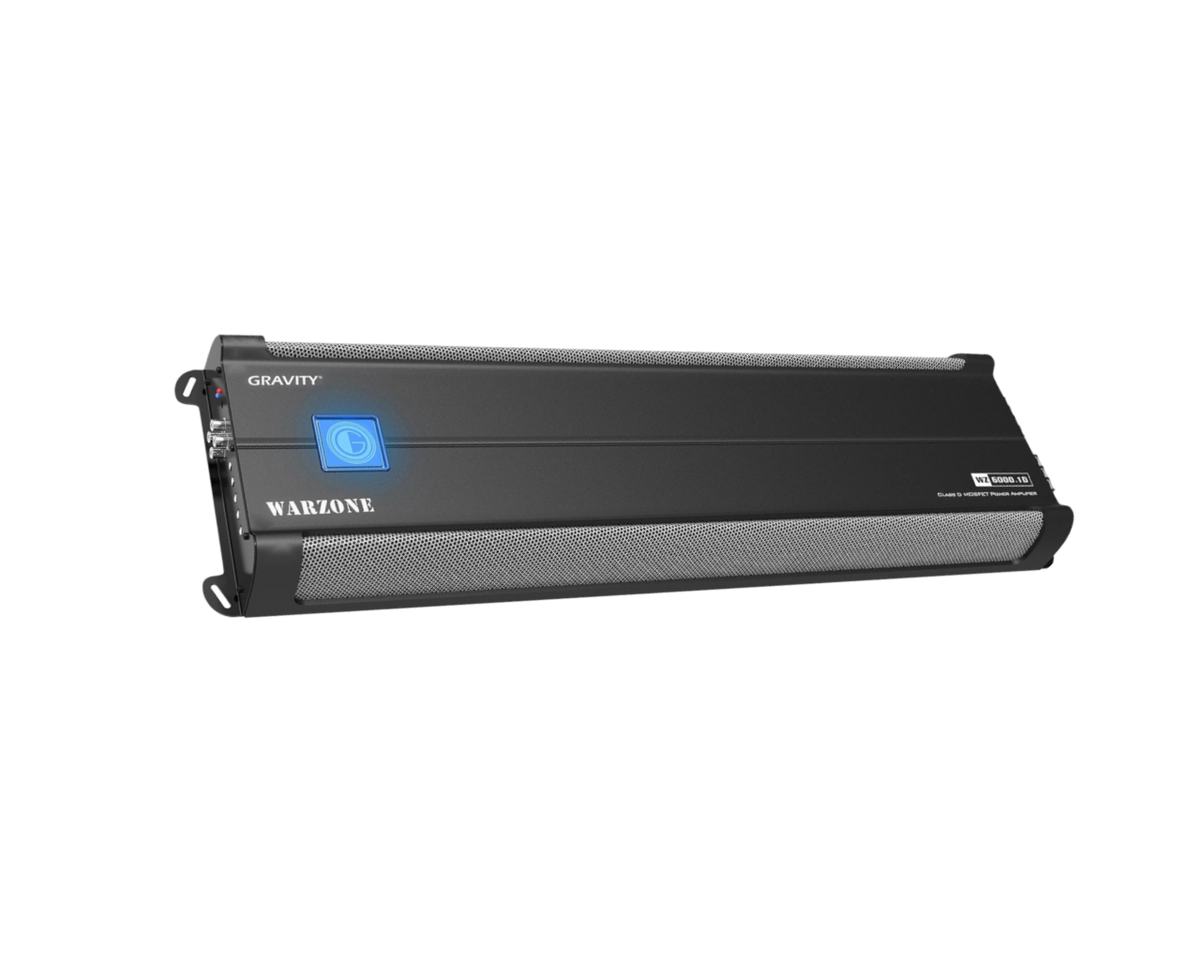

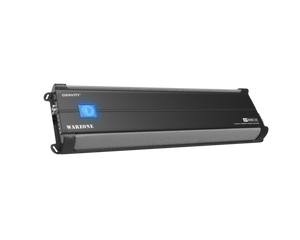

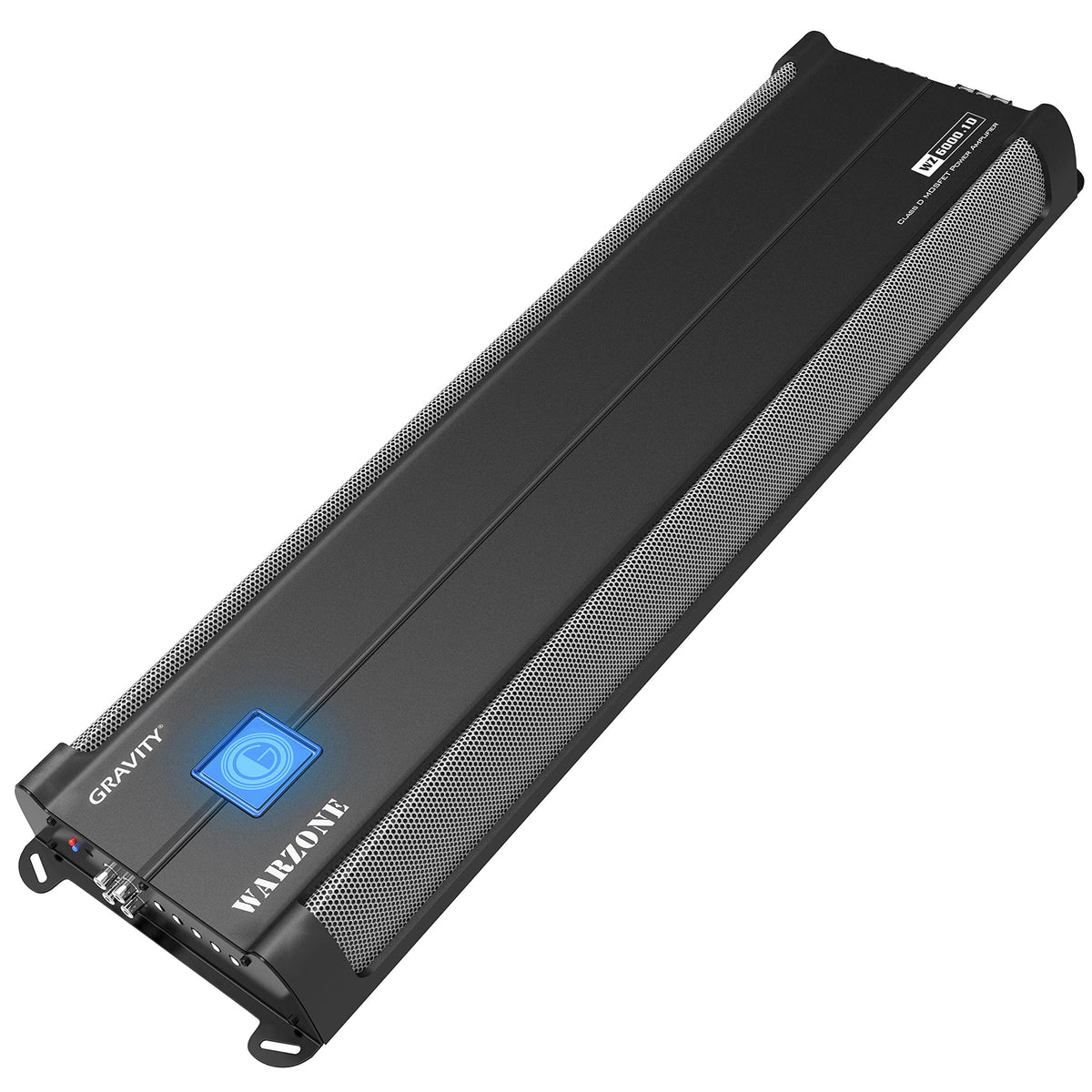

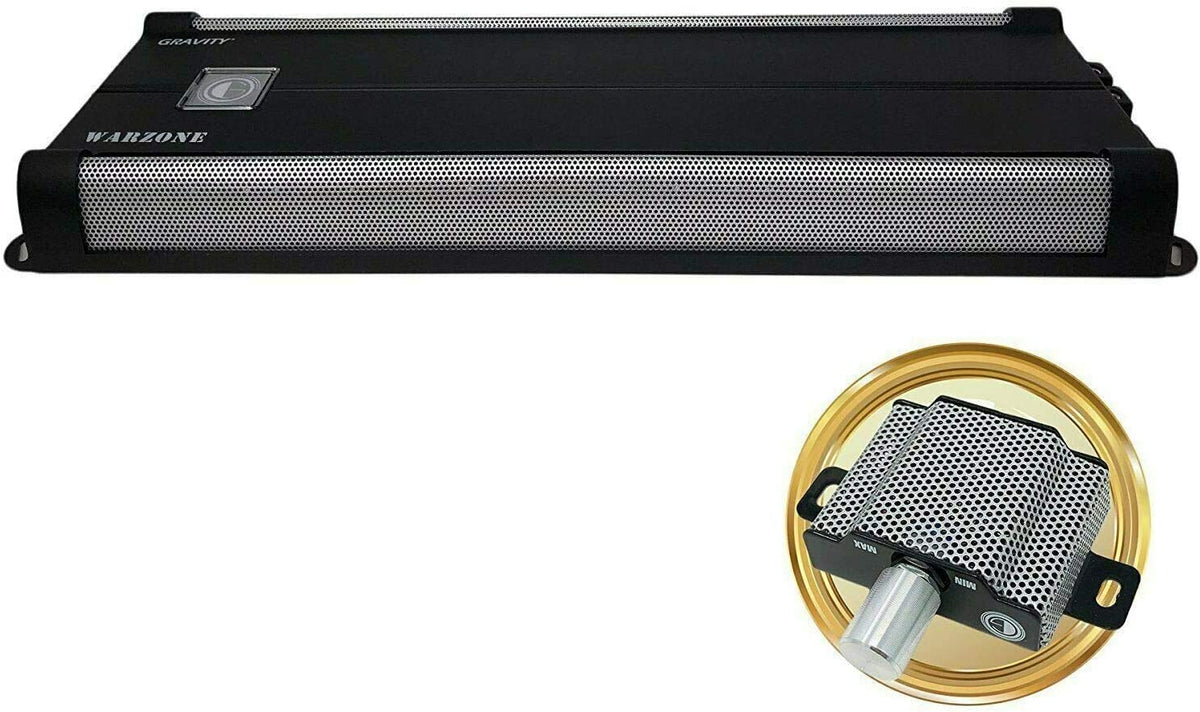

WARZONE WZ6000-1D Class D Monoblock Car Amplifier

The WARZONE WZ6000-1D is a Class D monoblock car amplifier designed to add dedicated low-frequency power to a subwoofer system. Its single-channel layout is intended for bass-focused installations rather than full-range speakers. The amplifier supports 1-, 2-, and 4-ohm subwoofer loads, giving installers flexibility when matching compatible subwoofers and wiring configurations.

For shoppers building a high-output subwoofer system, the WZ6000-1D is rated at 1800 watts RMS at 1 ohm, 1150 watts RMS at 2 ohms, and 650 watts RMS at 4 ohms. This lets the same amplifier accommodate a range of subwoofer configurations while retaining a dedicated mono amplifier format. Match the final system impedance and subwoofer RMS handling carefully before installation.

The amplifier uses Class D operation and a MOSFET pulse-width-modulated power supply to support efficient bass amplification in a compact chassis. Its specified frequency response extends from 8 Hz to 180 Hz, covering the range commonly used for subwoofer reproduction. A variable low-pass filter and variable bass boost provide adjustment for blending the subwoofer section with the rest of the vehicle audio system.

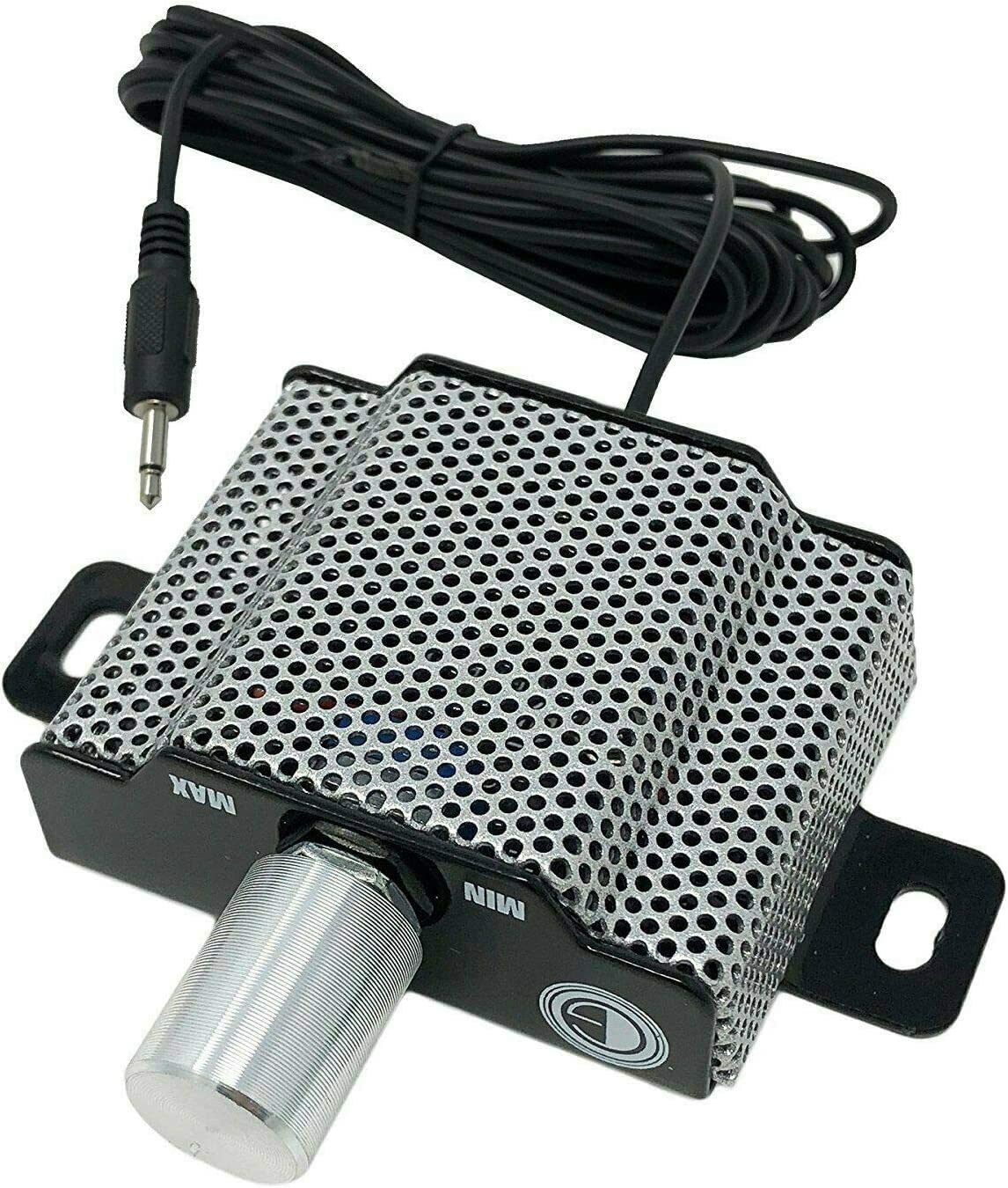

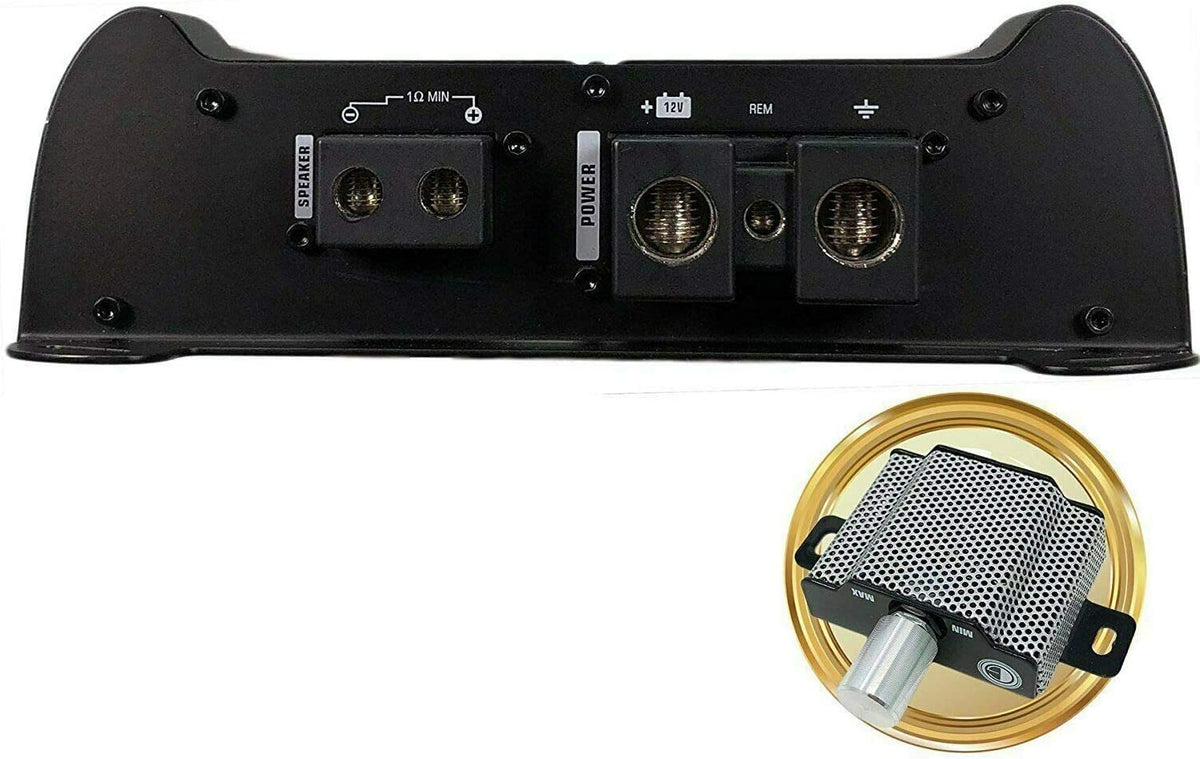

Built-in protection circuitry monitors for high voltage, low voltage, overcurrent, and high-temperature conditions. These safeguards are designed to help protect the amplifier during abnormal operating conditions. A remote bass control is included, allowing convenient adjustment of subwoofer output from the listening position.

The WZ6000-1D is suited to an aftermarket system using a compatible source unit, signal connection, subwoofer enclosure, and properly selected power wiring. High- and low-level inputs allow it to work with a variety of source-signal arrangements. Its compact 18.8-inch-long chassis can be considered for many vehicle installations when adequate mounting space and ventilation are available.

Key Features

• Monoblock Class D Design: Provides a dedicated single-channel platform for subwoofer amplification.
• 1-Ohm Stable Output: Supports properly wired subwoofer loads down to 1 ohm.
• 1800W RMS at 1 Ohm: Delivers its highest listed continuous output at a 1-ohm load.
• Variable Low-Pass Filter: Helps tailor upper bass cutoff to the rest of the system.
• Remote Bass Control: Allows convenient adjustment of subwoofer level from the cabin.
• Four-Way Protection: Monitors voltage, current, and temperature-related fault conditions.

Design & Installation

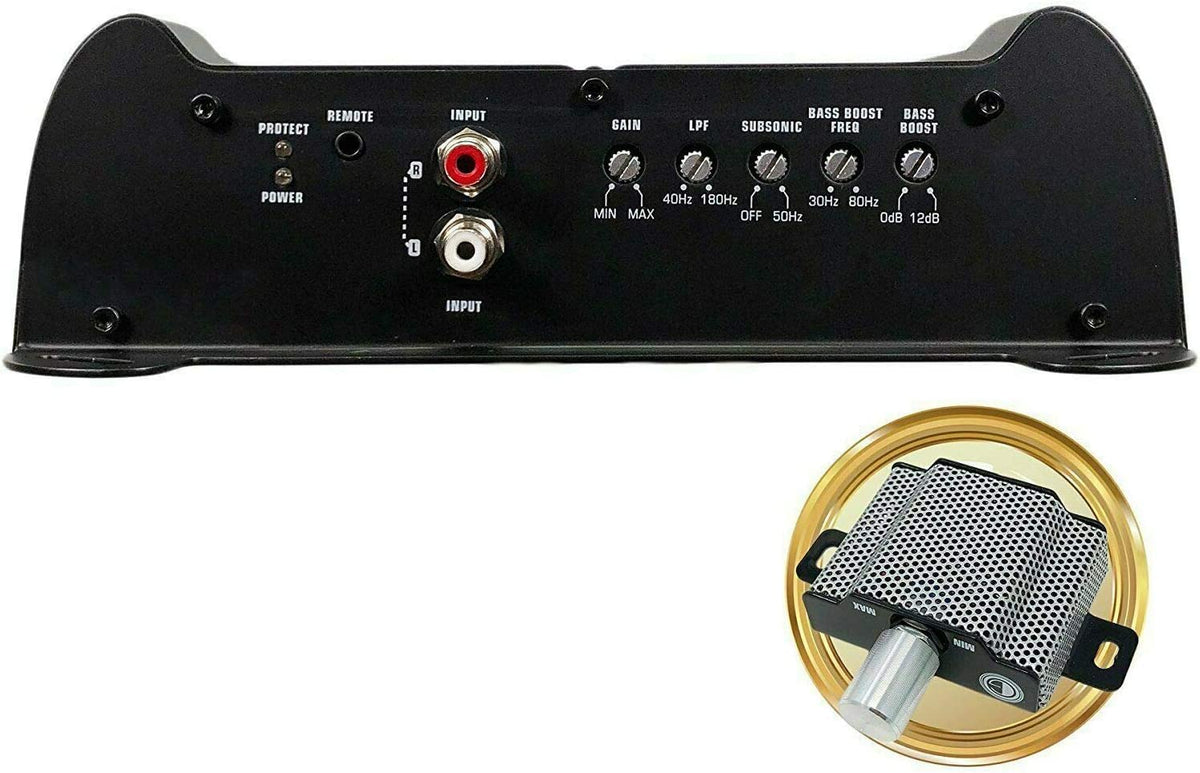

The WZ6000-1D uses a compact digital monoblock form factor with a MOSFET PWM power supply and heat-dissipation design. Its 18.8 x 8.8 x 2.5-inch enclosure is intended for surface mounting. The amplifier has high- and low-level inputs, variable low-pass crossover control, variable bass boost, and a subsonic filter for system adjustment.

Mount the amplifier securely in a dry, ventilated location with room for wiring and airflow. Use subwoofers wired to a final 1-, 2-, or 4-ohm load, and set gain, low-pass, subsonic, and bass-boost controls conservatively during setup. Power wiring, grounding, fusing, enclosure selection, and final tuning should be matched to the vehicle and subwoofer system by a qualified installer when needed.
