Warzone WZ45TW 1.7" Super Tweeter Speakers Pair

The Warzone WZ45TW is a pair of 1.7-inch super tweeters designed to add dedicated high-frequency output to a custom car audio system. They are intended for systems that need more presence from vocals, cymbals, brass, electronic effects, and other upper-frequency detail. Each tweeter uses a 4-ohm nominal impedance for integration with compatible car-audio amplification and crossover setups.

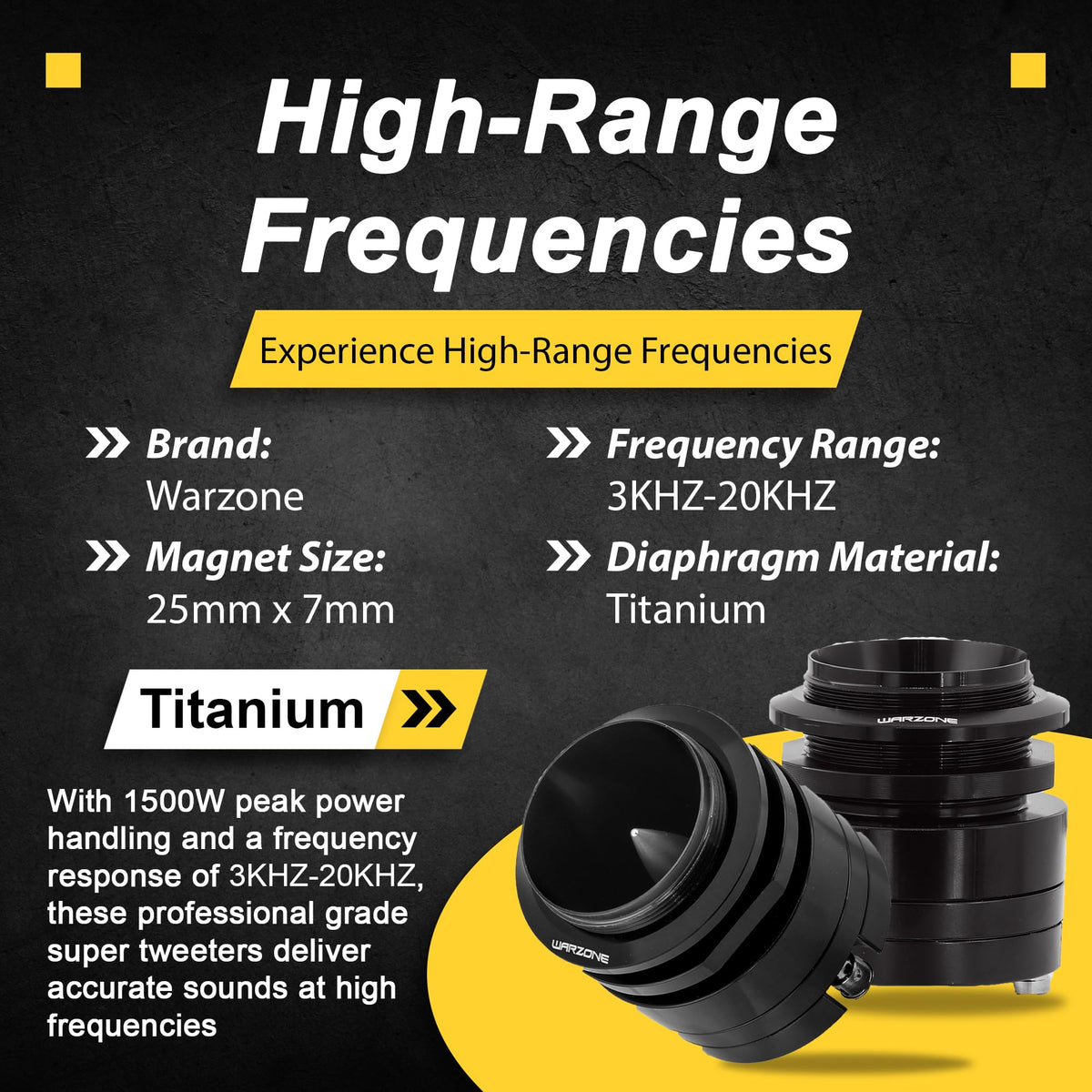

This pair is suited to listeners building a more forward, high-output sound stage than factory full-range speakers can typically provide alone. Its 106 dB sensitivity rating supports efficient output when properly installed and filtered. The WZ45TW operates across a stated 3 kHz to 20 kHz frequency range, focusing on the upper portion of the audible spectrum.

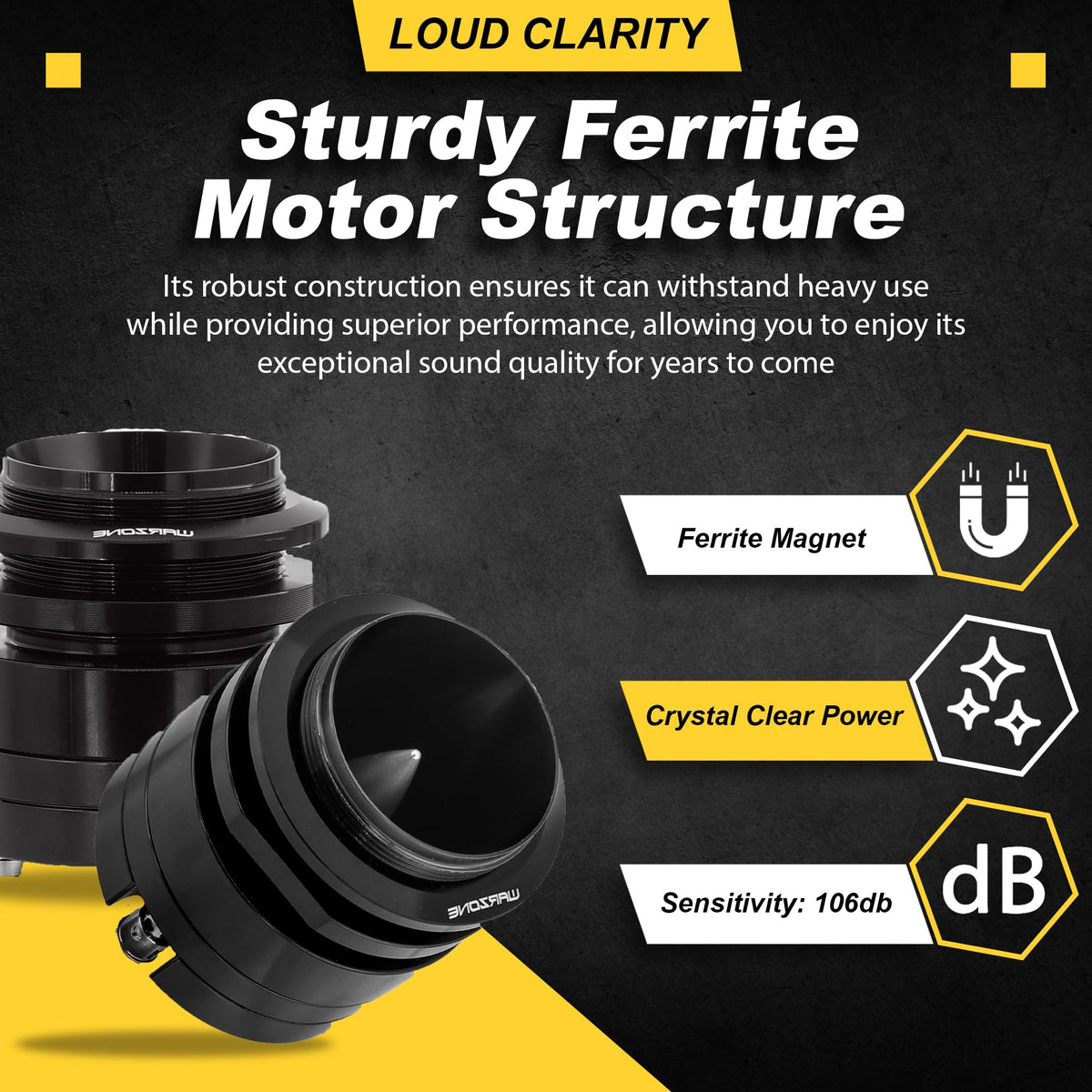

A titanium diaphragm is used for the high-frequency driver, while the voice coil is made from CCAW, or copper-clad aluminum wire. This combination is intended to support responsive high-frequency reproduction in pro-style vehicle audio applications. A ferrite motor structure provides the magnetic system behind the driver.

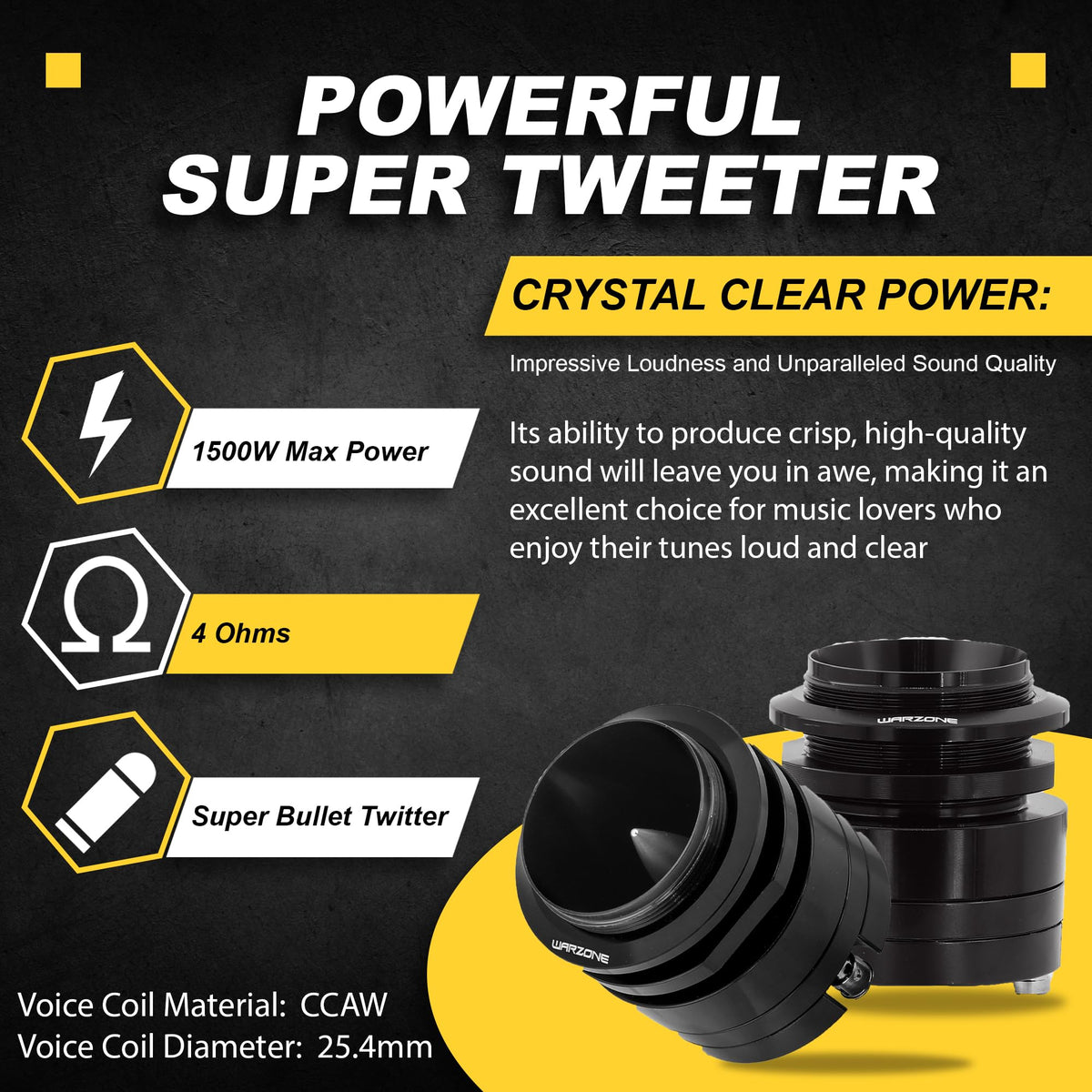

The package contains two WZ45TW tweeters for left and right channel installation. Maximum power handling is rated at 1,500 watts per tweeter, for a stated 3,000 watts total maximum handling across the pair. An RMS power rating is not confirmed, so amplifier selection should not be based on the maximum-power figure alone.

With its compact design, the WZ45TW can be considered for custom door panels, dash locations, A-pillars, or fabricated speaker enclosures where suitable space is available. The supplied crossover component is designed to filter unwanted frequencies from the tweeter signal. For a balanced system, pair these tweeters with dedicated midrange or full-range speakers and use appropriate high-pass filtering, wiring, and amplifier gain adjustment.

Key Features

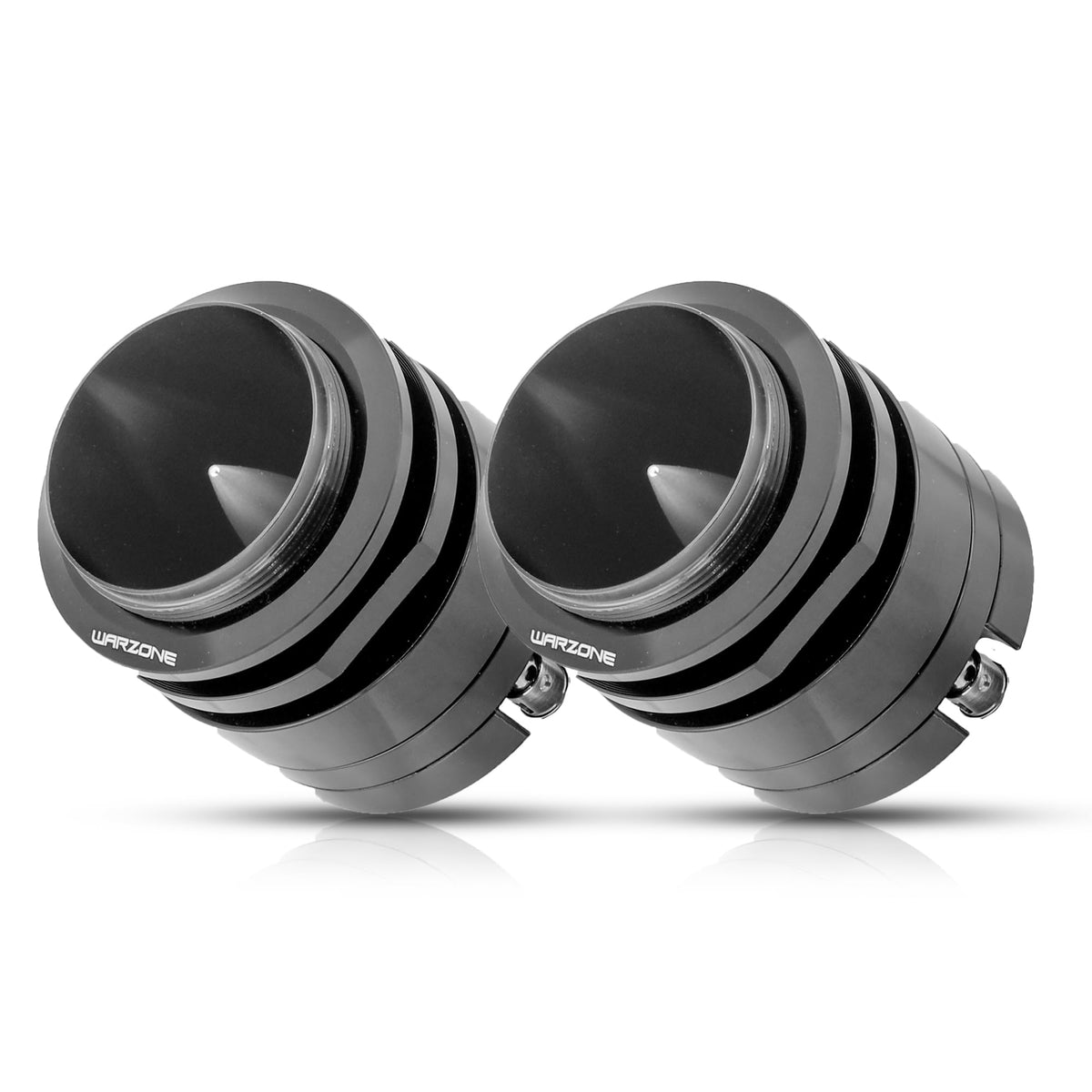

• Matched Pair: Includes two WZ45TW super tweeters for stereo installation.
• 1.7-Inch Driver: Compact super-tweeter format for dedicated high-frequency reproduction.
• 4-Ohm Impedance: Works with compatible 4-ohm car-audio amplifier channels.
• Titanium Diaphragm: Supports detailed reproduction of upper-frequency musical content.
• 106 dB Sensitivity: Helps deliver strong output with compatible system power.

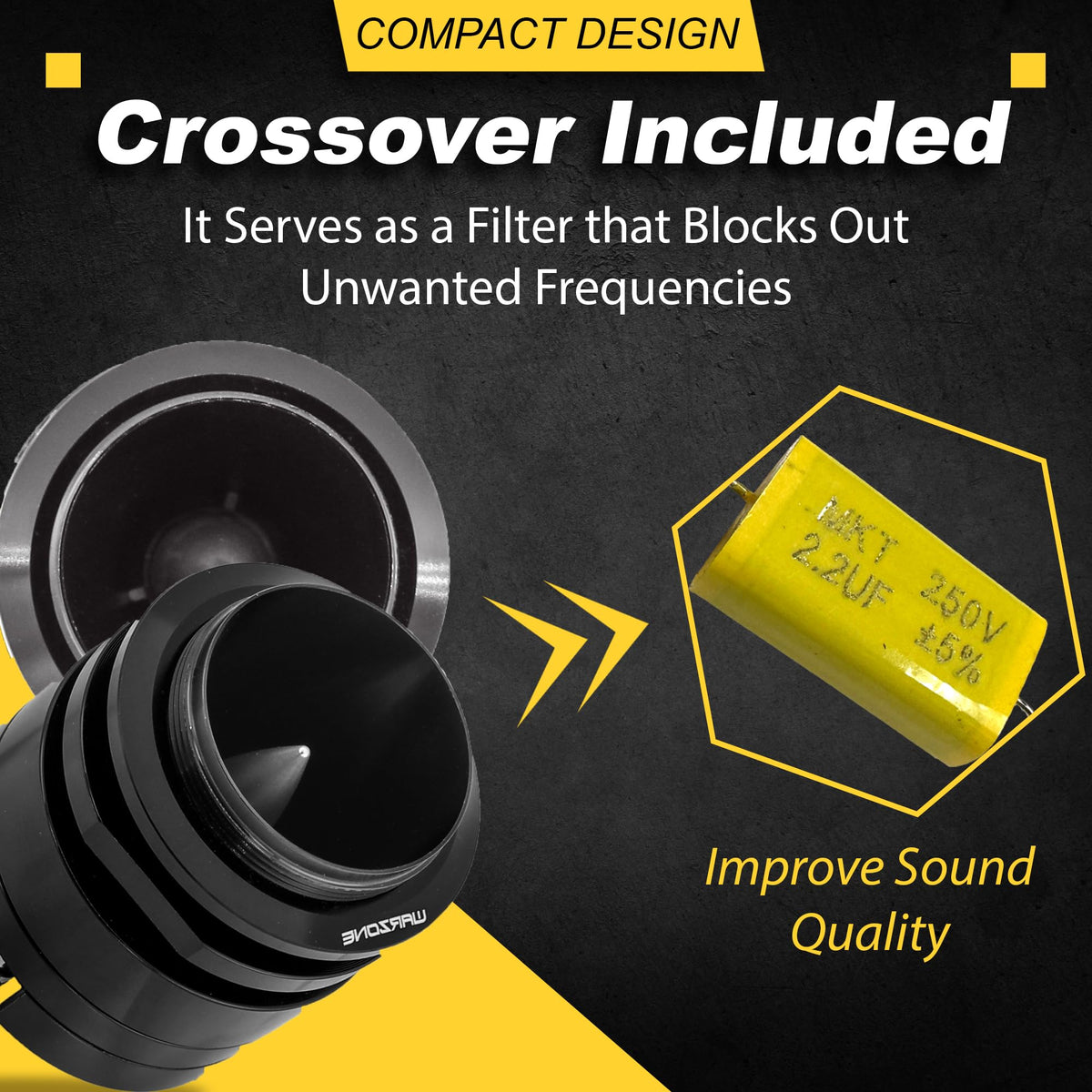

• Included Crossover: Filters unwanted frequencies before they reach the tweeter.

Design & Installation

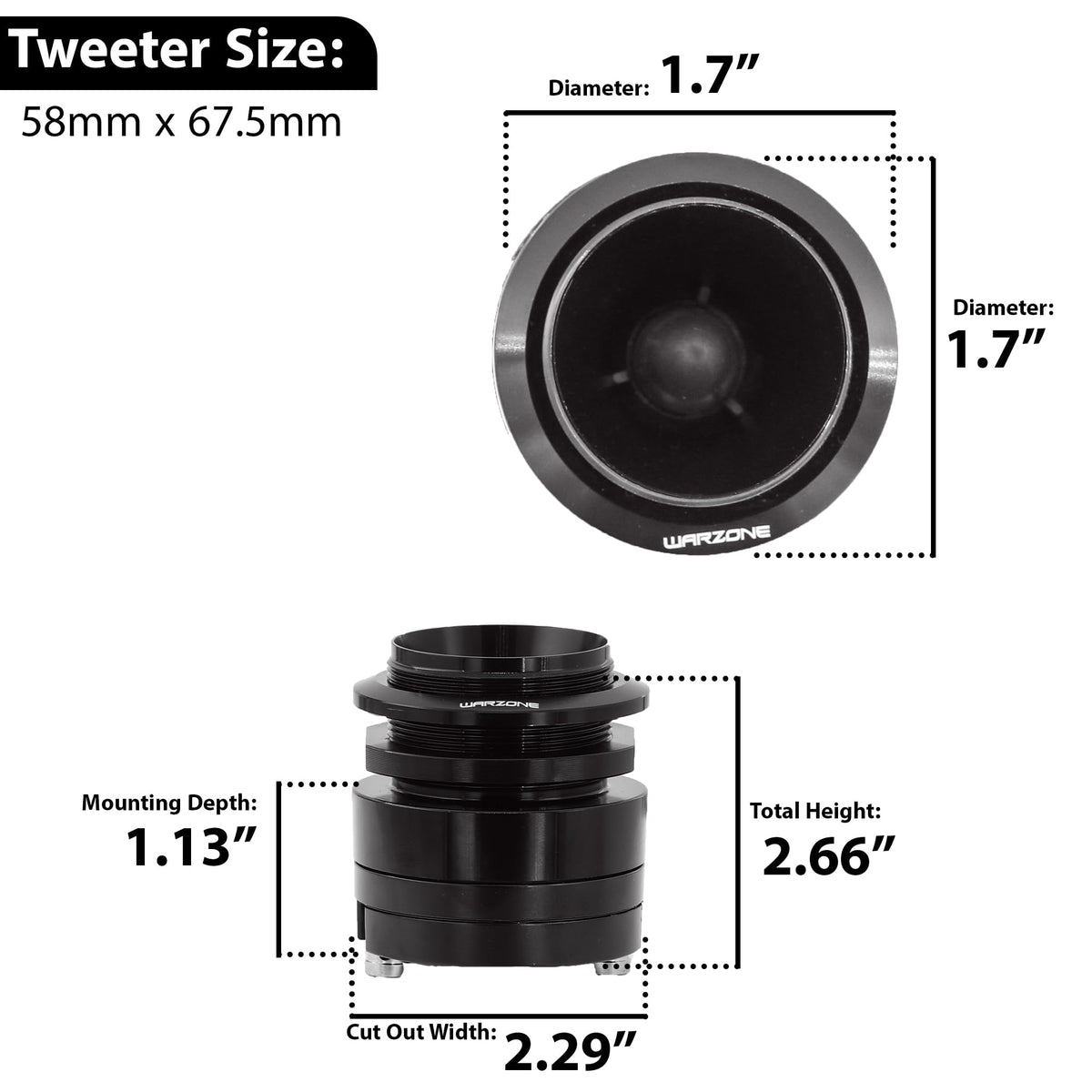

The WZ45TW uses a titanium diaphragm, CCAW voice coil, and ferrite magnetic motor structure. Its black bullet-style housing is designed around a compact threaded mounting profile. The stated physical dimensions include a 1.7-inch front diameter, 1.13-inch mounting depth, and 2.66-inch total height.

Install the pair as dedicated high-frequency drivers, one per left and right channel, rather than as full-range speakers. Use the included crossover component and ensure amplifier settings, gain, polarity, and high-pass protection are appropriate for tweeters. Confirm the 2.29-inch cutout requirement, clearance behind the panel, and mounting-hardware needs before modifying a vehicle panel.
