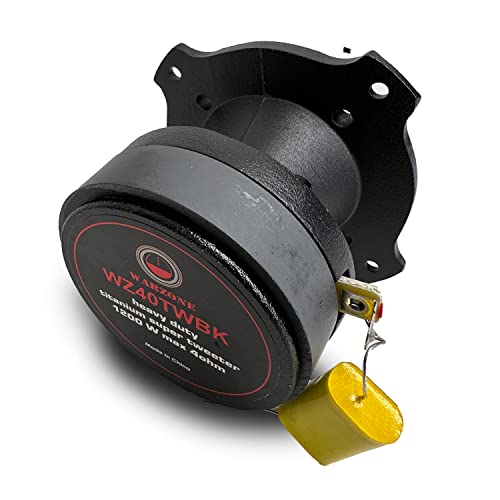

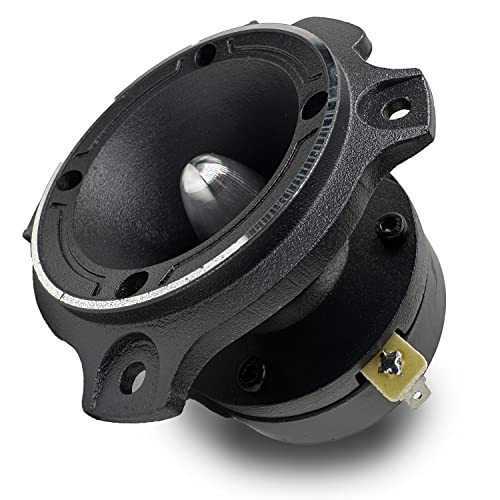

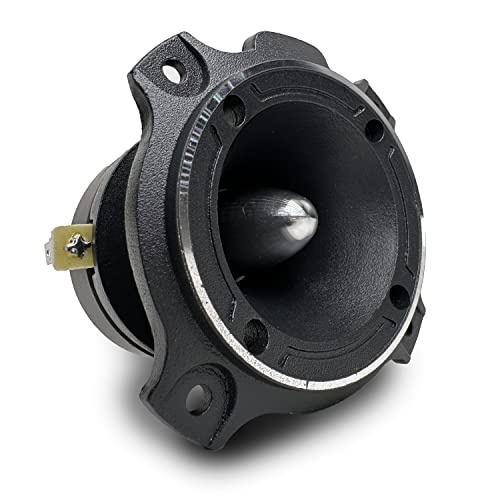

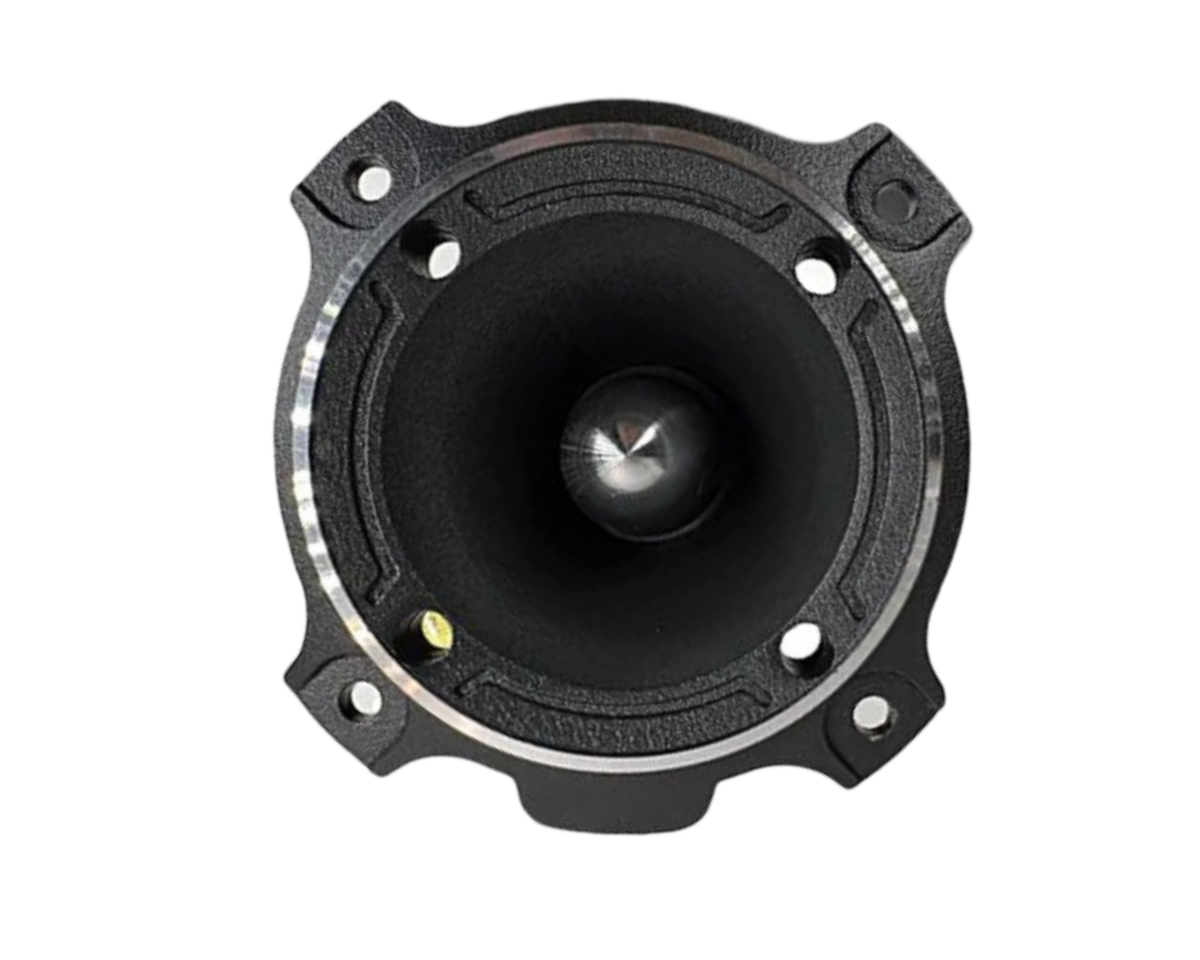

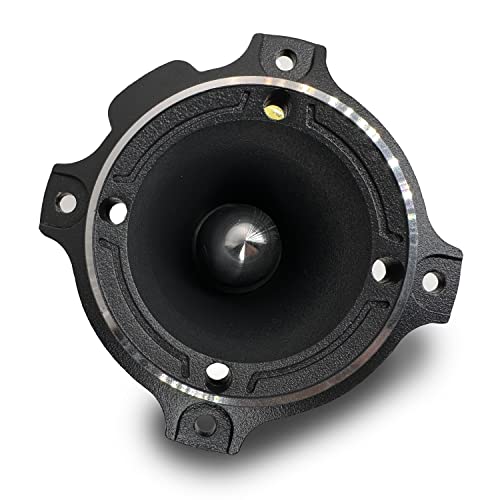

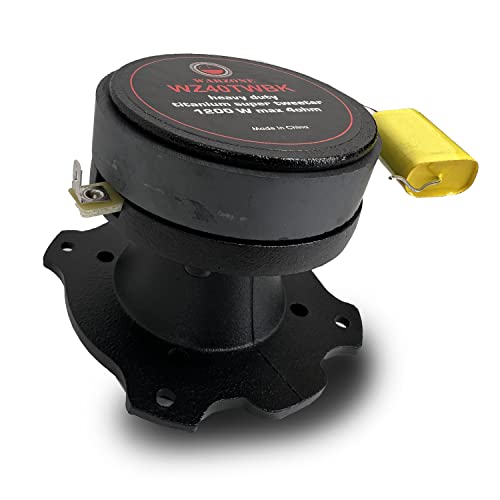

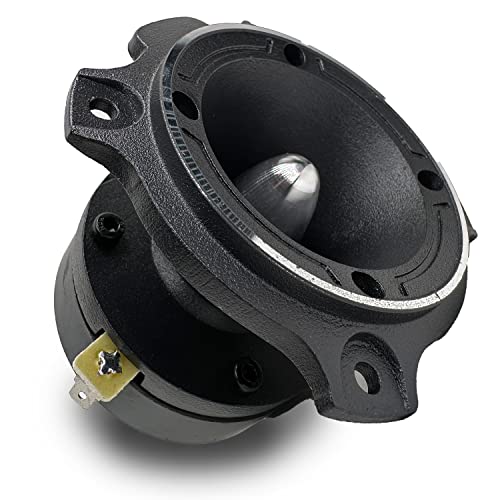

WARZONE WZ40TW-BK 1" Titanium Super Bullet Tweeter

The WARZONE WZ40TW-BK is a 1-inch super bullet tweeter designed to add dedicated high-frequency output to a car-audio system. It is intended for installations where stock speakers or midrange drivers do not provide enough upper-range detail and presence. The tweeter uses a 4-ohm design and is rated for up to 1200 watts maximum power handling per tweeter.

This model is suited to enthusiasts building or expanding a multi-speaker system with separate midrange and high-frequency drivers. Its super-tweeter format focuses on the upper frequencies that help vocals, percussion, and musical detail remain audible alongside bass-heavy playback. It can be used as part of an upgrade from factory speakers or alongside aftermarket pro-audio-style midrange drivers.

The WZ40TW-BK is described as producing a crisp and bright high-frequency character. Its bullet-style center dust cover is designed to protect the voice coil while supporting direct high-frequency projection. This presentation can help bring definition to systems that need more treble output.

Gravity's Warzone-series design uses an aluminum frame and aluminum diaphragm construction. Aluminum is specified for its light, rigid properties in high-frequency reproduction. A built-in capacitor filter is included to limit unwanted lower-frequency content reaching the tweeter.

The WZ40TW-BK has a nominal 4-ohm impedance, while product information also states it can be used with 8-ohm systems. It is a wired car-audio speaker component rather than a standalone powered speaker. Pair it with correctly configured amplification, suitable crossover strategy, and compatible midrange or full-range speakers for a balanced system.

Key Features

• 1-Inch Super Bullet Format: Compact high-frequency driver for dedicated treble reproduction.
• 1200W Maximum Rating: Specified maximum power handling per tweeter.
• 4-Ohm Impedance: Designed for common car-audio amplifier configurations.
• Built-In Capacitor Filter: Helps reduce lower-frequency content sent to the tweeter.
• Aluminum Frame And Diaphragm: Lightweight, rigid materials for high-frequency operation.
• Bullet Dust Cover: Protects the voice-coil area in the tweeter assembly.

Design & Installation

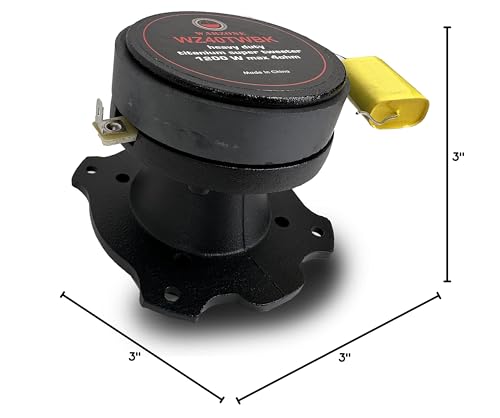

The WZ40TW-BK uses a black Warzone-series super-bullet form factor with an aluminum frame and diaphragm. Its 1-inch driver format and bullet dust cover give it the compact, forward-projecting profile commonly used in custom car-audio speaker panels. The listed mounting depth is 3.58 inches, so verify available clearance before selecting a mounting location.

Install the tweeter in a secure location aimed appropriately for the vehicle's layout, such as a custom door panel, dash panel, kick panel, or rear deck application where space permits. Wire it as a passive high-frequency component and retain the built-in capacitor filter; no numeric crossover point is confirmed in available product information. Confirm amplifier stability, polarity, mounting clearance, and the quantity included with the specific listing before installation.
