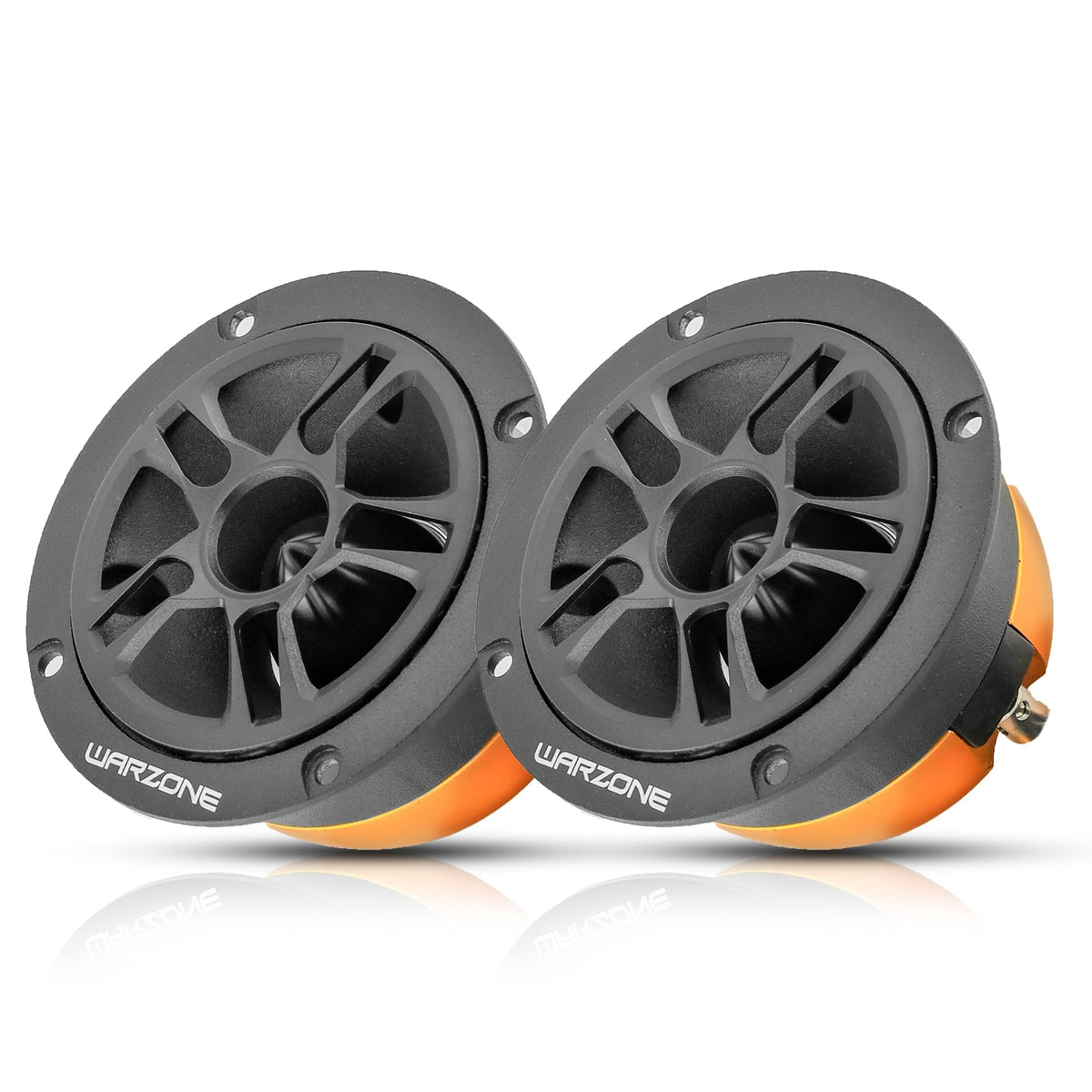

WARZONE WZ37TW 3.71" Super Tweeter Speakers

The WARZONE WZ37TW is a pair of 3.71-inch super tweeters intended to add high-frequency output to a pro car-audio system. It is designed for listeners building a more detailed top end than typical full-range speakers alone can provide. Each tweeter uses a 4-ohm nominal impedance for integration with compatible car-audio amplification.

This model is specified with up to 1,000 watts maximum power per tweeter, or 2,000 watts total maximum power for the pair. Its 105 dB sensitivity rating indicates efficient output from relatively modest amplifier power. The stated 2 kHz to 20 kHz frequency range focuses the WZ37TW on upper-midrange and treble reproduction.

A titanium diaphragm is used for the moving high-frequency element. The voice coil is made from CCAW, or copper-clad aluminum wire. These materials are specified as part of the tweeter's sound-reproduction and durability design.

The WZ37TW is suited to custom systems that use dedicated midrange, midbass, or full-range speakers below it. It can be used as part of a multi-way front stage, door-panel build, dash installation, or other car-audio layout where high-frequency coverage is needed. Proper system tuning is important so the tweeters are operated only within an appropriate frequency range.

Sold as a pair, these super tweeters provide matched left- and right-channel components for a stereo installation. Their compact 3.71-inch size supports installations where space is limited. Verify available mounting space, amplifier compatibility, and crossover configuration before installation.

Key Features

• Pair of Super Tweeters: Includes two matching WZ37TW high-frequency speakers.
• 3.71-Inch Size: Compact format for custom car-audio speaker locations.
• 4-Ohm Impedance: Matches compatible 4-ohm amplifier channels and crossover networks.
• 105 dB Sensitivity: Supports efficient high-frequency output in a properly matched system.
• Titanium Diaphragm: Provides the specified diaphragm material for treble reproduction.
• CCAW Voice Coil: Uses copper-clad aluminum wire in the voice-coil construction.

Design & Installation

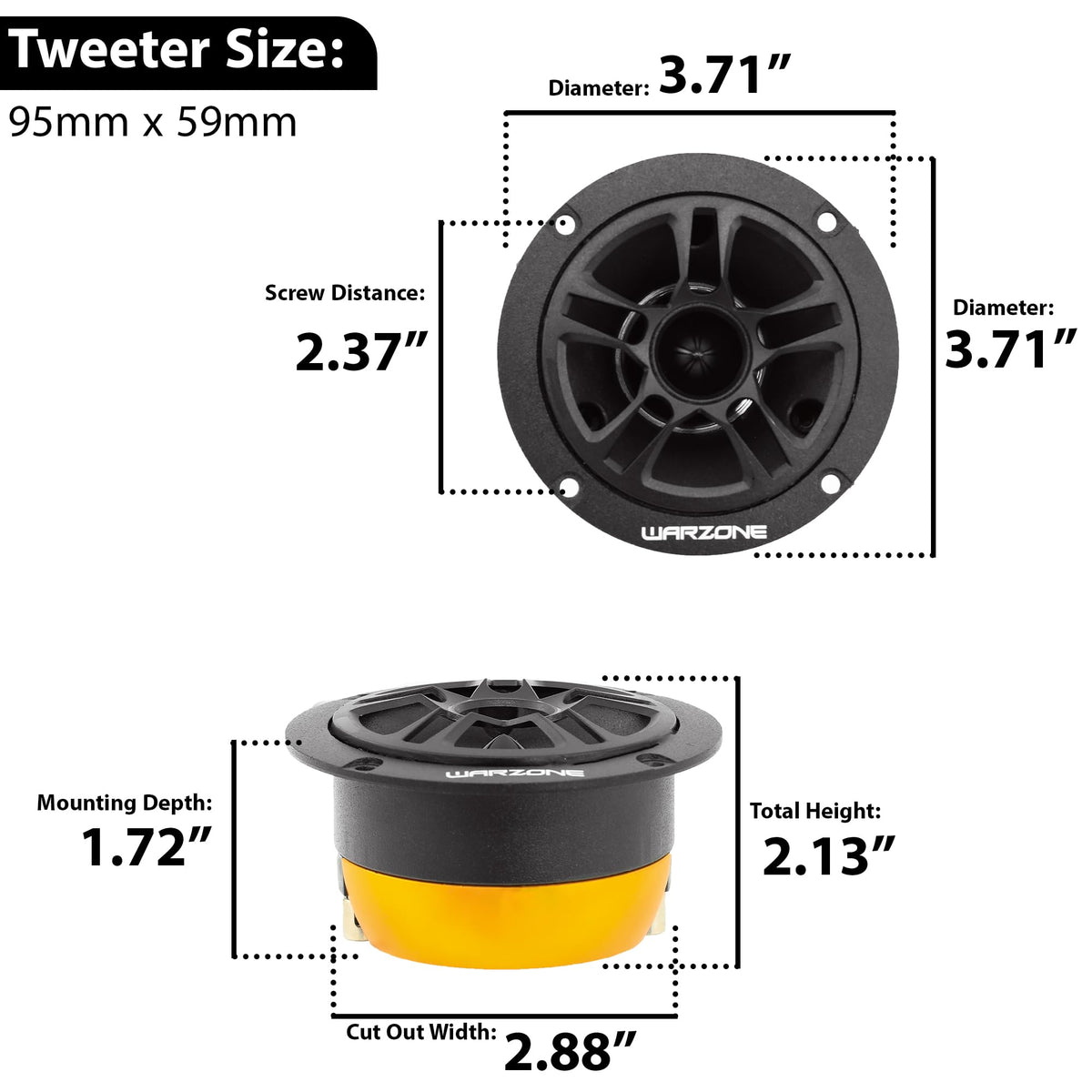

The WZ37TW combines a titanium diaphragm with a CCAW voice coil in a compact super-tweeter assembly. It is specified with a 3.71-inch speaker size, and the listed magnet dimensions are 1.30 x 0.39 x 0.28 inches. The design is intended for pro car-audio applications requiring dedicated high-frequency drivers.

Install the pair in matched left- and right-channel locations with adequate clearance and secure mounting hardware appropriate to the vehicle or enclosure. Use a compatible amplifier and configure a suitable high-pass crossover so low-frequency content is not sent to the tweeters. Confirm polarity, impedance load, available space, and wiring requirements before final assembly.
