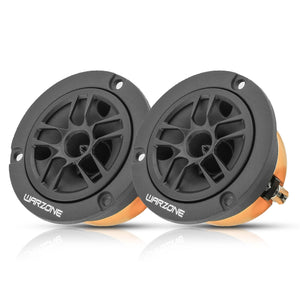

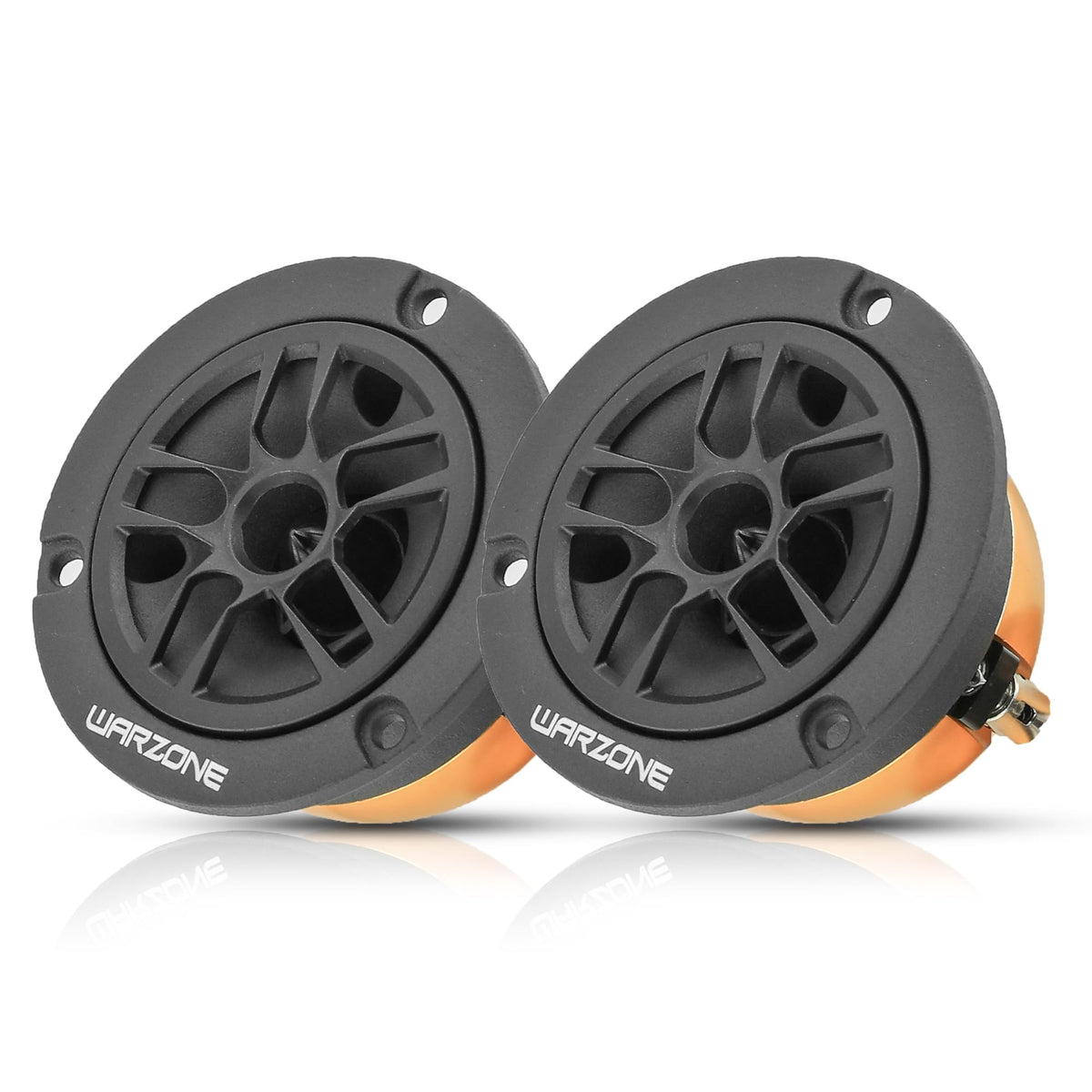

WARZONE WZ30TW 2.94-Inch Super Tweeter Speakers

The WARZONE WZ30TW is a 2.94-inch super tweeter pair intended to add high-frequency detail to a pro car-audio speaker system. It is designed for systems that need dedicated treble reproduction beyond what larger midrange or midbass drivers typically provide. Each tweeter has a 4-ohm nominal impedance for use with compatible passive car-audio amplification.

This pair is suited to installers and enthusiasts building multi-driver systems where clear upper-frequency output is a priority. Its specified 103 dB sensitivity indicates efficient output relative to input power. The stated 3 kHz to 20 kHz frequency range focuses the WZ30TW on the upper midrange and treble region.

The WZ30TW uses a titanium diaphragm and a CCAW voice coil. These are the listed core components responsible for producing its high-frequency output. The compact 2.94-inch format helps it fit where a larger horn or compression-style driver may not be practical.

Power handling is listed as 650 watts maximum per tweeter, or 1,300 watts total maximum for the pair. This is a maximum-power figure rather than a confirmed RMS rating, so amplifier selection should not be based on an assumed RMS specification. Proper level setting and high-pass filtering are important when integrating any dedicated tweeter into a system.

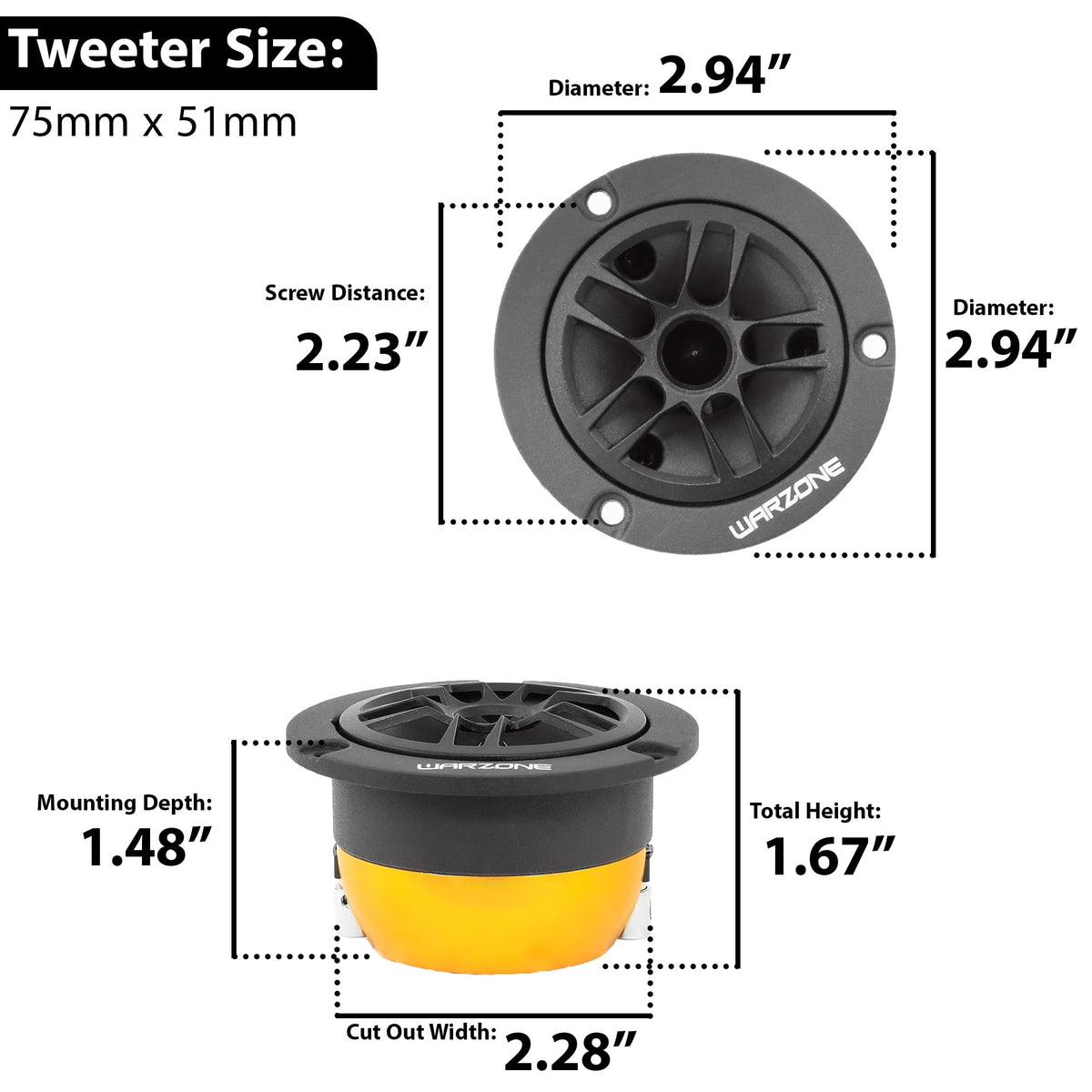

For a complete upgrade, the WZ30TW pair can be combined with compatible midrange speakers, amplification, and an appropriately designed crossover network. Its 4-ohm nominal impedance should be considered when planning channel loading and wiring. The listed magnet dimensions of 0.98 by 0.28 inch support compact placement options, subject to verifying the available mounting space in the vehicle.

Key Features

• 2.94-Inch Super Tweeters: Compact dedicated drivers for high-frequency system reinforcement.
• 4-Ohm Nominal Impedance: Matches amplifiers and crossover networks designed for 4-ohm loads.
• 103 dB Sensitivity: Supports efficient output in compatible car-audio systems.
• Titanium Diaphragms: Listed diaphragm material for high-frequency reproduction.
• CCAW Voice Coils: Uses copper-clad aluminum wire voice-coil construction.
• Pair Power Rating: Rated at 1,300 watts total maximum for two tweeters.

Design & Installation

The WZ30TW is built around a titanium diaphragm and CCAW voice coil in a compact super-tweeter format. Its listed magnet measures 0.98 inch by 0.28 inch. The pair is intended for car-audio use and is specified with a 4-ohm nominal impedance.

Use the pair with a compatible 4-ohm-capable amplifier channel arrangement and an appropriately designed high-pass crossover or filter. Mount only after confirming available space and routing speaker wiring securely. Because no RMS rating, mounting cutout, mounting depth, crossover component, or hardware list is confirmed, verify those details before final installation.
