Warzone WZ25TW 2.93" Super Tweeter Speakers

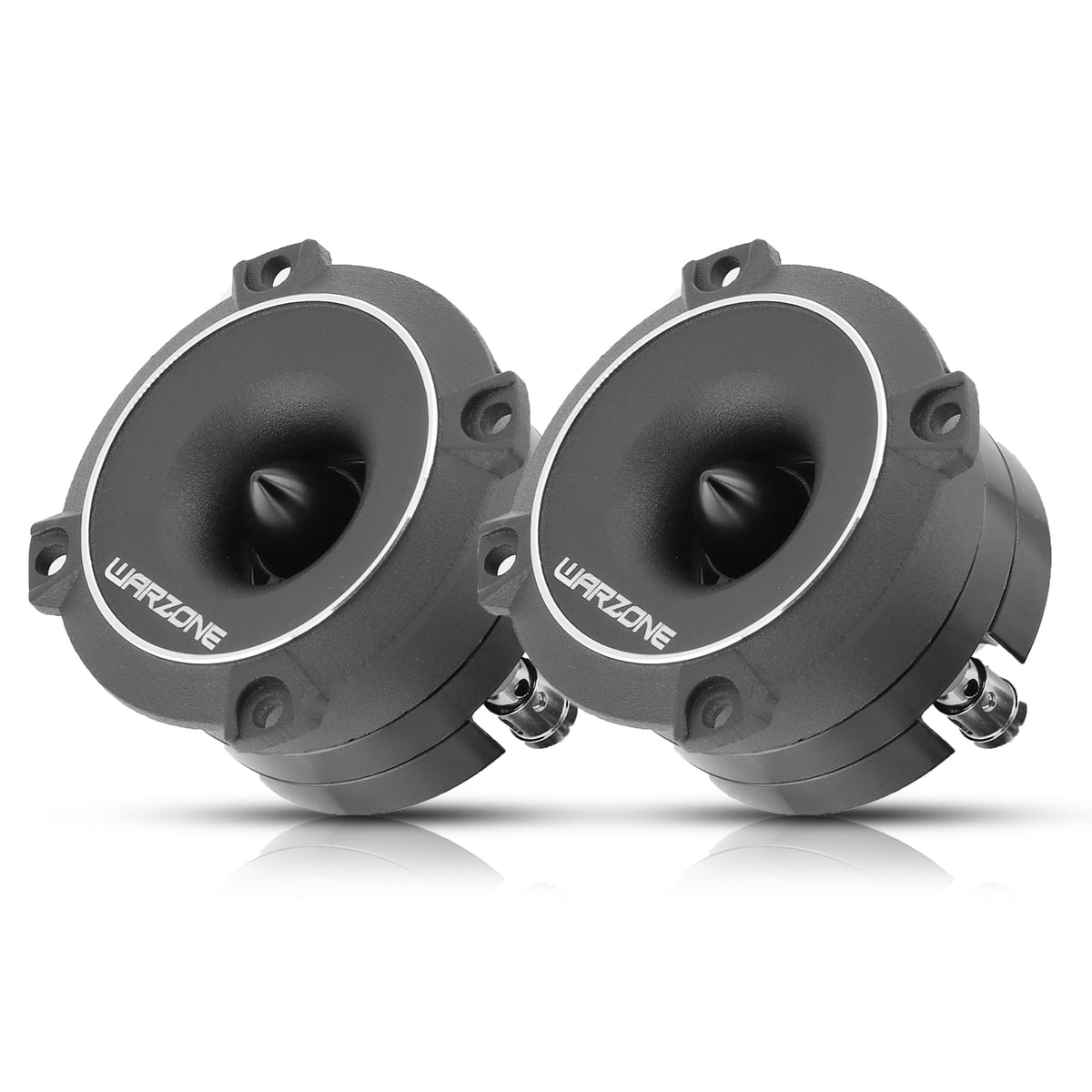

The Warzone WZ25TW is a pair of 2.93-inch super tweeters designed to add dedicated high-frequency output to a car-audio system. They are intended for listeners building or upgrading a system that needs clearer upper-frequency detail beyond what larger speakers may reproduce. Each tweeter uses a 4-ohm nominal impedance for compatibility with appropriately matched car-audio amplification.

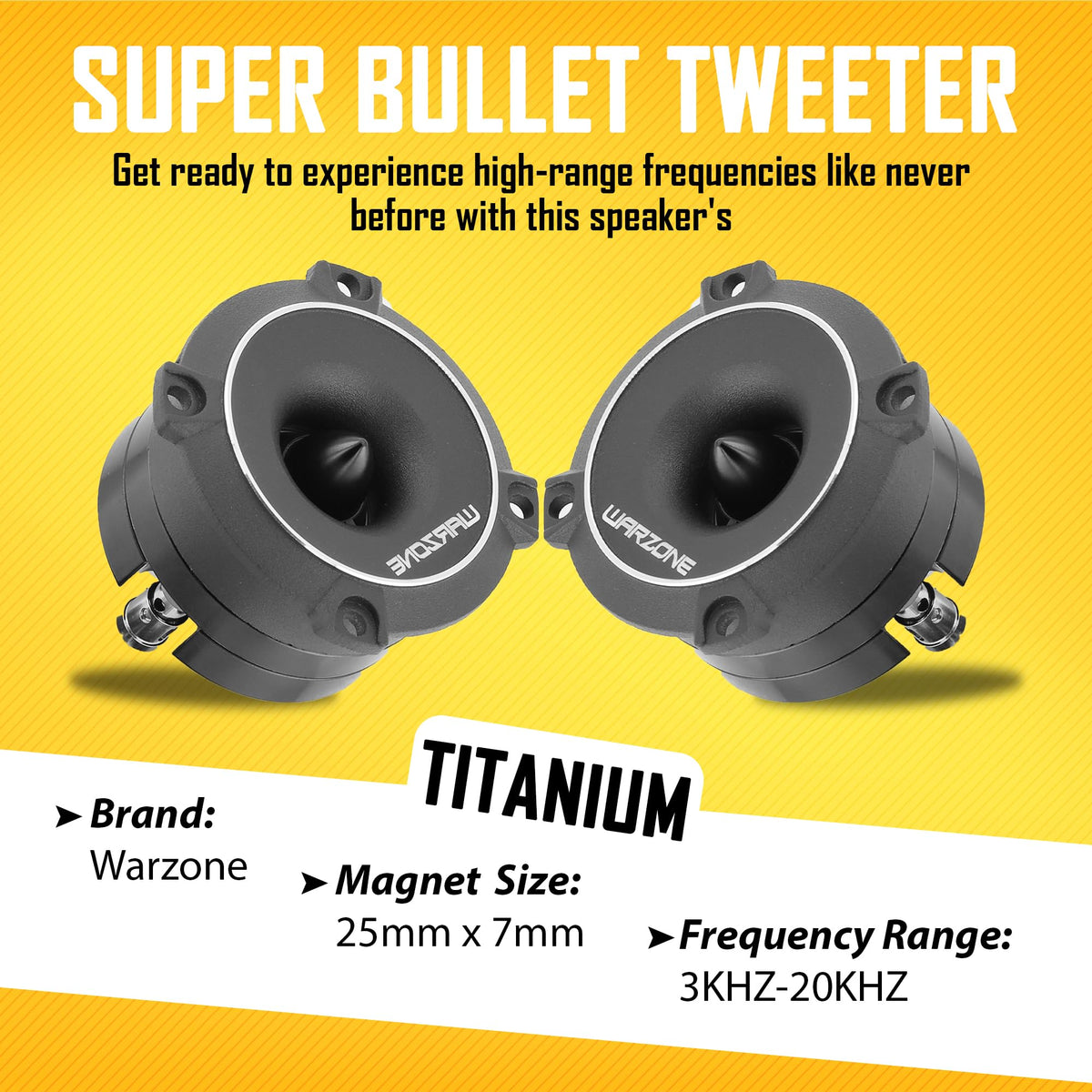

This pair is suited to custom car-audio installations where separate tweeters are being added to complement midrange speakers, coaxials, or a broader multi-speaker setup. The WZ25TW has a stated 3 kHz to 20 kHz frequency range, covering the upper part of the audible spectrum. Its 106 dB sensitivity rating indicates it is designed for efficient output when correctly integrated into a system.

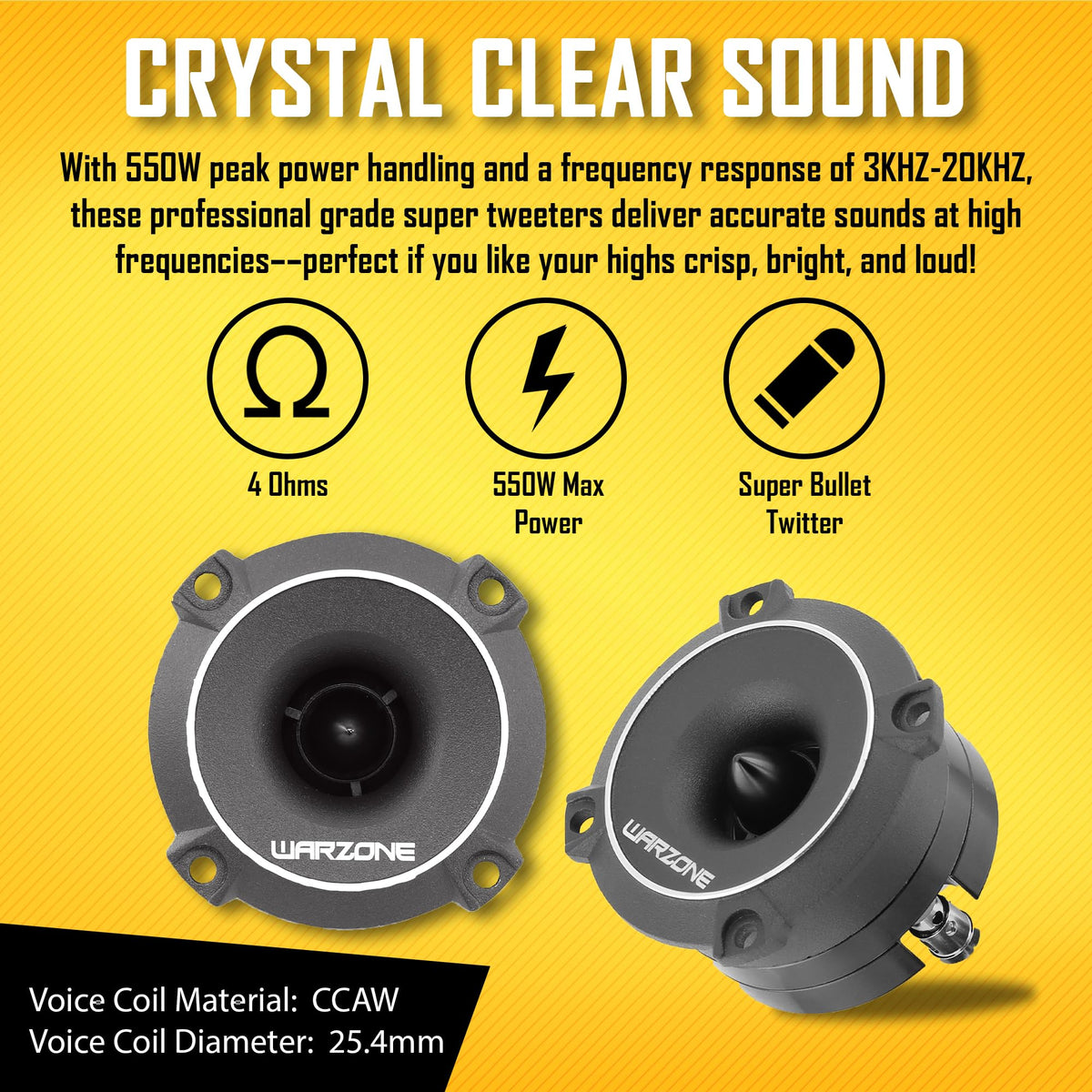

Warzone specifies up to 550 watts maximum power per tweeter, or 1100 watts total maximum power for the pair. Maximum power is not an RMS rating, so amplifier selection should be based on careful system matching rather than the maximum figure alone. Proper gain setting is important when adding high-sensitivity tweeters to an existing system.

A titanium diaphragm is used for the sound-producing element, while the voice coil is specified as CCAW. This material combination is intended for a compact tweeter design focused on high-frequency reproduction. The compact magnet is listed at 0.98 inches by 0.28 inches.

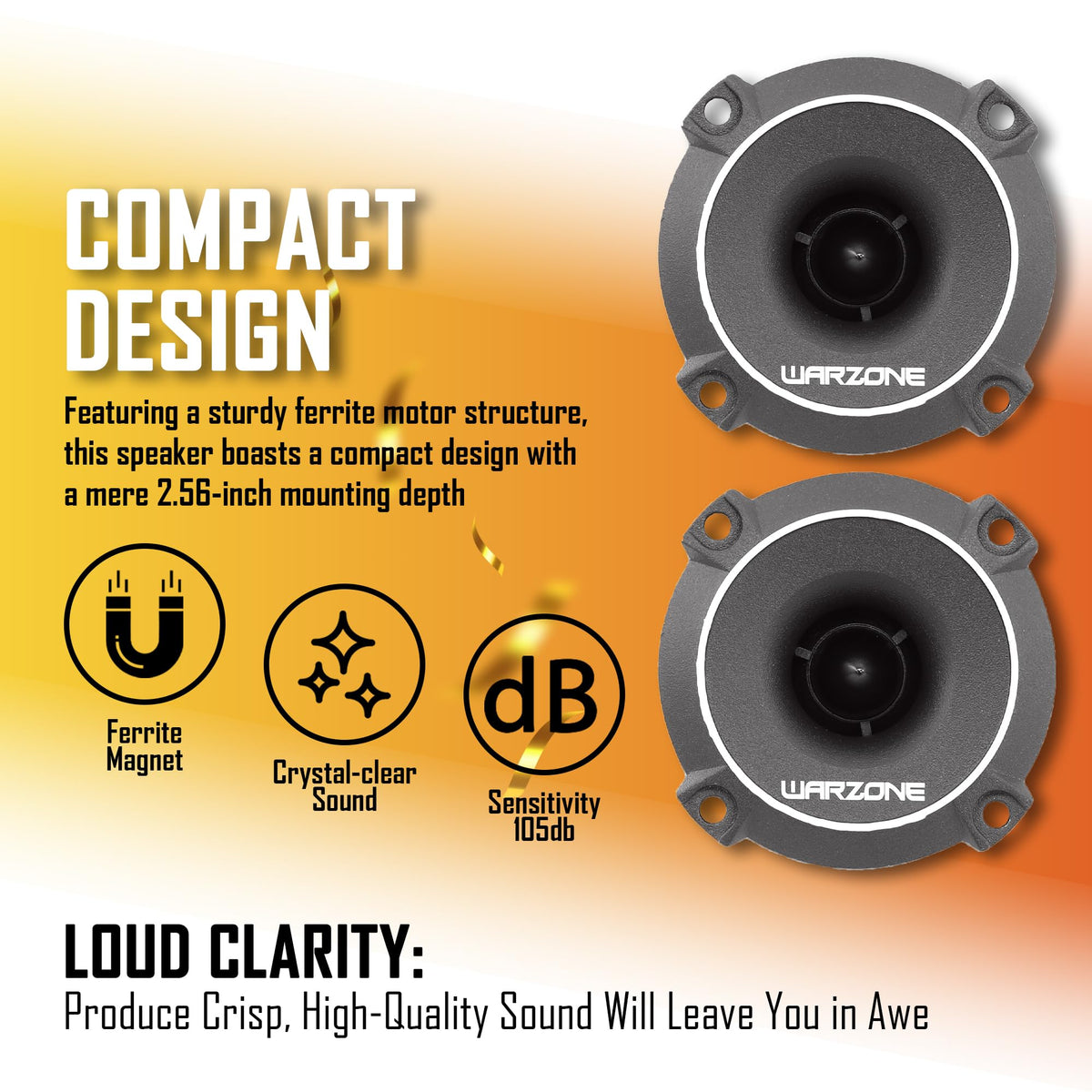

The WZ25TW is a wired, car-mount tweeter pair that can be used as part of a vehicle audio upgrade. Its compact 2.93-inch format can suit installations with limited space, subject to confirming the available mounting location. For a balanced result, pair it with compatible speakers, amplification, and frequency filtering appropriate for a tweeter.

Key Features

• 2.93-Inch Super Tweeters: Compact dedicated tweeters for high-frequency system support.
• 4-Ohm Impedance: Matches compatible 4-ohm car-audio amplifier channels.
• 106 dB Sensitivity: Supports efficient output in a properly matched system.
• Titanium Diaphragm: Provides the specified diaphragm material for treble reproduction.
• CCAW Voice Coil: Uses a CCAW voice-coil construction.
• 550W Maximum Each: Rated at 1100W total maximum power per pair.

Design & Installation

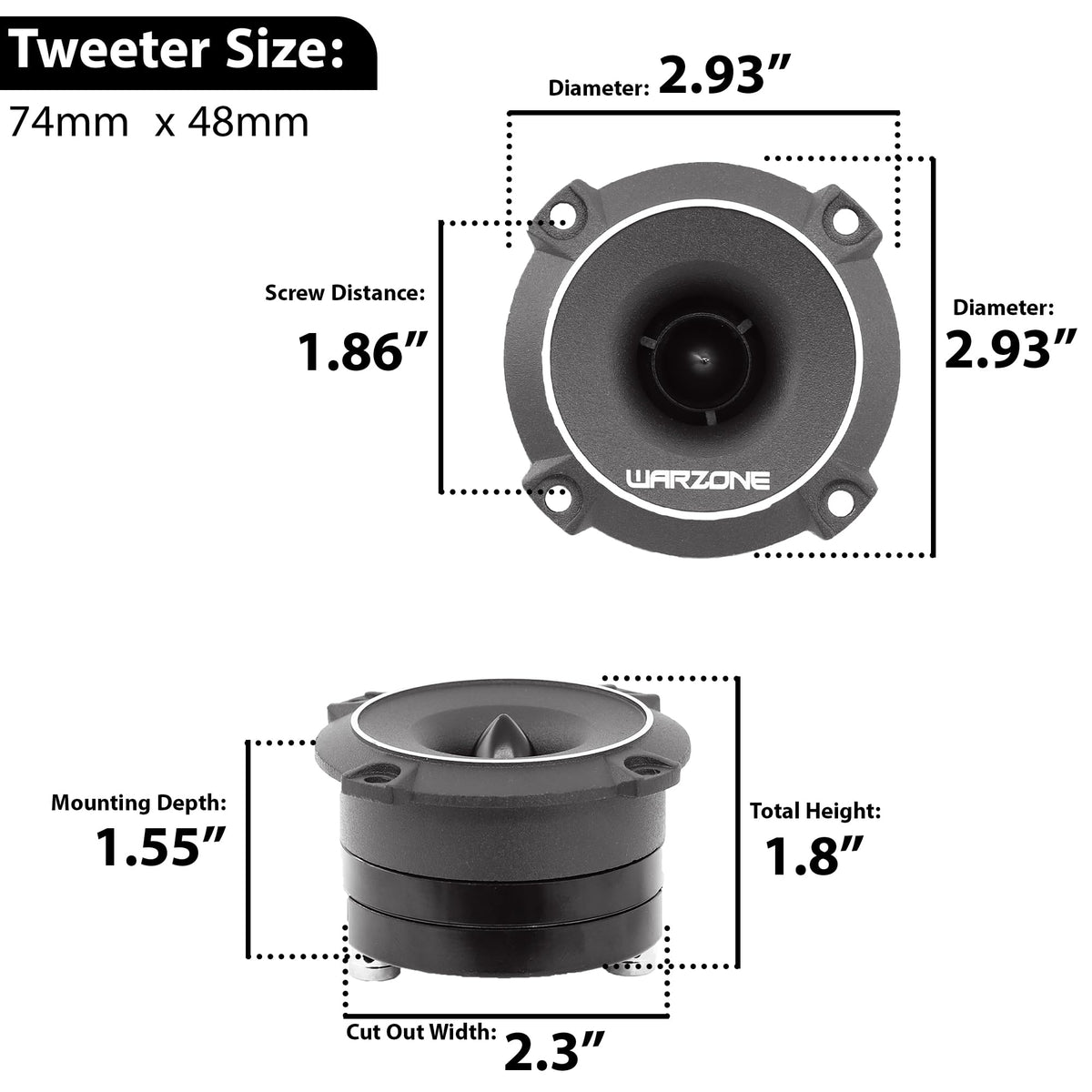

The WZ25TW uses a compact 2.93-inch tweeter layout with a titanium diaphragm and CCAW voice coil. Its magnet dimensions are listed as 0.98 inches by 0.28 inches. The pair is designed for wired connection and car mounting.

Confirm that the intended mounting location accommodates the tweeter and its mounting tabs before installation. Connect each tweeter only to a compatible 4-ohm audio channel or system configuration, and use appropriate high-frequency filtering for tweeter operation. Set amplifier gain conservatively and integrate the pair with the rest of the system to maintain balanced output.
