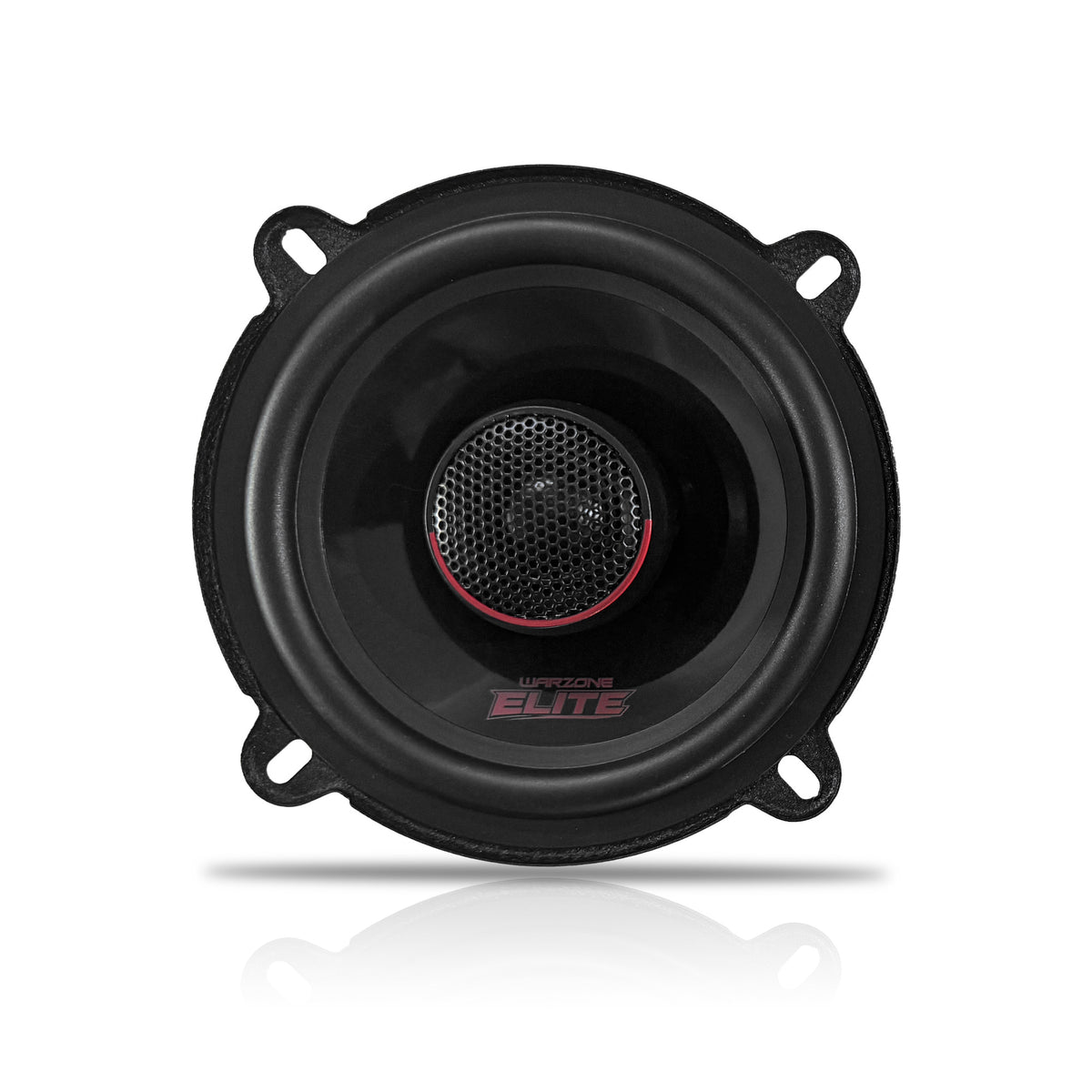

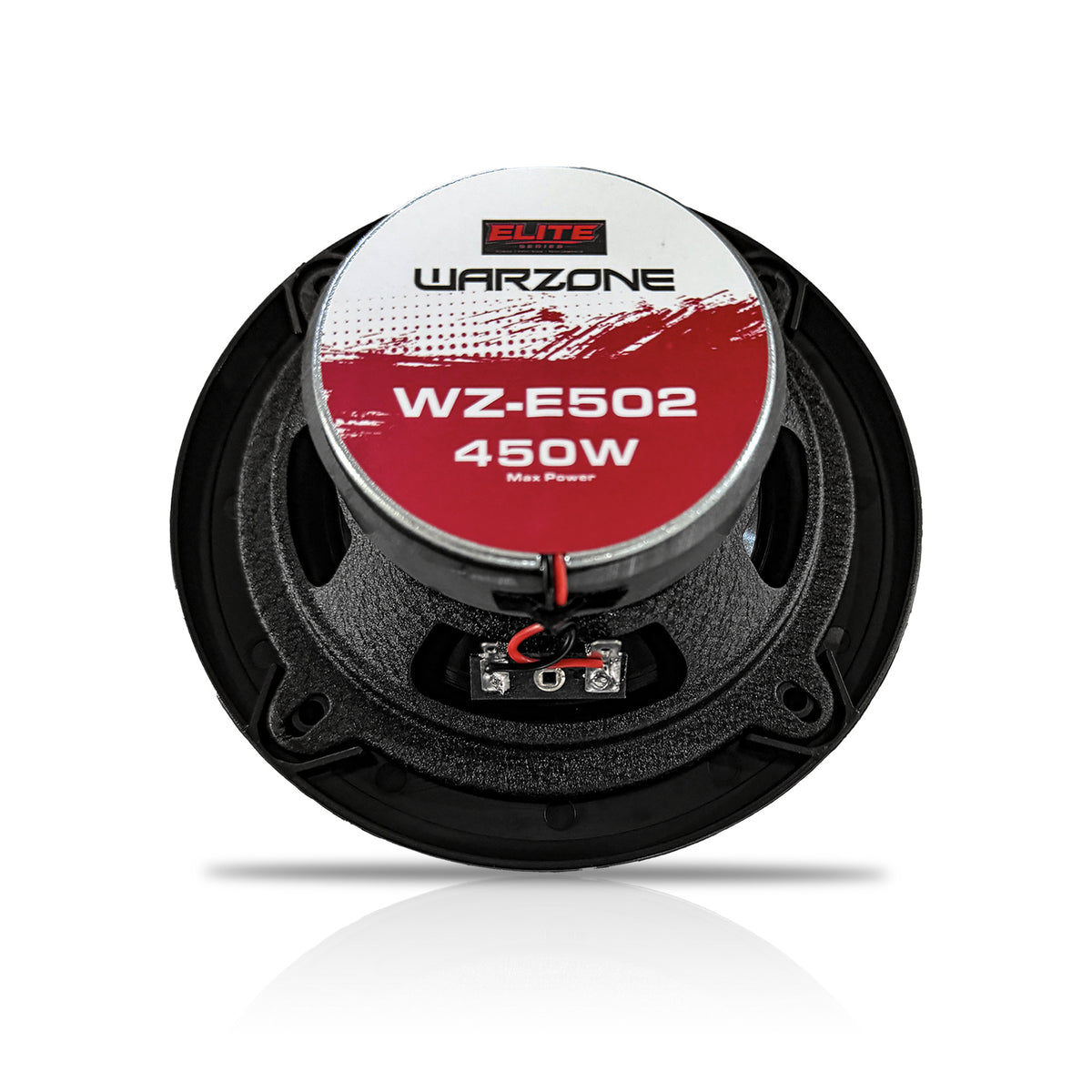

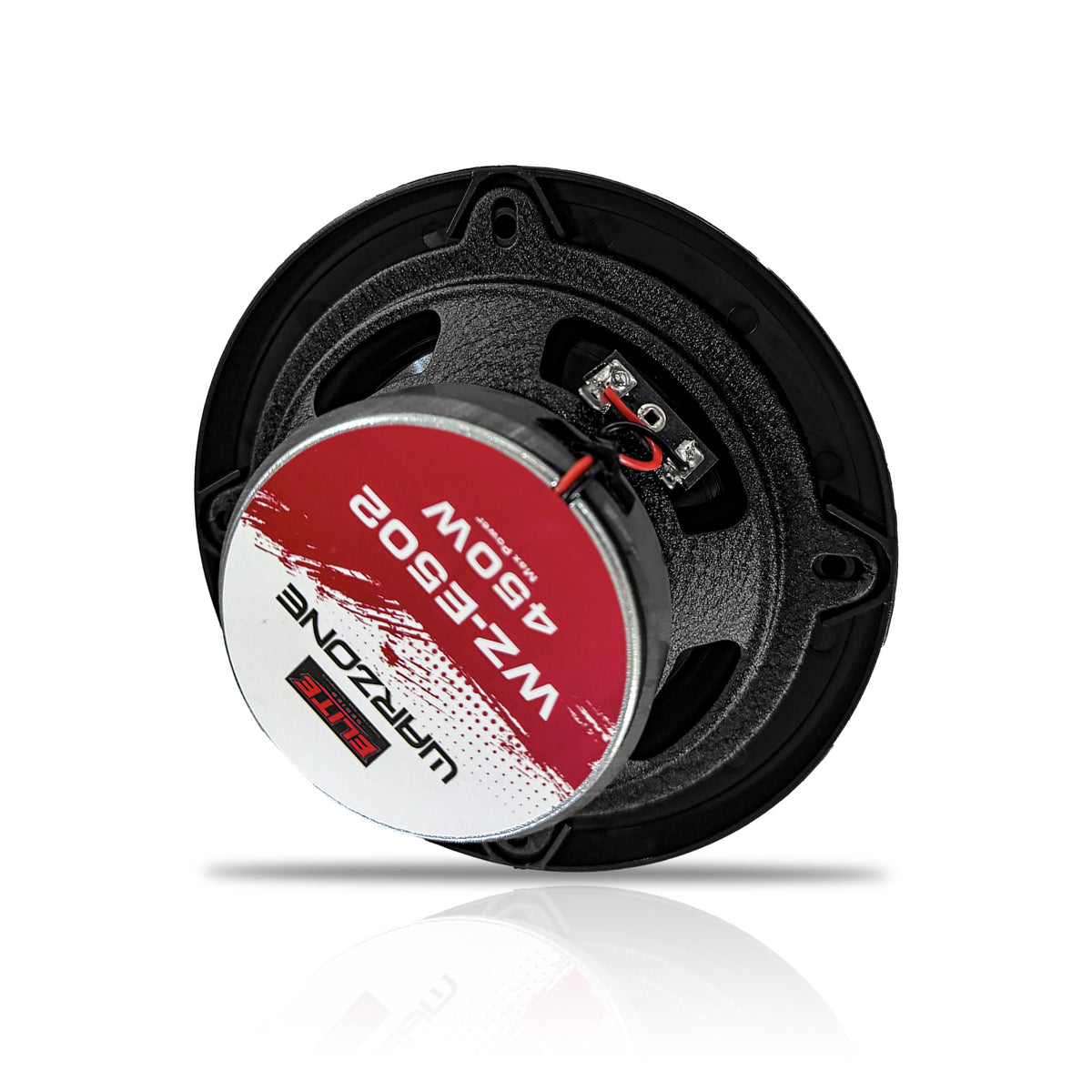

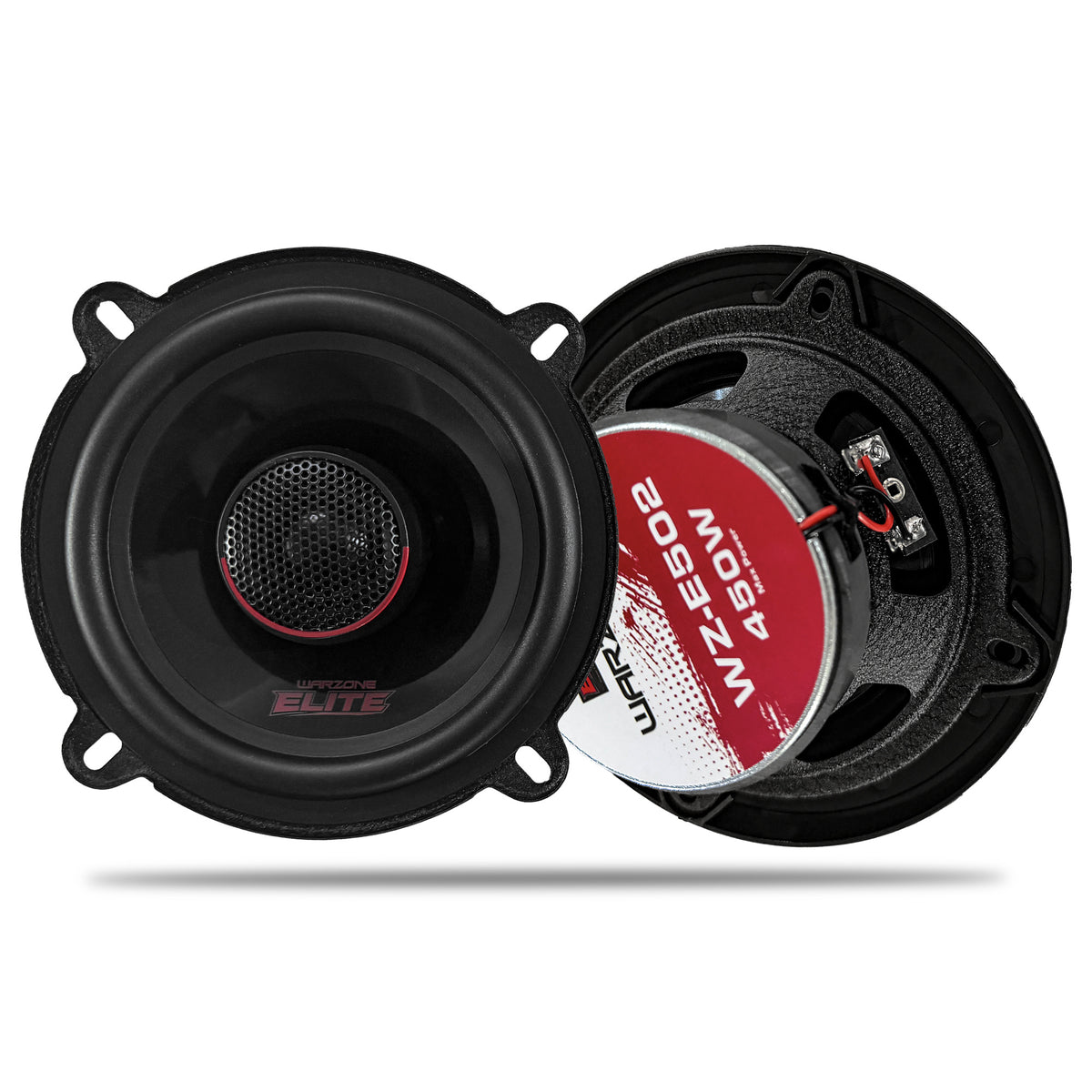

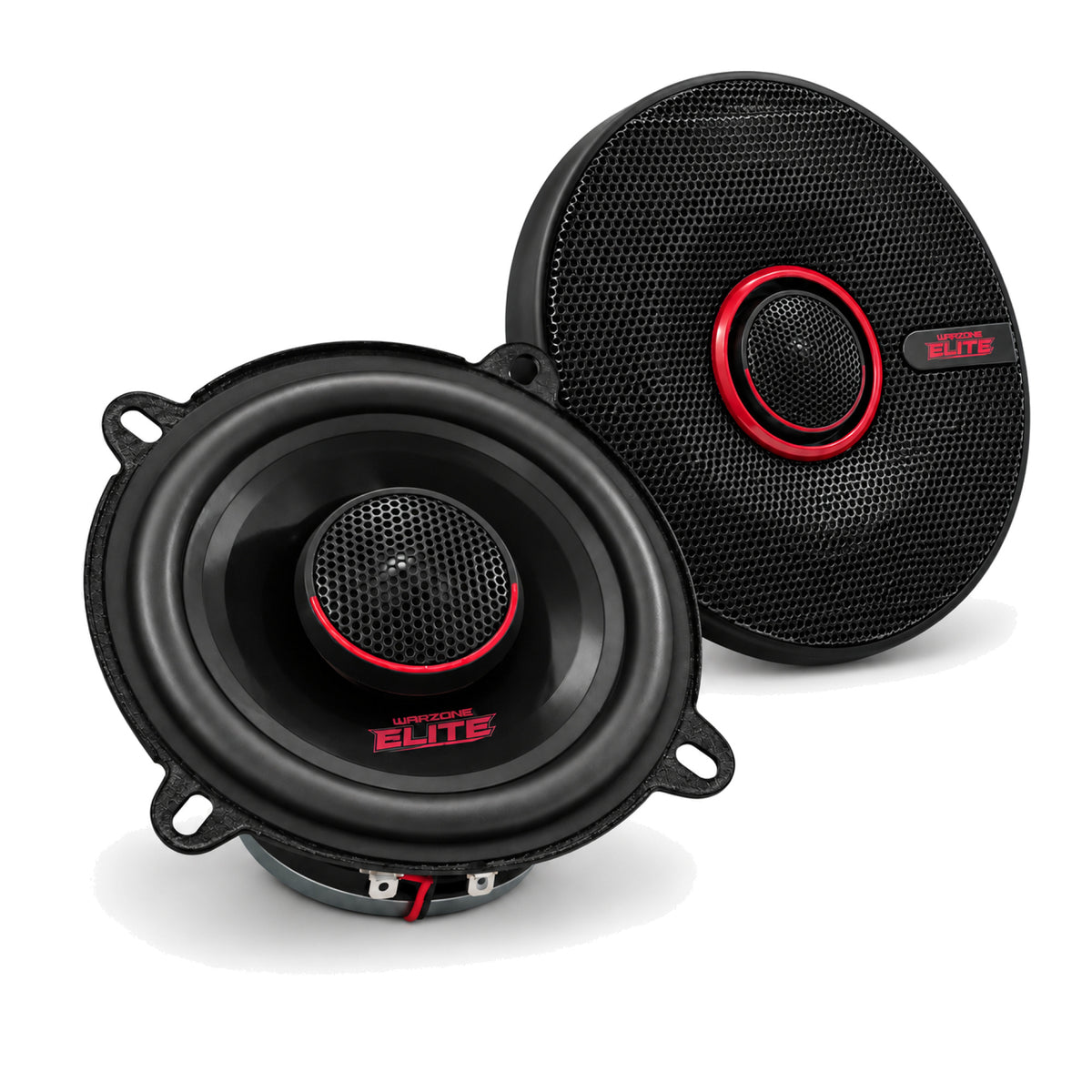

Warzone WZ-E502 5.25" Coaxial Car Speakers with Grilles

The Warzone WZ-E502 is a pair of 5.25-inch coaxial car speakers designed to replace compatible factory door or panel speakers. Each speaker combines a woofer and integrated PEI dome tweeter to provide full-range reproduction from one mounting location. This format is useful for vehicles where space is limited and a straightforward speaker upgrade is desired.

With a 4-ohm design and 89 dB sensitivity, the WZ-E502 is suited to use with an aftermarket head unit or a properly matched amplifier. The pair is rated for 225 watts RMS total and 450 watts maximum total. Its 80 Hz to 20 kHz frequency response is intended to cover everyday music listening with midrange presence, treble detail, and usable low-frequency output.

The woofer section uses a 1-inch voice coil and a 12-ounce ferrite magnet. These components support the speaker's midbass and midrange duties in a compact 5.25-inch format. A 90 Hz resonant frequency is specified for the system.

An integrated 1.73-inch PEI dome tweeter handles the upper-frequency range from 1,500 Hz to 20 kHz. The specified 6 kHz crossover point separates high-frequency reproduction from the woofer section. This coaxial arrangement keeps both drivers together for a compact installation in compatible speaker openings.

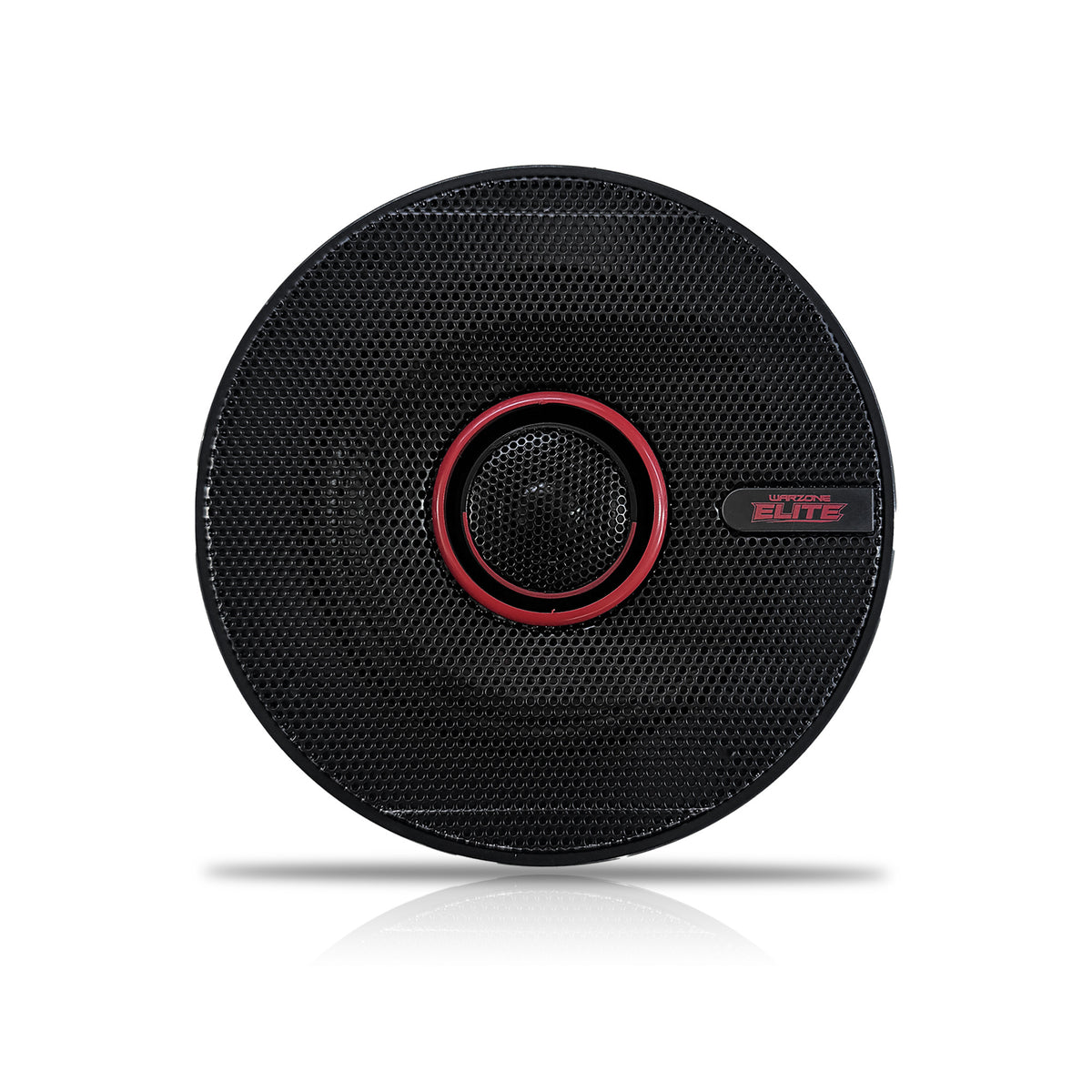

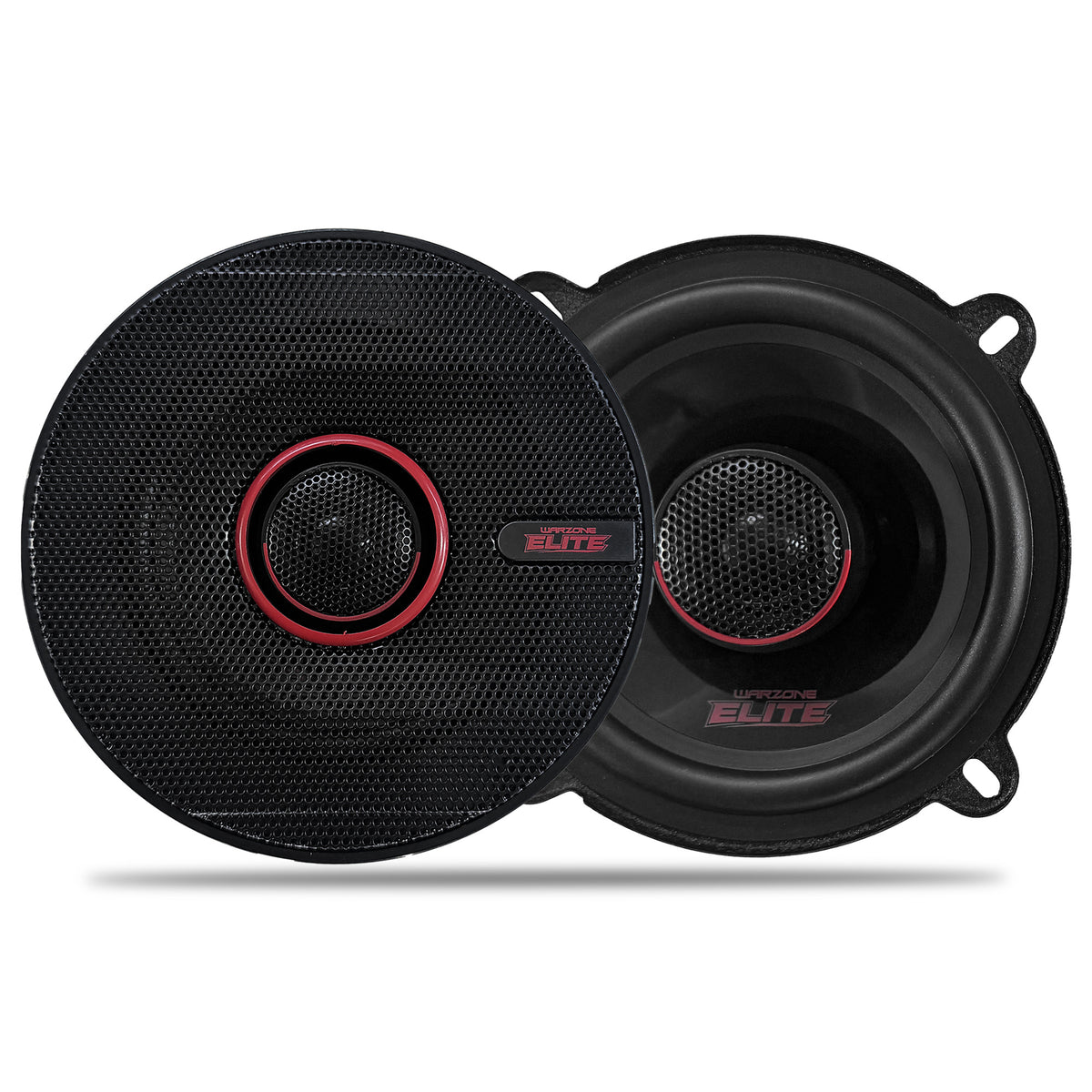

The WZ-E502 can be used as a front or rear speaker replacement where the vehicle accepts its mounting dimensions. Each speaker requires a 4.53-inch cutout and 2.09 inches of mounting depth, so checking behind-panel clearance is important before installation. Two protective grilles are included for installations where the speaker faces remain exposed.

Key Features

• 5.25-Inch Coaxial Design: Combines woofer and tweeter functions in each speaker.
• 4-Ohm Impedance: Supports use with compatible car receivers and amplifiers.
• 225W RMS Per Pair: Provides a clearly stated continuous pair power rating.
• PEI Dome Tweeter: Reproduces upper frequencies through an integrated coaxial design.
• 12-Ounce Ferrite Magnet: Supports the woofer's compact motor structure.
• Included Protective Grilles: Adds speaker-face protection for applicable installations.

Design & Installation

These Elite Series speakers use a compact woofer-and-tweeter coaxial layout for full-range sound from a single speaker location. Each woofer has a 1-inch voice coil and 12-ounce ferrite magnet, while the integrated 1.73-inch PEI dome tweeter handles the higher-frequency range. The 6 kHz crossover is specified to divide tweeter and woofer duties.

Confirm that the vehicle accepts a 5.25-inch speaker and verify the required 4.53-inch cutout, 2.09-inch mounting depth, and clearance around the 5.12-inch overall diameter before installation. Connect the speakers to a compatible 4-ohm receiver or properly matched amplifier, observing correct polarity at both channels. The package includes two speakers and two grilles for a stereo front or rear speaker upgrade.
