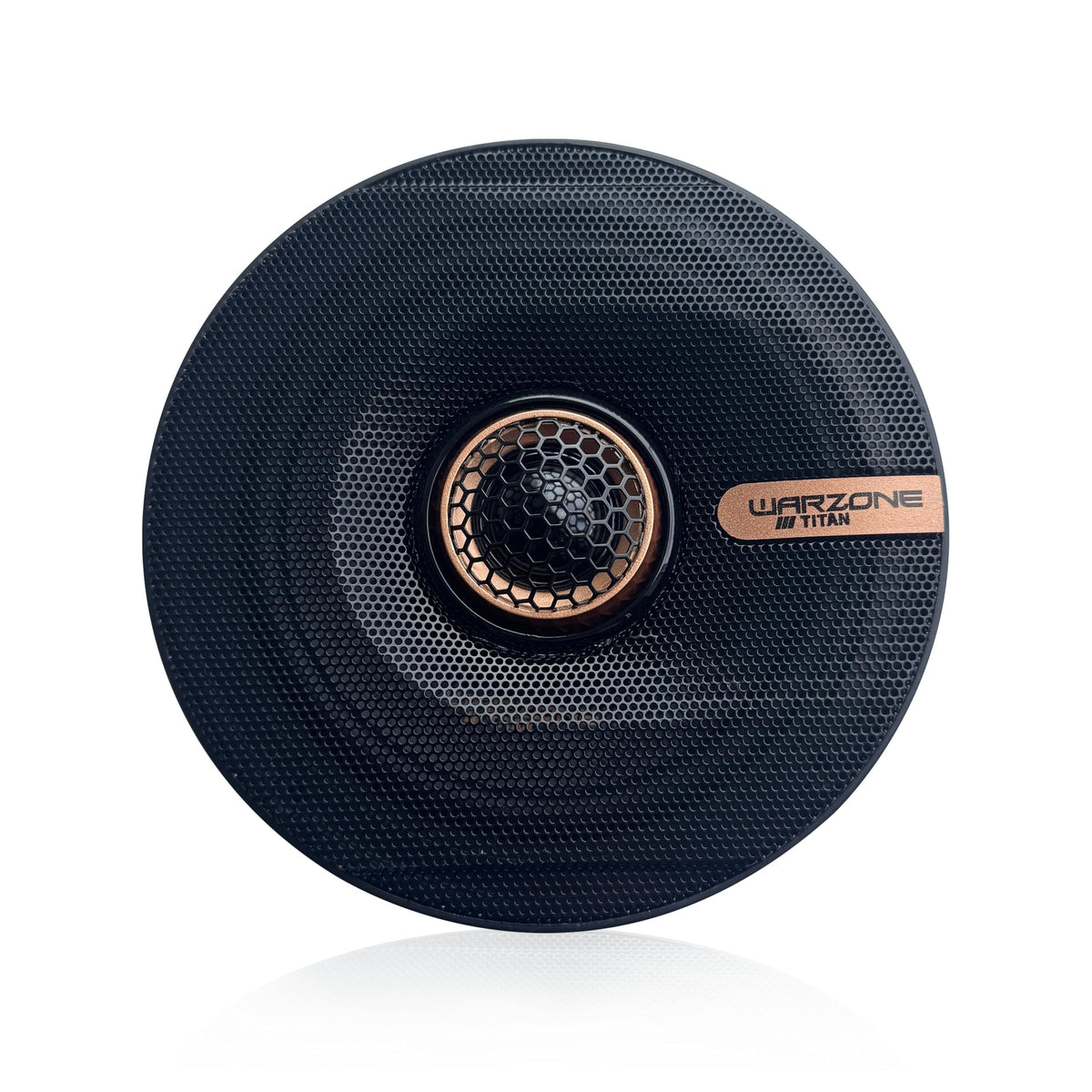

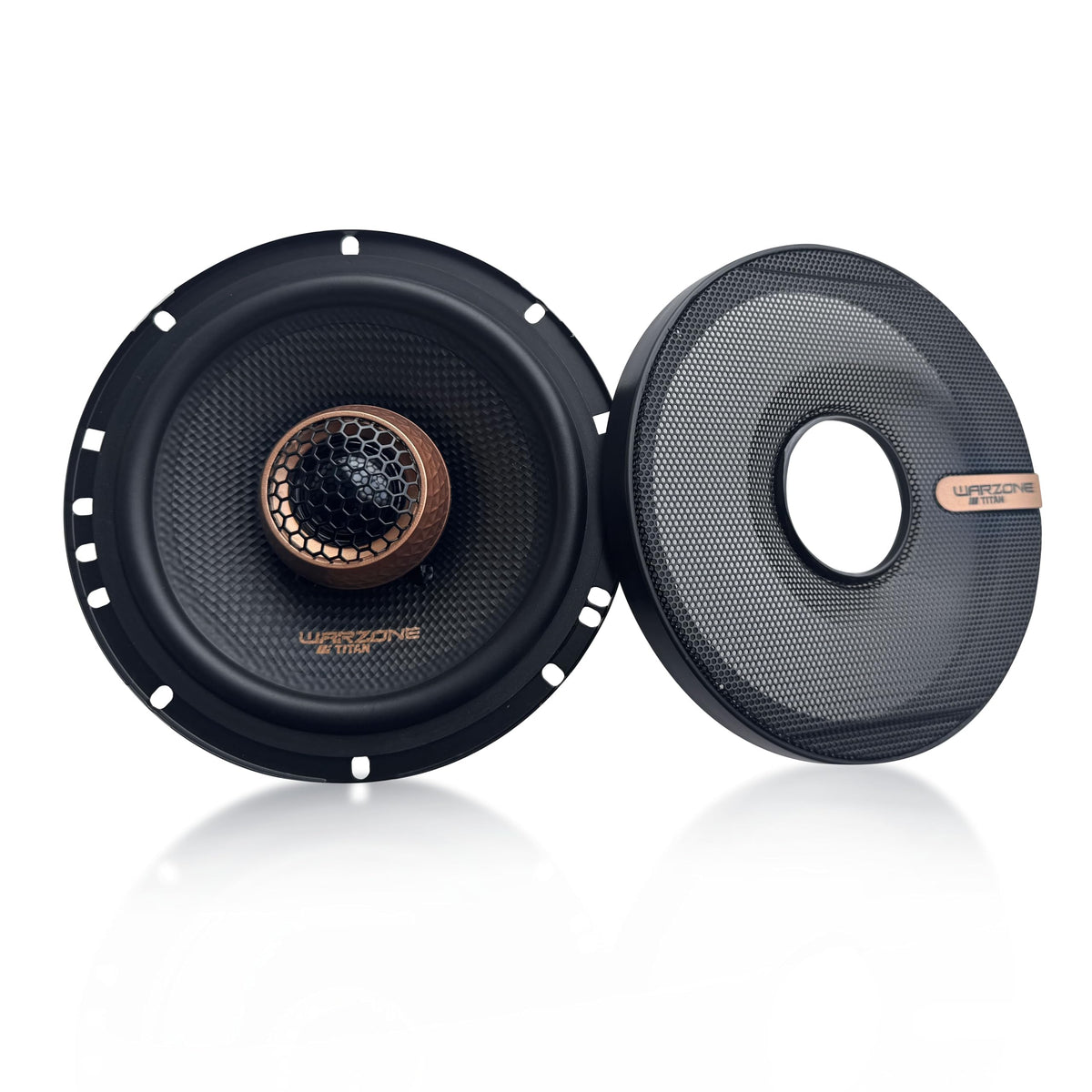

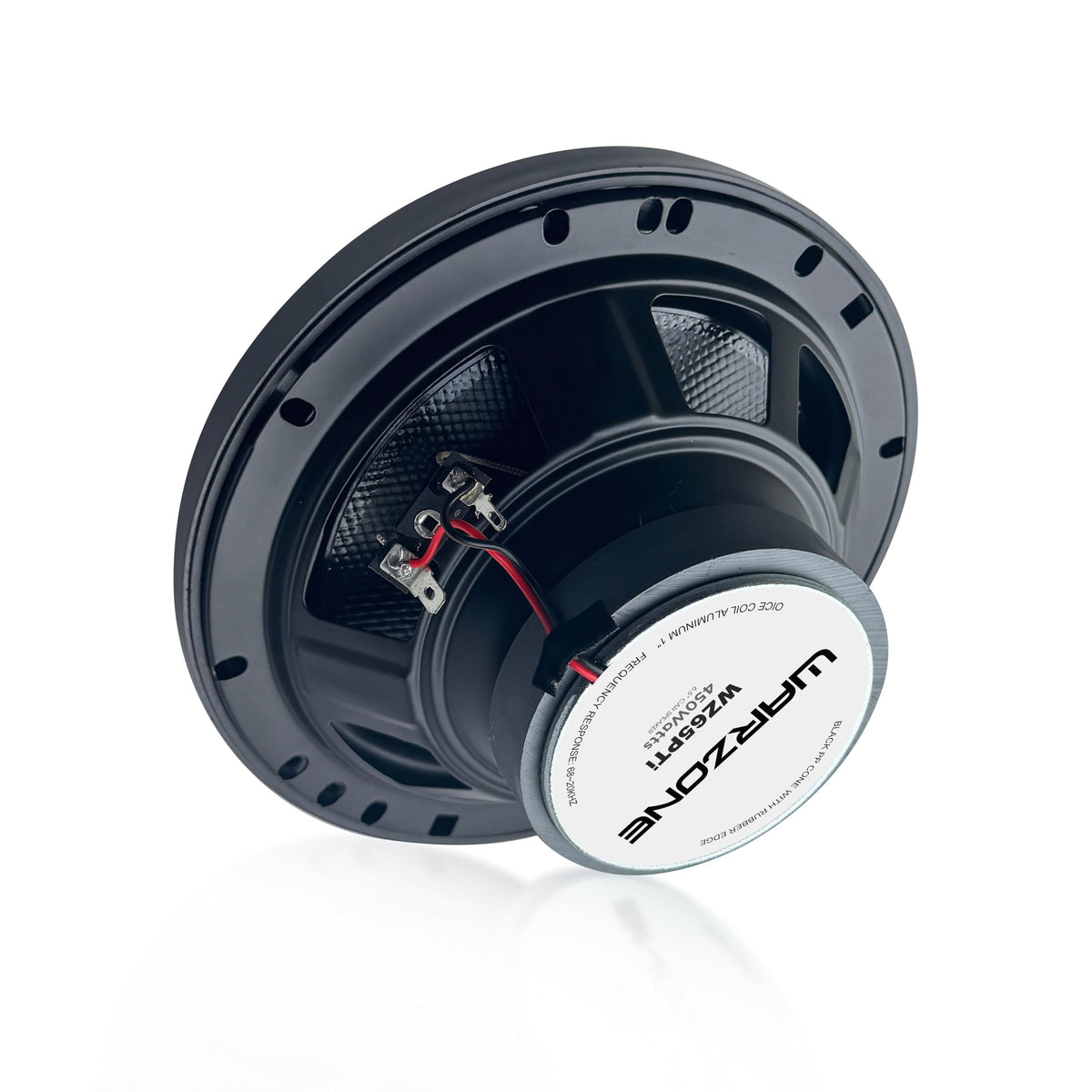

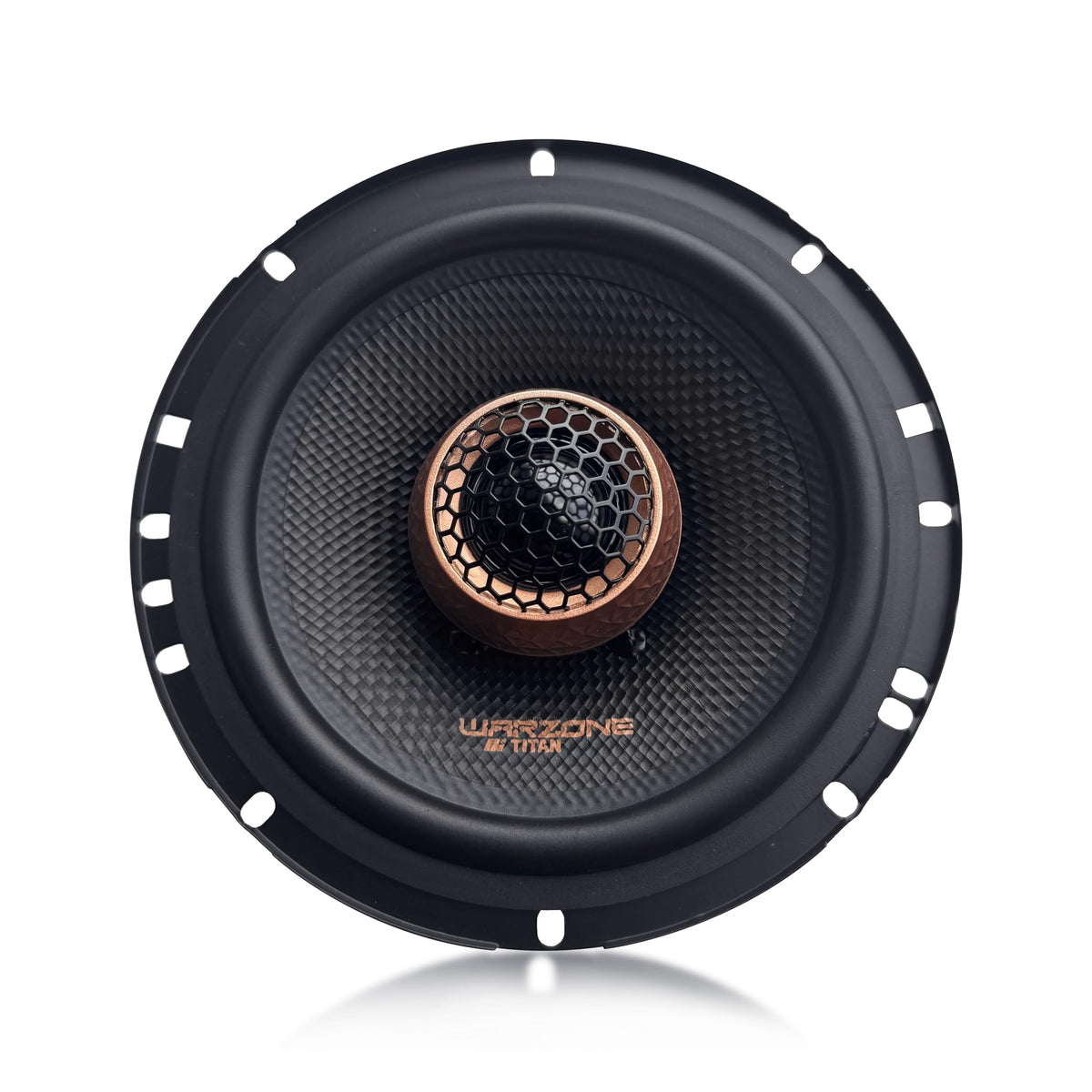

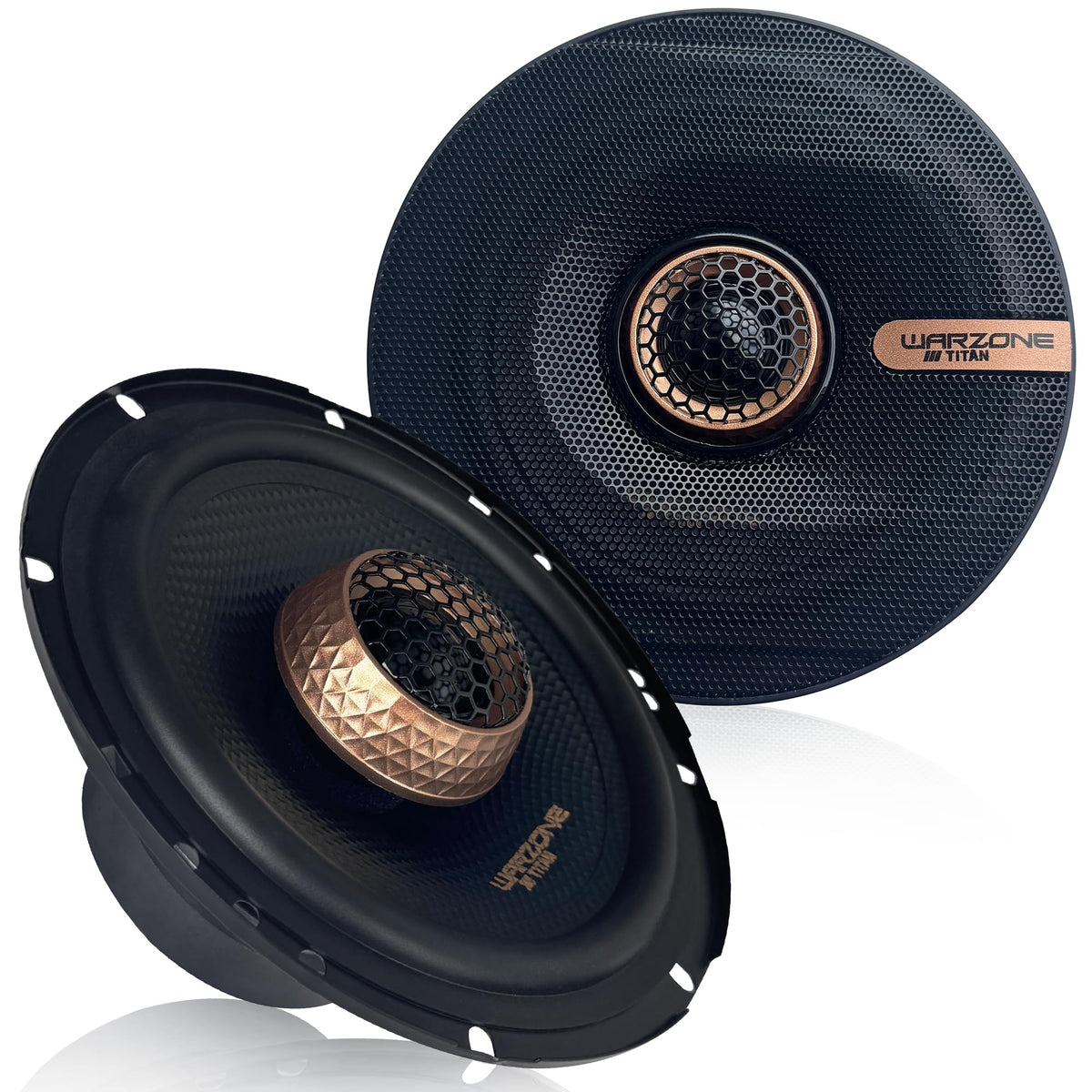

WARZONE WZ-65PTI 6.5" Super Coaxial Speaker Pair

The WARZONE WZ-65PTI is a pair of 6.5-inch, two-way coaxial car speakers for replacing or upgrading factory door-speaker locations. It combines a woofer and tweeter in each speaker, helping simplify an installation where separate tweeter mounting is not desired. Its 4-ohm design suits many conventional car-audio speaker circuits.

This speaker pair is intended for listeners who want stronger midrange presence and more defined high frequencies from a compact coaxial format. With a stated 120W RMS system rating and 450W maximum system rating, it is suited to systems matched with appropriately rated amplification. The 92dB sensitivity specification supports solid output without relying solely on high amplifier power.

The WZ-65PTI uses a glass-fiber woofer cone to reproduce the midrange and upper-bass range, paired with a 50mm PEI dome tweeter for high-frequency detail. Its published 68Hz to 20kHz frequency response covers much of the audible range used for vocal, instrument, and everyday music playback. For deeper bass, it can be used alongside a dedicated subwoofer in a larger system.

A 12-ounce ferrite woofer magnet is part of the speaker's motor assembly, while the coaxial tweeter is integrated above the woofer. The crossover point is specified at 4.5kHz, directing higher frequencies to the tweeter. This arrangement keeps the two-way system contained within a single 6.5-inch speaker location.

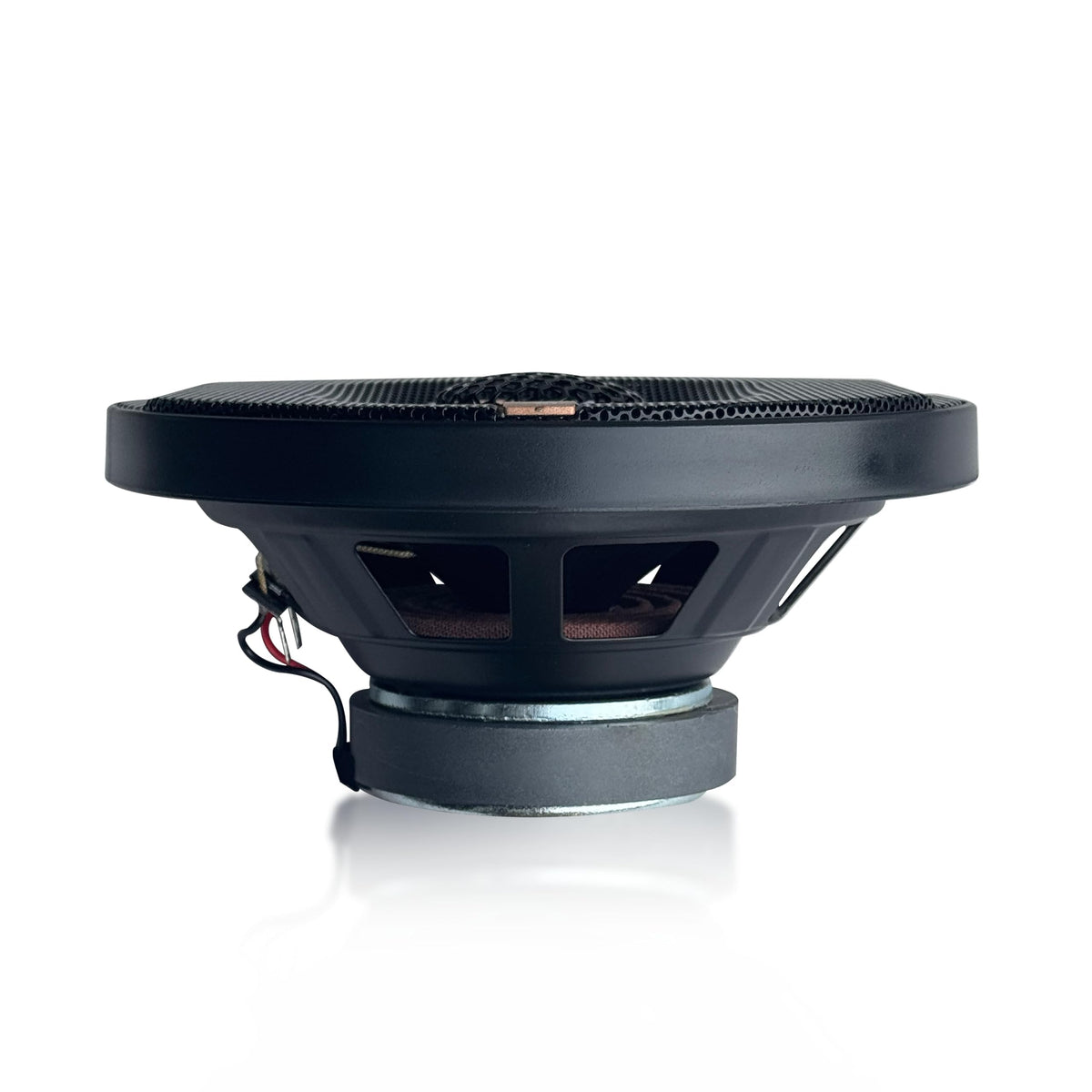

Installation dimensions are provided for planning an upgrade before removing factory speakers. The WZ-65PTI requires a 5.52-inch cutout and has a 2.48-inch mounting depth, so both opening diameter and rear clearance should be checked. Its 3.29-inch overall height should also be considered when fitting behind factory grilles or door panels.

Key Features

• Two-Way Coaxial Design: Combines woofer and tweeter functions in each speaker.
• 6.5-Inch Speaker Size: Fits many common car door-speaker locations.
• 120W RMS System Rating: Supports power-matched aftermarket amplification.
• Glass-Fiber Woofer Cone: Handles midrange and upper-bass playback duties.
• 50mm PEI Dome Tweeter: Adds dedicated high-frequency reproduction.
• 92dB Sensitivity: Helps achieve useful output from moderate power.

Design & Installation

The WZ-65PTI uses a glass-fiber woofer cone, a 50mm PEI dome tweeter, and a 12-ounce ferrite woofer magnet. Its integrated coaxial construction places the tweeter within the woofer assembly, retaining a compact speaker format. The specified 4.5kHz crossover supports the division of frequencies between the woofer and tweeter.

Verify the vehicle's speaker opening, mounting depth, and clearance behind the door panel before purchase. The required cutout is 5.52 inches, mounting depth is 2.48 inches, and overall height is 3.29 inches. Match the speakers with a compatible 4-ohm head-unit or amplifier channel and use wiring and mounting hardware appropriate for the vehicle installation.
