Warzone WC2200-1D 2200W Class D Monoblock Amplifier

The Warzone WC2200-1D is a mono Class D car amplifier designed to power a subwoofer system from a compact amplifier chassis. It provides a single amplified channel with RMS output ratings that scale for 1-, 2-, or 4-ohm subwoofer loads. This makes it a practical choice for vehicle owners building a dedicated bass section rather than a full-range multi-speaker system.

At its rated 1-ohm load, the WC2200-1D delivers up to 2200 watts RMS, with lower-rated operation available at 2 and 4 ohms. Its mono configuration concentrates amplifier power into one subwoofer channel for systems that prioritize low-frequency output. Match the final wired impedance of the subwoofer system to one of the amplifier's supported loads before installation.

Class D amplification and a MOSFET pulse-width-modulated power supply support efficient operation in a vehicle audio system. The amplifier uses a double-sided FR-4 circuit board and surface-mount components as part of its circuit construction. A proprietary heat-dissipation design is intended to help manage operating temperature during extended use.

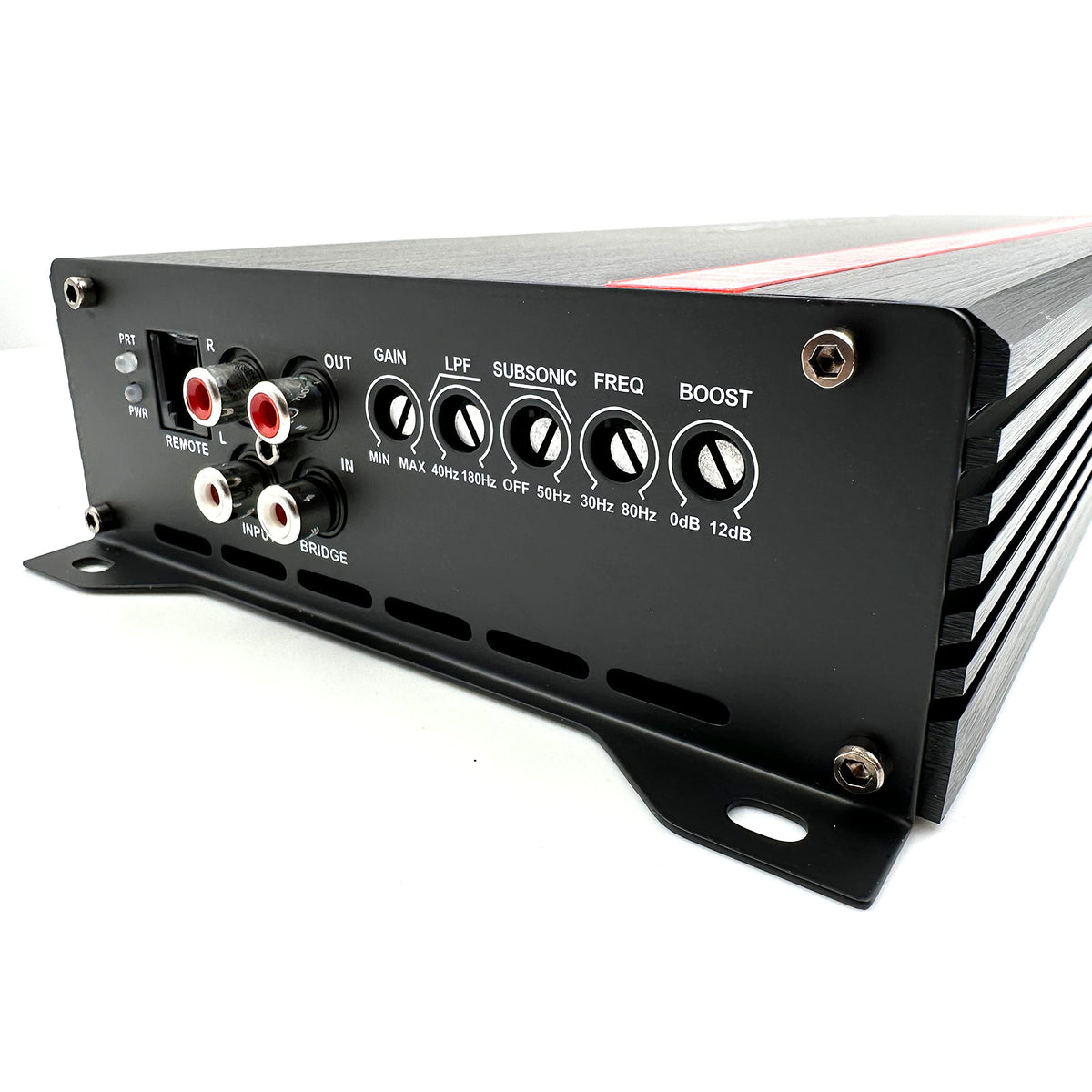

System tuning is handled through adjustable filtering and bass controls. The amplifier includes an adjustable low-pass filter, adjustable high-pass filtering stated for the model, adjustable bass-boost frequency and level controls, and a remote level control connection. These adjustments allow the amplifier's output to be blended with the rest of a car audio system and tailored to the installed subwoofer enclosure.

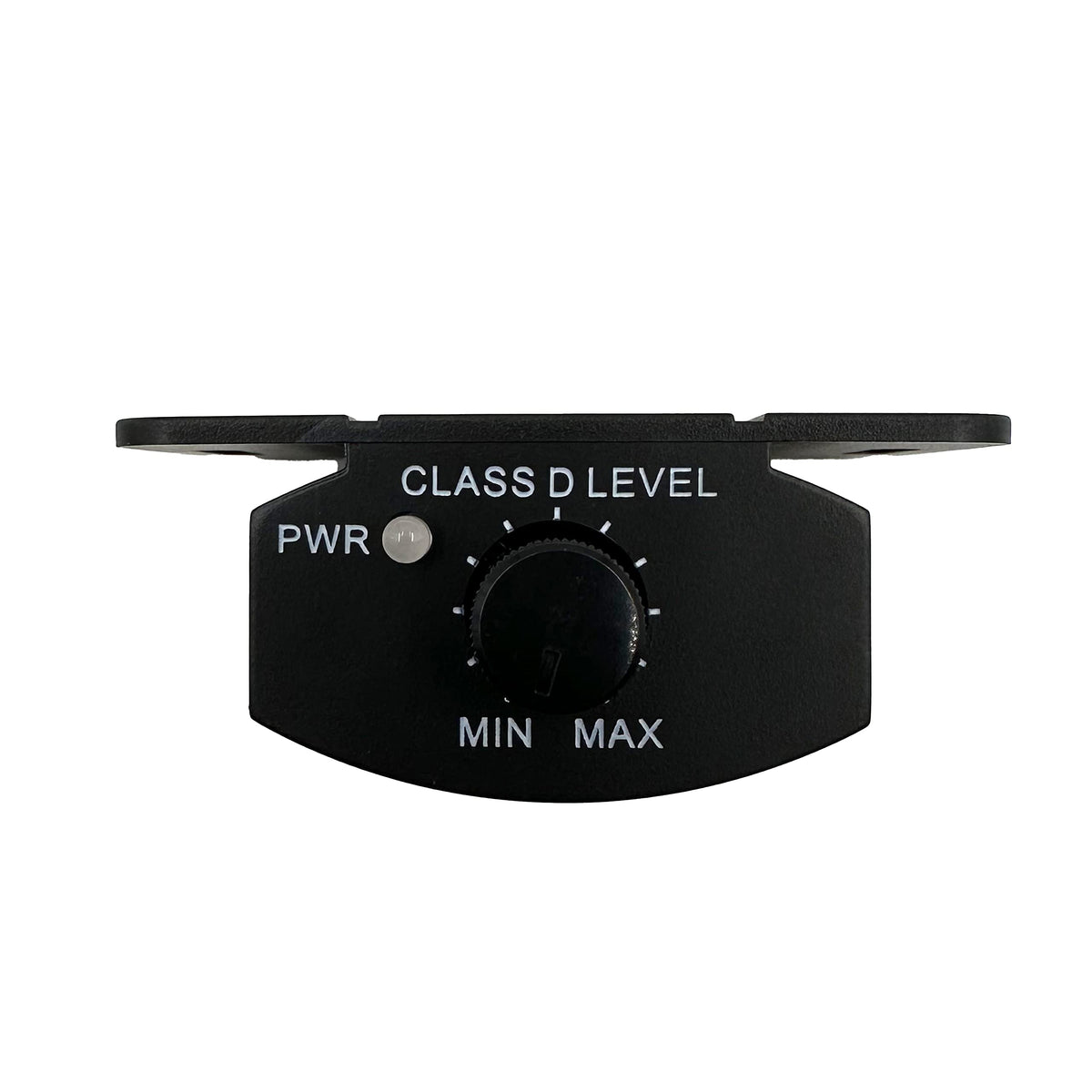

The WC2200-1D is suited to custom subwoofer upgrades in cars, trucks, and SUVs where a high-output mono amplifier is needed. RCA input and output connections support integration with compatible source units and downstream audio equipment. A wired bass-level knob and cable are included, so the subwoofer level can be adjusted from the listening position.

Key Features

• 2200W RMS at 1 Ohm: Supplies its highest rated continuous output into a 1-ohm mono load.
• Three Supported Loads: Operates with 1-, 2-, and 4-ohm speaker configurations.
• Class D Topology: Uses an efficient amplifier design for high-power subwoofer applications.
• MOSFET PWM Supply: Uses a pulse-width-modulated MOSFET power supply design.
• Adjustable Sound Controls: Provides low-pass, high-pass, and bass-boost adjustments for system tuning.
• Wired Level Remote: Includes a bass knob and cable for convenient output-level adjustment.

Design & Installation

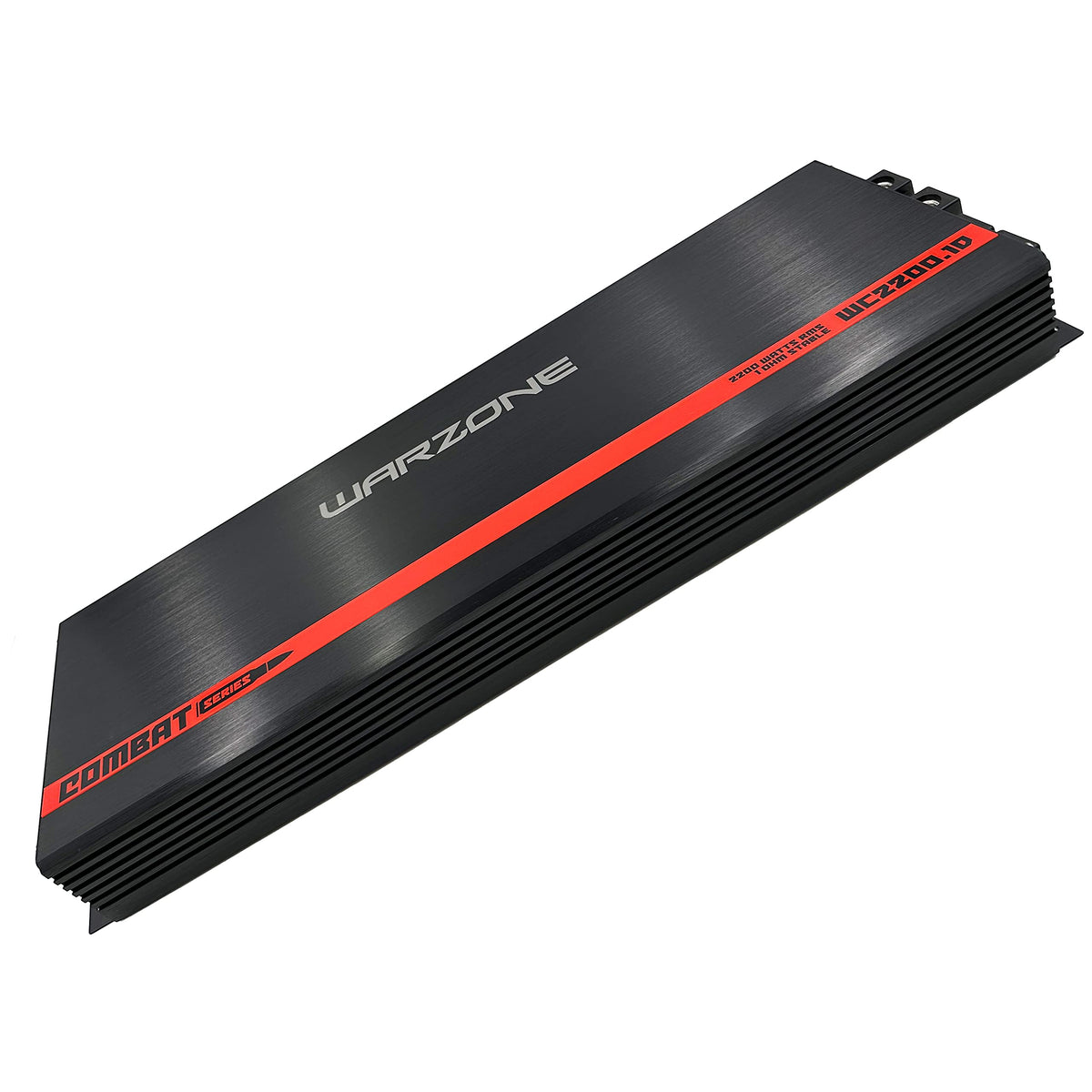

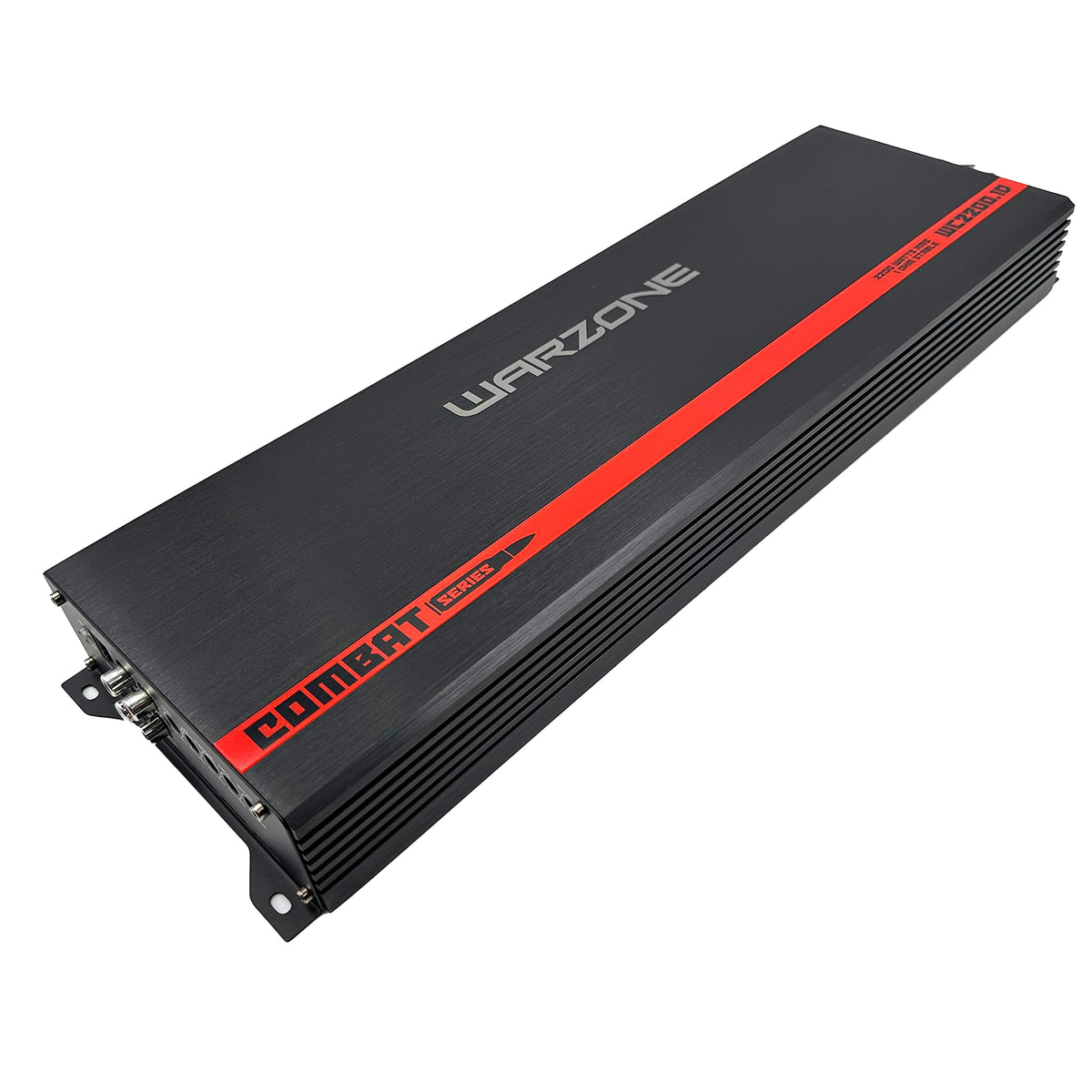

The WC2200-1D uses a compact, finned metal chassis with mounting feet, a double-sided FR-4 PCB, and high-quality SMD components. Its circuit design includes MOSFET technology and a heat-dissipation layout intended for car-audio use. Four-way protection circuitry covers high voltage, low voltage, over-current, and high-temperature conditions.

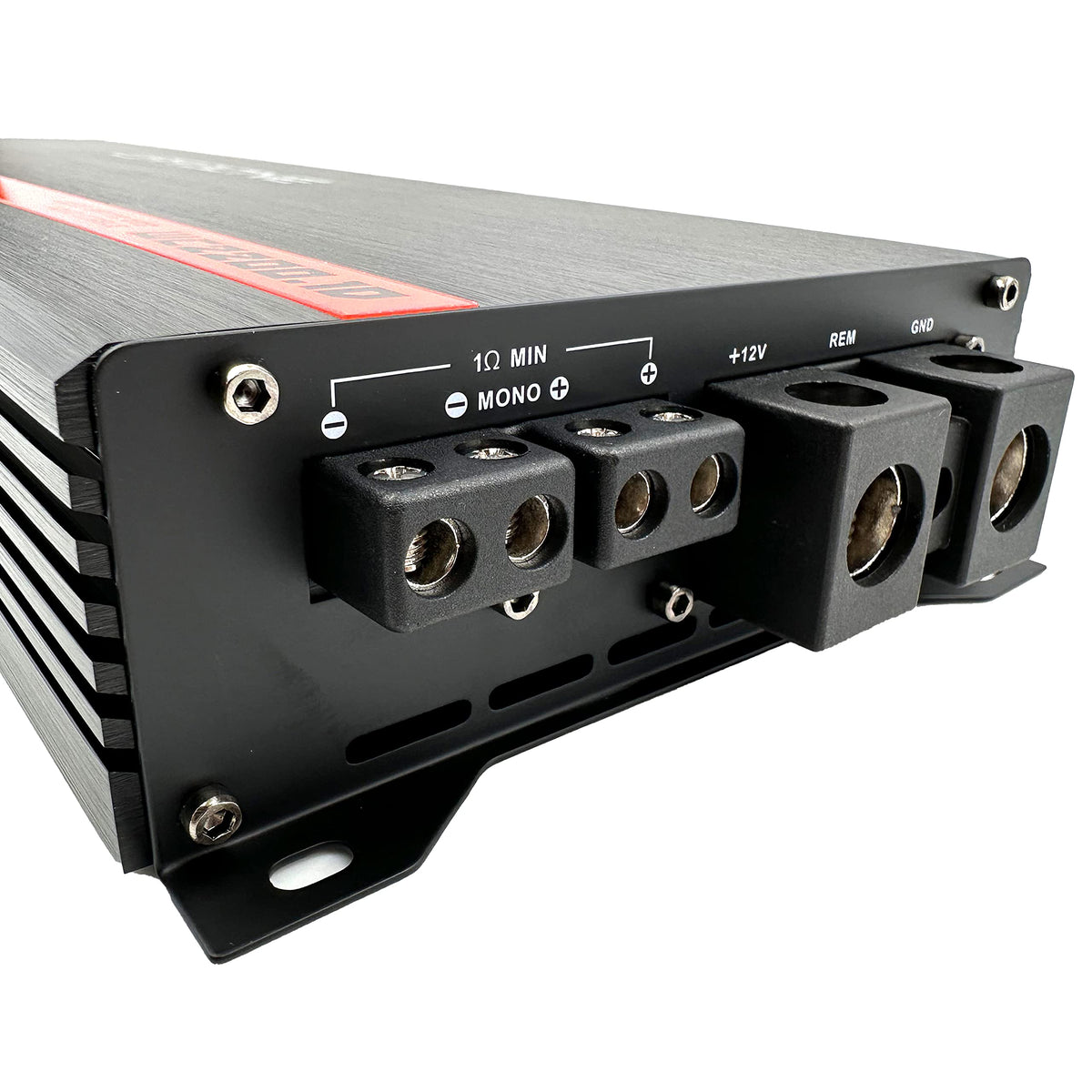

Mount the amplifier securely in a ventilated location and use correctly sized power, ground, remote-turn-on, RCA, and speaker wiring for the installation. Wire connected subwoofers so their final impedance is not below the 1-ohm minimum load, then set gain and filters conservatively during initial setup. The included wired level control connects to the amplifier's remote port for accessible bass-level adjustment.
