Rockford Fosgate YXZ-STAGE2 Yamaha YXZ 6.5" Stereo Kit

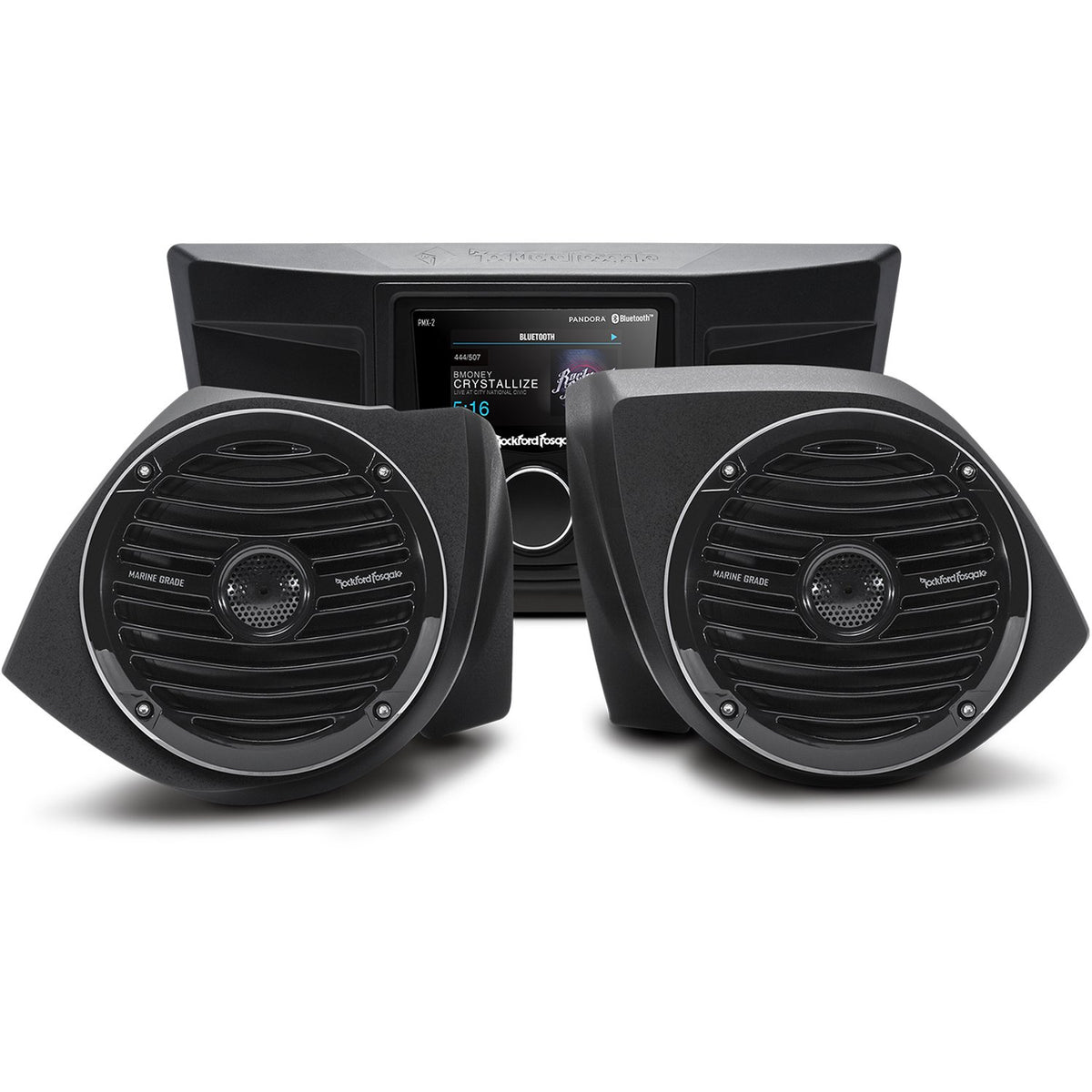

The Rockford Fosgate YXZ-STAGE2 is a vehicle-specific audio upgrade kit for select 2016-2021 Yamaha YXZ1000R and YXZ1000R SS side-by-side models. It combines a compact digital media receiver, custom dash installation hardware, front speaker enclosures, and a pair of 6.5-inch marine speakers. The kit is intended to add a complete front audio system without requiring custom speaker fabrication.

This package suits Yamaha YXZ owners who want music playback, radio reception, and Bluetooth streaming on trail rides. The PMX-2 receiver provides AM, FM, and weather-band tuning along with USB and auxiliary inputs. Its built-in four-channel amplifier can power the included front speakers, while RCA outputs allow a later amplifier upgrade.

The included RM1652B speakers are 6.5-inch two-way coaxial marine speakers with integrated 1-inch tweeters. Their 4-ohm design, 75-watt RMS rating per speaker, and 49 Hz to 20 kHz frequency response support clear full-range playback in an open-cabin UTV environment. Front lower enclosures position the speakers in vehicle-specific locations rather than using universal pods.

Rockford Fosgate designs the system for motorsports exposure, using Element Ready components and an IPX6-rated PMX-2 receiver. The receiver has a wet-bonded color TFT display, water-resistant rotary control, and weather-resistant construction intended for outdoor operation. The marine speakers use corrosion-resistant and UV-stable materials suited to exposure around dirt, water, vibration, and sunlight.

The YXZ-STAGE2 provides the foundation for a staged Yamaha YXZ audio system. It includes direct-connect wiring harnesses and a dash kit to simplify integration with the applicable vehicle. An external amplifier, subwoofer, and antenna are not included, leaving room for system expansion based on the rider's needs.

Key Features

• Vehicle-Specific Stage 2 Kit: Combines receiver, wiring, enclosures, and speakers for select Yamaha YXZ models.
• PMX-2 Digital Media Receiver: Adds Bluetooth streaming, AM/FM/weather-band radio, USB, and auxiliary playback.
• 6.5-Inch Marine Speakers: Includes a pair of RM1652B full-range coaxial speakers.

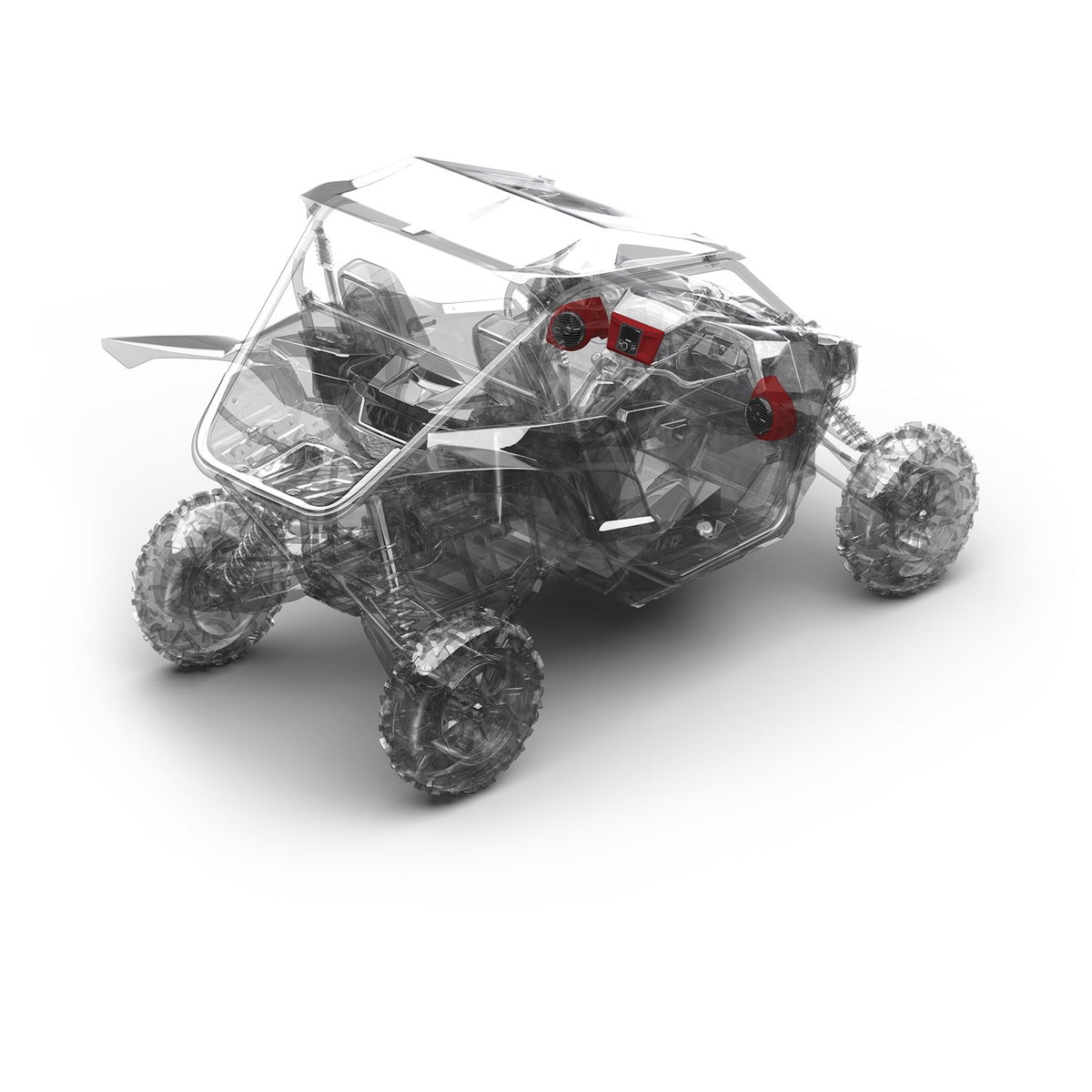

• Front Lower Enclosures: Provides dedicated speaker mounting locations without using universal speaker pods.
• Element Ready Construction: Components are designed for demanding motorsports and outdoor conditions.
• Expansion-Friendly Outputs: Front and rear/sub RCA outputs support future external amplification.

Design & Installation

The kit uses a model-specific RFYXZ-PMXDK dash installation kit and RFYXZ-FSE front lower speaker enclosures for a tailored fit in applicable Yamaha YXZ cabins. The RM1652B speakers use mineral-filled polypropylene cones, Santoprene surrounds, Aramid-fiber spiders, corrosion-resistant terminals, and stainless-steel mounting hardware. The PMX-2 uses a 2.7-inch color TFT display and an IPX6-rated front-panel design.

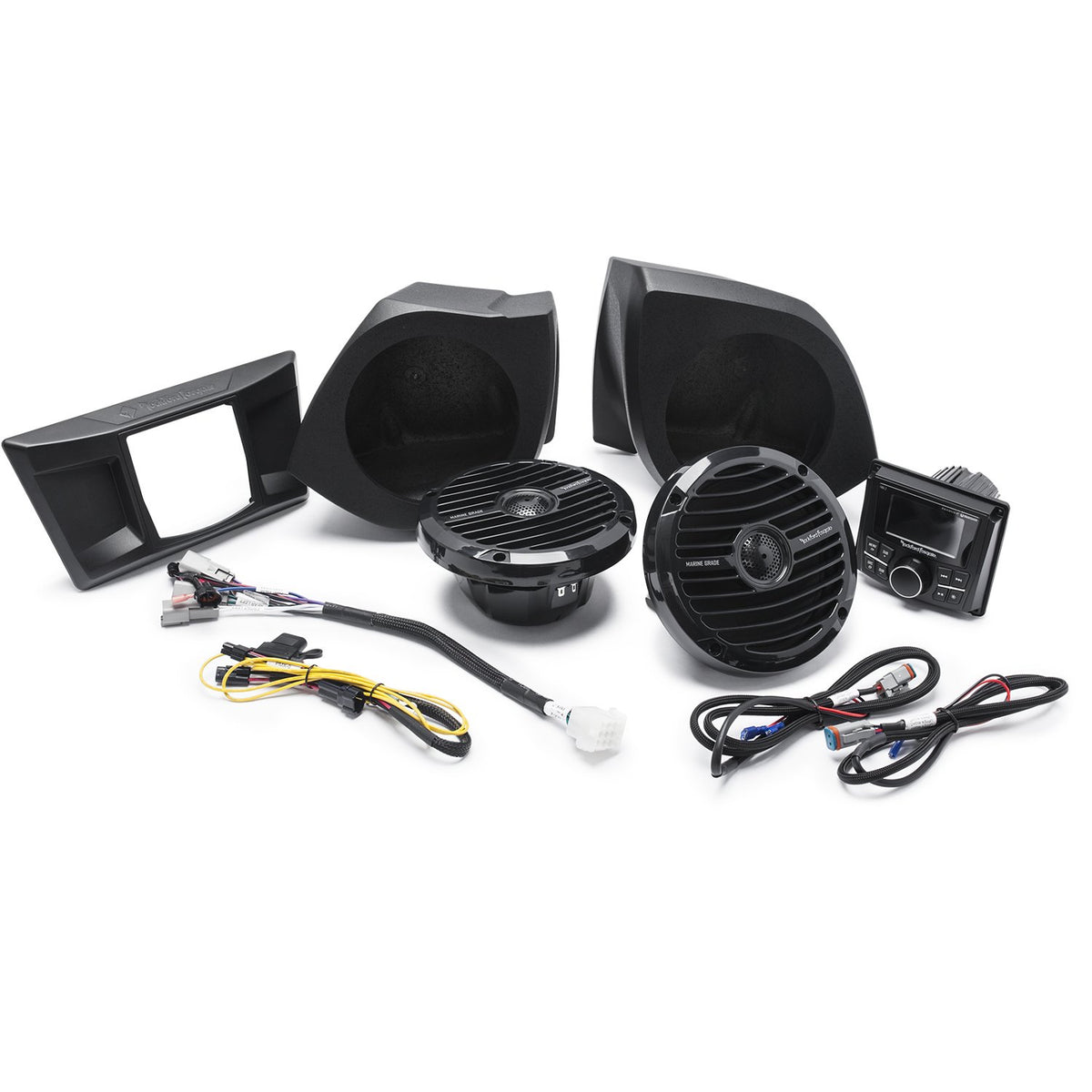

Installation uses the supplied direct-connect YXZ wiring harnesses, receiver dash kit, and pair of front speaker enclosures. Rockford Fosgate lists an estimated installation time of approximately 1.5 hours; verify exact vehicle fitment before ordering. An antenna is not included, so one is needed for AM, FM, and weather-band reception; an external amplifier can be added through the receiver's RCA outputs if more output is desired.
