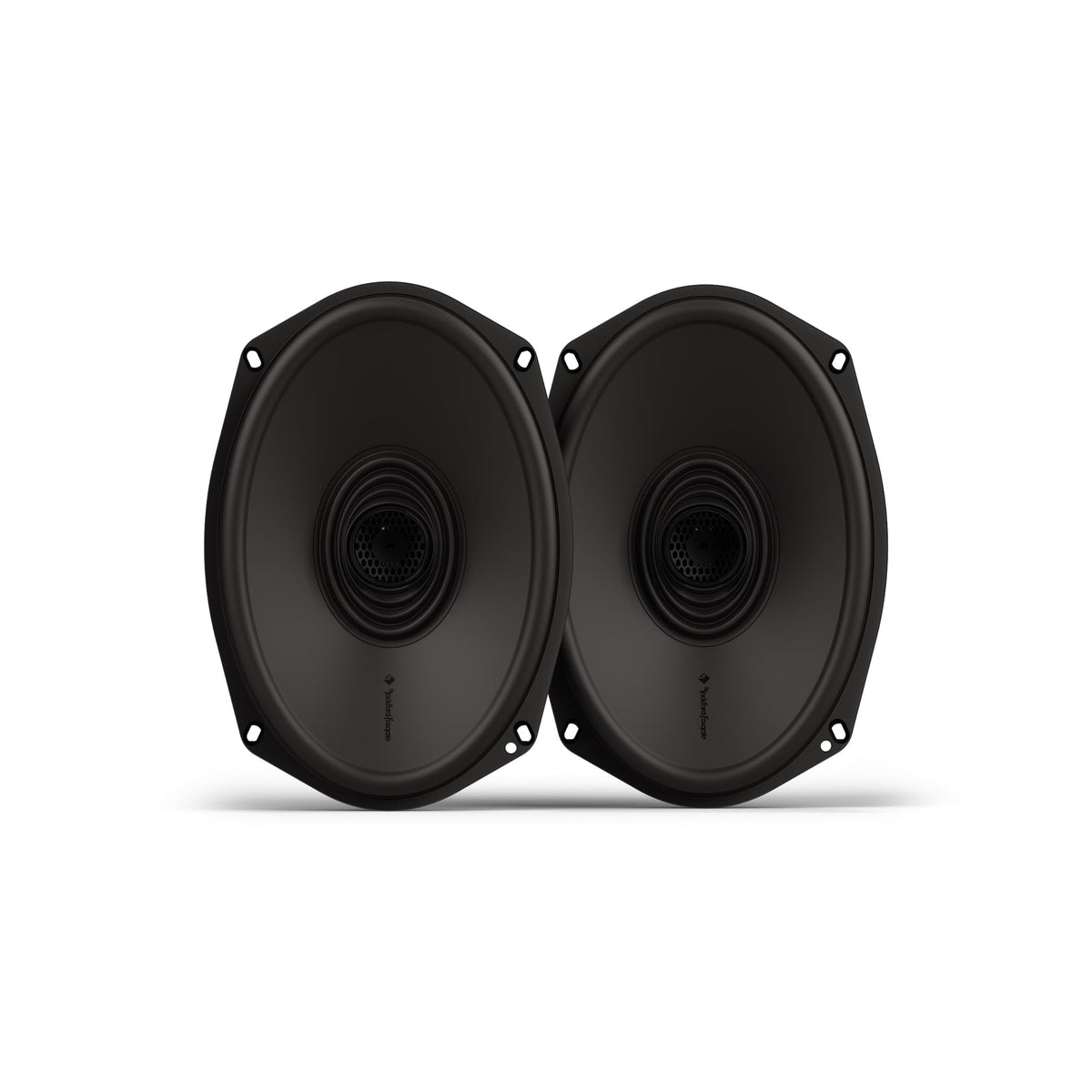

Rockford Fosgate TMS24-69 6x9" Harley Saddlebag Speakers

The Rockford Fosgate TMS24-69 is a pair of 6x9-inch, 2-way saddlebag speakers made for select Harley-Davidson motorcycle audio upgrades. They provide a purpose-built replacement or expansion path for compatible factory speaker-lid locations and Rockford Fosgate bag-lid cut-in systems. Their design addresses the need for stronger, clearer rear-stage sound in a motorcycle environment where wind, road noise, weather, and vibration are constant factors.

These Gen-2 TMS speakers use a long-throw woofer design intended to extend low-frequency output while maintaining controlled midrange and high-frequency detail. With 150 watts RMS power handling per speaker, they are suited to amplified motorcycle systems that need substantial output. The 50 Hz to 20 kHz frequency response supports full-range playback from bass and vocals through upper treble.

Rockford Fosgate combines a large 1.5-inch voice coil, vented Kapton voice-coil former, radiator ring, and heat-resistant motor structure to support power handling and thermal management. A dual-neodymium motor helps provide motor strength in a compact format for fitment in motorcycle saddlebag-lid applications. The integrated concealed crossover eliminates the need for separate external crossover boxes.

Durability is central to the TMS24-69 design. Its Element Ready construction is IPX6 rated and uses materials selected for outdoor motorcycle use, including a UV-stable composite basket, moisture-resistant spider, Santoprene VAST surround, and corrosion-resistant terminals. These details help the speakers withstand exposure to water, UV, vibration, and changing road conditions.

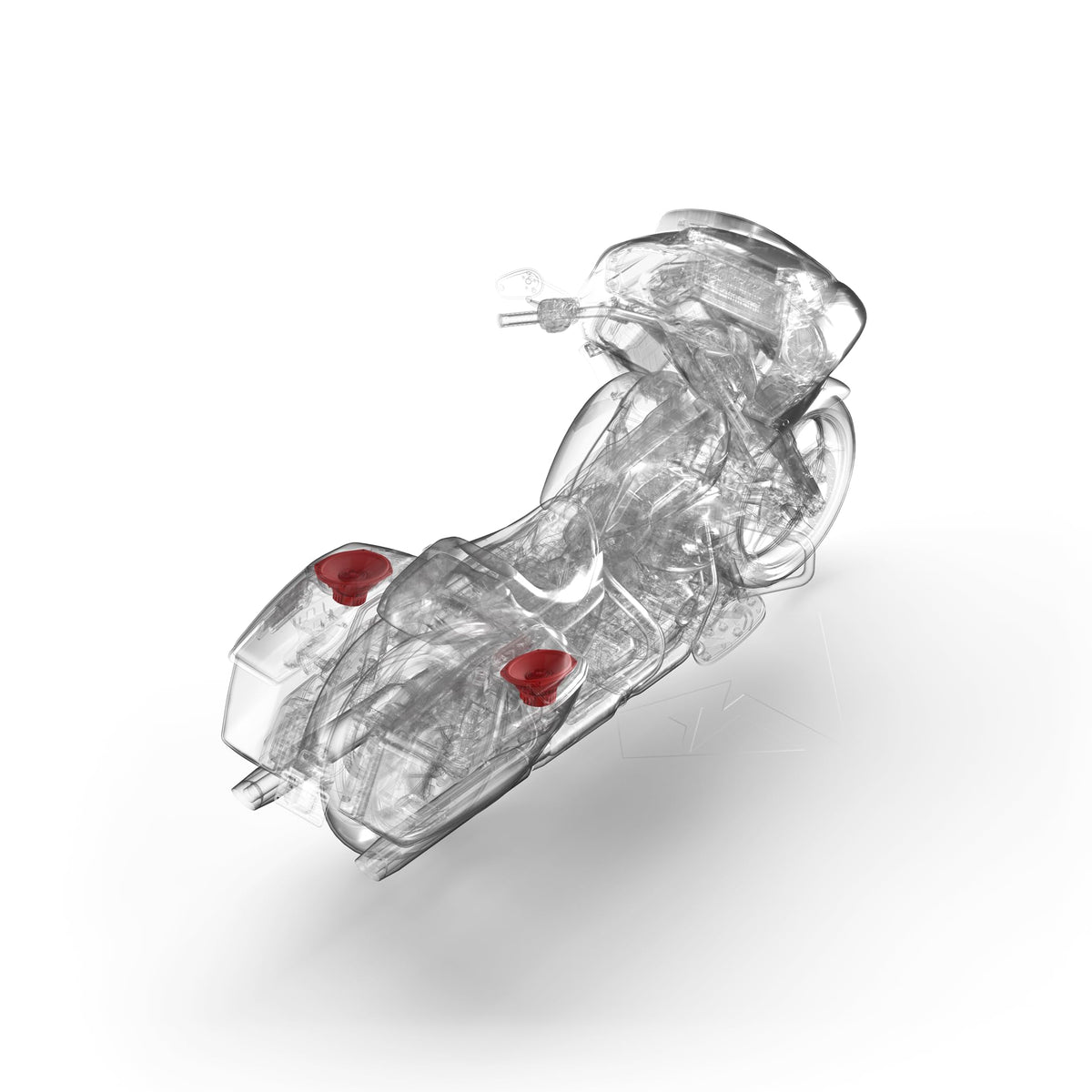

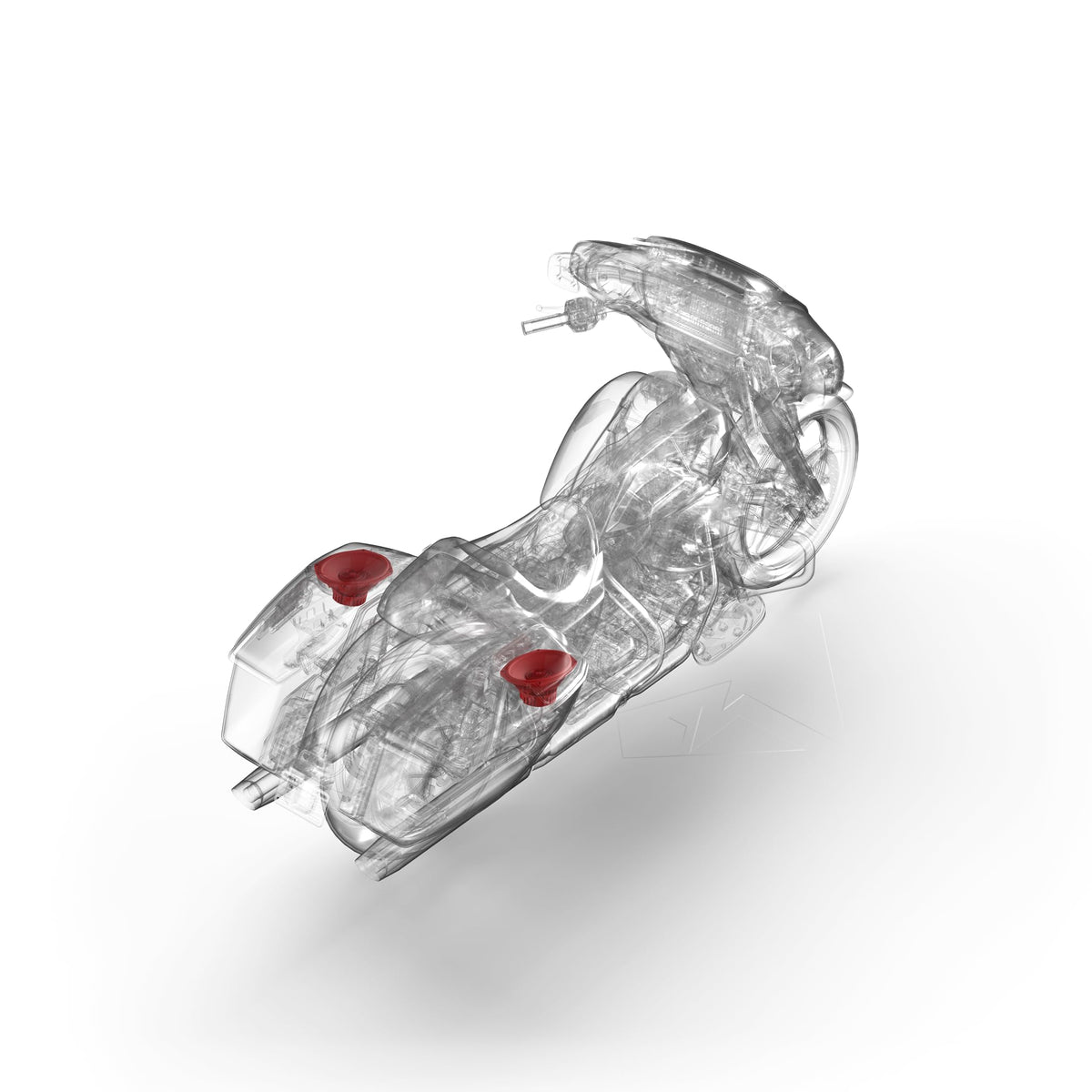

The TMS24-69 is intended for compatible 2024+ Harley-Davidson applications using the HD24BL69 system, including direct drop-in use for 2024+ CVO Road Glide and CVO Street Glide factory speaker-lid locations. It is also compatible with select earlier Harley-Davidson models equipped with compatible Rockford Fosgate 6x9-inch bag-lid cut-in kits. Pair it with an appropriately matched Rockford Fosgate TM, M5, or TMA compact amplifier for an integrated motorcycle audio upgrade.

Key Features

• 6x9-Inch 2-Way Design: Provides full-range sound in a saddlebag-lid speaker format.
• 150-Watt RMS Handling: Supports amplified systems with substantial continuous power capability.
• Long-Throw Woofer: Helps deliver extended low-frequency response and output.
• Integrated Concealed Crossover: Keeps crossover components within the speaker assembly.
• IPX6 Element Ready Construction: Built for exposure to water, UV, vibration, and dirt.
• Direct-Fit Compatibility: Works with specified Harley-Davidson locations and Rockford cut-in kits.

Design & Installation

The TMS24-69 uses a curvilinear poly cone with 10% carbon fill, a Santoprene VAST surround, and a breathable Poly-Nomex spider. Its Domamid PA66 composite basket is UV stable and reinforced with 30% glass fiber, while the dual-neodymium motor and integrated motor cover are designed for compact, durable saddlebag-lid use. Braided stitched tinsel leads and tin-plated terminals support reliable connections in a vibration-prone environment.

Confirm motorcycle, saddlebag, audio-system, and bag-lid compatibility before purchase. The pair includes mounting hardware and eight M4 x 1.4, 15.5 mm Phillips tapping screws, but speaker grilles and trim rings are not included with the TMS24-69 speaker pair. For non-cut factory saddlebags, a compatible Rockford Fosgate bag-lid cut-in kit is required; installation should follow the applicable vehicle and kit instructions.
