Rockford Fosgate RZR14-STG1 Polaris RZR Audio Kit With 6.5" Speakers

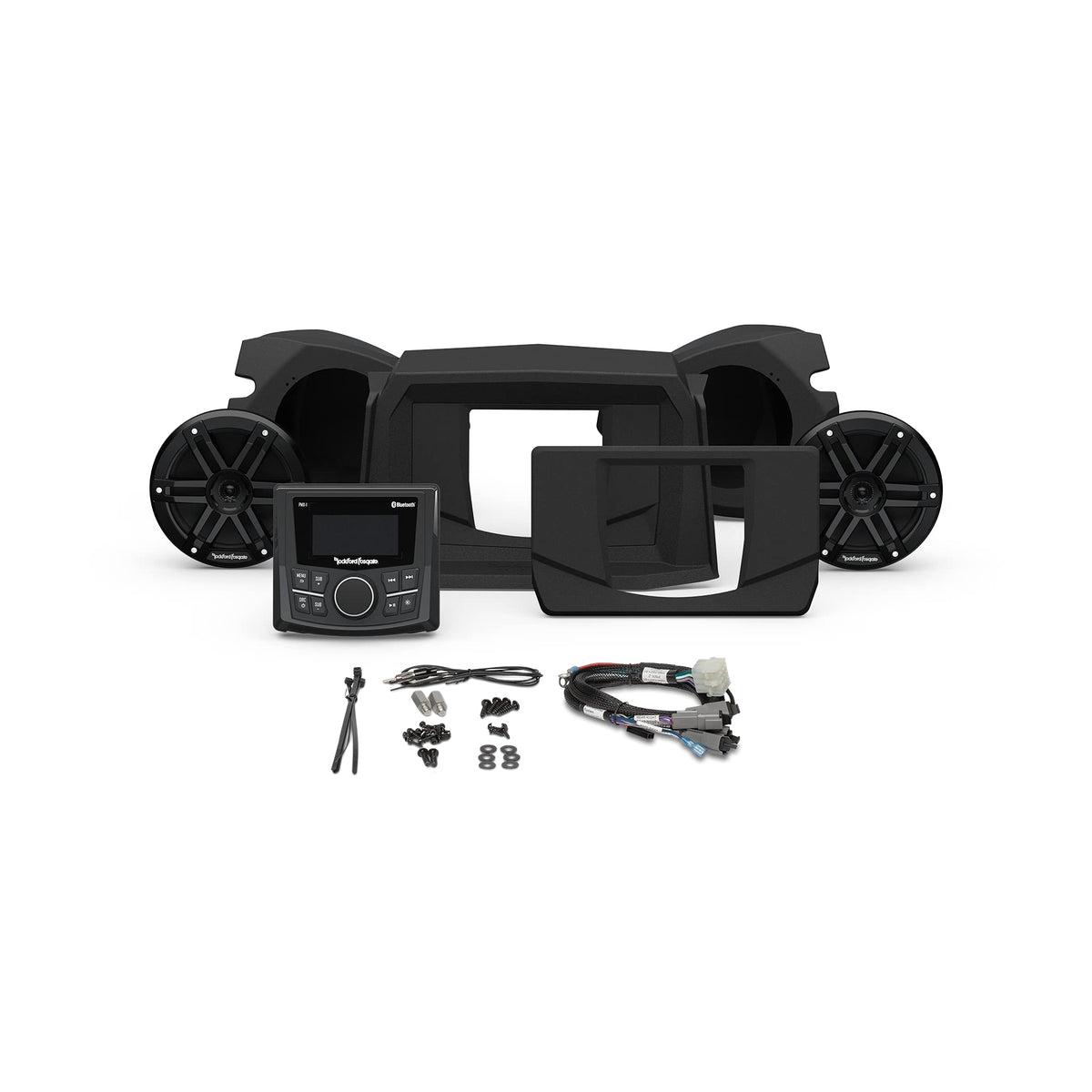

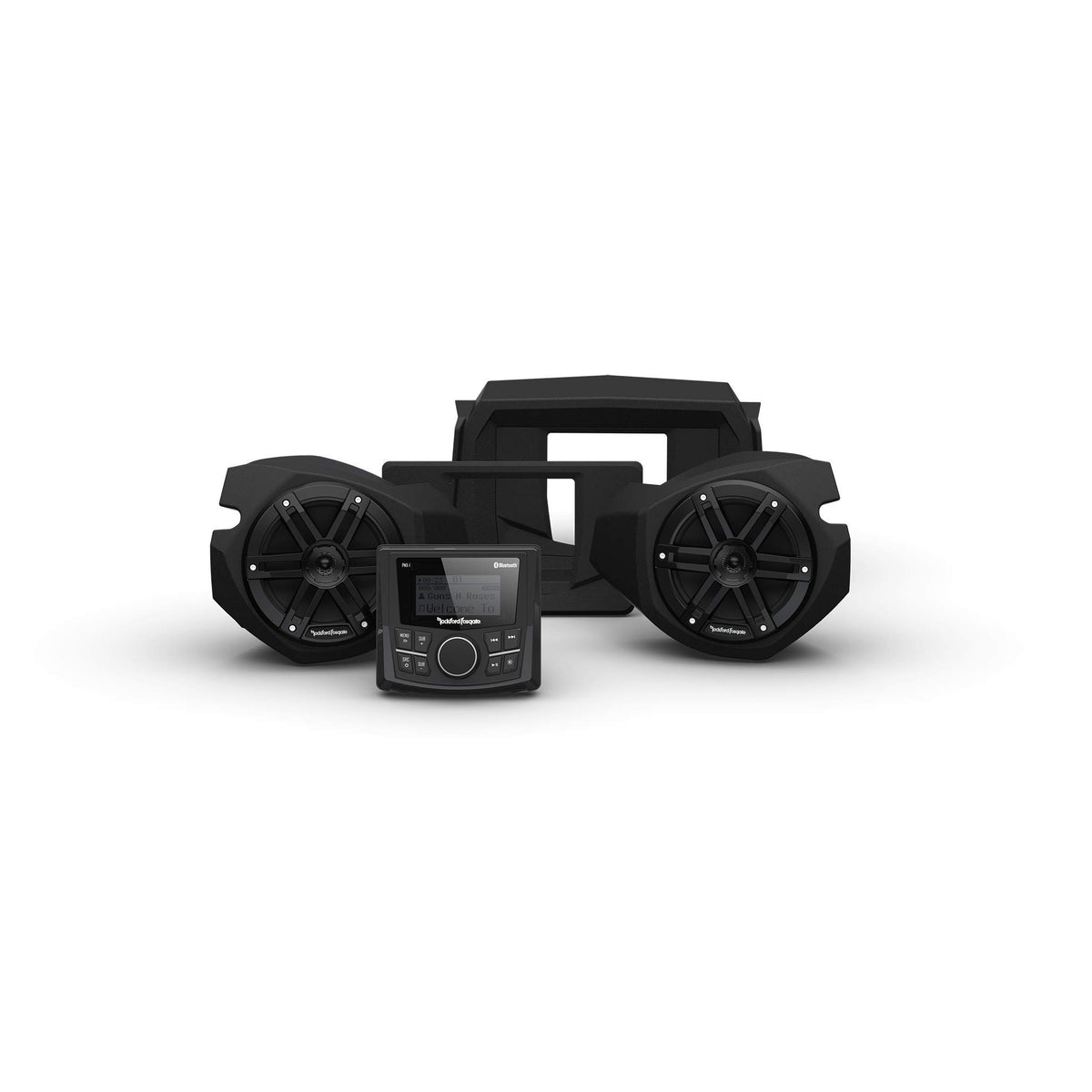

The Rockford Fosgate RZR14-STG1 is a vehicle-specific Stage 1 audio package for select 2014-2021 Polaris RZR models. It combines a PMX-1 marine digital media receiver, two M0-65B 6.5-inch full-range speakers, front speaker enclosures, and a RZR-specific dash kit. The package is intended to add integrated music playback and radio reception without using a universal head-unit installation.

This kit is suited to RZR owners who want a factory-style location for a Bluetooth-capable receiver and front-mounted speakers. The supplied PMX-1 supports Bluetooth audio streaming, USB media playback, a rear auxiliary input, and AM/FM/Weather Band listening. Its compact marine-oriented design is appropriate for open-cabin powersports use.

The included M0-65B speakers use a 2-way coaxial design with 6.5-inch mineral-filled polypropylene woofers and integrated 0.5-inch balanced-dome tweeters. Their 4-ohm design, 65-watt RMS rating per speaker, and 40 Hz-25 kHz frequency response provide full-range output for music and radio listening. UV- and salt-fog-resistant materials support use in exposed environments.

Rockford Fosgate equips the PMX-1 with a 7-band graphic EQ, parametric EQ functions, Punch EQ, and selectable crossover settings. These controls allow the system to be adjusted for listening preferences and for later system expansion. The receiver also includes a voltage gauge with a low-voltage warning to help monitor the vehicle electrical system.

The RZR14-STG1 is designed around the included RZR14-DK dash kit and RZR14-FSE front speaker enclosures for compatible RZR applications. The receiver's built-in amplifier delivers 25 watts RMS to each of four channels at 4 ohms, while its RCA outputs allow connection to external amplification when a larger system is desired. Confirm the exact RZR year, model, trim, and factory equipment before purchase.

Key Features

• Vehicle-Specific Audio Kit: Combines the receiver, dash kit, speakers, and front enclosures for select Polaris RZR models.
• PMX-1 Digital Media Receiver: Provides Bluetooth, USB, rear auxiliary input, and AM/FM/Weather Band sources.
• 6.5-Inch M0 Speakers: Includes two 2-way, 4-ohm full-range marine-grade speakers.
• Built-In Four-Channel Amplifier: Supplies 25 watts RMS per channel at 4 ohms.
• Sound Adjustment Controls: Offers 7-band EQ, PEQ, Punch EQ, and selectable crossover settings.
• IPX6 Receiver Front Panel: Helps protect the PMX-1 front panel from water exposure.

Design & Installation

The PMX-1 uses a 2.3-inch full dot-matrix LCD behind Gorilla Glass, with a compact chassis and marine-grade front panel. The M0-65B speakers use mineral-filled polypropylene cones, Santoprene VAST surrounds, UV-stable ASA plastic parts, sealed motor structures, and corrosion-resistant connection hardware. The supplied black speakers are installed in the included RZR14-FSE front enclosures.

The package includes the RZR14-DK upper/lower dash kit to mount the receiver in compatible RZR dashboards and includes application-specific wiring for select vehicles. The kit is described as requiring no drilling or cutting on supported applications, but fitment must be verified against the exact RZR model and year. For future expansion, use the PMX-1's RCA outputs and configure its crossover, rear-RCA, and internal-amplifier settings to match the added equipment.
