Rockford Fosgate RNGR18RC-STG5 6.5"/10" Ranger Audio Kit

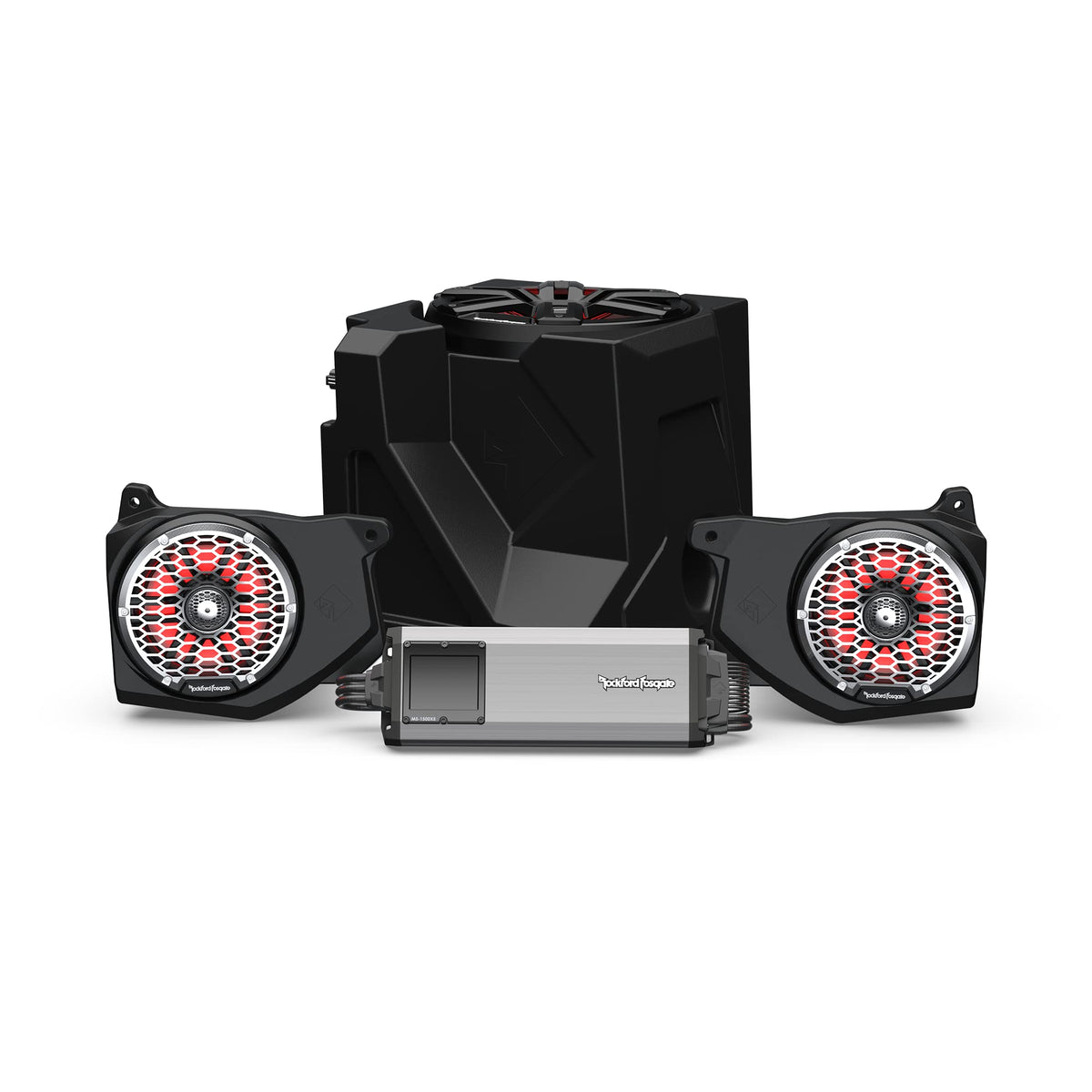

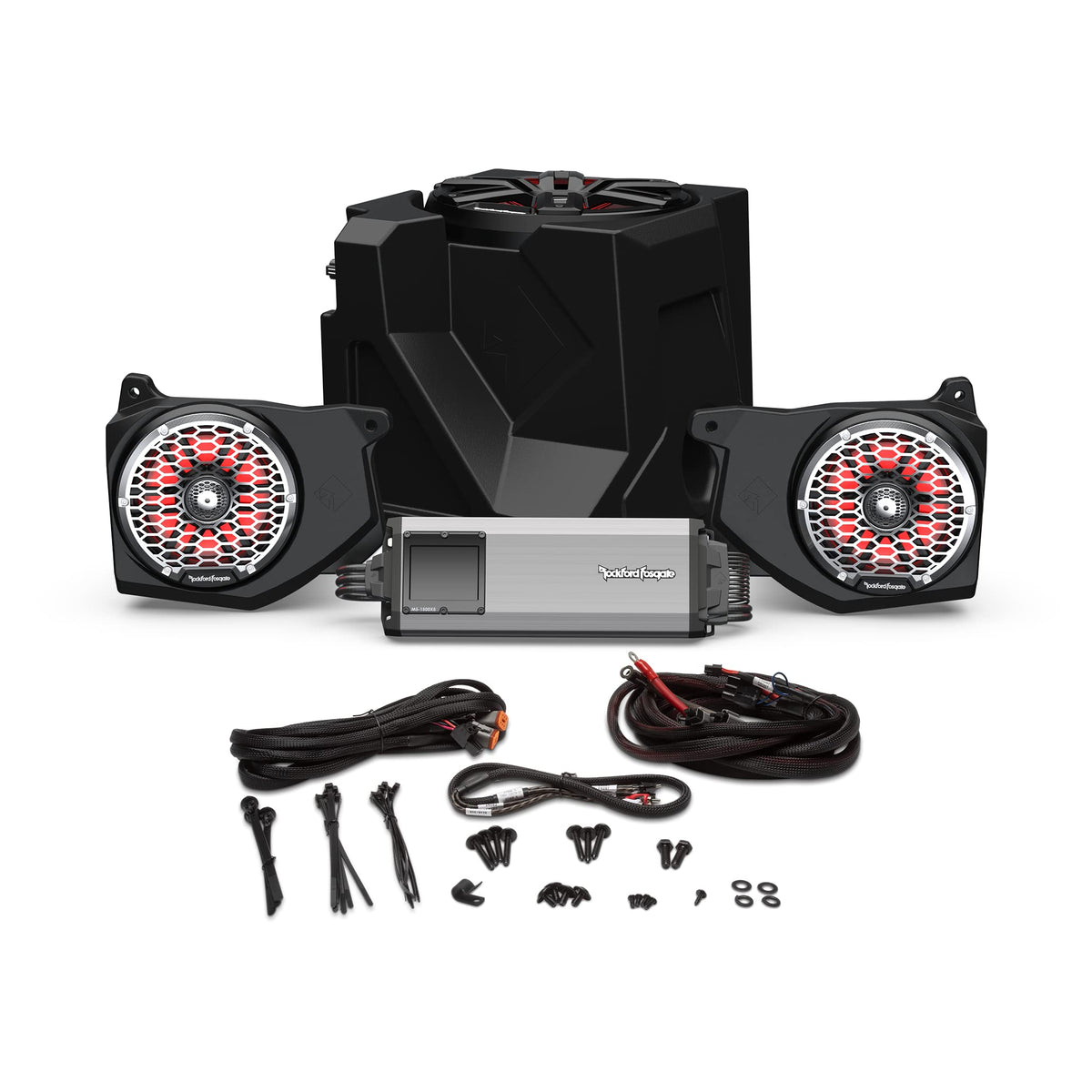

The Rockford Fosgate RNGR18RC-STG5 is a complete amplified audio upgrade package for select 2018-2022 Polaris Ranger XP 1000 full-size models equipped with Ride Command. It is designed for owners who want to retain the factory Ride Command interface while adding dedicated front speakers, a powered subwoofer, and multicolor LED illumination. The system combines vehicle-specific enclosures, wiring, and interface hardware to create a coordinated Ranger audio installation.

The included RFPOL-RC5 interface connects the factory Ride Command system to the included Rockford Fosgate M5-1500X5 five-channel amplifier. It is designed to route front, rear, and subwoofer audio signals while filtering electronic noise associated with Polaris DYNAMIX suspension systems. This lets the factory display remain the source unit for the upgraded audio system.

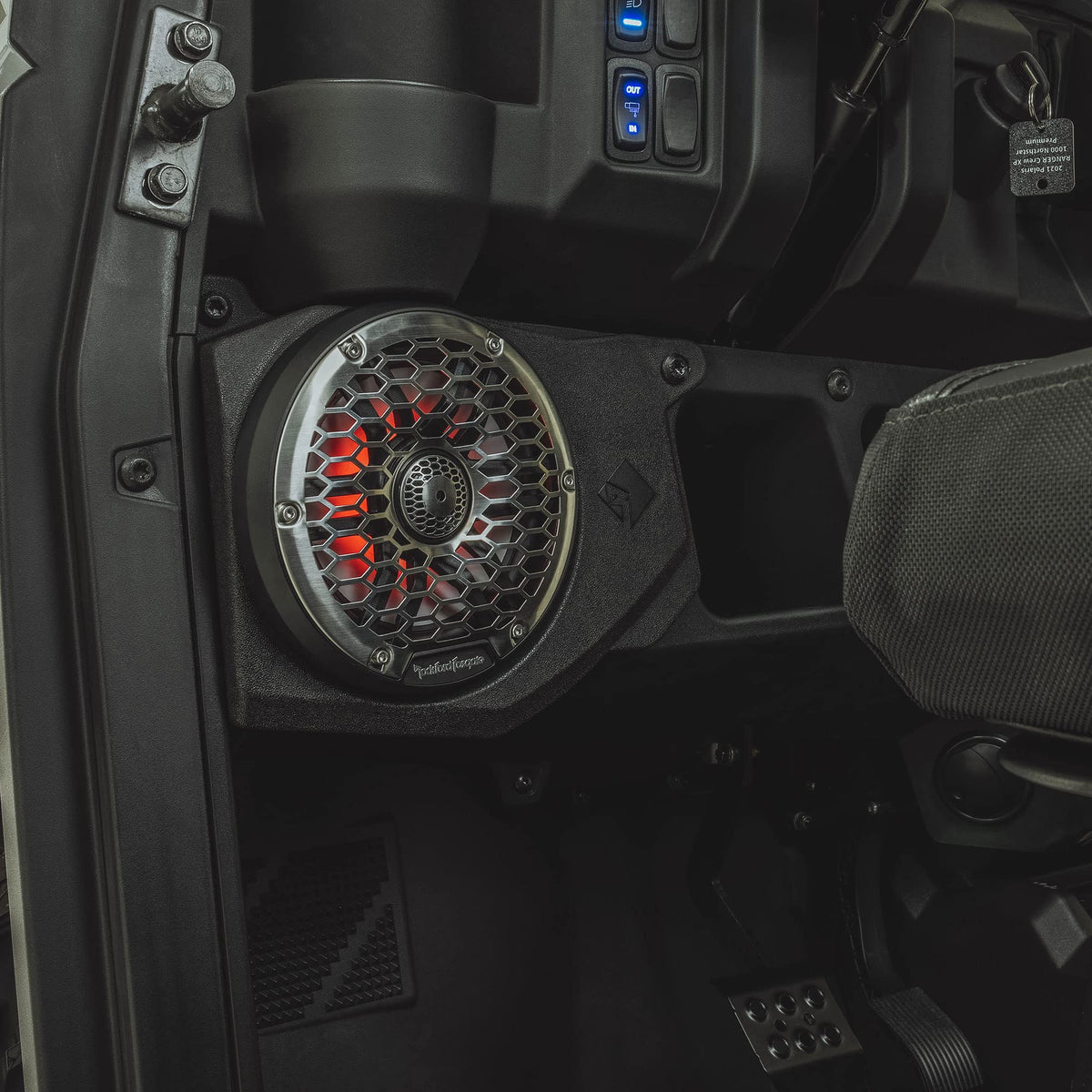

Front sound comes from a pair of 6.5-inch M2-65B Color Optix two-way speakers installed in RNGR18-FSE lower front speaker enclosures. The speakers are rated for 150 watts RMS each and use RGB LED lighting controlled by the included PMX-RGB Color Optix controller. Their 40 Hz to 24 kHz frequency response supports clear midrange and high-frequency reproduction for an open-cab UTV environment.

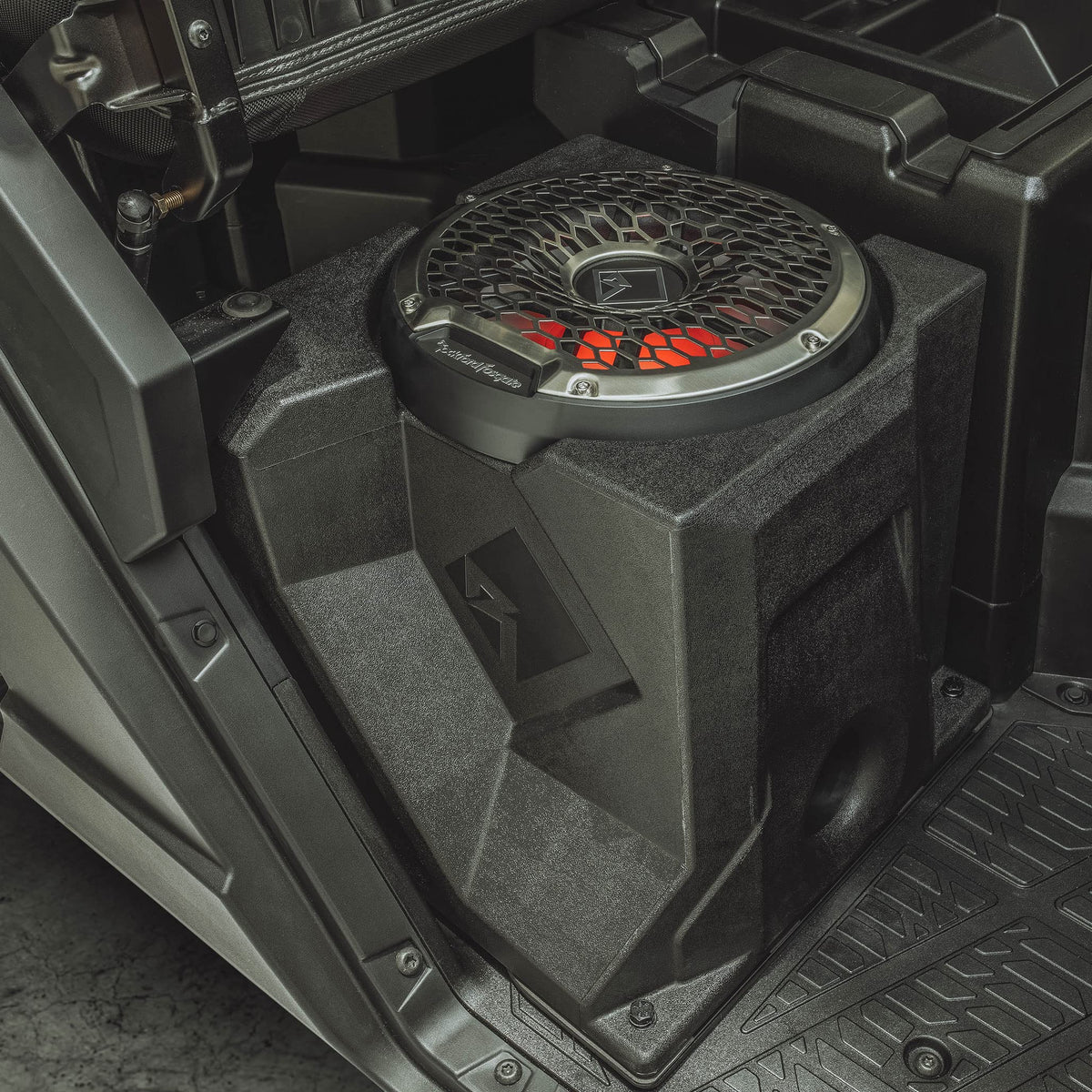

Low-frequency output is handled by the included 10-inch M2D4-10IB dual-voice-coil Color Optix subwoofer and RNGR18-FWE under-seat ported enclosure. The subwoofer is rated for 400 watts RMS and uses a selectable 2-ohm or 8-ohm configuration. Its dedicated amplifier channel and vehicle-specific enclosure help add bass without requiring a separate universal subwoofer box.

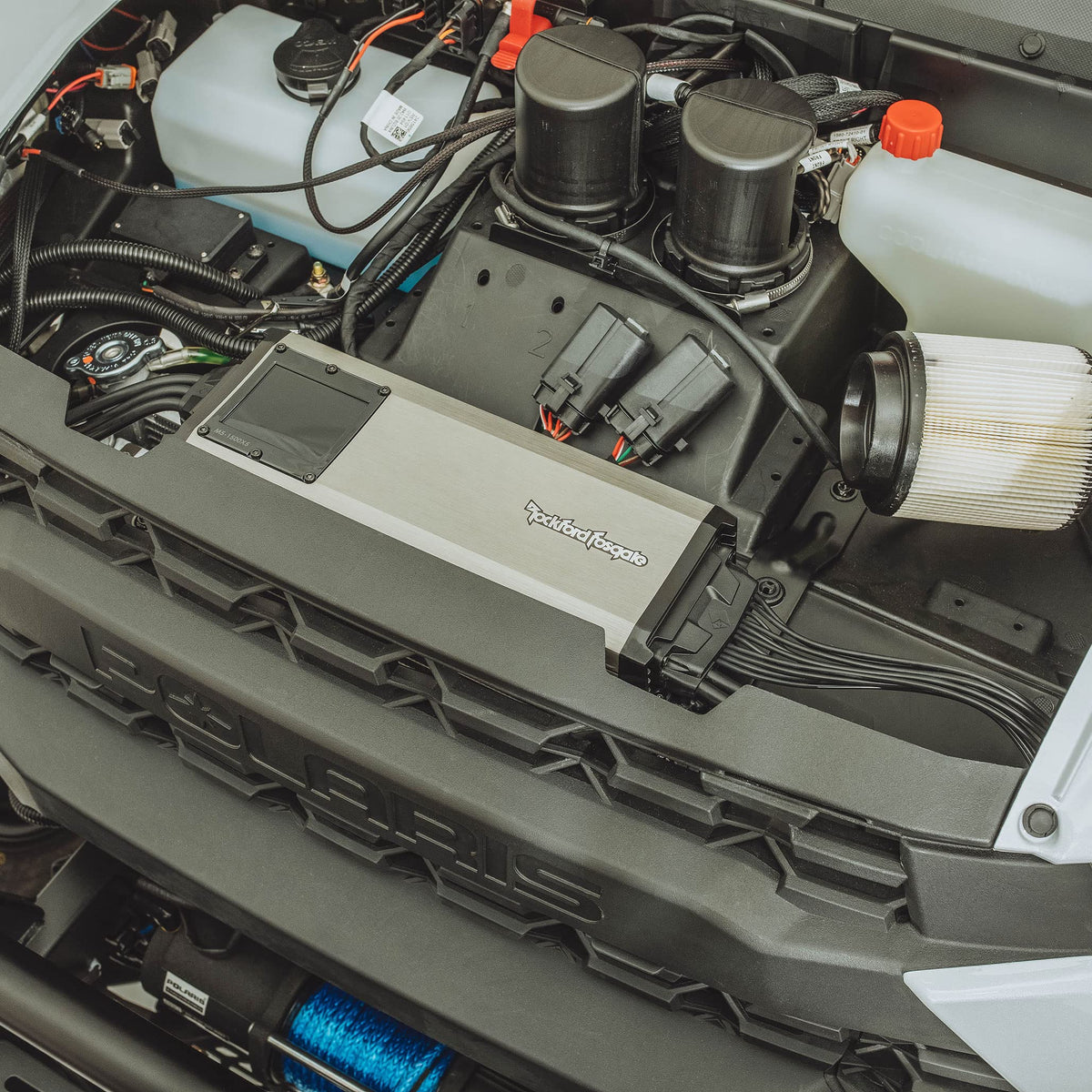

The M5-1500X5 amplifier provides five channels for the front speakers and subwoofer in one compact, IPX6-rated chassis. Its preset mode is intended for compatible Rockford Fosgate stage systems, while its manual controls allow crossover and equalization adjustment when needed. With the included Ranger-specific amplifier installation kit, this package provides a defined upgrade path without adding an aftermarket radio.

Key Features

• Ride Command Integration: Uses the RFPOL-RC5 interface to retain the factory Ride Command source.
• Five-Channel Amplification: M5-1500X5 powers the speakers and 10-inch subwoofer from one amplifier.
• 6.5-Inch Front Speakers: M2-65B Color Optix speakers provide full-range front-stage sound.
• 10-Inch Under-Seat Bass: M2D4-10IB subwoofer installs in the included ported enclosure.
• Color Optix Lighting: PMX-RGB controller supports adjustable RGB speaker and subwoofer illumination.
• Vehicle-Specific Hardware: Ranger enclosures, interface, and amplifier wiring are included.

Design & Installation

The RNGR18RC-STG5 combines purpose-built Ranger enclosures with Element Ready audio components intended for off-road exposure. The RNGR18-FSE front enclosures use injection-molded Centrex plastic with integrated UV inhibitors and are texture- and color-matched to the vehicle interior. The M5 amplifier has an IPX6 water-spray rating, while the Color Optix speakers and subwoofer use rugged outdoor-oriented construction and plug-style connections.

This kit is intended for select 2018-2022 Polaris Ranger XP 1000 full-size three-seat and Crew six-seat models with Ride Command; confirm exact vehicle fitment before ordering. The front speaker enclosures mount using OEM locations with minimal drilling, while the included RNGR18-K8 installation kit supports amplifier wiring. Use the included PMX-RGB controller for Color Optix lighting control, and follow the Rockford Fosgate installation documentation for amplifier presets, wiring routes, and enclosure mounting.
