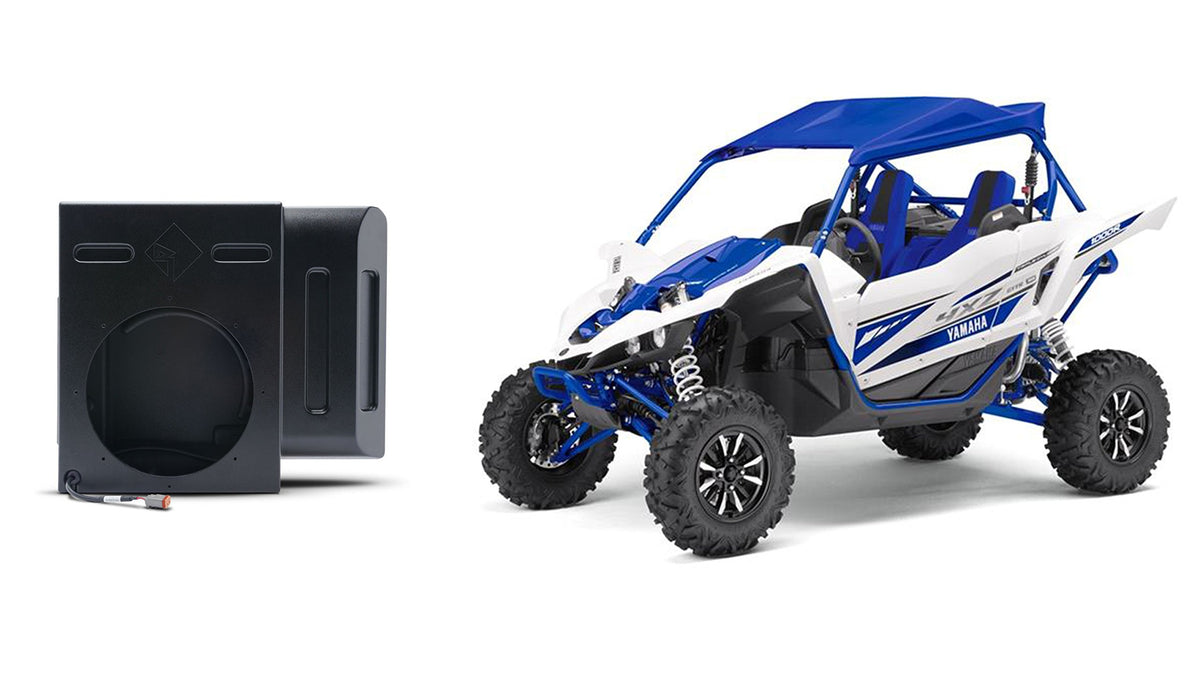

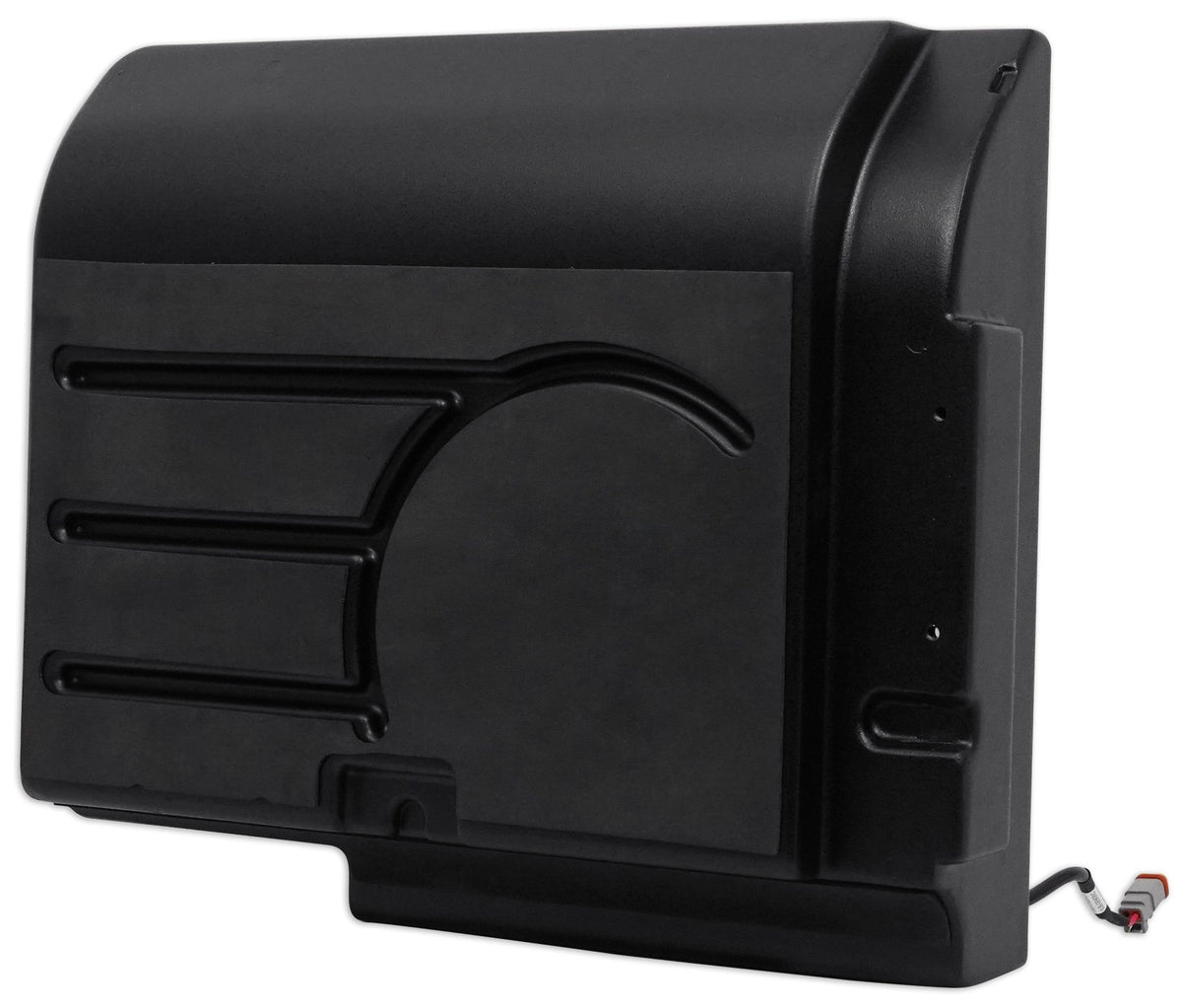

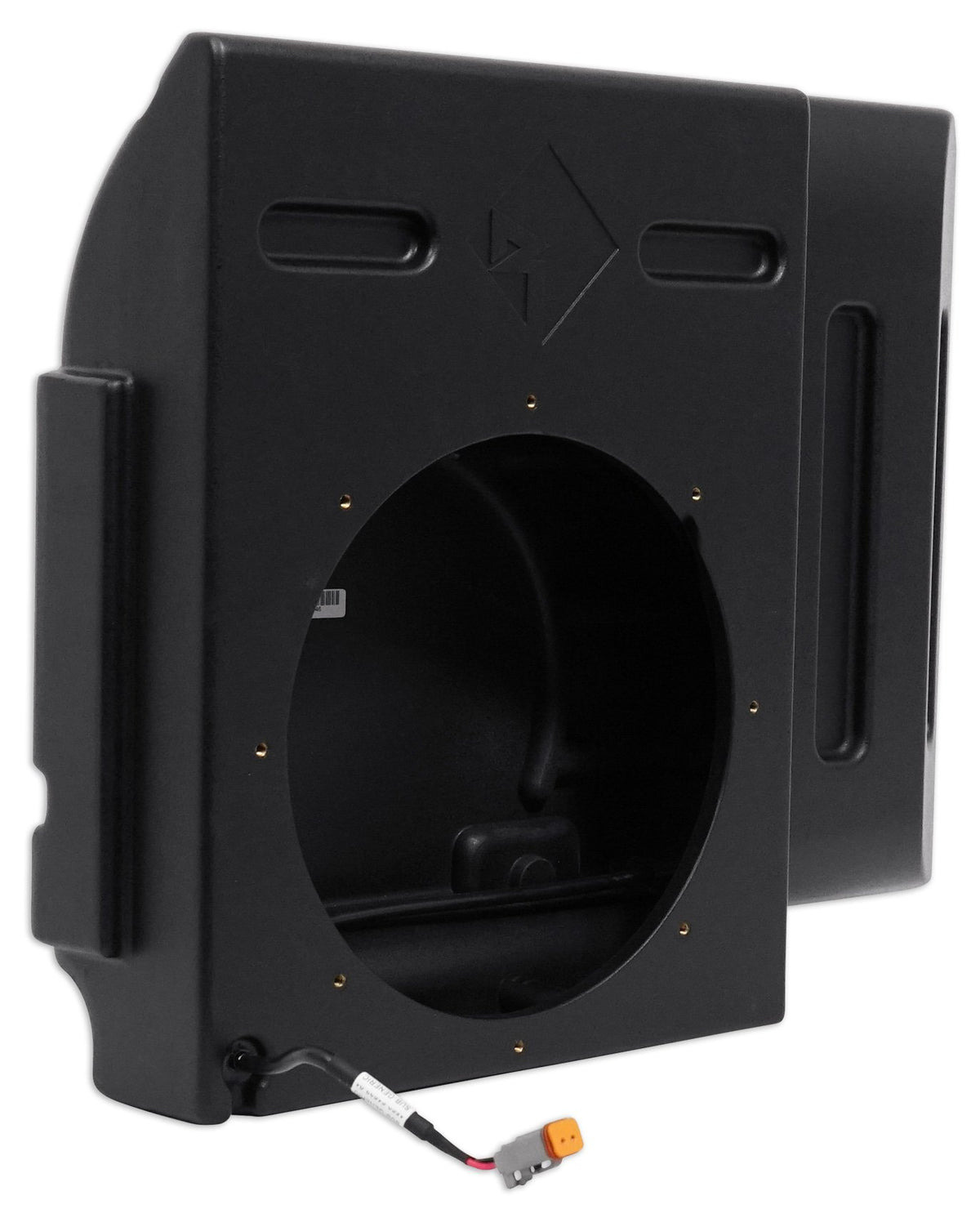

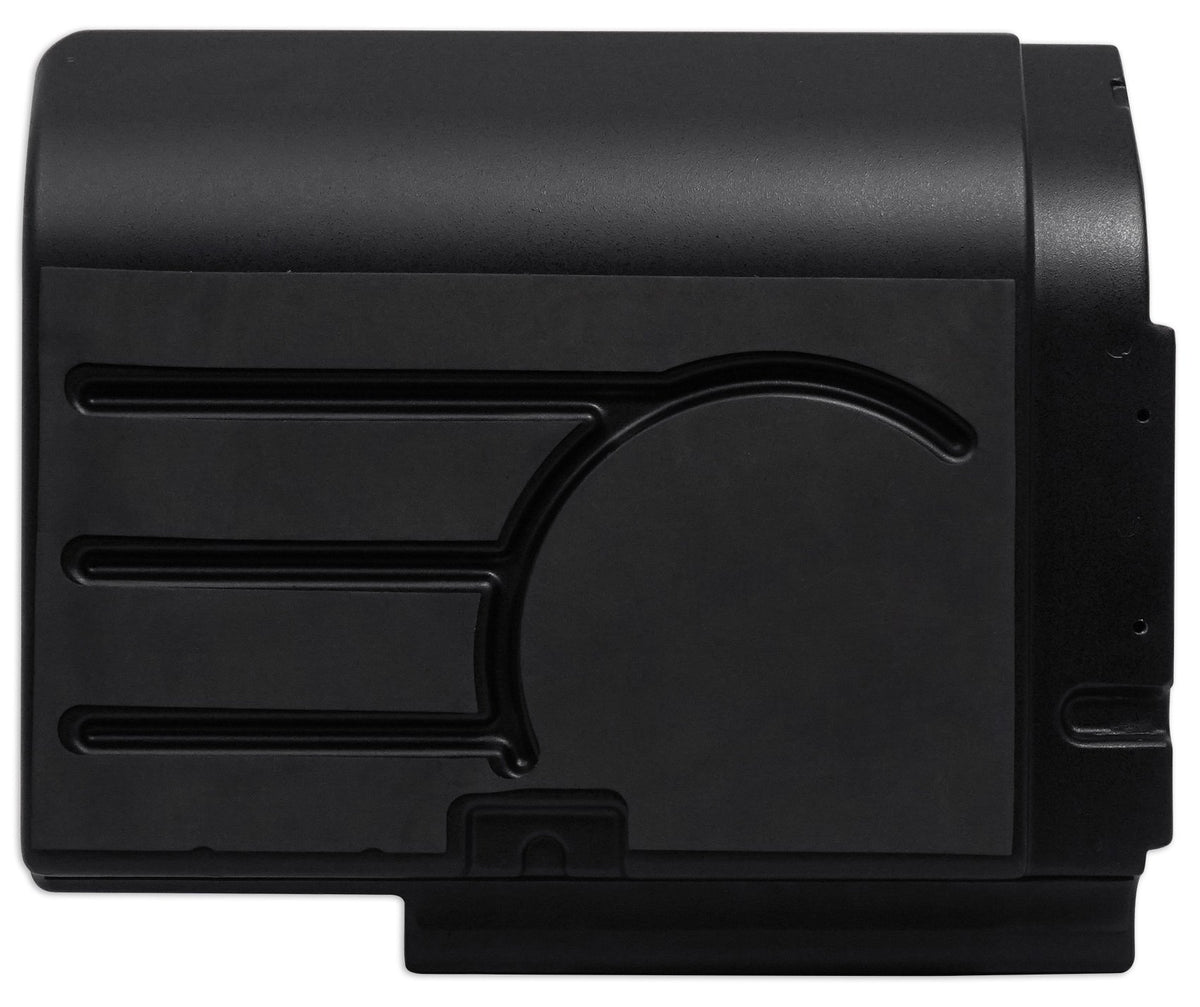

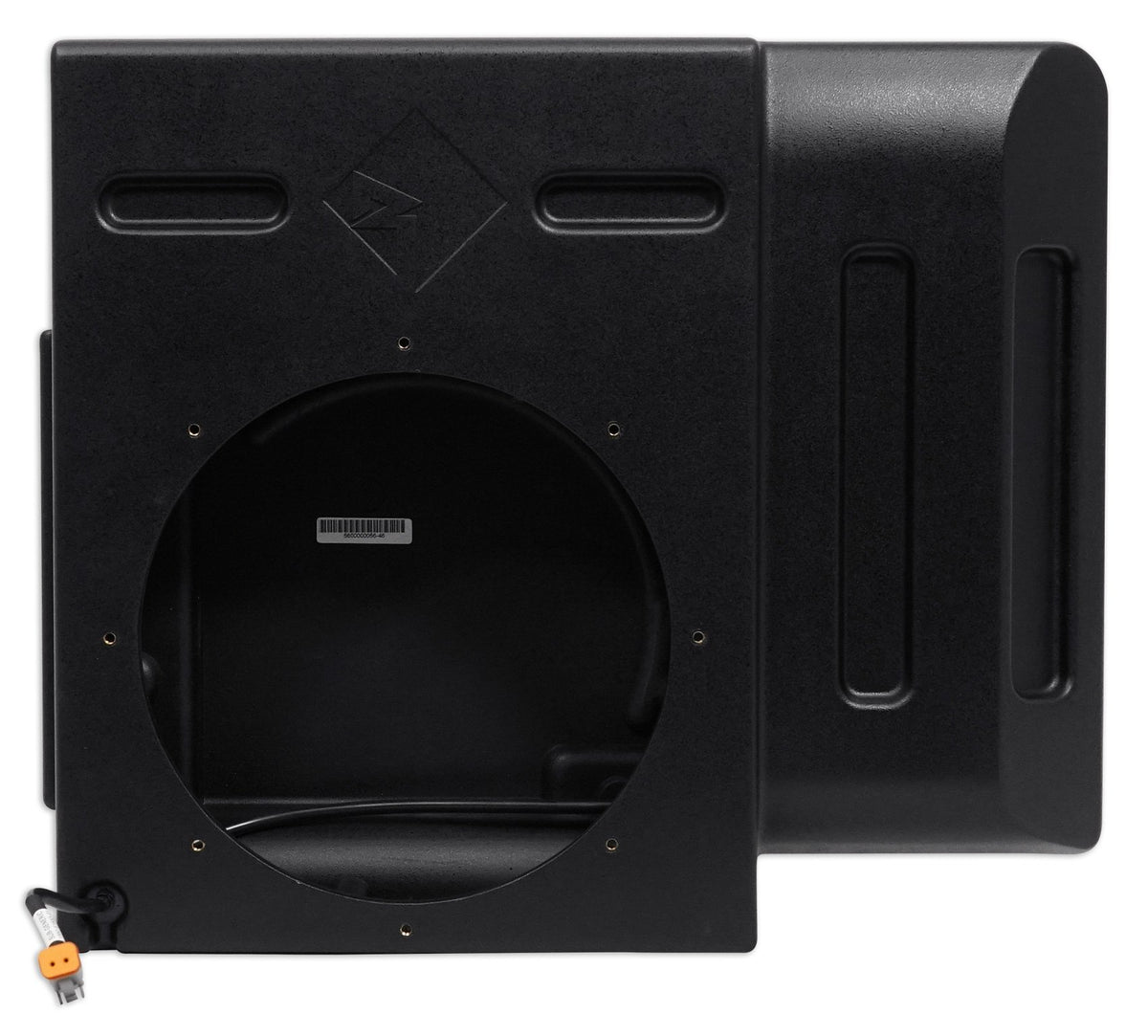

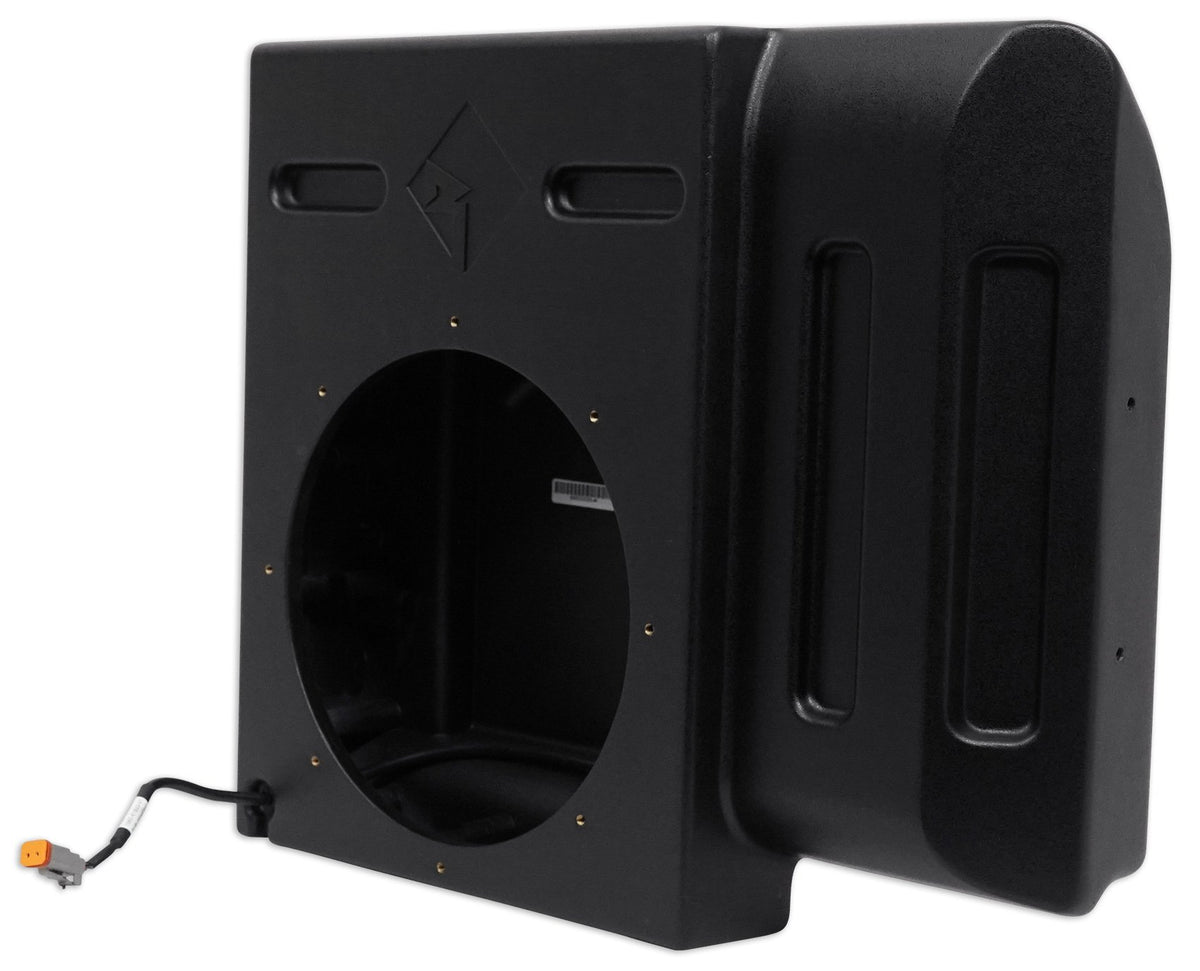

Rockford Fosgate RFYXZ-FWE 10" Front Subwoofer Enclosure

The Rockford Fosgate RFYXZ-FWE is an unloaded, vehicle-specific front subwoofer enclosure for select Yamaha YXZ models. It provides a dedicated location for a single 10-inch subwoofer while preserving a clean, integrated appearance after the vehicle body panels are reinstalled. This enclosure is intended for Yamaha YXZ owners building a more complete off-road audio system.

Its optimized sealed design is made for controlled low-frequency performance when paired with a compatible Rockford Fosgate subwoofer and appropriate amplification. A sealed enclosure can support focused bass response without requiring a separate custom box. The enclosure itself does not include a subwoofer or amplifier.

The RFYXZ-FWE is engineered around compatible Rockford Fosgate Prime marine 10-inch models, including the RM110D2, RM110D2B, RM110D4, and RM110D4B. This gives installers options to select the subwoofer voice-coil configuration that suits their amplifier and system wiring plan. Choose amplification and wiring based on the subwoofer installed, not the enclosure alone.

For off-road use, the enclosure uses compression-molded fiberglass-reinforced polymer with a UV-resistant finish. Its texture and color are matched to the Yamaha YXZ interior for a factory-style visual fit. Rockford Fosgate also identifies the enclosure as Element Ready, with IPX6 water-intrusion rating and ASTM B117 and D4329 testing.

The enclosure is designed to bolt into OEM mounting locations with minimal disassembly and modification. Once installed and covered by the vehicle panels, it maintains a discreet appearance rather than occupying an exposed cargo area. It can serve as the bass foundation for a Yamaha YXZ audio upgrade using compatible Rockford Fosgate source, amplifier, and speaker components.

Key Features

• 10-Inch Subwoofer Fitment: Holds one compatible 10-inch Rockford Fosgate subwoofer.
• Optimized Sealed Design: Provides a dedicated sealed enclosure for bass-system installation.
• Vehicle-Specific Fit: Designed for select Yamaha YXZ models and interior locations.
• OEM Mounting Locations: Bolts into factory mounting holes for integrated placement.
• UV-Resistant FRP Construction: Fiberglass-reinforced polymer construction supports outdoor motorsports use.
• Element Ready Protection: Built for exposure to dust, water, UV, vibration, and temperature changes.

Design & Installation

The RFYXZ-FWE uses compression-molded fiberglass-reinforced polymer and a UV-resistant finish. Its black, interior-matched texture is intended to blend with the Yamaha YXZ cabin once the surrounding panels are returned to place. The enclosure is rated IPX6 for water intrusion and is associated with ASTM B117 and D4329 environmental testing.

Installation uses the supplied subwoofer harness, mounting hardware, wire tie wraps, and foam tape. The enclosure mounts through OEM vehicle mounting holes, though the installation procedure requires panel removal and may require minor modification. Disconnect the negative battery terminal before installation, follow the supplied instructions, and use an amplifier and wiring appropriate for the compatible subwoofer selected.
