Rockford Fosgate P3V2-69 6x9" 3-Way Component Speakers

The Rockford Fosgate P3V2-69 is a 6x9-inch, 3-way component speaker system designed for vehicles that use separate woofer, midrange, and tweeter locations. It combines dedicated 6x9-inch woofers, 2.5-inch midrange drivers, and 3/4-inch tweeters to cover the full frequency range through separate drivers. This makes it a practical upgrade for vehicles with factory multi-speaker front-stage layouts.

This system is intended for listeners who want more defined vocals and instruments than a conventional coaxial speaker arrangement can provide. Its 49 Hz to 25 kHz frequency response, 4-ohm nominal impedance, and 89 dB sensitivity support a balanced, detailed presentation. The system is rated for 75 watts RMS and 150 watts peak power handling.

Each side uses an external passive crossover network to direct appropriate frequencies to the woofer, midrange, and tweeter. The modular Multi-Configuration Crossover Chassis can be joined together or mounted as individual crossover modules when installation space is limited. Pass-through connections also support standard, bi-amplified, or tri-amplified system layouts.

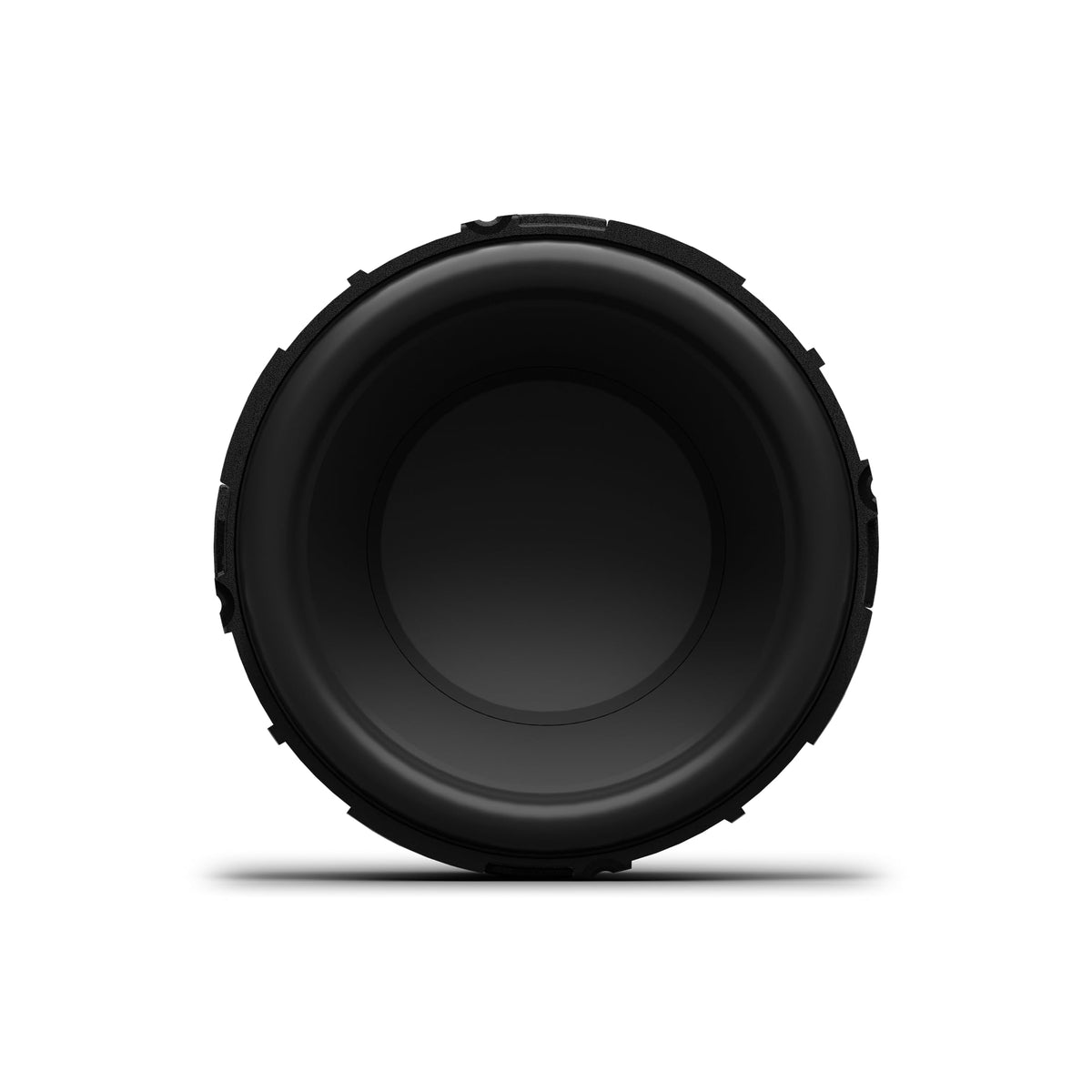

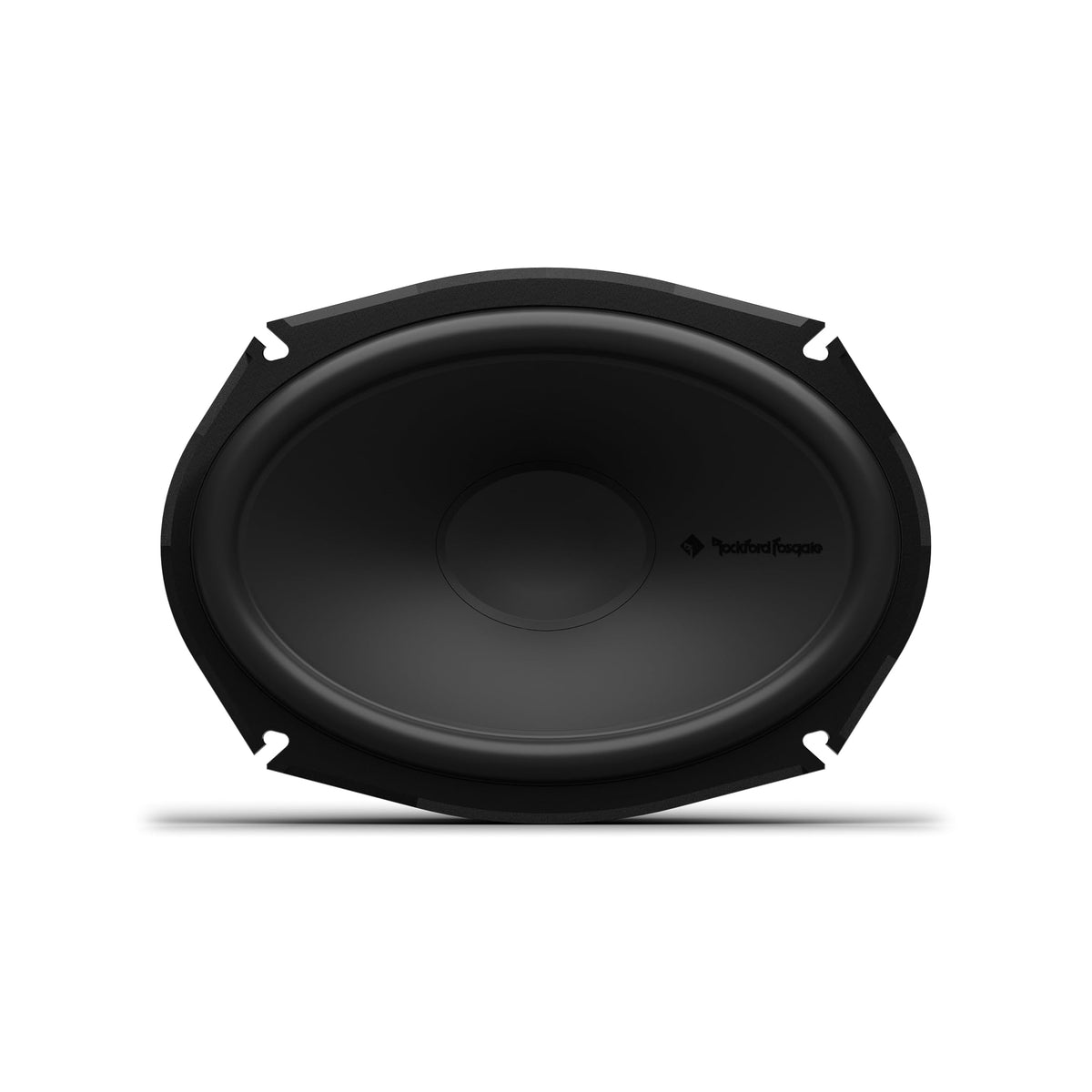

The P3V2-69 uses a 6x9-inch woofer with a mica-reinforced polypropylene curvilinear cone and Santoprene half-roll surround. Rockford Fosgate's VAST 2.0 surround design increases effective cone area compared with conventional speaker designs. The included 3/4-inch Tetolon inverted-dome tweeters offer separate flush-mount and surface-mount installation options.

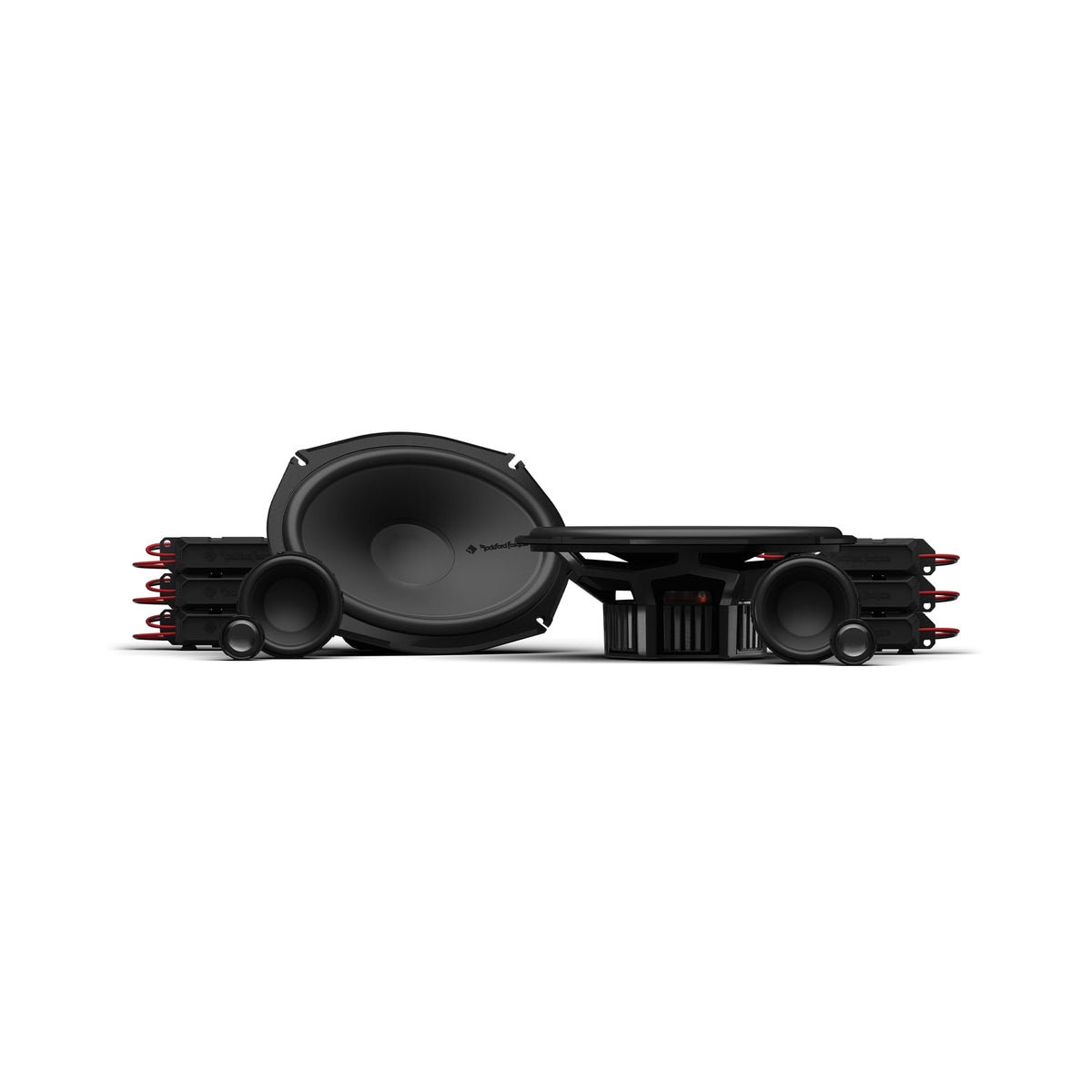

This kit is well suited to a properly planned factory-location upgrade where the vehicle can accommodate separate drivers and crossover modules. It includes 6x9-inch woofers, 2.5-inch midranges, tweeters, crossover networks, midrange adapters, wiring extensions, and mounting hardware. Verify vehicle cutout dimensions, mounting depth, window clearance, and available crossover mounting space before installation.

Key Features

• Three-Way Component Layout: Dedicated woofer, midrange, and tweeter drivers divide sound reproduction across separate frequency ranges.
• 75-Watt RMS Rating: Supports amplifier matching for clean, controlled output at its rated power level.
• Modular Passive Crossovers: Separate crossover sections can be combined or installed individually to suit available space.
• Tweeter Level Selection: A 0 dB or -3 dB tweeter input helps tailor high-frequency balance.
• VAST 2.0 Surround Design: Increases usable cone area for greater radiating surface from the woofer.
• Included Mounting Accessories: Templates, adapters, tweeter cups, wiring, connectors, and hardware support installation.

Design & Installation

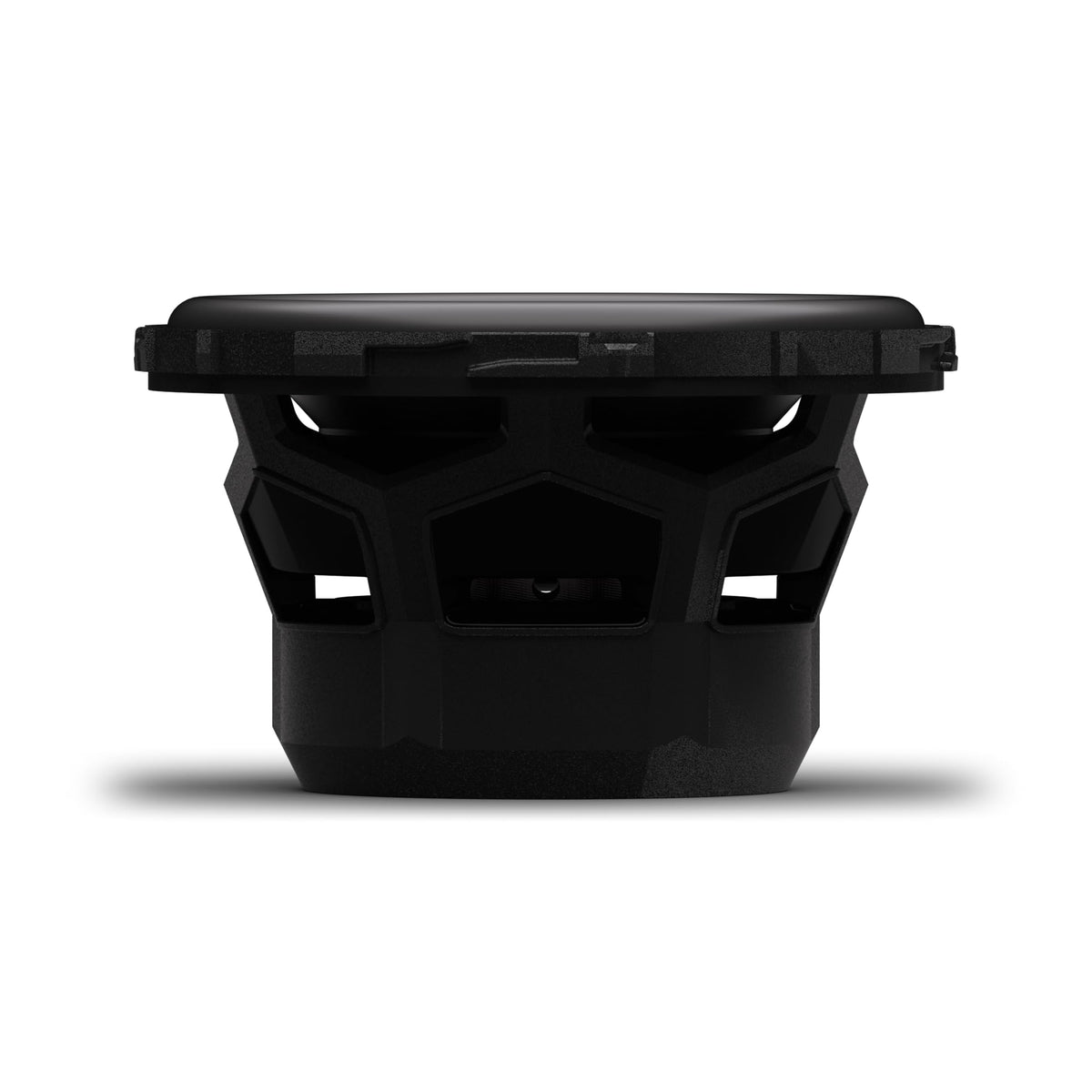

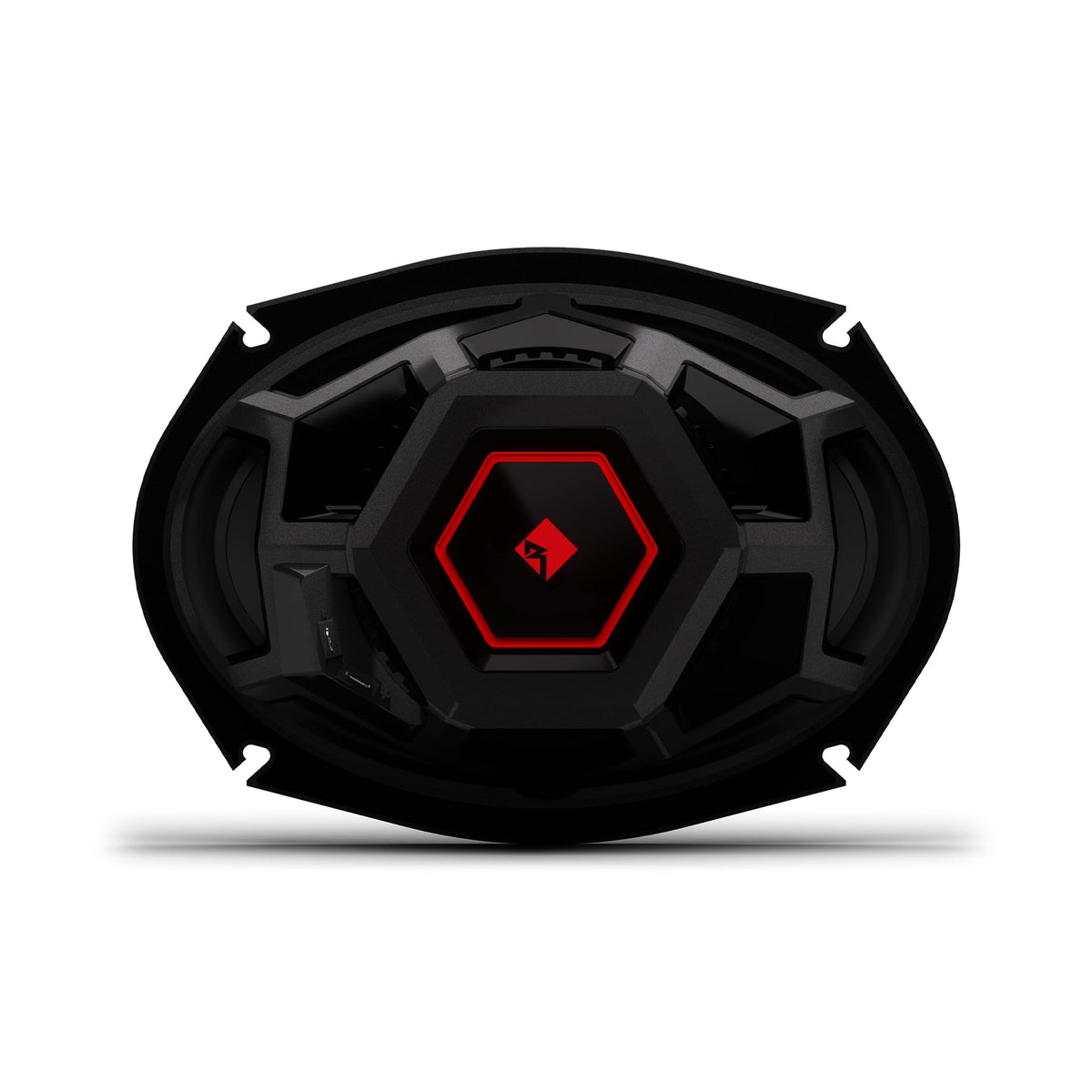

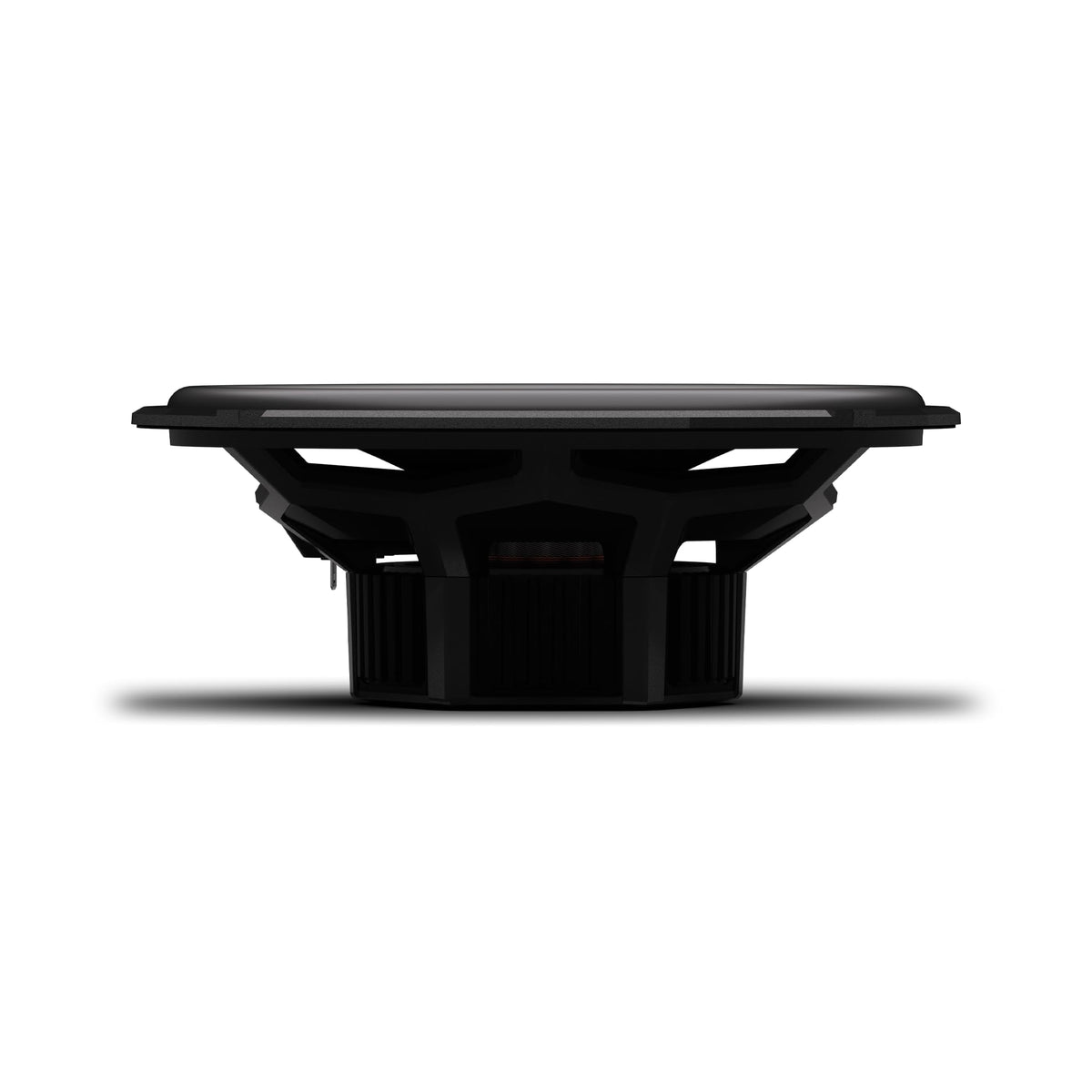

The system uses 6x9-inch woofers with mica-reinforced polypropylene curvilinear cones and Santoprene half-roll surrounds, plus 3/4-inch Tetolon inverted-dome tweeters. The woofers have removable motor covers, allowing reduced mounting depth where rear clearance is limited. Twist-Lock adapters are included for the 2.5-inch midrange drivers, and both flush-mount and surface-mount cups are included for the tweeters.

Confirm that the vehicle has suitable locations for a 6x9-inch woofer, 2.5-inch midrange, and 3/4-inch tweeter before purchase. The 6x9-inch woofer requires an 8.41 by 5.71-inch cutout and 3.13 inches of mounting depth with its motor cover installed; check door-window travel and other obstructions before mounting. Use the supplied passive crossover networks for a standard passive installation, or follow the manufacturer's active-system crossover guidance when using external electronic crossovers and dedicated amplifier channels.
