Rockford Fosgate P3V2-65 6.5" 3-Way Component Speakers

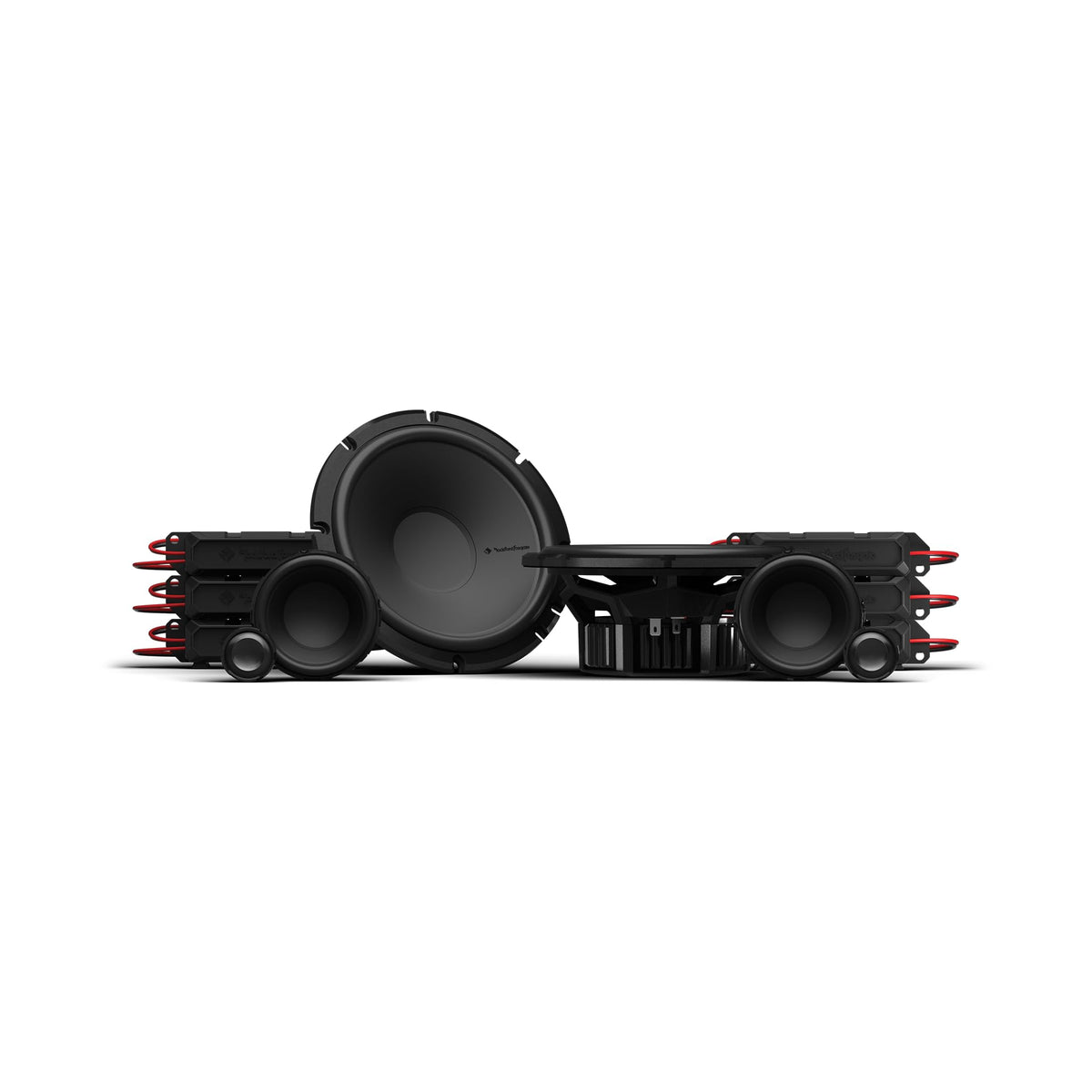

The Rockford Fosgate P3V2-65 is a 6.5-inch, 3-way component speaker system designed for vehicles with separate woofer, midrange, and tweeter locations. It replaces a factory multi-driver arrangement with matched 6.5-inch woofers, 2.5-inch midranges, and 3/4-inch tweeters. The system is intended for listeners who want a more detailed front-stage upgrade than a conventional coaxial speaker can provide.

Separating the three frequency ranges lets each driver handle a focused part of the audible spectrum. The woofers cover the lower range, the dedicated midranges reproduce vocal and instrument detail, and the tweeters handle upper-frequency information. Rockford Fosgate rates the system at 75 watts RMS and 150 watts peak power handling.

The P3V2-65 has a 4-ohm nominal impedance and a stated frequency response of 49 Hz to 25 kHz. Its 87 dB sensitivity rating at 1 watt/1 meter supports use with a compatible aftermarket amplifier or suitable factory-replacement system. The set includes passive crossover networks to direct the appropriate frequencies to each driver.

Its modular crossover design can be assembled as a combined network or mounted as separate sections when installation space is limited. The tweeter crossover provides a selectable 0 dB or -3 dB tweeter level, allowing a less forward high-frequency balance when preferred. Pass-through connections support standard wiring as well as bi-amplified or tri-amplified system layouts.

The system is built for custom or factory-location installations that have room for separate drivers. A removable woofer motor cover reduces woofer mounting depth from 2.50 inches to 2.26 inches when clearance is tight. Included twist-lock midrange adapters, tweeter mounting cups, crossover extensions, hardware, and templates help support a planned installation.

Key Features

• Three-Way Component Design: Separate woofer, midrange, and tweeter drivers divide the audio range between dedicated transducers.
• 75W RMS Power Handling: Supports amplification matched to the manufacturer’s continuous power rating.
• Modular Passive Crossovers: Networks can be joined together or installed separately to suit available space.
• Tweeter Level Selection: Choose 0 dB or -3 dB tweeter attenuation for system balance.
• Removable Motor Cover: Reduces woofer mounting depth where door clearance is limited.
• Multiple Mounting Accessories: Includes midrange adapters and flush- and surface-mount tweeter cups.

Design & Installation

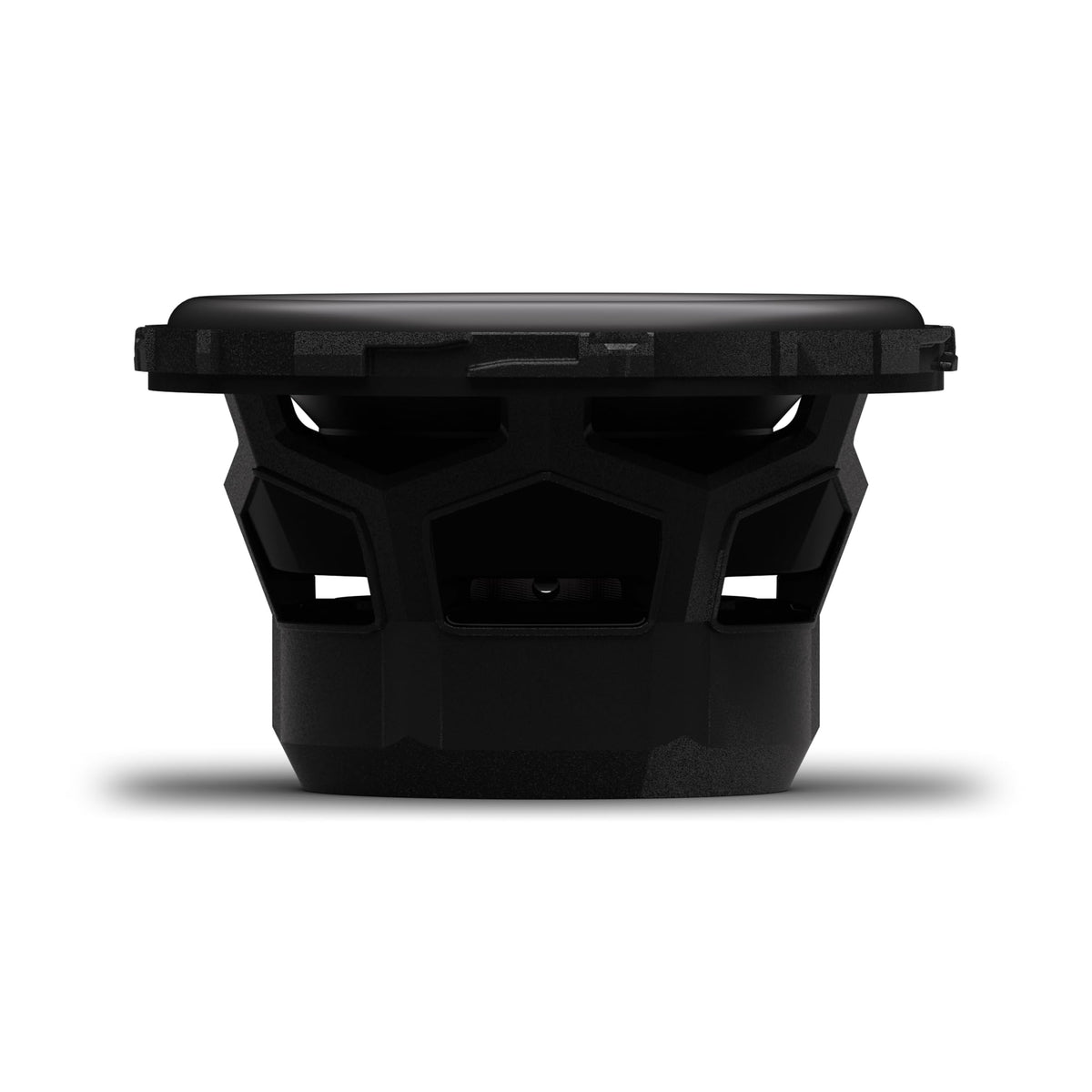

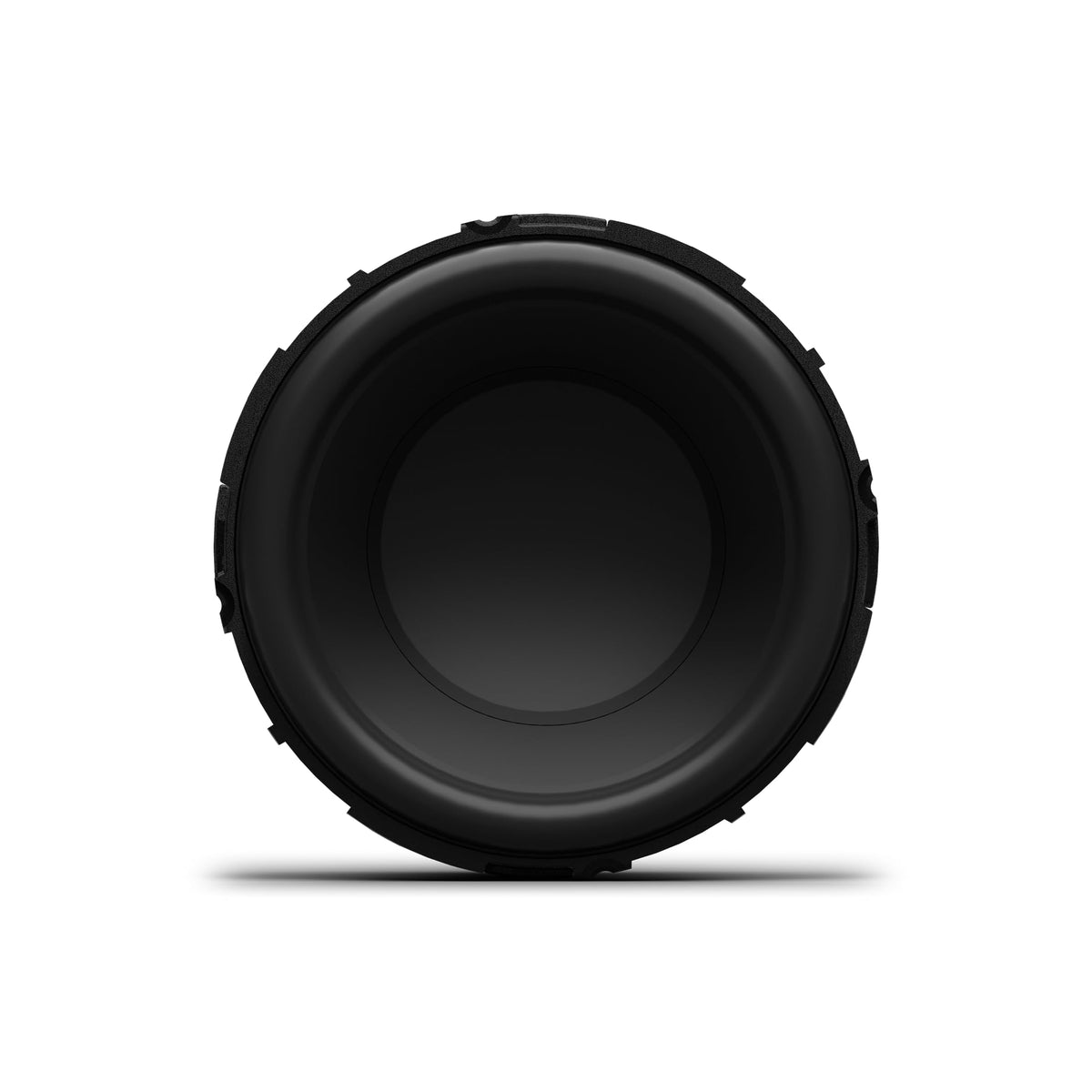

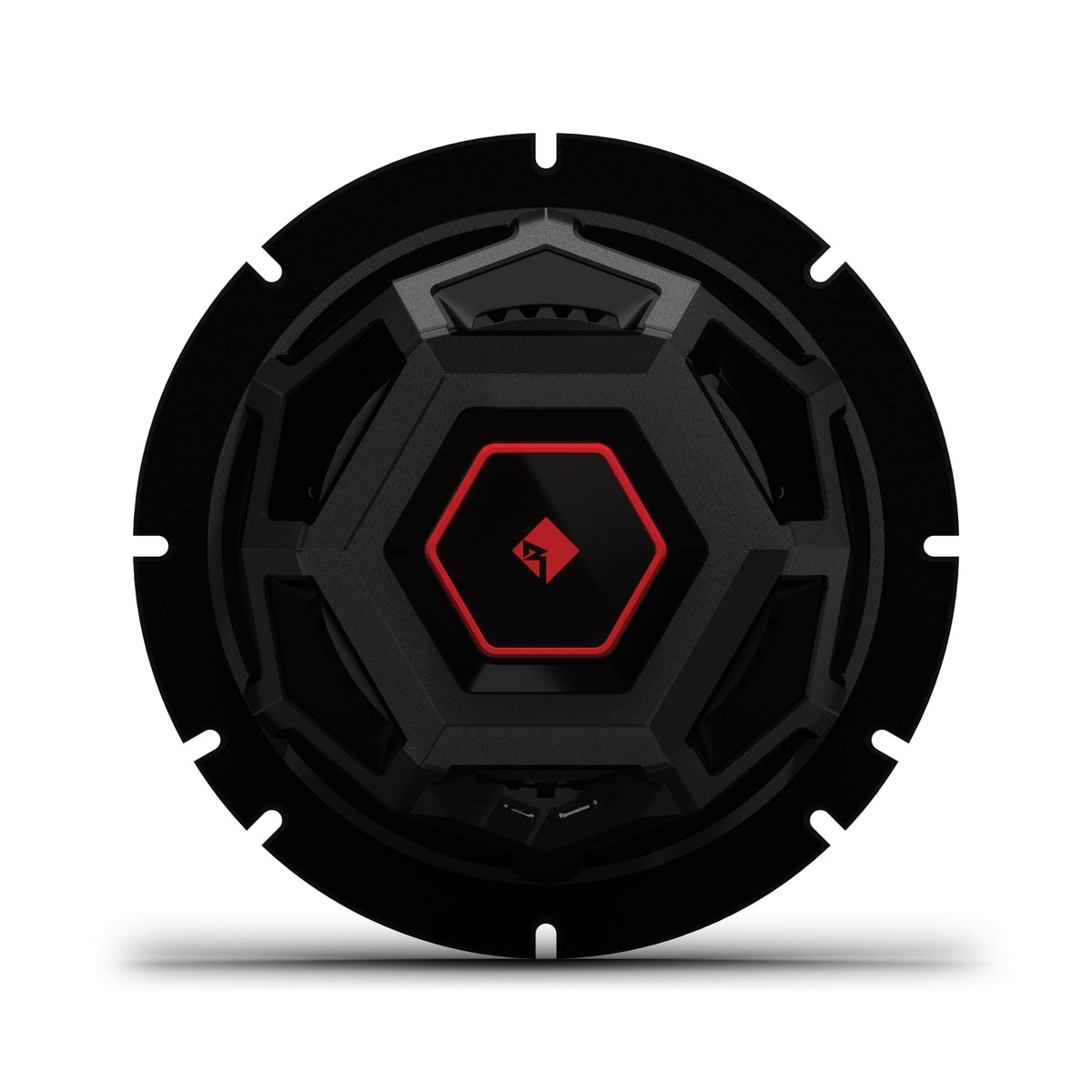

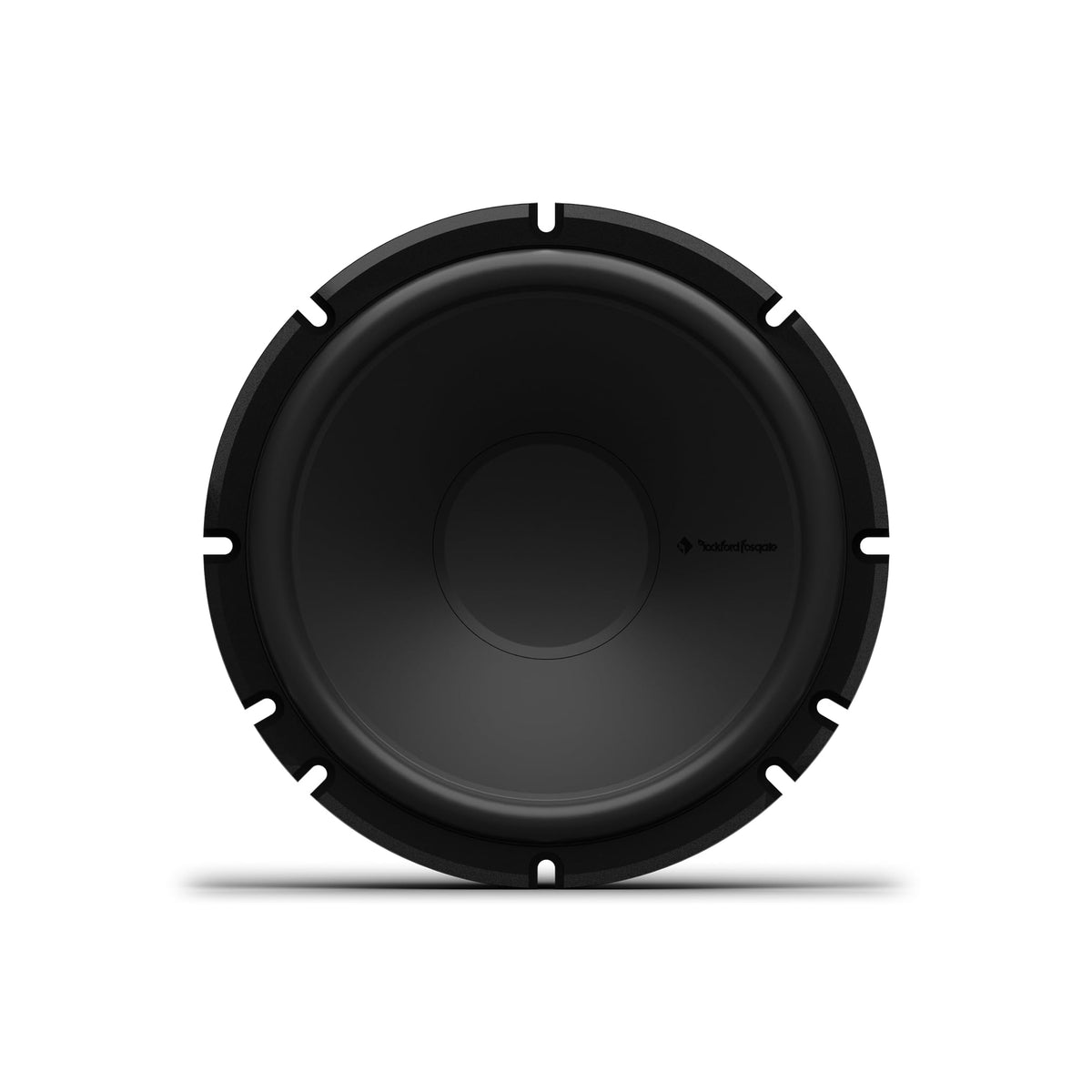

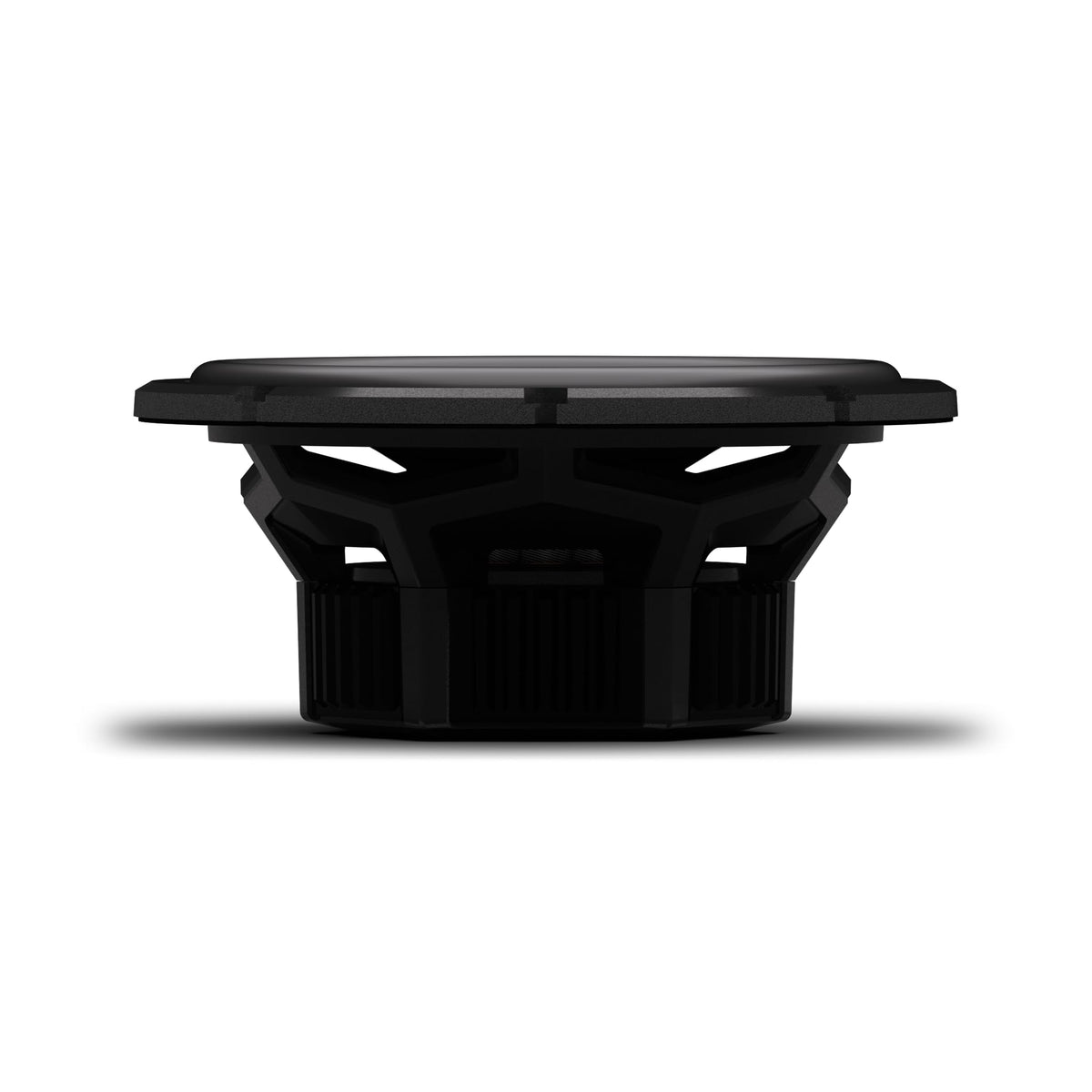

The P3V2-65 uses separate 6.5-inch woofers, 2.5-inch midranges, and 3/4-inch inverted-dome tweeters, with passive crossover sections for each driver type. The woofer design incorporates a removable motor cover, while the crossover sections use Molex Micro-Fit 3.0 connectors and a snap-fit arrangement for modular assembly. Woofer grilles are not included and are sold separately.

Confirm vehicle mounting locations and clearances before installation: the woofer cutout requirement is 5.42 inches, and standard woofer mounting depth is 2.50 inches. Run wiring before mounting drivers, maintain correct polarity, and use the included crossover networks for a conventional passive installation. For active installations, the manufacturer provides starting crossover points for the woofer, midrange, and tweeter; professional installation is recommended when configuring multi-amplifier systems.
