Rockford Fosgate HD9813RK-STAGE2 6x9" Road King Audio Kit

The Rockford Fosgate HD9813RK-STAGE2 is a motorcycle audio upgrade package for select 1998-2013 Harley-Davidson Road King models. It adds a pair of 6x9-inch saddlebag-lid speakers, a compact four-channel amplifier, Bluetooth audio reception, and the required installation hardware. The package is intended for riders who want amplified audio without giving up more saddlebag space than necessary.

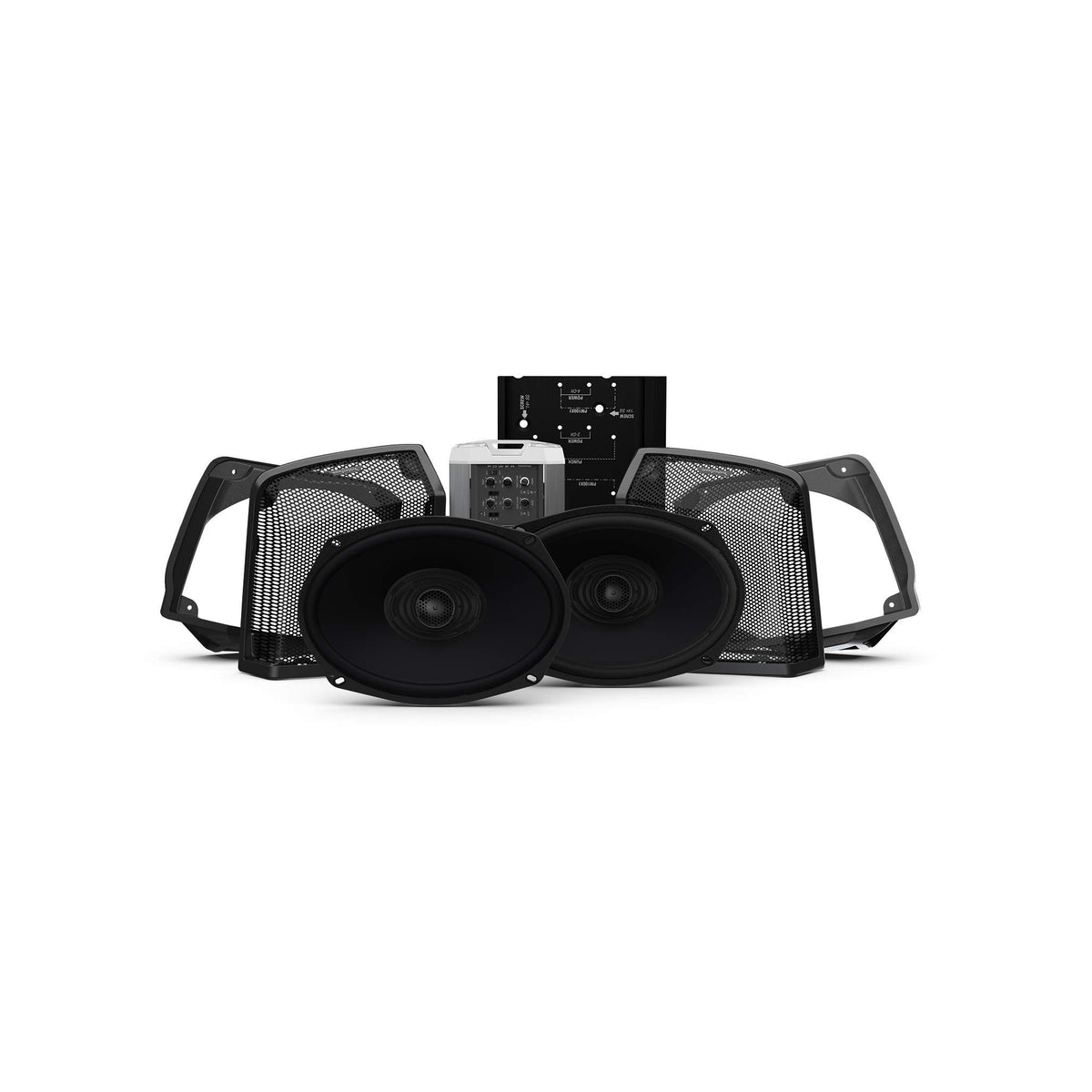

The system is built around two TMS69BL9813 6x9-inch coaxial speakers mounted in compatible factory saddlebag lids. Their carbon-fiber cones, film-dome tweeters, and weather-conscious construction are designed for motorcycle use. With 100 watts RMS handling per speaker, the pair is matched to the included amplifier's four-channel output.

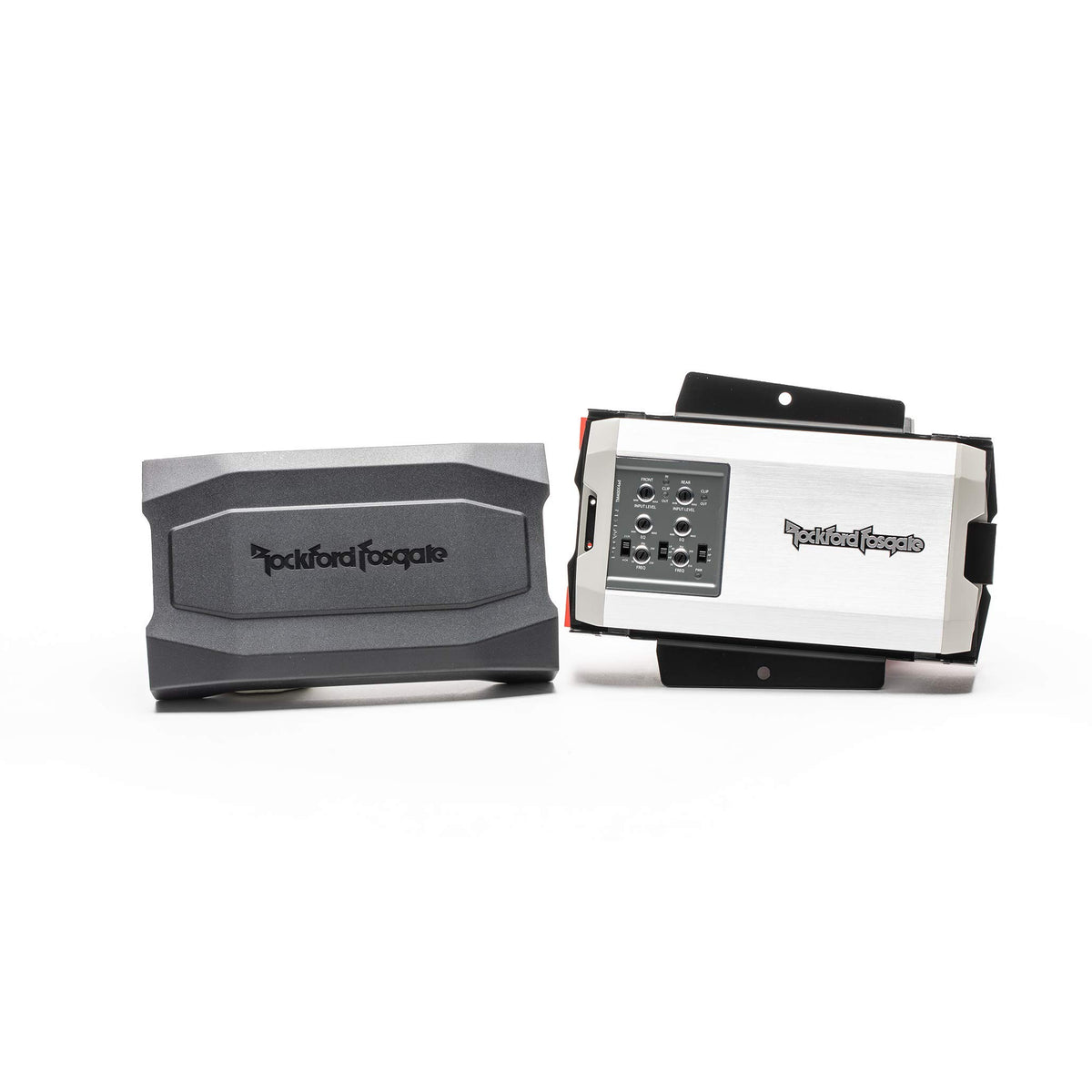

Power comes from the TM400X4ad Element Ready Class-AD amplifier, rated for 400 watts RMS total. Its constant-power design provides 100 watts RMS per channel at either 2 or 4 ohms, while adjustable high-pass and low-pass filtering supports system tuning. High- and low-level inputs, clip indicators, and dual-fan cooling help support integration and setup.

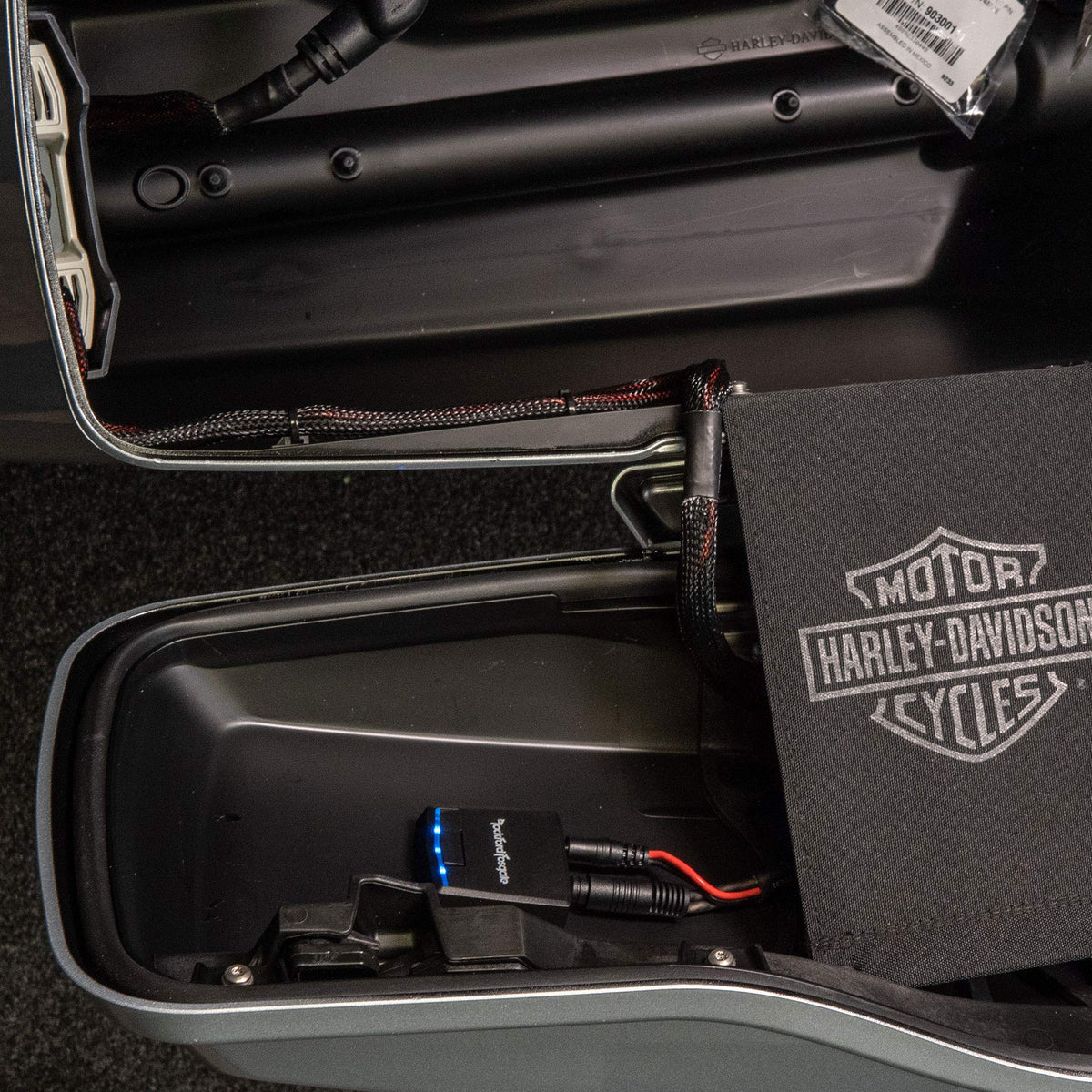

Bluetooth streaming is handled by the included RFBTRCA receiver, allowing a compatible phone or other Bluetooth device to send audio to the amplifier through stereo RCA connections. The receiver uses one-button pairing and reconnects automatically after initial pairing. Its wired 9-16VDC connection and dash- or surface-mount design suit a dedicated motorcycle audio installation.

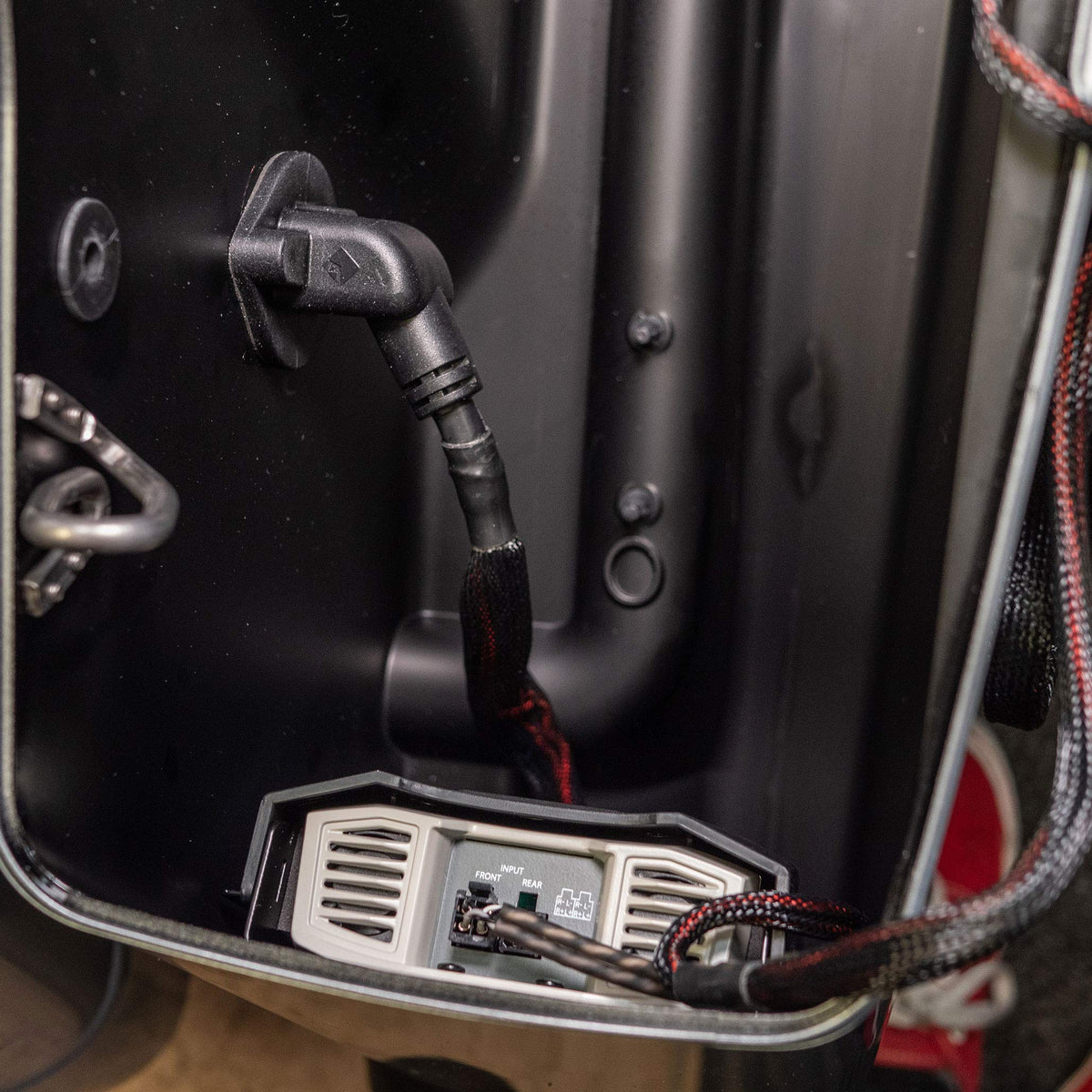

The included RFK-HDRK installation hardware mounts the amplifier in the rear of the saddlebag and provides a plug-and-play wiring approach for the intended Road King application. A prewired expansion connection is provided for compatible lower-speaker additions. This makes the kit a focused rear-speaker audio upgrade and a foundation for a broader Rockford Fosgate motorcycle system.

Key Features

• Complete Stage 2 Package: Includes speakers, amplifier, Bluetooth receiver, wiring, mounting parts, grilles, and hardware.
• 6x9-Inch Bag-Lid Speakers: Adds full-range rear audio through compatible factory ABS plastic saddlebag lids.
• 400-Watt RMS Amplifier: Four-channel Class-AD power supports the included speakers with adjustable filtering.
• Bluetooth Streaming: Lets compatible phones send wireless audio directly to the amplifier.
• Plug-And-Play Harness: Uses dedicated Harley-Davidson wiring integration for the intended application.
• Lower-Speaker Expansion: Includes a prewired connection for compatible front lower speaker additions.

Design & Installation

The TMS69BL9813 speakers use carbon-fiber cones, Santoprene rubber surrounds, film-dome tweeters, reinforced polymer frames, and UV-conscious grille materials. The TM400X4ad amplifier uses a conformal-coated circuit board, dual extruded heat sinks, dual-fan cooling, and real-time thermal protection. These components are designed for the vibration, moisture, dust, and outdoor exposure associated with motorcycle use.

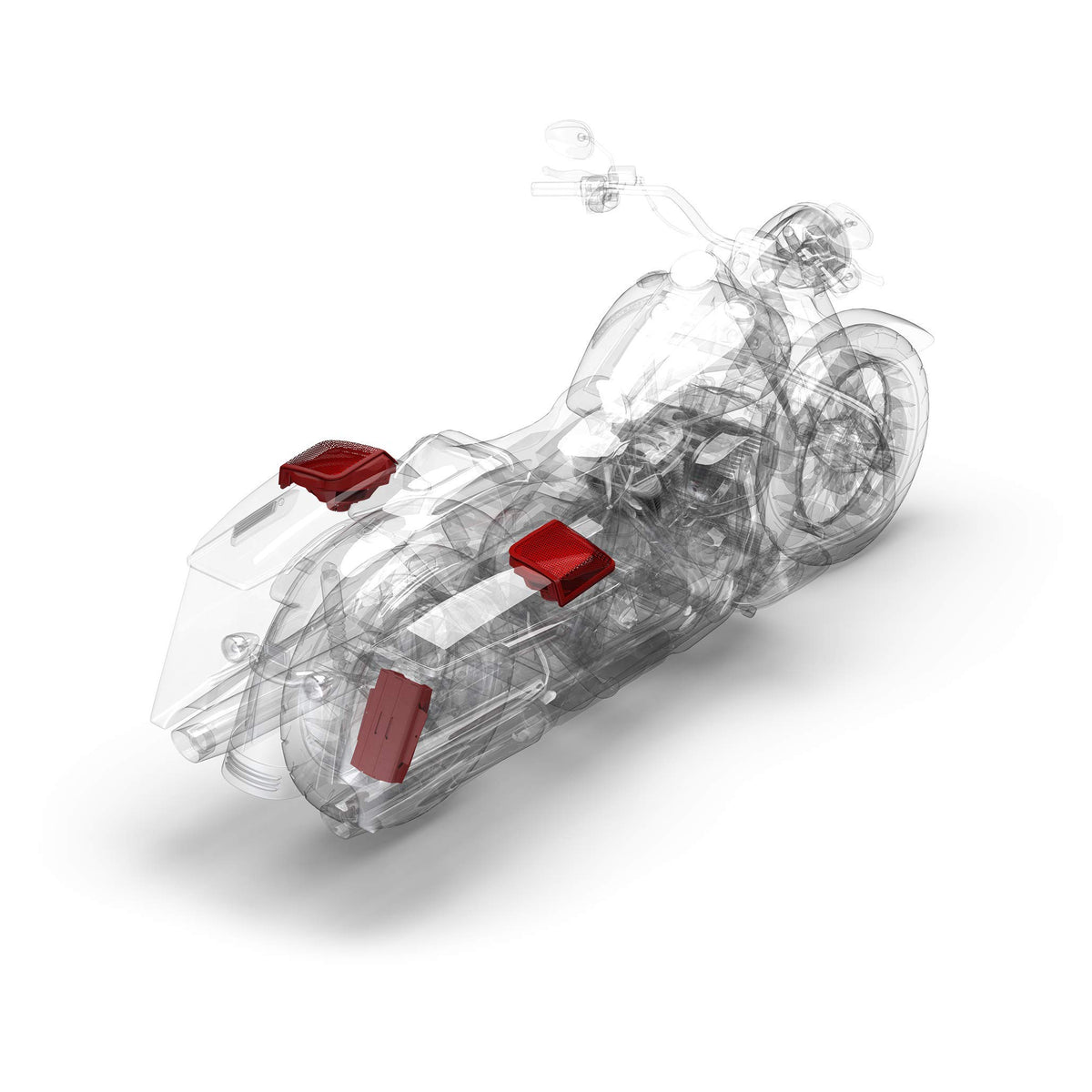

This kit is intended for select 1998-2013 Road King motorcycles equipped with inner-opening plastic saddlebags and compatible ABS plastic lids. The saddlebag speaker retrofit uses the included template, mounts, grilles, harnesses, and hardware; it is not compatible with leather-equipped models or fiberglass saddlebag lids. Verify the specific motorcycle trim and existing audio configuration before installation, and use the included amplifier mounting and wiring kit for the designed fitment.
