Rockford Fosgate HD24-STG2 6.5" Harley Audio Kit

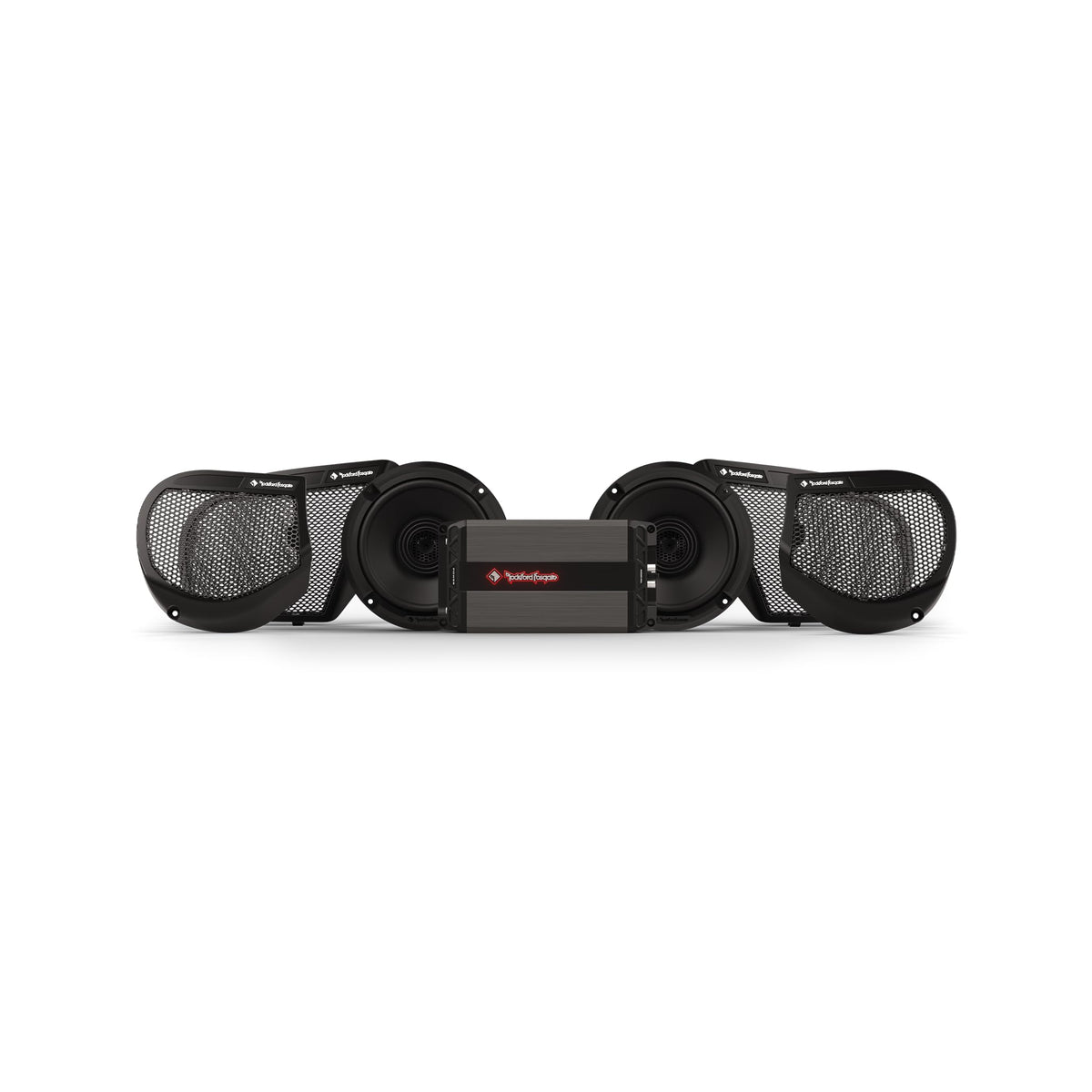

The Rockford Fosgate HD24-STG2 is a Stage-2 amplified audio upgrade for select 2024+ Harley-Davidson Touring motorcycles equipped with Skyline OS. It combines a pair of direct-fit 6.5-inch upper-fairing speakers, a four-channel A2B amplifier, and a model-specific installation kit. It is designed for riders who want a factory-integrated sound upgrade without adding separate interface hardware.

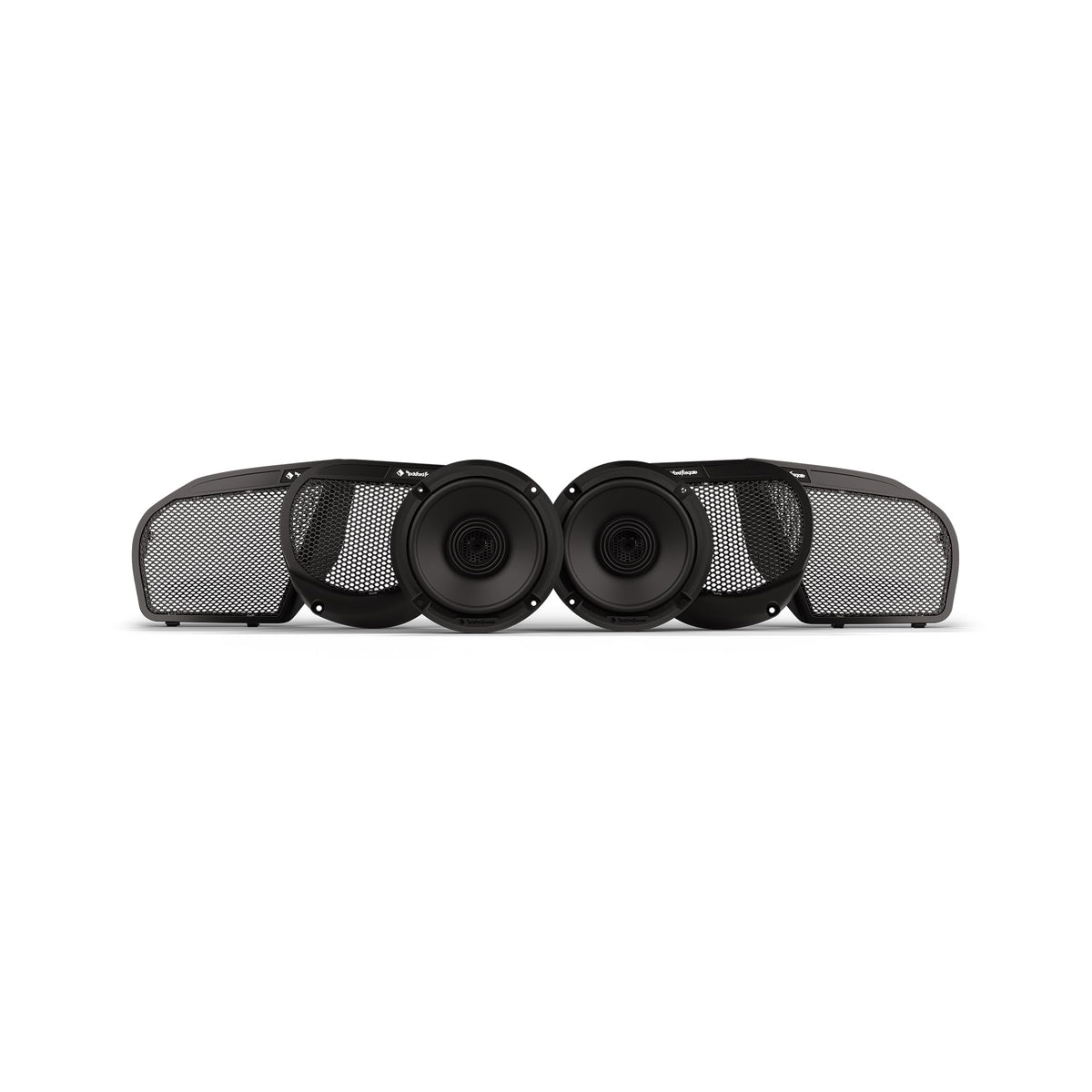

The included TMS24-65 2-way speakers use a long-throw design intended to provide strong output and extended low-frequency response in an open-air motorcycle environment. Each speaker is rated for 150 watts RMS and uses a 1.5-inch voice coil, 4-ohm impedance, and a 50 Hz to 20 kHz frequency response. Their coherent-phase driver layout and integrated crossover support clear, balanced playback from the fairing locations.

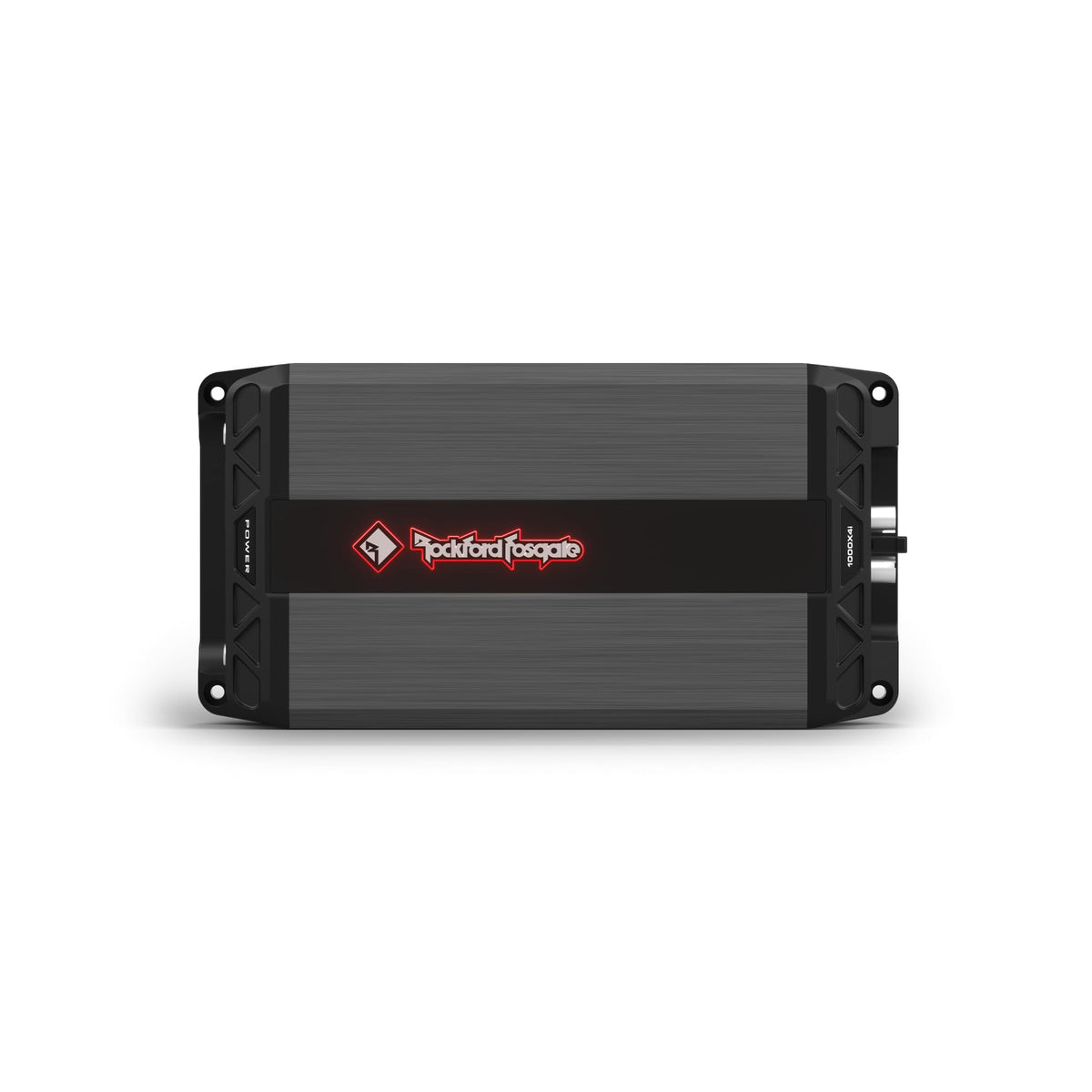

Power comes from the included TMA-1000X4i digital four-channel amplifier, which connects to the motorcycle's Skyline OS through an A2B digital-bus interface. The amplifier supports up to eight-speaker systems, leaving channels and harness provisions available for future system expansion. Rockford Fosgate rates the amplifier at 200 watts RMS per channel at either 4 or 2 ohms.

RF Connect app control lets the installer load a DSP preset matched to the HD24-STG2 kit through a Bluetooth connection. The app also provides front and rear level adjustment along with selectable high-pass, low-pass, and all-pass crossover settings. This approach allows setup through the amplifier rather than requiring a radio flash.

The kit is built for the weather, vibration, and wiring demands of motorcycle use. Element Ready components, grommeted harness protection, and OEM-style Molex and Deutsch DT connections help support a clean installation. It includes Road Glide and Street Glide speaker grilles, amplifier mounting hardware, and the RFK-HD24 wiring kit.

Key Features

• Complete Stage-2 System: Includes two fairing speakers, a four-channel amplifier, and vehicle-specific wiring hardware.
• 6.5-Inch TMS 2.0 Speakers: Direct-fit 2-way speakers deliver extended response from factory upper-fairing locations.
• 1,000-Watt Amplifier Platform: Four-channel A2B amplifier provides power for the included speakers and future expansion.
• Skyline OS Integration: A2B connectivity works with compatible factory infotainment without radio flashing.
• RF Connect DSP Setup: Bluetooth app access enables kit-specific tuning presets and crossover adjustments.
• Element Ready Construction: Weather-resistant components and protected connectors suit demanding motorcycle conditions.

Design & Installation

The TMS24-65 speakers use curvilinear poly cones with 10% carbon fill, Santoprene VAST surrounds, Poly-Nomex spiders, and UV-stable Domamid PA66 composite baskets reinforced with 30% glass fiber. Dual neodymium motor structures, vented Kapton voice-coil formers, and corrosion-resistant tin-plated terminals are used to support durability and power handling. The amplifier uses an extruded-aluminum heatsink, convection cooling, and an IPX4-rated chassis.

Installation is intended for compatible Harley-Davidson Touring motorcycles with Skyline OS and uses the included RFK-HD24 harness and mounting hardware. The kit includes both Road Glide and Street Glide grille sets, so grille selection should match the motorcycle's fairing style. Rockford Fosgate lists a typical installation time of three hours; use RF Connect to load the HD24-STG2 tune after installation and confirm vehicle compatibility before purchase.
