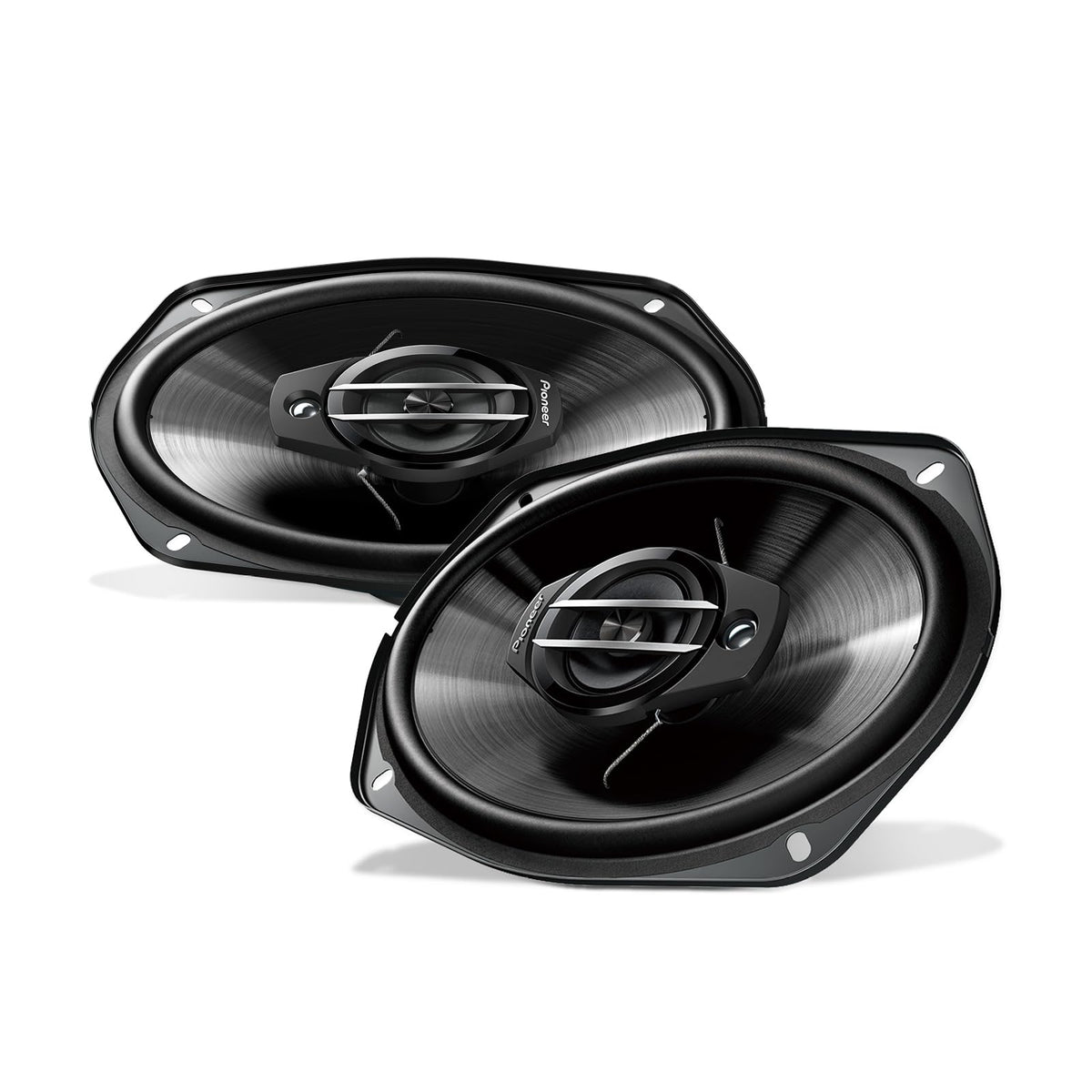

Pioneer TS-G6930F 6 x 9" 3-Way Coaxial Speakers

The Pioneer TS-G6930F is a pair of 6 x 9-inch, 3-way coaxial car speakers designed to replace or upgrade factory-installed full-range speakers. It combines a woofer, midrange driver, and dome tweeter in each speaker assembly to cover a broad range of musical detail. With a 4-ohm impedance and 90 dB sensitivity rating, it is suited to many conventional car audio speaker applications.

These speakers are intended for drivers looking to refresh worn factory speakers while retaining a straightforward coaxial layout. The 45-watt nominal power rating provides a practical match point when selecting a compatible head unit or amplifier. Their 400-watt maximum power specification describes short-term power capability rather than continuous operating power.

The TS-G6930F uses a mica-reinforced IMPP™ polypropylene woofer cone, a material chosen for a rigid, lightweight diaphragm. Pioneer pairs it with a Conex damper and its P.F.S.S. spider design. Together, these construction elements support controlled cone movement and durable everyday use.

A 48 mm cellulose-fiber cone midrange and 11 mm PET hard-dome tweeter are integrated into the coaxial design. This three-way arrangement separates bass, midrange, and treble reproduction among dedicated drivers. The specified frequency response is 32 Hz to 32 kHz.

The TS-G6930F is a practical option for compatible front-door, rear-deck, or rear-door 6 x 9-inch locations. Its 2-3/4-inch mounting depth can help where installation space is limited, but vehicle fitment should always be measured before purchase. Speaker grilles are included for installations that require them.

Key Features

• 3-Way Coaxial Design: Integrates woofer, midrange, and tweeter drivers in each speaker.
• 45W Nominal Power: Provides a realistic continuous-power reference for system matching.

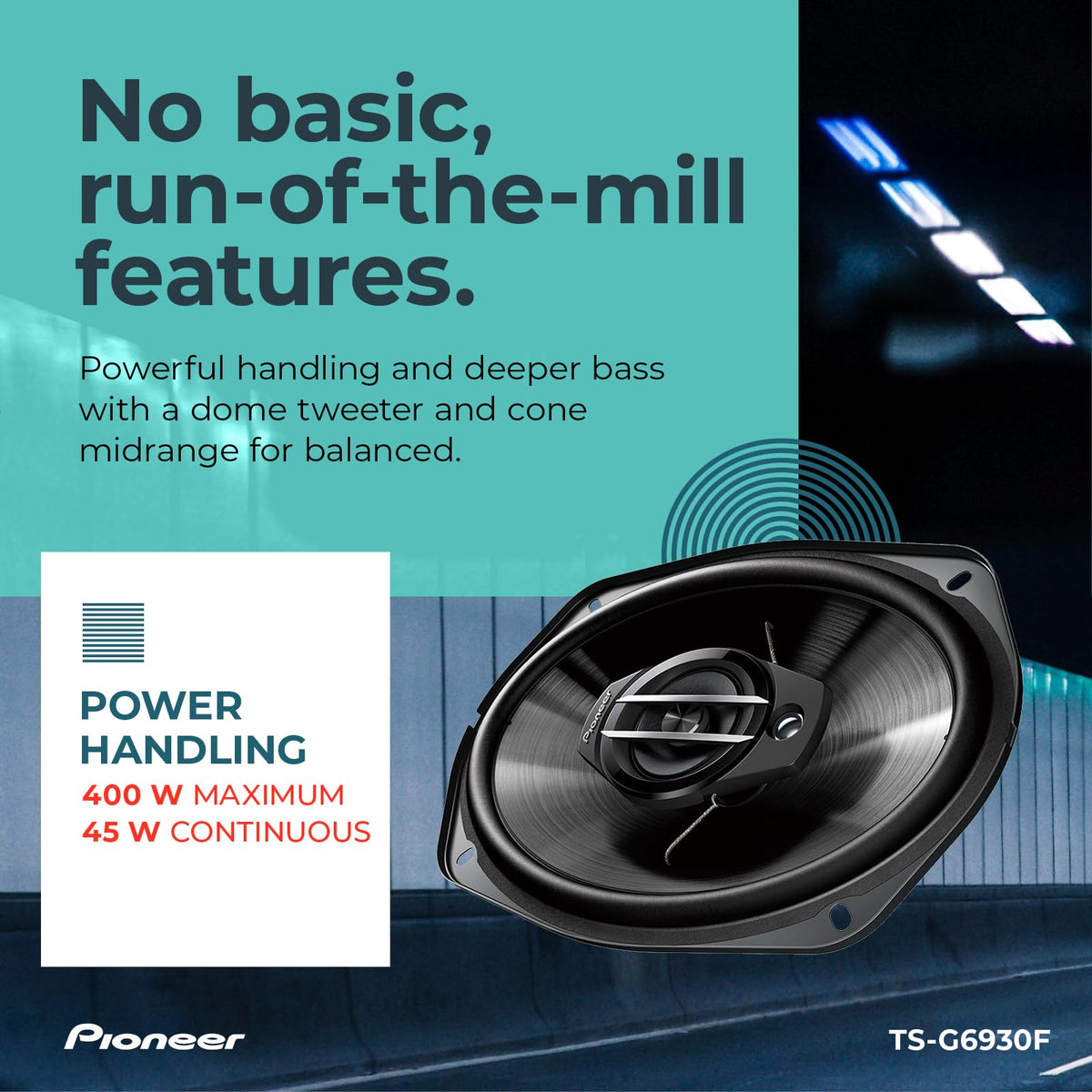

• 400W Maximum Power: Supports short-term dynamic musical peaks.
• Mica-Reinforced IMPP™ Cone: Uses a rigid, lightweight polypropylene composite woofer diaphragm.

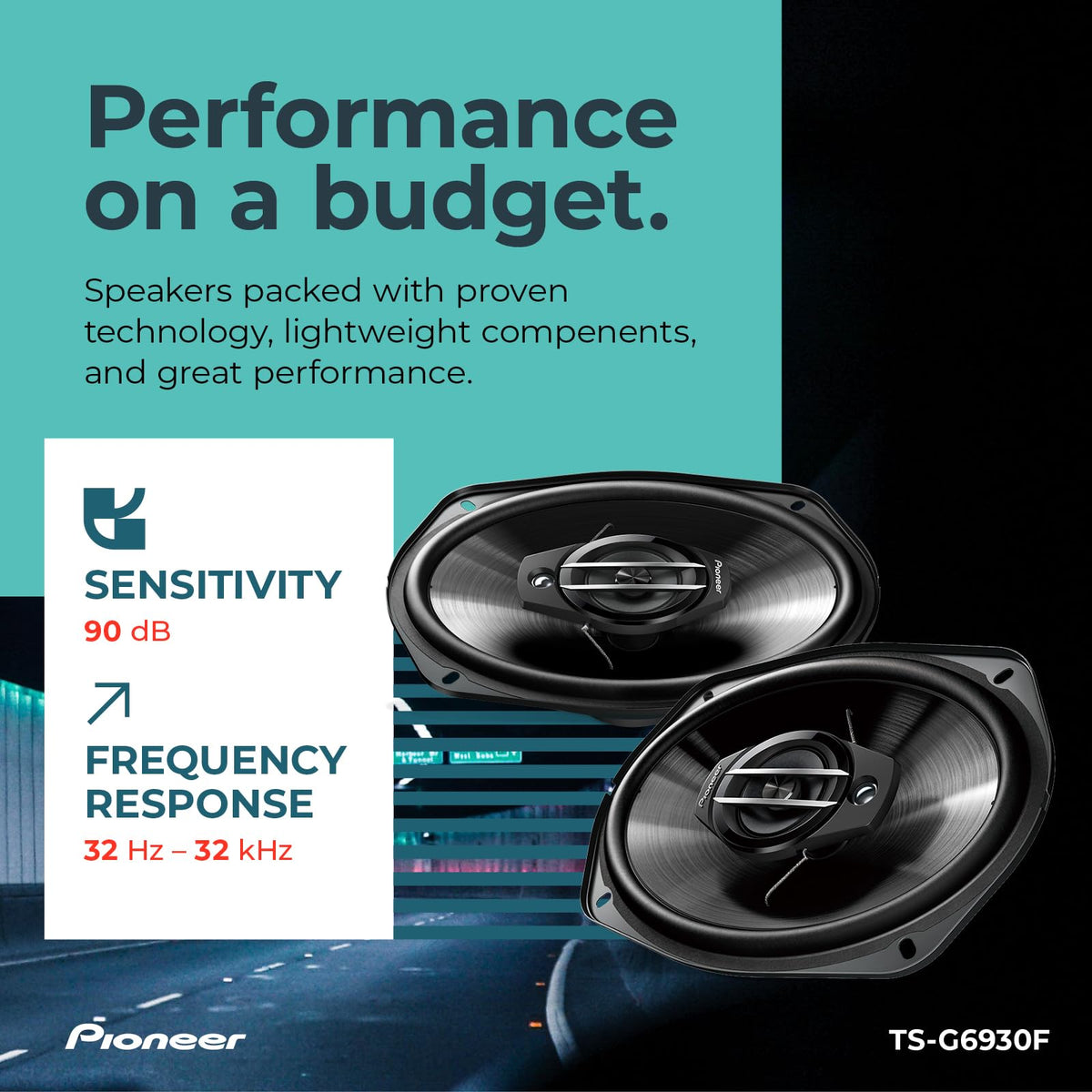

• 90 dB Sensitivity: Helps produce useful output from modest power.
• 32 Hz–32 kHz Response: Covers low bass through extended high-frequency content.

Design & Installation

The TS-G6930F uses a ferrite magnet system, mica-reinforced IMPP™ woofer cone, cellulose-fiber midrange cone, and PET hard-dome tweeter. Pioneer also specifies a Conex damper and patented P.F.S.S. spider. The included grilles use steel mesh and heat-resistant resin construction.

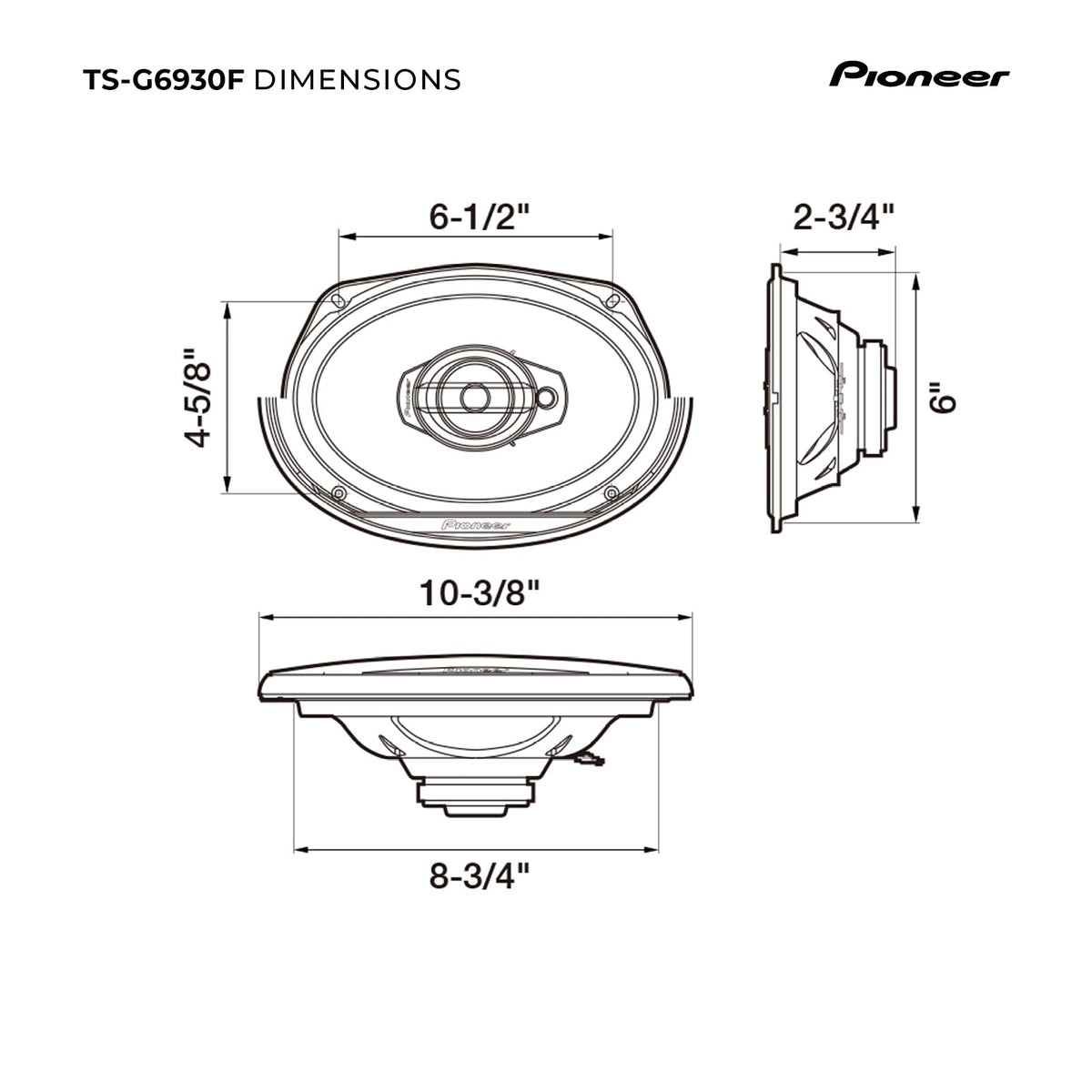

Before installation, verify the available cutout area, mounting depth, and clearance behind the mounting surface. The specified cutout is 8-3/4 x 6 inches, with a 2-3/4-inch mounting depth. Use the included mounting hardware and connection wires where appropriate, and confirm that the connected radio or amplifier is compatible with 4-ohm speakers.
