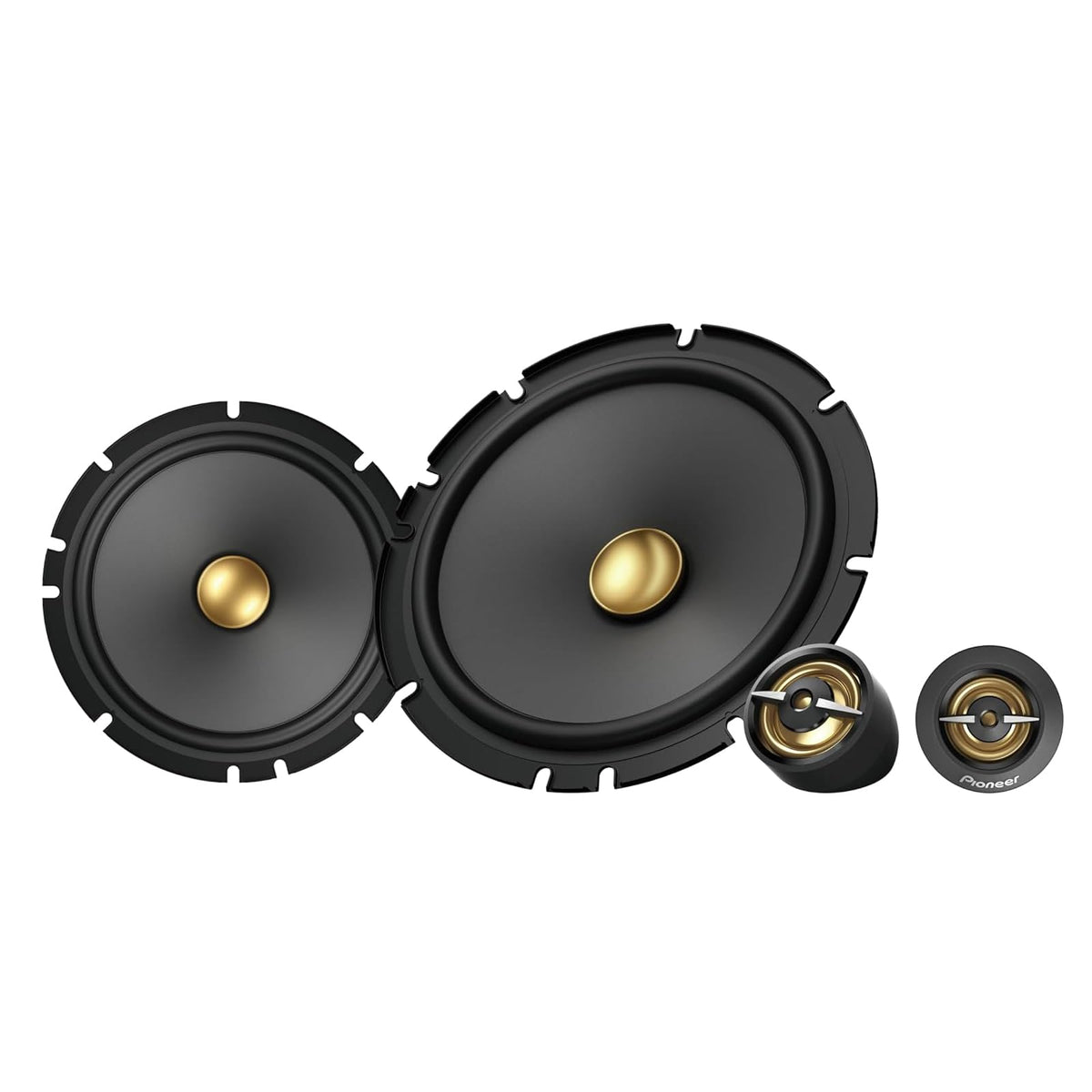

Pioneer TS-A1601C 6.5" 2-Way Component Speakers

The Pioneer TS-A1601C is a 6.5-inch, 2-way component speaker system designed to replace factory door speakers with separate woofers and tweeters. It provides a practical upgrade path for vehicles whose original speakers lack clarity, detail, or low-frequency presence. The set is rated for 80 watts RMS and 350 watts maximum power.

This component system is suited to listeners who want more focused front-stage sound than a coaxial speaker layout can provide. The separate 20 mm tweeters can be positioned independently from the 6.5-inch woofers to better suit the vehicle's interior layout. Its 4-ohm nominal impedance supports use with compatible factory radios or aftermarket amplification.

The TS-A1601C is engineered for a broad stated frequency response of 33 Hz to 58 kHz and a 90 dB sensitivity rating. Its carbon- and mica-reinforced IMPP woofer cone is designed for responsive bass reproduction, while the PEI hard-dome tweeter handles upper-frequency detail. An integrated in-line crossover network separates the woofer and tweeter frequency ranges.

Pioneer's Open & Smooth sound concept is intended to support smooth response and wide sound dispersion in automotive installations, where speaker placement is often off-axis. This matters in doors and dashboards, where speakers may not point directly toward the listener. The component layout helps create a more deliberate installation than a conventional full-range replacement speaker.

Multi-fit woofer adapters are included to broaden mounting flexibility, and the kit also includes tweeter mounting provisions for surface, flush, and selected original-equipment locations. Confirm the vehicle's available space, mounting depth, cutout size, and wiring requirements before installation. The TS-A1601C can serve as a front-speaker upgrade in a factory-replacement system or as part of a more developed amplified system.

Key Features

• 2-Way Component System: Separate woofers and tweeters support flexible front-stage placement.
• 80W RMS Handling: Supports compatible factory or aftermarket amplification.
• 350W Maximum Power: Provides headroom for dynamic musical peaks.
• Carbon/Mica IMPP Woofer: Reinforced cone supports responsive bass reproduction.
• 20mm PEI Dome Tweeter: Handles upper-frequency detail with a hard-dome design.
• Multi-Fit Adapters: Included adapters expand woofer mounting options.

Design & Installation

The system uses 6.5-inch carbon- and mica-reinforced injection-molded polypropylene woofer cones with elastic-polymer surrounds. Its 20 mm polyetherimide hard-dome tweeters are separate from the woofers, allowing their location to be chosen according to the vehicle and installation goals. Speaker grilles are not included.

Verify the 144 mm cutout requirement and 59 mm woofer mounting depth before ordering, as vehicle fitment is not guaranteed by size alone. Use the supplied crossover network with the component speakers, and follow polarity and connection guidance in the installation manual. The included adapters and tweeter mounting hardware can help accommodate different door and factory tweeter locations, but professional installation may be useful where vehicle-specific brackets or wiring adapters are required.
