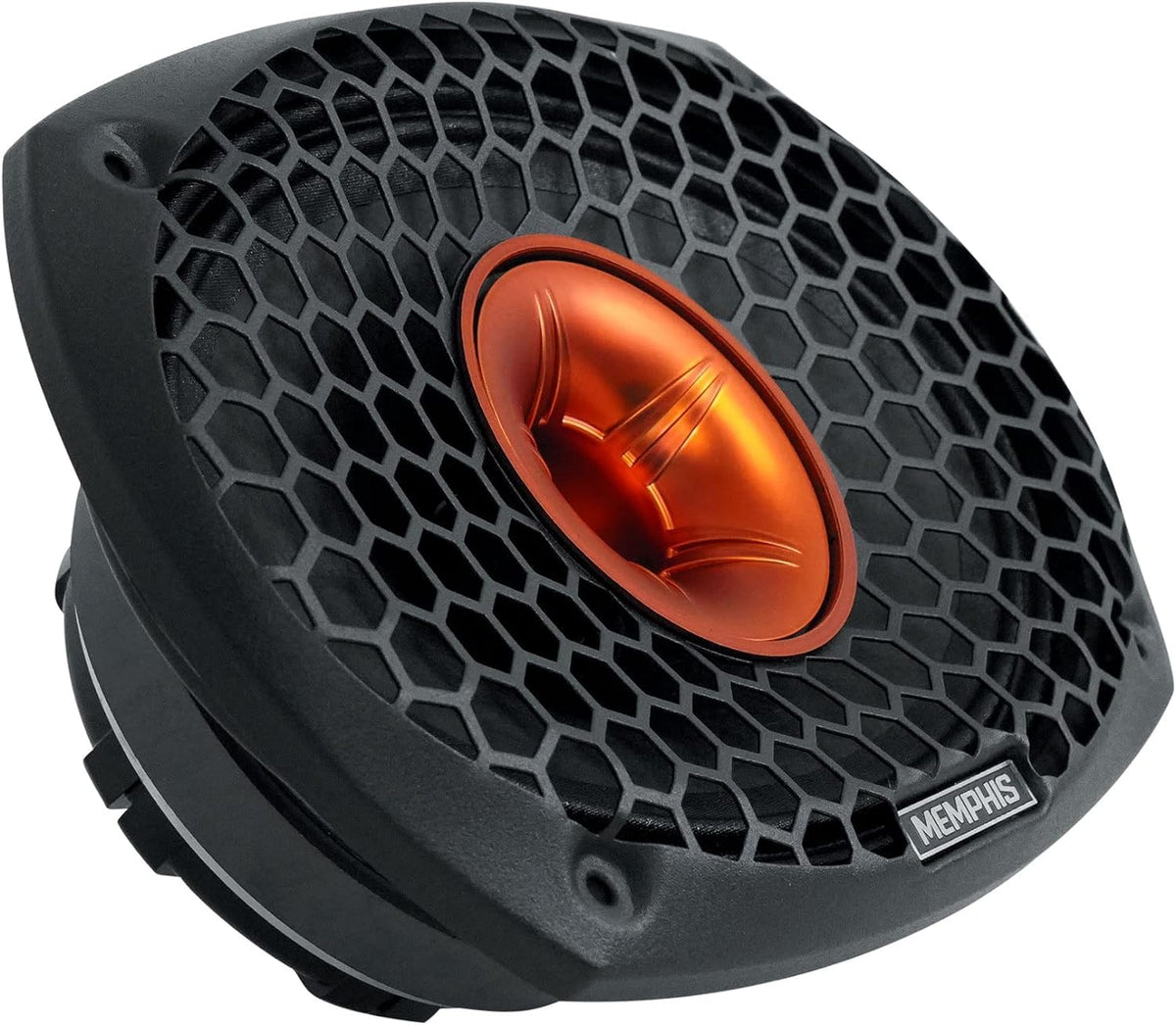

Memphis SRXP69WTV2 6x9" 2-Way Pro Coaxial Speaker

The Memphis SRXP69WTV2 is a 6x9-inch, 2-way pro coaxial car speaker sold individually. It is designed for systems that need a high-output replacement or upgrade in a 6x9 mounting location. Its 4-ohm design makes it suitable for use with compatible aftermarket car audio amplification.

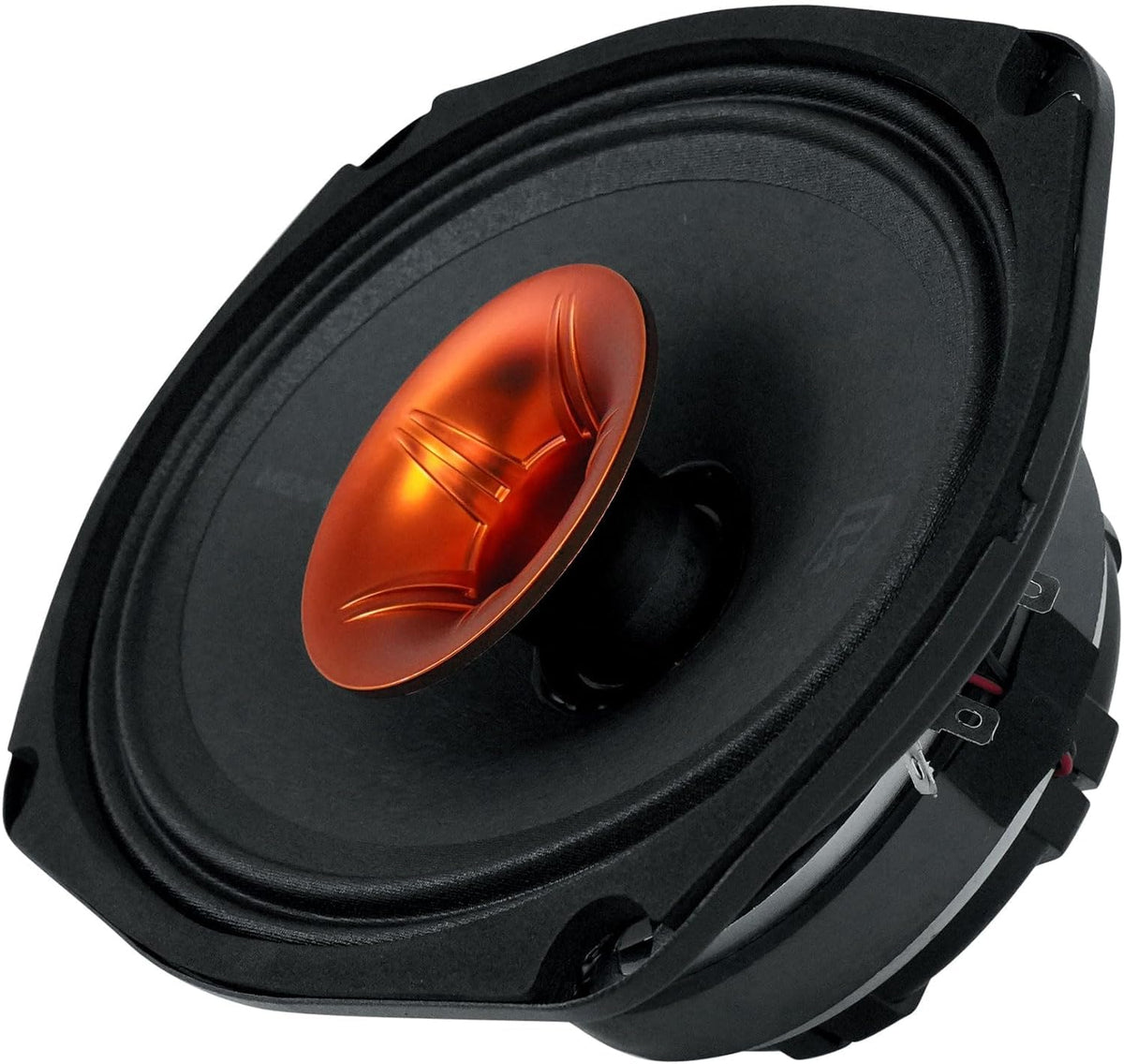

This speaker combines a lightweight paper woofer with a horn-loaded tweeter in one assembly. The coaxial layout places the high-frequency driver over the woofer, helping simplify installation where a separate component speaker system is not desired. It is intended for listeners seeking strong output and prominent high-frequency presence.

Power handling is rated at 175 watts RMS and 350 watts peak per speaker. A 1.5-inch woofer voice coil supports its stated power-handling capability, while the 25-ounce magnet motor structure contributes to the speaker's pro-audio-oriented construction. Match it with an amplifier that is stable at 4 ohms and set gains carefully for clean operation.

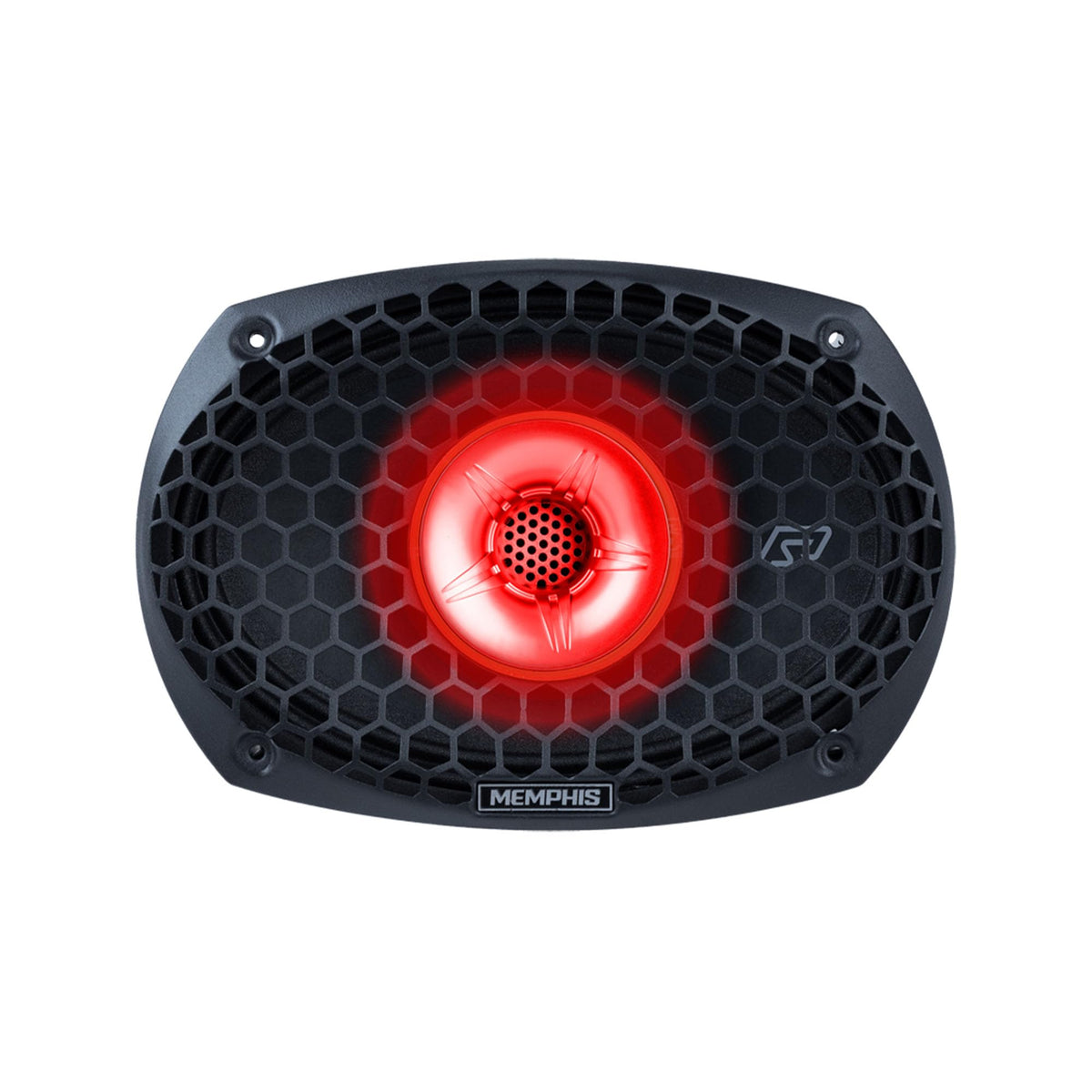

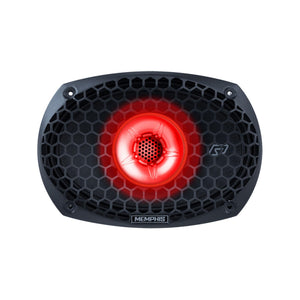

The 3-inch horn tweeter uses a 1-inch diaphragm and includes RGB LED illumination. This design emphasizes high-frequency projection while adding visible lighting at the speaker location. A 6 dB mylar crossover is integrated to direct the appropriate frequencies to the horn tweeter.

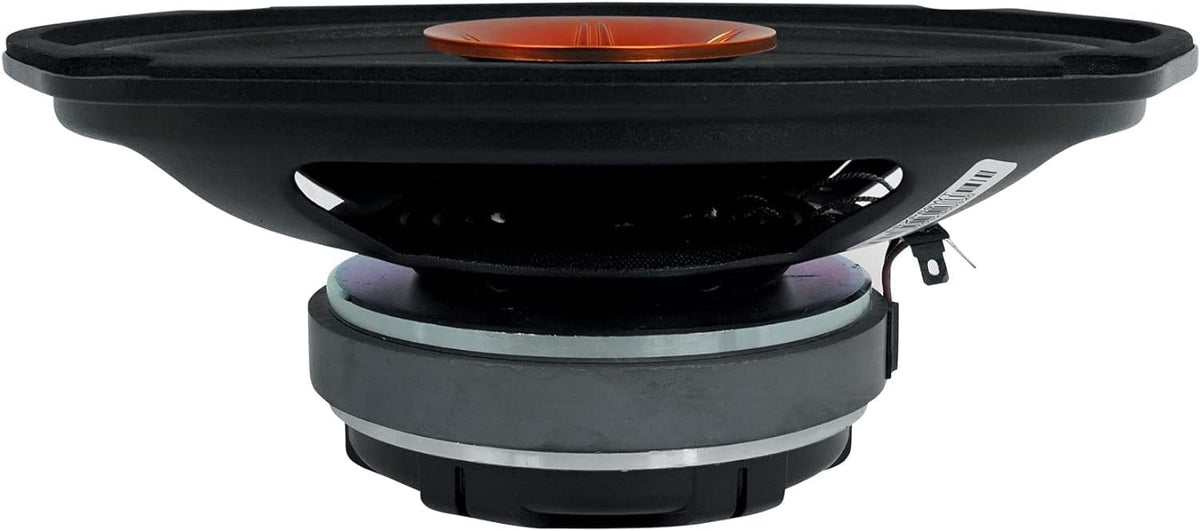

The SRXP69WTV2 is a practical choice for custom doors, rear decks, speaker pods, and other applications with a suitable 6x9-inch opening. Its 3.15-inch mounting depth should be checked against available clearance before installation. Because it is sold one at a time, purchase two speakers for a conventional left-and-right stereo pair.

Key Features

• 175W RMS Power Handling: Supports higher-powered 4-ohm amplification per speaker.
• 2-Way Pro Coaxial Layout: Combines woofer and horn tweeter in one speaker.
• 3-Inch Horn Tweeter: Uses a 1-inch diaphragm for high-frequency output.
• RGB LED Illumination: Adds integrated lighting to the horn tweeter.
• 1.5-Inch Voice Coil: Supports the woofer's stated power-handling design.

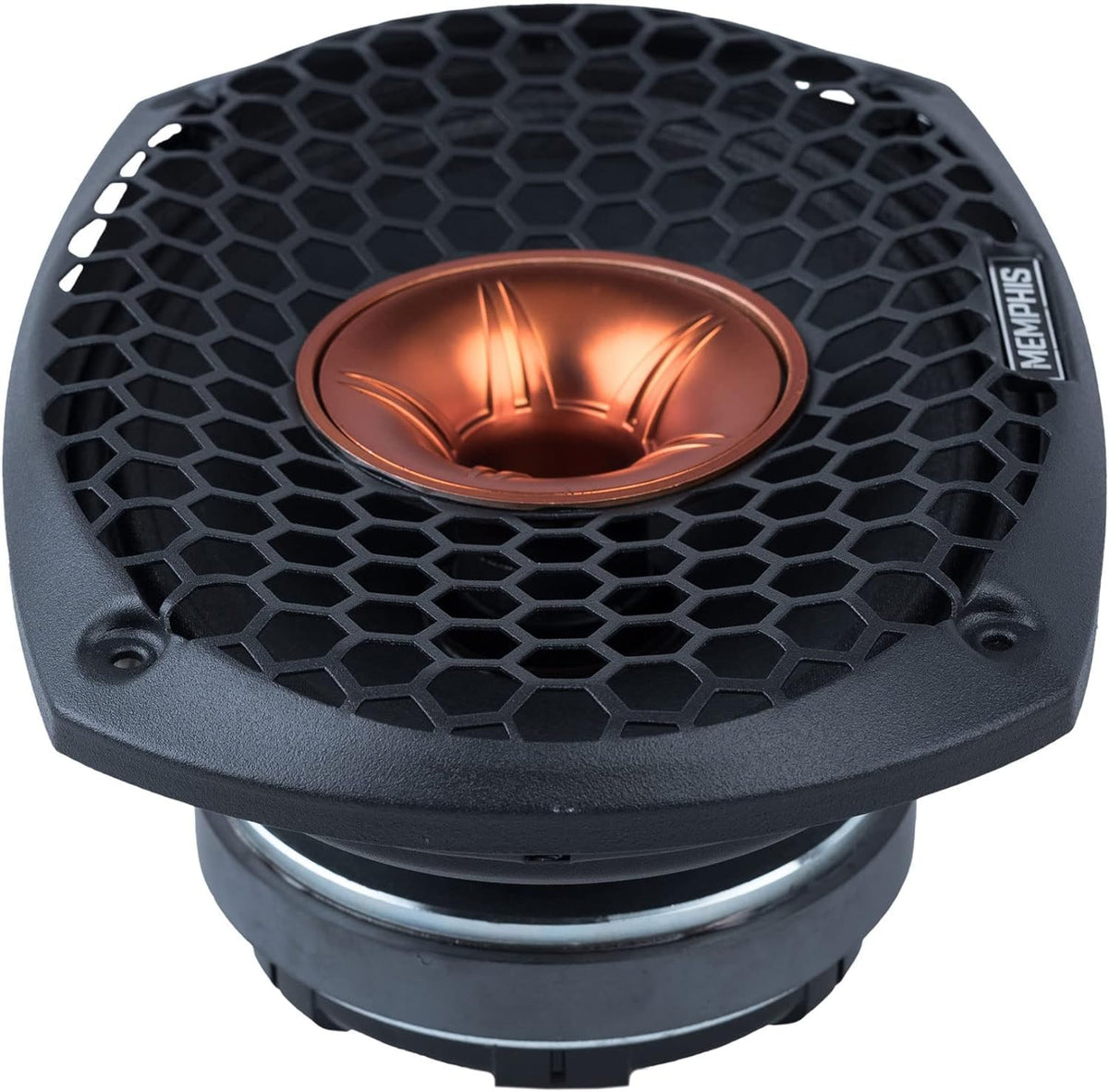

• Included Speaker Grille: Provides a protective finishing option for installation.

Design & Installation

The SRXP69WTV2 uses a lightweight paper cone with a treated cloth surround. Its 25-ounce magnet motor, 1.5-inch voice coil, horn tweeter, and integrated 6 dB mylar crossover are designed as a single 2-way coaxial assembly. The speaker is finished in black and includes RGB LED illumination at the horn tweeter.

Confirm that the vehicle or enclosure accepts a 6x9-inch speaker and provides at least 3.15 inches of mounting-depth clearance. Connect the speaker to a compatible 4-ohm amplifier or speaker output, observing polarity and using amplifier settings appropriate for its 175-watt RMS rating. The speaker is sold individually; a pair is needed for normal stereo left/right installation, and the RGB lighting connection requirements should be verified before installation.
