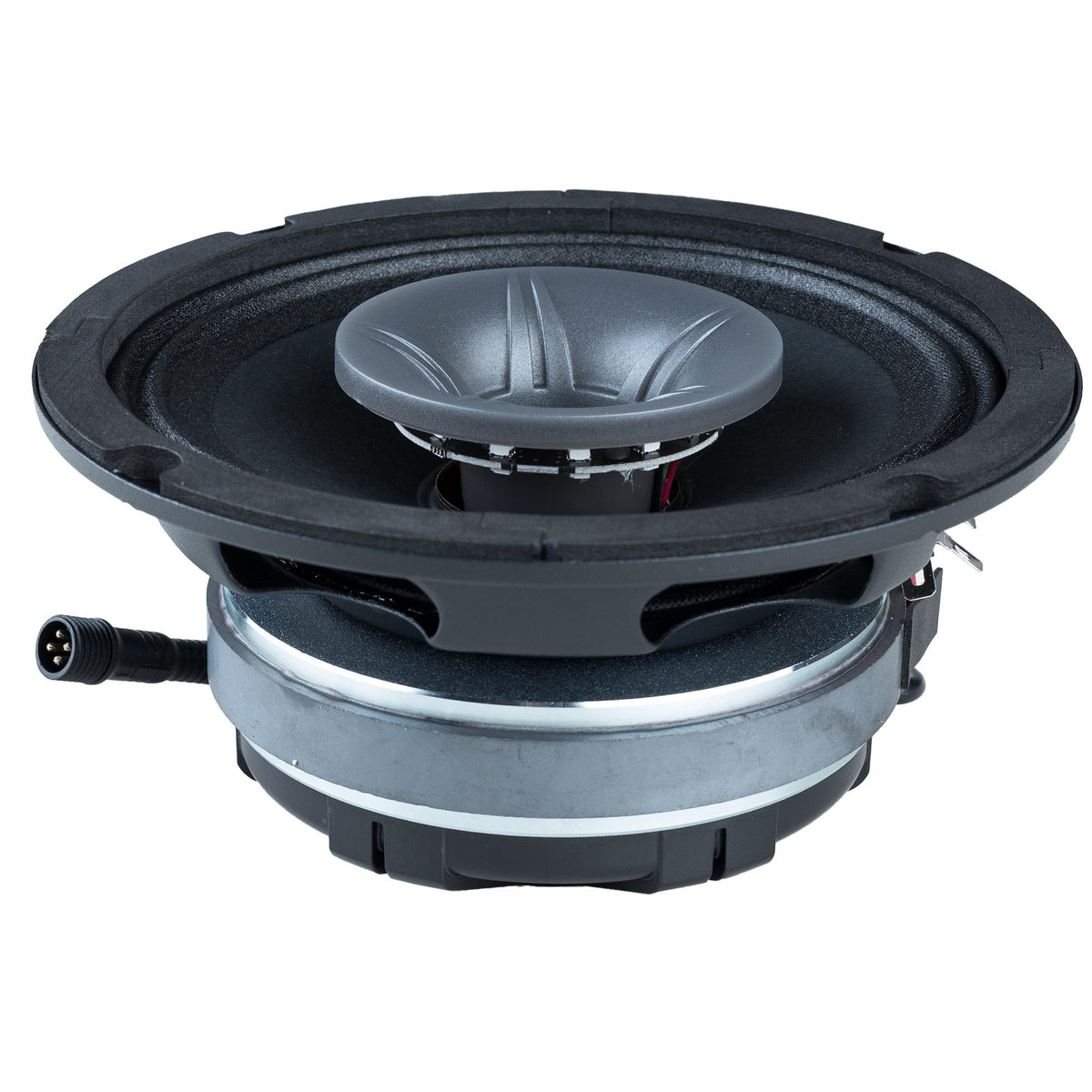

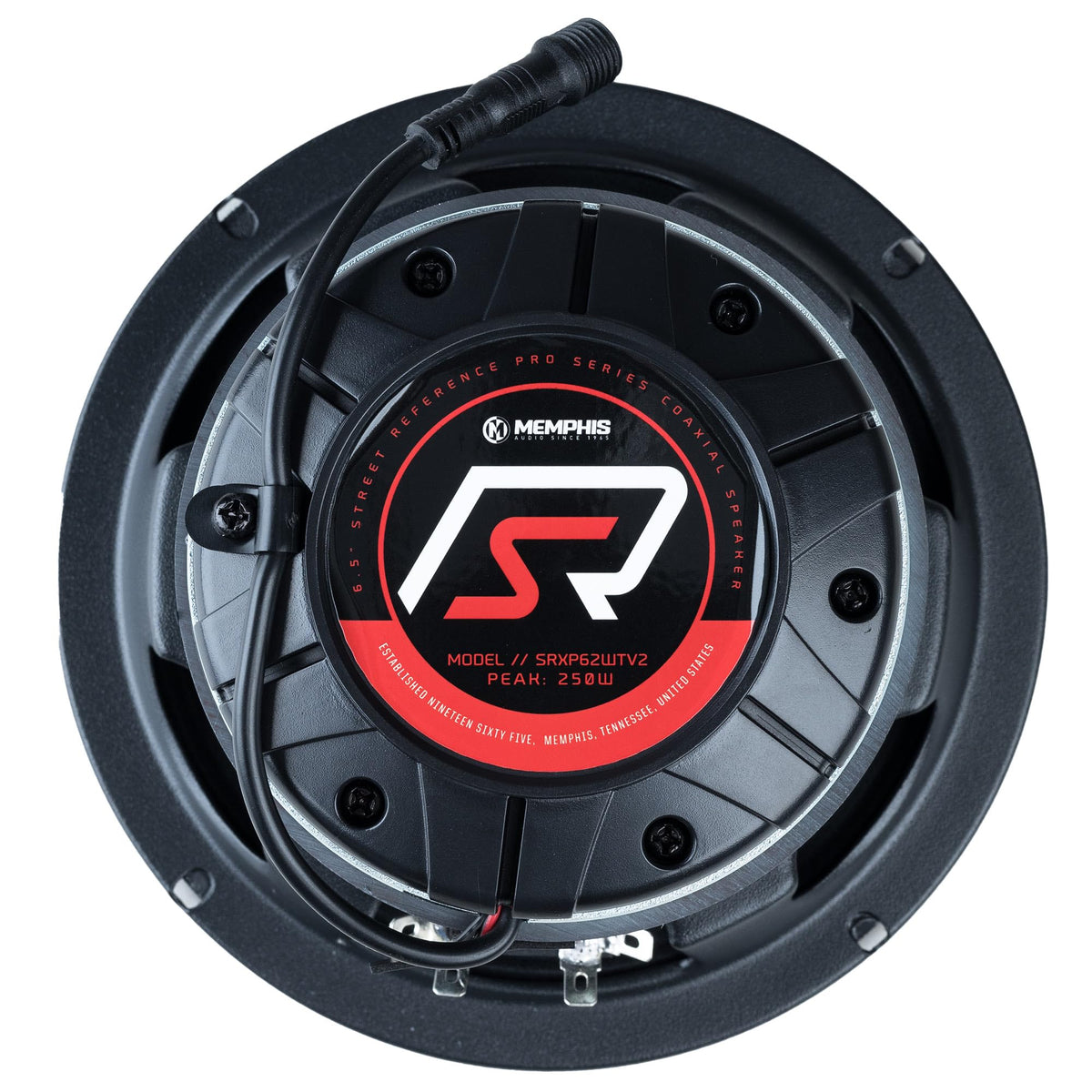

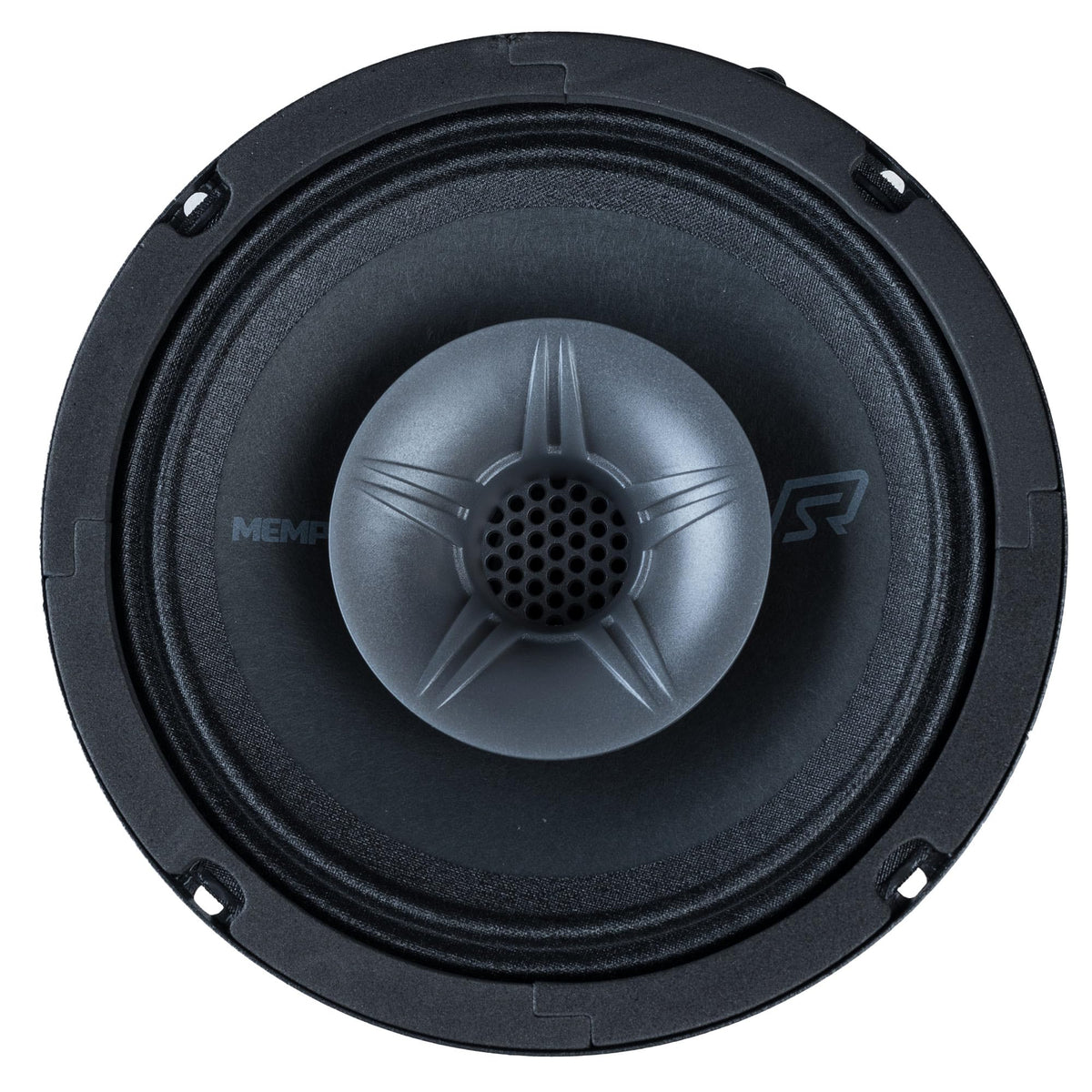

Memphis SRXP62WTV2 6.5" 2-Way Coaxial Speaker

The Memphis SRXP62WTV2 is a 6.5-inch, 2-way coaxial speaker designed for high-output vehicle audio applications. It combines a woofer and horn tweeter in one speaker assembly to simplify upgrades where strong midrange and high-frequency output are desired. This model is sold individually, making it suitable for replacing one speaker or building a matched multi-speaker system.

Its 4-ohm design and 125-watt RMS power handling make it appropriate for systems using compatible aftermarket amplification. The speaker is intended for listeners who want a more assertive sound character than a conventional coaxial speaker can provide. A 94 dB sensitivity rating supports efficient output with an appropriately matched audio system.

The SRXP62WTV2 uses a 3-inch-deep horn tweeter with a 1-inch diaphragm to reproduce high frequencies. This horn-based arrangement is paired with a 6.5-inch woofer for a coaxial format that keeps the high-frequency driver centered over the main driver. The result is a focused, direct presentation suited to high-volume system designs.

A lightweight paper cone and treated cloth surround form the woofer assembly. The woofer uses a 1.5-inch voice coil to support its rated power handling, while an integrated 6 dB Mylar crossover manages the speaker's two-way design. The horn tweeter also includes RGB LED illumination for an added visual accent.

This speaker can be used as part of a door, fairing, or custom installation when its mounting measurements are compatible with the vehicle. Memphis identifies it as fitting many Harley-Davidson and other popular motorcycle OEM speaker locations, though fitment should always be verified before purchase. For stereo left-and-right use, two individually sold speakers are required.

Key Features

• 125W RMS Power Handling: Supports use with a compatible high-output amplifier channel.
• 2-Way Coaxial Design: Combines woofer and horn tweeter in one assembly.
• 3-Inch Horn Tweeter: Uses a 1-inch diaphragm for high-frequency reproduction.

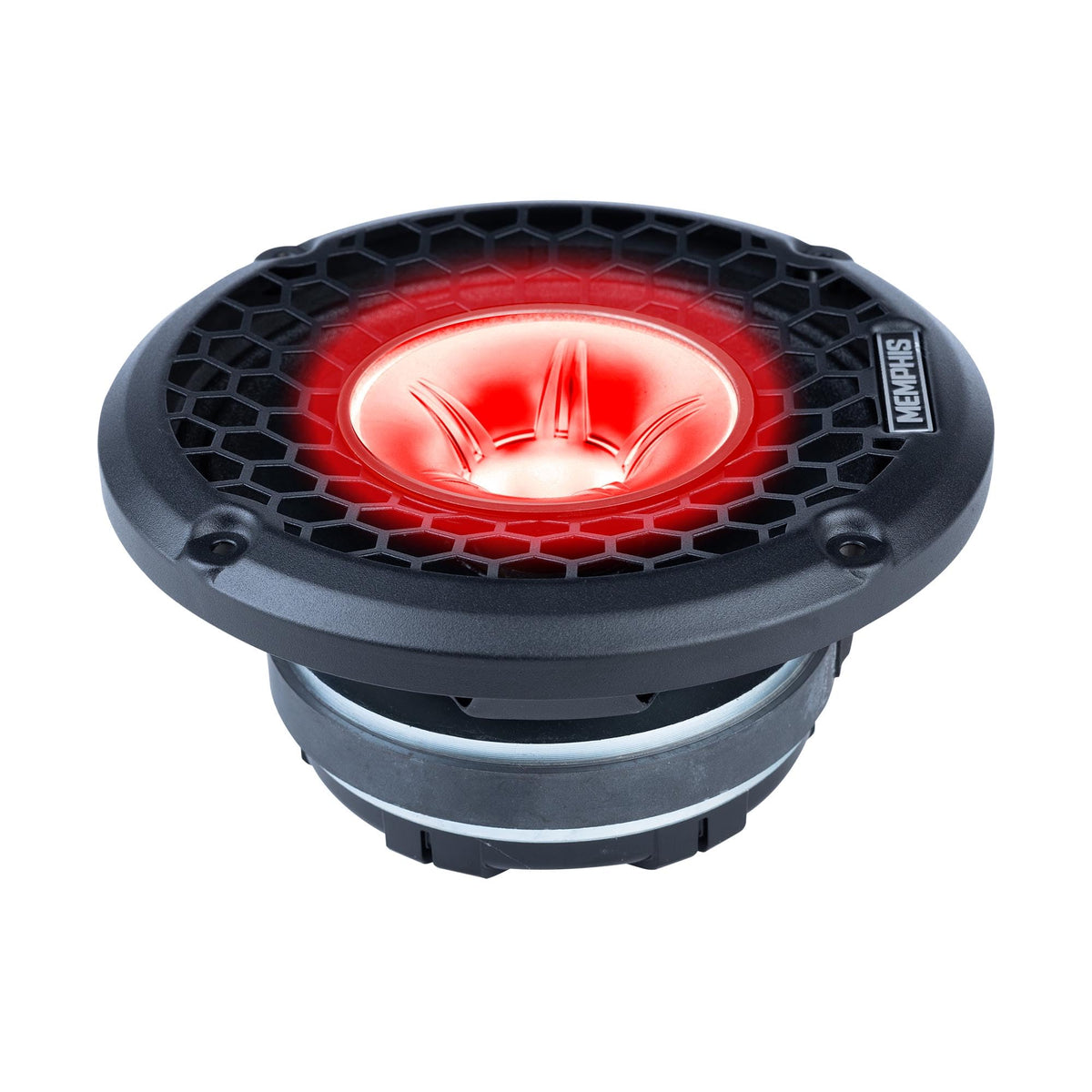

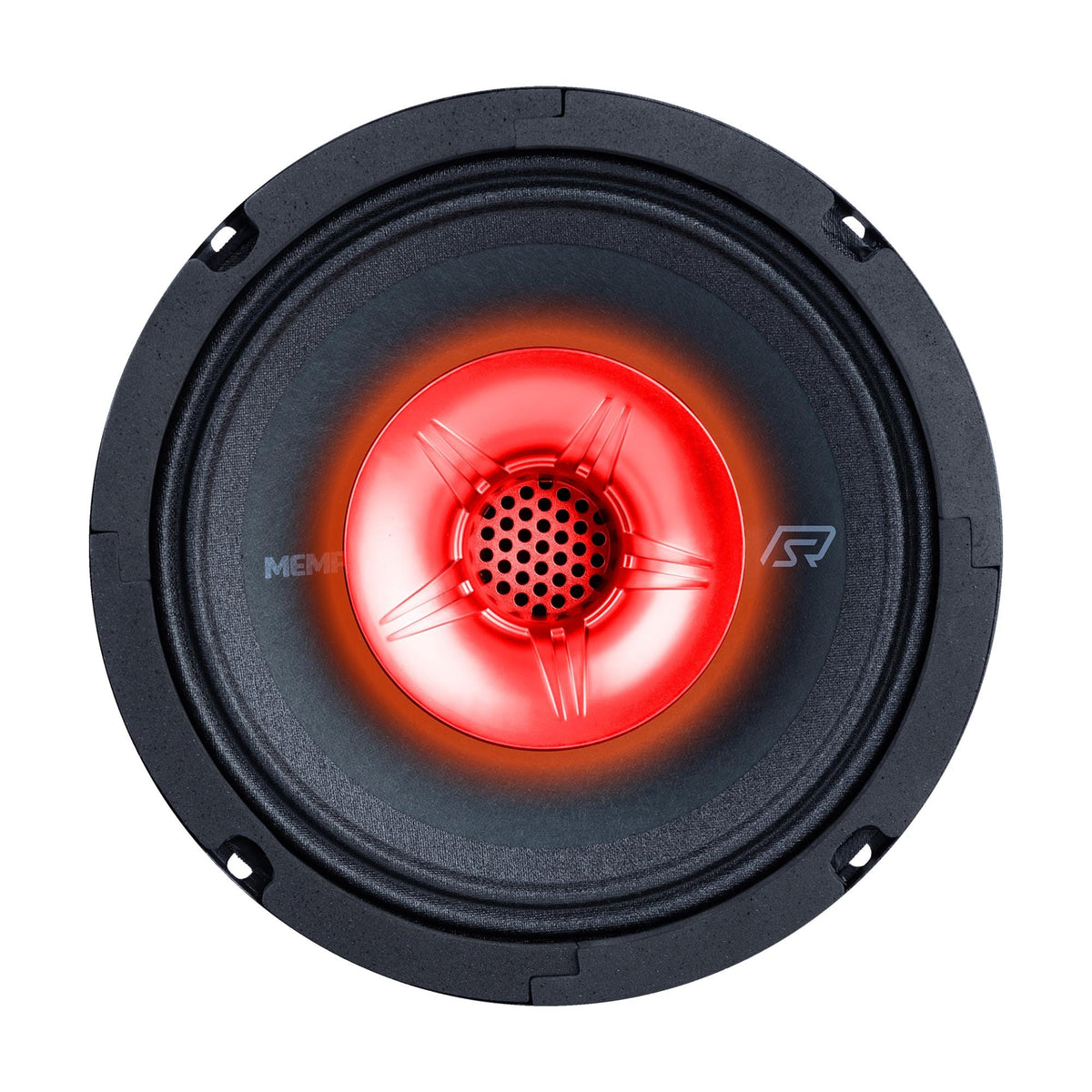

• RGB LED Illumination: Adds lighting to the horn tweeter assembly.
• 1.5-Inch Voice Coil: Supports the woofer's high-power design.
• Integrated 6 dB Mylar Crossover: Provides crossover integration within the speaker.

Design & Installation

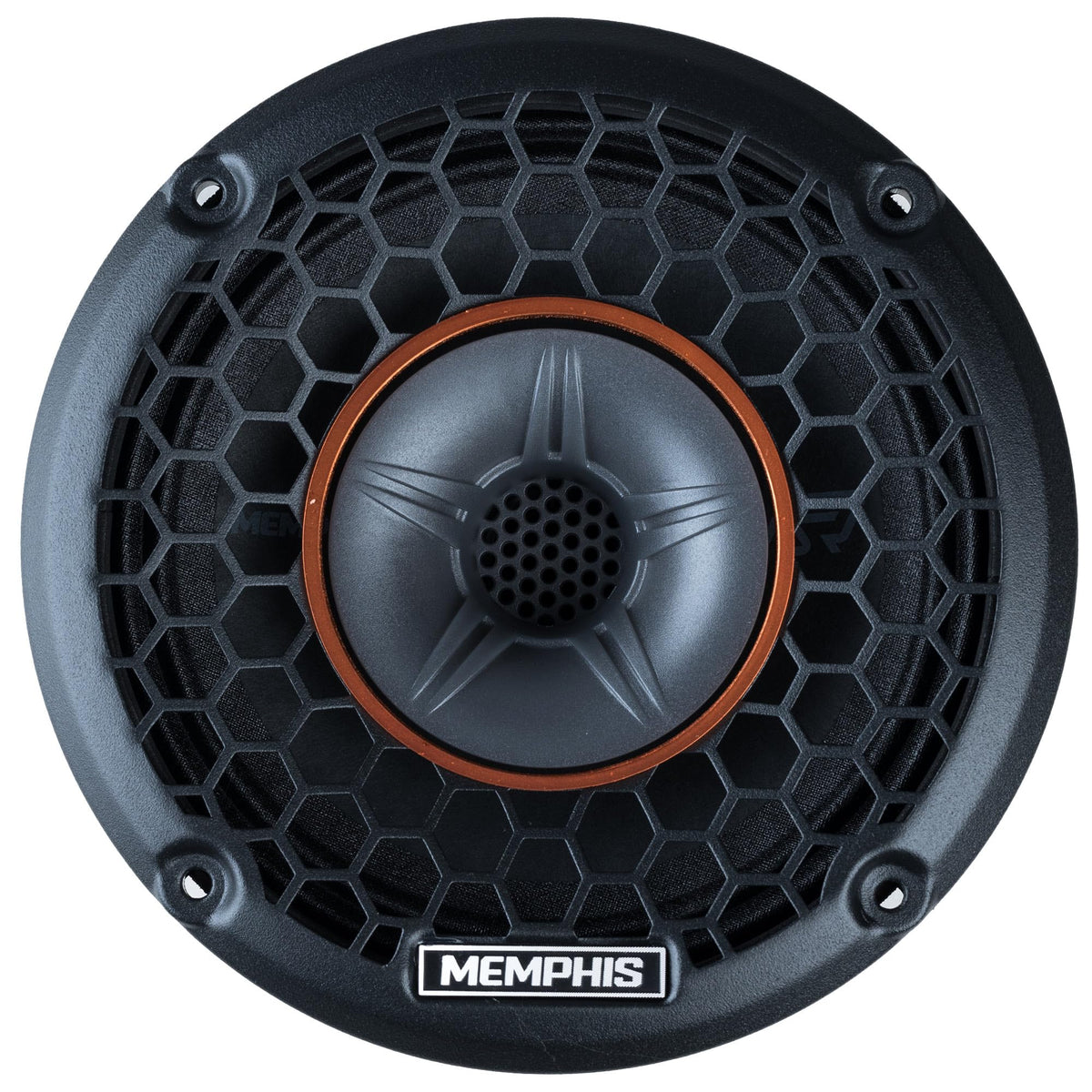

The SRXP62WTV2 is built around a lightweight paper cone, treated cloth surround, 20-ounce magnet, and protective grille. Its horn tweeter is mounted coaxially and measures 3 inches deep with a 1-inch diaphragm. The black and gray speaker design incorporates RGB LED illumination at the horn tweeter.

Confirm that the installation location has at least 2.87 inches of mounting depth and accommodates the listed 142 mm mounting-hole measurement with a 156 mm screw-hole pitch. Check vehicle-specific clearance, mounting pattern, wiring polarity, and amplifier compatibility before installation. Because this speaker is sold individually, purchase a quantity of two when installing a conventional left-and-right pair.
