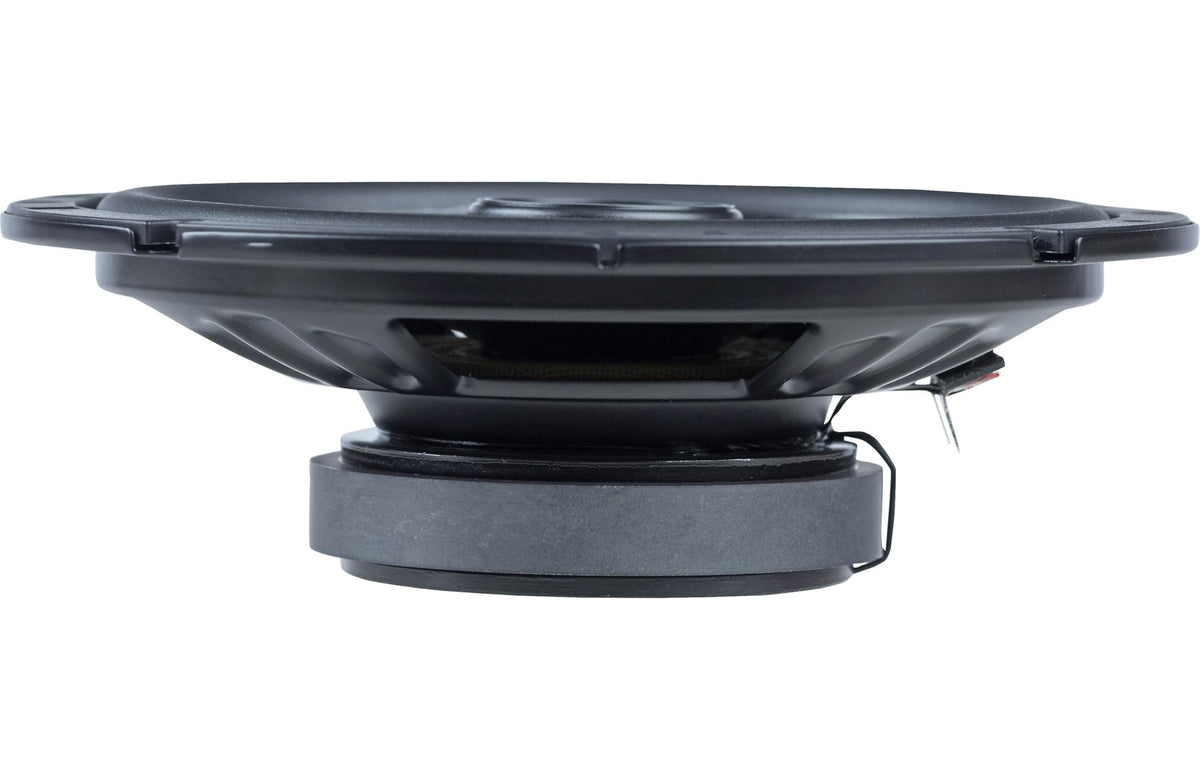

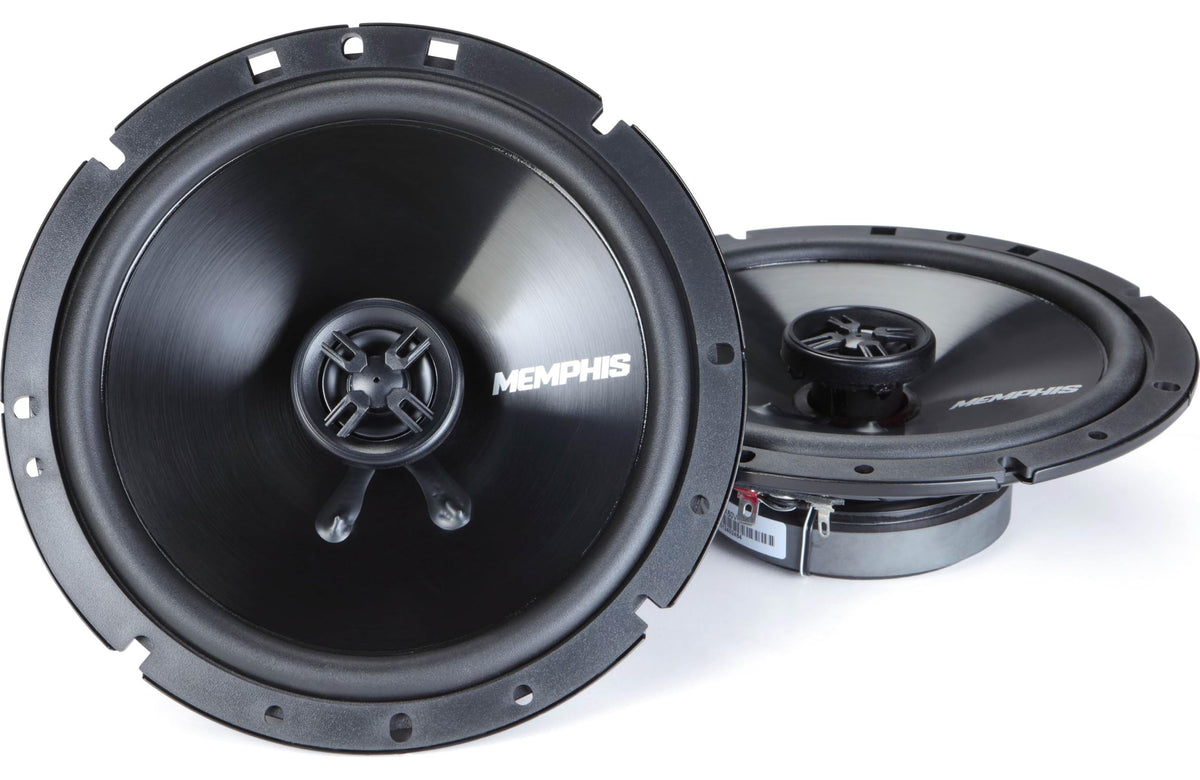

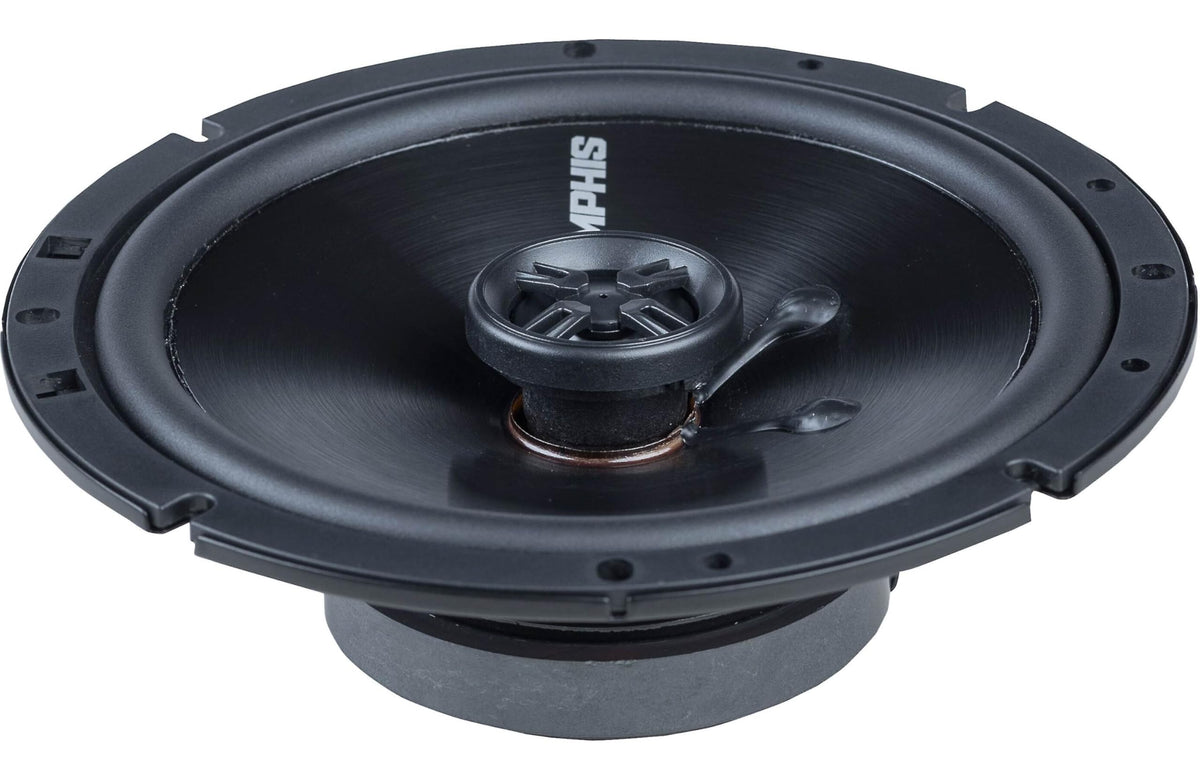

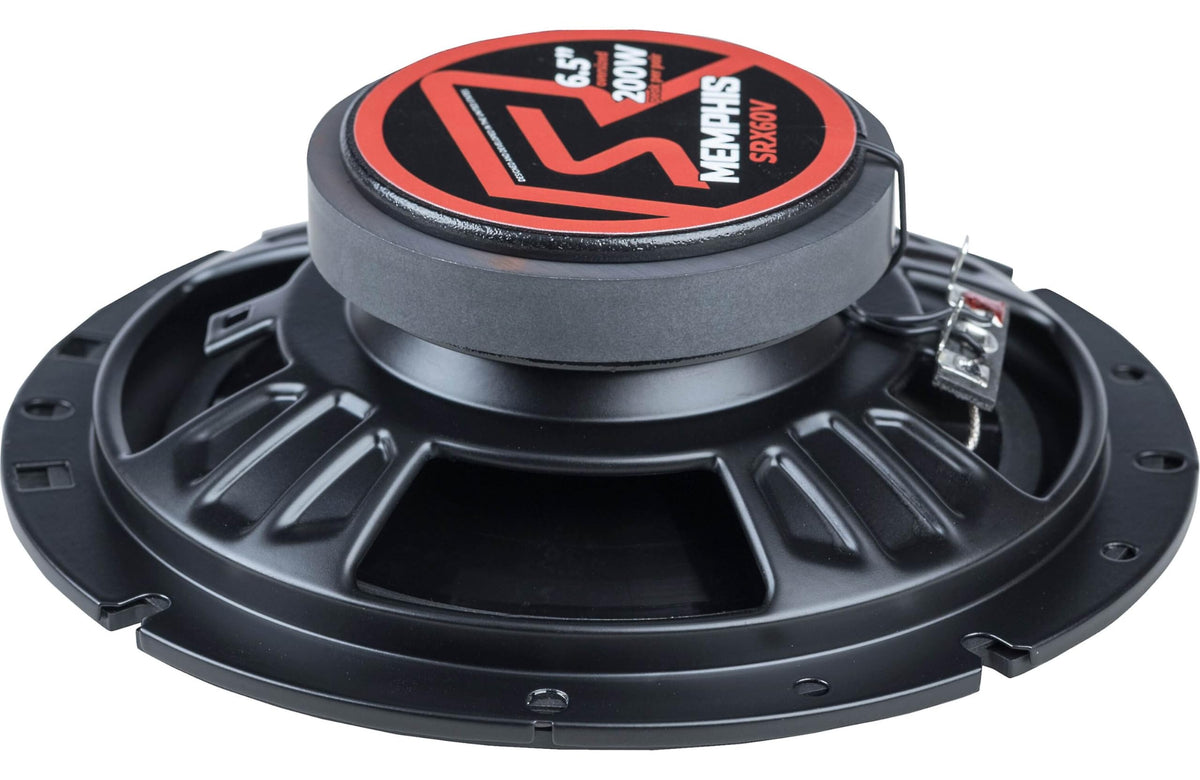

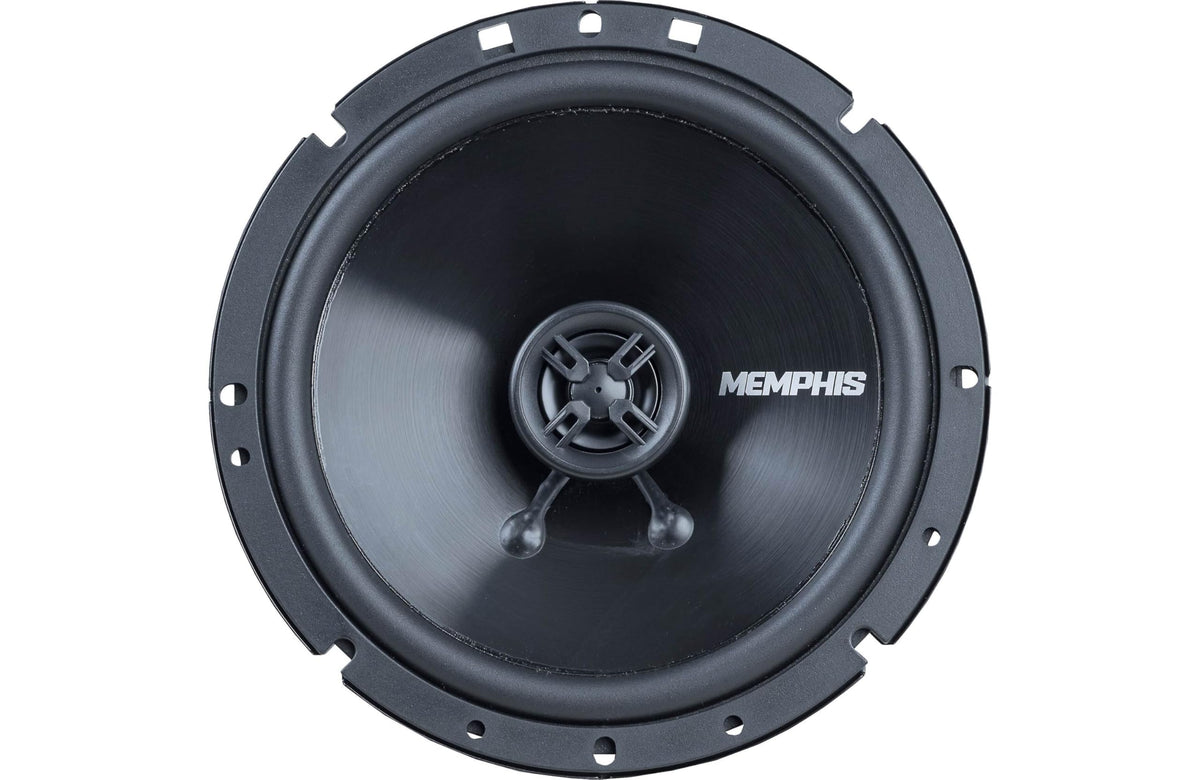

Memphis SRX60V 6.5" Oversize 2-Way Coaxial Speakers

The Memphis SRX60V is a pair of 6.5-inch oversize coaxial car speakers designed as a practical replacement for worn or basic factory speakers. Their 2-way layout combines a woofer and tweeter in each speaker assembly for a straightforward full-range upgrade. The oversize fitment makes it important to verify available space in the intended vehicle location before installation.

These Street Reference speakers are suited to listeners building a simple front- or rear-speaker upgrade without moving to a separate-component system. Each speaker is rated for 50 watts RMS and 100 watts peak power handling at 4 ohms. A 90 dB sensitivity rating supports efficient operation with appropriately matched car-audio equipment.

A polypropylene woofer cone provides the main sound-producing surface, while the rubber surround supports cone movement. Each speaker also uses a 1-inch PEI tweeter for high-frequency reproduction. This material combination is paired with a coaxial design that keeps the installation footprint compact.

The SRX60V uses a slim 1.84-inch top-mount depth to help accommodate installations with limited clearance behind the mounting surface. Its manufacturer-listed cutout diameter is 5.5 inches, while the mounting template specifies a 5.53-inch mounting hole. Measure the factory opening, mounting depth, screw locations, and panel clearance before purchasing.

Use the SRX60V as a matched pair for compatible front or rear factory speaker locations. An external amplifier is not specified as required, but any amplifier used should be compatible with 4-ohm speakers and appropriately matched to the 50-watt RMS-per-speaker rating. Optional Memphis SRXG62 grilles are available separately when exposed-speaker protection or a finished appearance is needed.

Key Features

• Polypropylene Cone: Provides a durable woofer cone material for everyday car-audio use.
• PEI Tweeter: A 1-inch PEI tweeter handles high-frequency playback in each speaker.
• Rubber Surround: Supports controlled woofer-cone movement and long-term durability.
• 2-Way Coaxial Layout: Combines woofer and tweeter in one speaker assembly for simplified installation.
• 50W RMS Handling: Each speaker is rated to handle 50 watts RMS and 100 watts peak.
• Slim Mounting Depth: The 1.84-inch top-mount depth helps with tighter factory mounting locations.

Design & Installation

The SRX60V is built around a polypropylene cone, rubber surround, and PEI tweeter in a black coaxial speaker design. It is sold as a pair and does not include speaker grilles. Optional SRXG62 grilles are sold separately for the 6.5-inch size.

Confirm that the vehicle accepts the oversize 6.5-inch format and that the 5.5-inch nominal cutout, 1.84-inch mounting depth, and 6.06-inch screw-hole pitch work for the selected location. Check behind-panel clearance and use appropriate vehicle-specific mounting hardware or adapters when necessary. Connect each speaker to a compatible 4-ohm channel and observe proper polarity during wiring.
