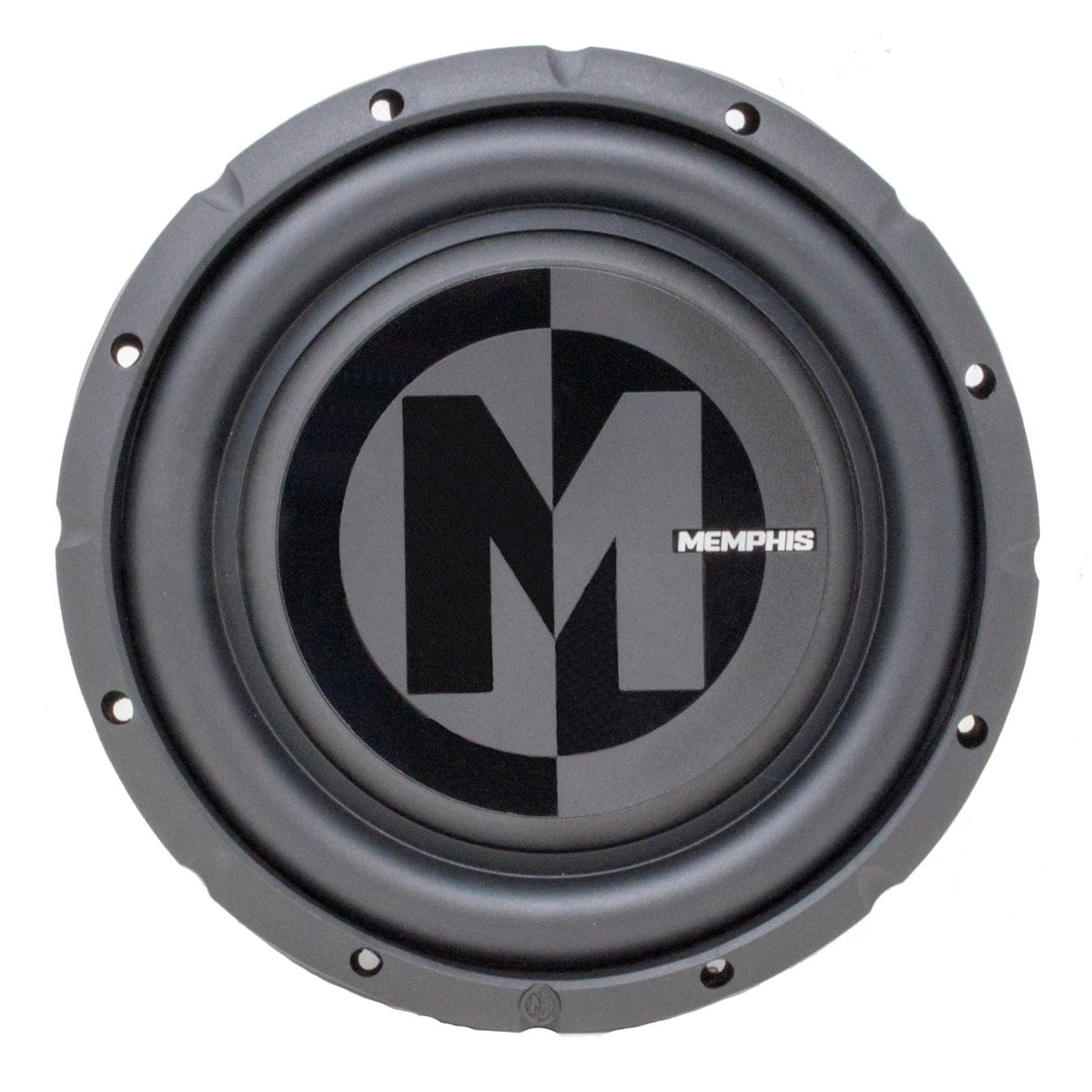

Memphis PRXS1024 10" Power Reference Slim Subwoofer

The Memphis PRXS1024 is a 10-inch shallow-mount car subwoofer designed for bass upgrades where mounting space is limited. Its slim profile helps it fit applications that cannot accommodate a conventional deep-basket subwoofer. With 350 watts RMS power handling, it is intended for a properly matched external subwoofer amplifier and enclosure.

This Power Reference model is suited to drivers who want to add low-frequency impact to a factory or aftermarket audio system without giving up excessive cargo or cabin space. Its selectable 2-ohm or 4-ohm impedance arrangement gives installers flexibility when matching the subwoofer to an amplifier. The selectable load is set using the supplied jumper wiring.

The PRXS1024 uses a black polypropylene cone, rubber surround, reinforced spider, and woven tinsel leads. These components support controlled cone movement and durable connections in a mobile-audio environment. The result is a compact subwoofer built to reproduce bass while fitting shallow-depth installations.

Memphis DVVC Direct Voice Coil Cooling Technology is part of the subwoofer's thermal-management design. The high-temperature BASV voice coil former, along with the revised suspension and coil design, supports reliable operation at its rated power level. These construction details are aimed at maintaining consistent performance during extended listening.

The PRXS1024 can be used in either a sealed or ported enclosure when the box is designed for the driver. A sealed enclosure is recommended for a compact, controlled installation, while a properly tuned ported enclosure can emphasize output efficiency. Its 3-inch listed mounting depth and 9-inch listed cutout diameter make it a practical choice for space-conscious custom enclosures.

Key Features

• Selectable 2Ω Or 4Ω Load: Lets the installer match the subwoofer to compatible amplifier configurations.
• 350 Watts RMS Handling: Supports amplifier matching based on continuous power capability.
• Shallow-Mount Design: Uses a 3-inch listed mounting depth for tight installations.
• DVVC Cooling Technology: Helps manage voice-coil heat during operation.
• Polypropylene Cone: Provides a durable cone structure for bass reproduction.
• Reinforced Suspension: Combines a reinforced spider with an improved coil design.

Design & Installation

The PRXS1024 is built with a black-on-black polypropylene cone, rubber surround, reinforced spider, woven tinsel leads, and a high-temperature BASV voice coil former. Its shallow basket design is paired with a 50-ounce magnet and a dual-voice-coil selectable-impedance arrangement. A rubber trim ring/gasket is installed on the subwoofer.

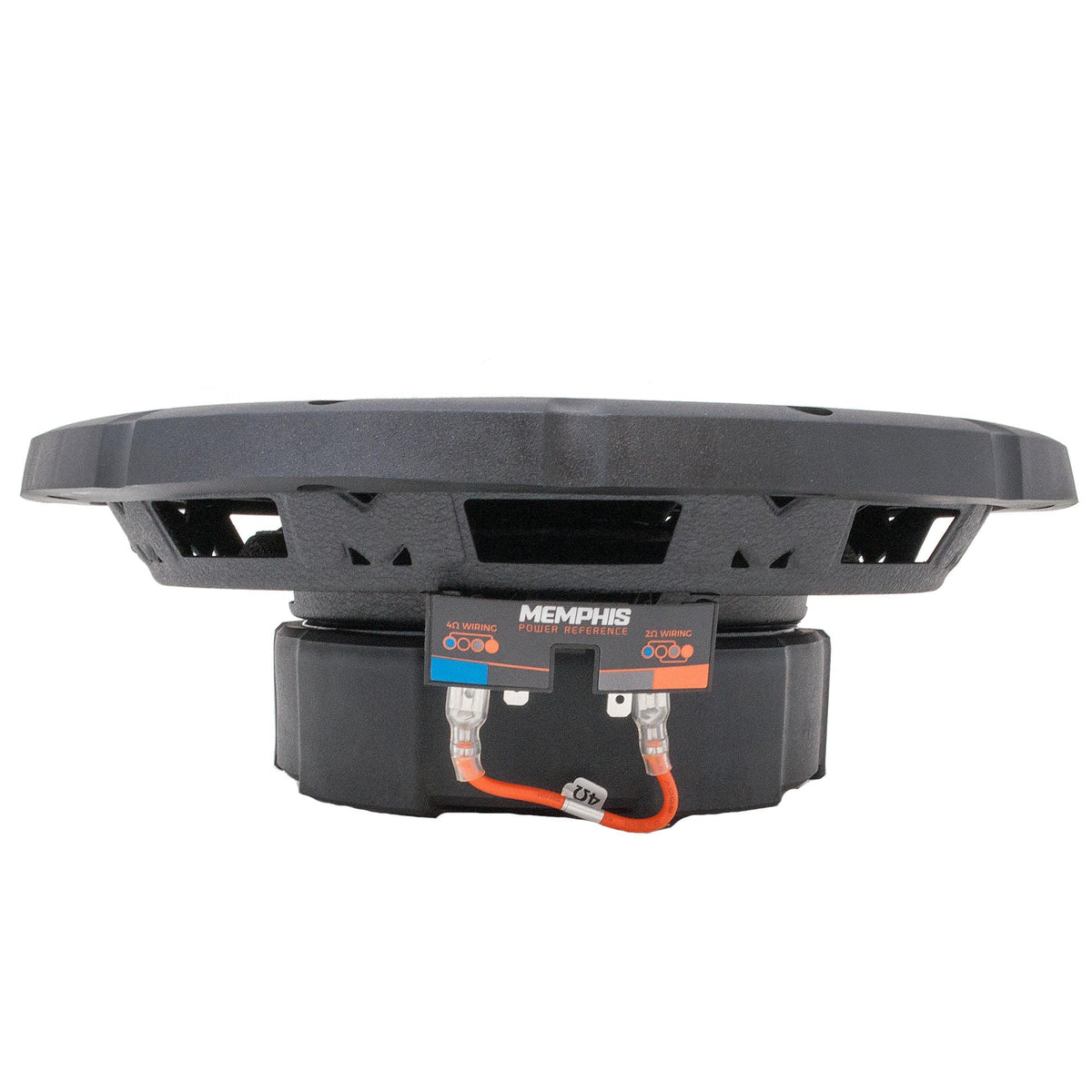

Confirm available mounting clearance before cutting the enclosure, using the listed 3-inch mounting depth and 9-inch cutout diameter as the primary fitment references. Use the included jumper wires to configure either a 2-ohm or 4-ohm load, then pair it with an amplifier that is stable at that selected impedance. Memphis recommends 0.6 ft³ sealed or 1.2 ft³ ported enclosure volume for this model.
