Memphis PRX602 6.5" 2-Way Coaxial Car Speakers

The Memphis PRX602 is a pair of 6.5-inch, 2-way coaxial car speakers designed as a straightforward replacement or upgrade for many factory speaker locations. They combine a woofer and tweeter in each speaker, allowing installation without separate external crossover networks. This makes them suitable for drivers replacing worn factory speakers or building an entry-level aftermarket audio system.

Each PRX602 speaker is rated to handle 50 watts RMS and 100 watts peak power at 4 ohms. That power range works with many factory radios while also providing a sensible match for a modest aftermarket amplifier. With 88 dB sensitivity, the speakers are intended for everyday in-car listening rather than high-power competition systems.

The coaxial design uses a graphite-reinforced polypropylene cone for the woofer and a PEI dome tweeter for high frequencies. Its pivoting tweeter can be aimed toward the listening area to help tailor high-frequency direction in installations where the speakers are mounted low in doors or off-axis. An integrated 6 dB tweeter crossover is included within the speaker assembly.

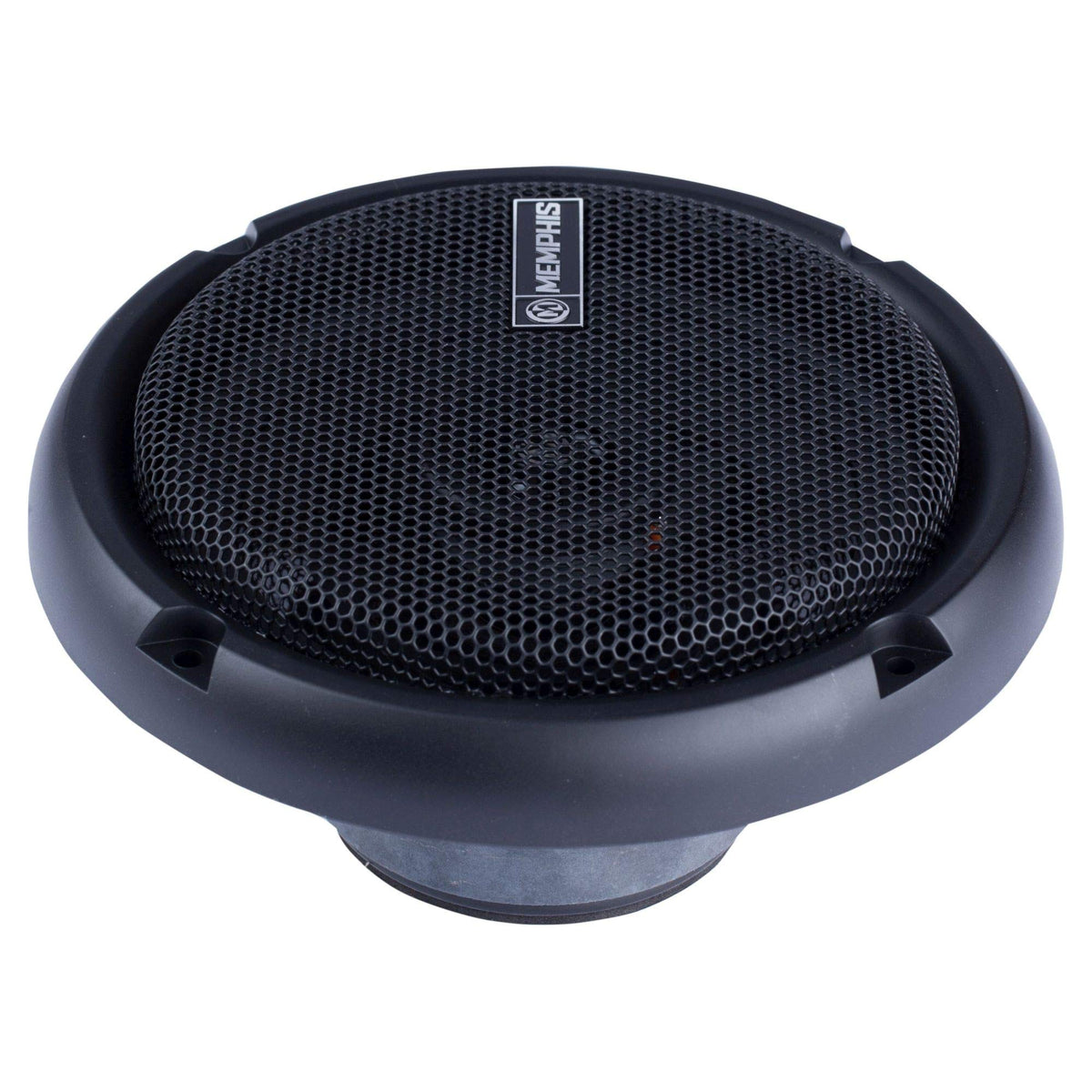

Memphis specifies a butyl rubber surround and a 10-ounce magnet structure for this model. The black speaker design is intended to blend into factory-style locations, and protective grilles are included for custom or exposed installations. The specified frequency response is 100 Hz to 20 kHz.

The PRX602 can serve as front or rear full-range speakers in a compatible vehicle, provided the mounting dimensions and speaker fitment are verified first. They are sold as a pair, so two pairs may be used for vehicles with four compatible speaker locations. For amplified systems, choose an amplifier whose clean per-channel output is appropriate for the speakers' 50-watt RMS rating.

Key Features

• 6.5-Inch Coaxial Design: Combines woofer and tweeter in each speaker for simplified replacement installation.
• 50W RMS Handling: Supports moderate factory-radio or aftermarket-amplifier power levels.
• Pivoting PEI Tweeter: Lets the installer direct treble toward the listening position.
• Integrated 6 dB Crossover: Filters the tweeter within the coaxial speaker assembly.
• Graphite-Reinforced Polypropylene Cone: Provides the woofer cone material specified for this model.
• Included Speaker Grilles: Adds protection for installations with exposed speaker faces.

Design & Installation

The PRX602 uses a graphite-reinforced polypropylene woofer cone, butyl rubber surround, PEI dome tweeter, and 10-ounce magnet structure. Its black finish and coaxial layout provide a clean appearance in replacement or custom speaker locations. The tweeter is mounted centrally and uses a multi-direction pivot system.

Verify vehicle-specific fitment before purchase, including the 4-7/8-inch cutout requirement and available mounting clearance. The listed top-mount depth is 2-1/4 inches, while the bottom-mount depth is 2-11/16 inches. The package includes two speakers, two grilles, mounting hardware, speaker leads, and a mounting template; adapters or vehicle-specific harnesses may still be required for a factory installation.
