Memphis PRX5 5.25" Speakers + PRX60C 6.5" Components

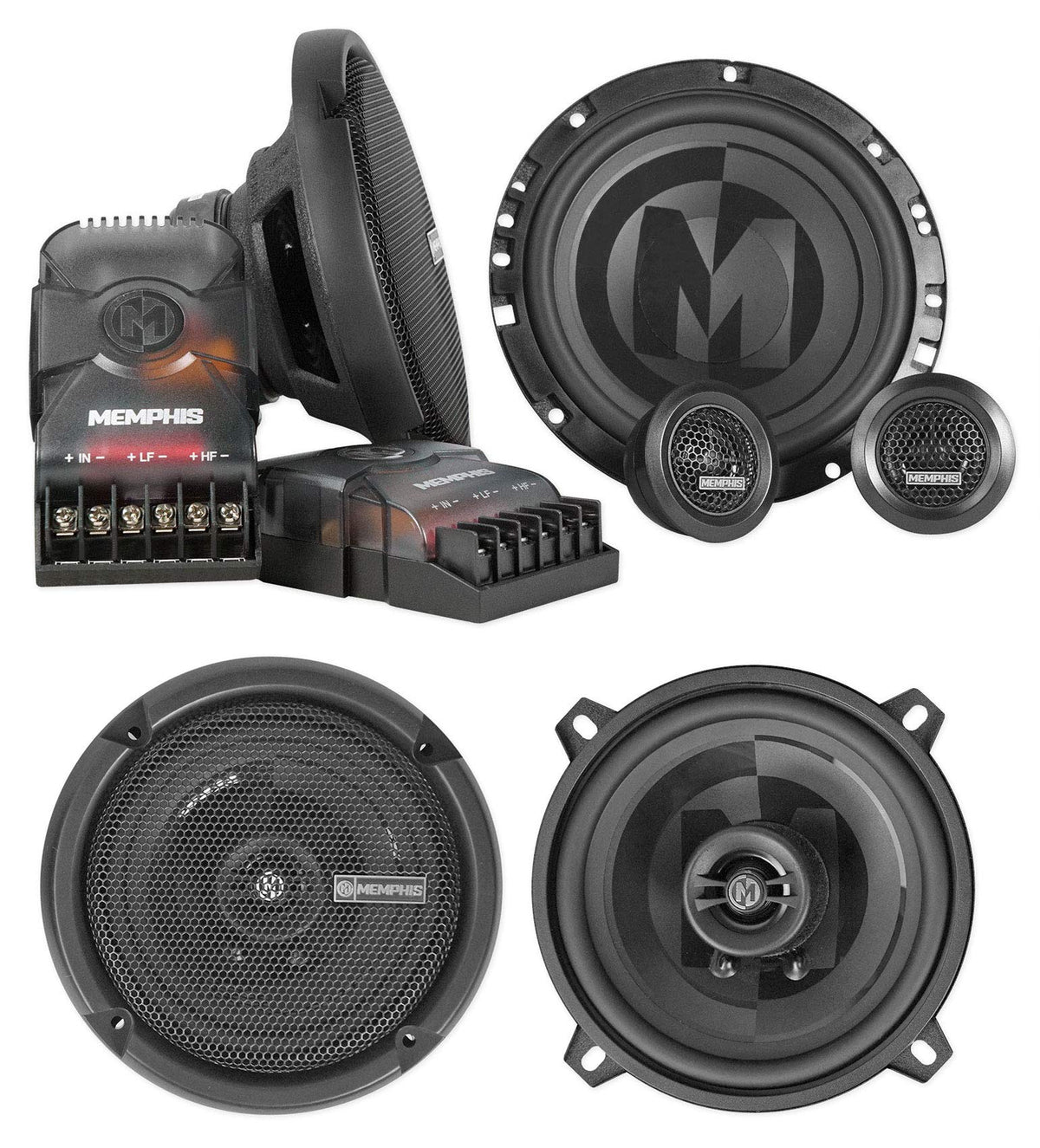

This speaker package combines Memphis Audio PRX5 5.25-inch coaxial speakers with the PRX60C 6.5-inch oversized component speaker set. It is intended for vehicles that use these two speaker sizes and need an upgrade from factory-installed speakers. The package provides separate front-stage component hardware alongside a pair of compact coaxial speakers for additional factory-location replacement options.

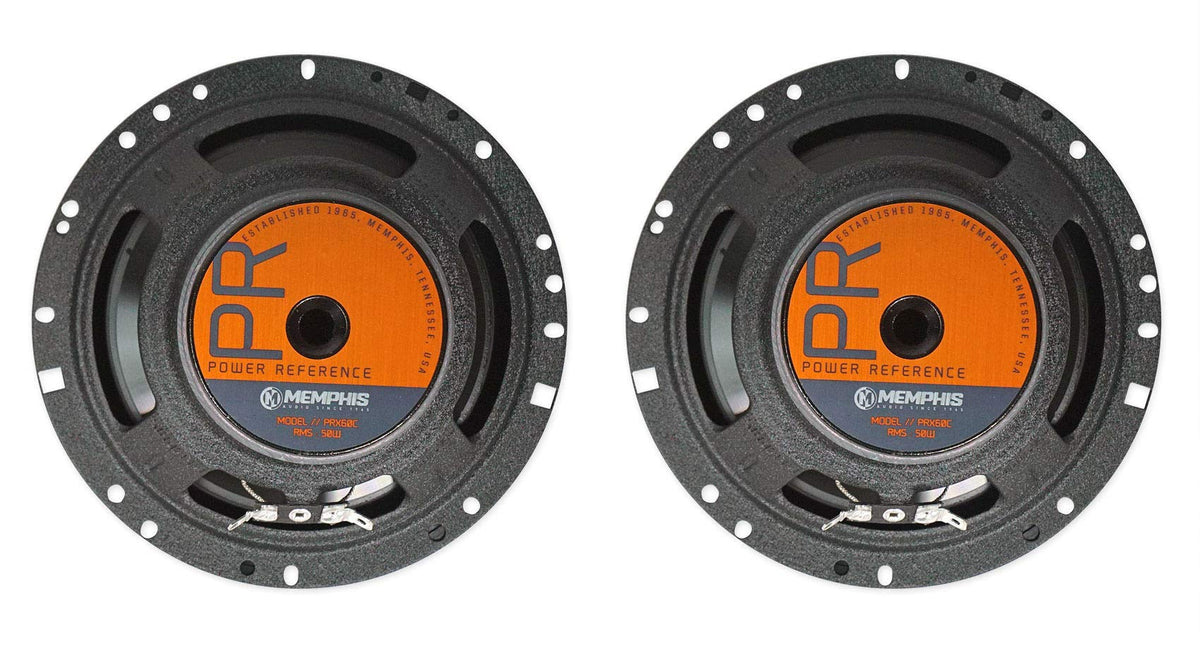

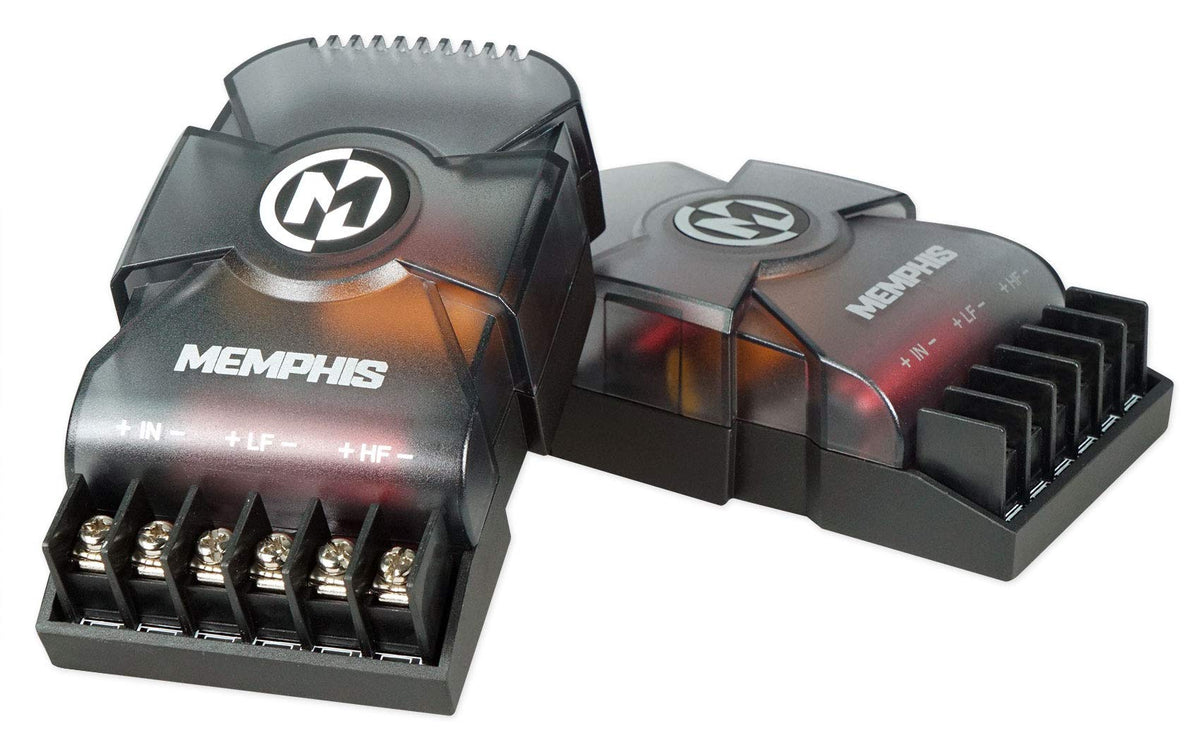

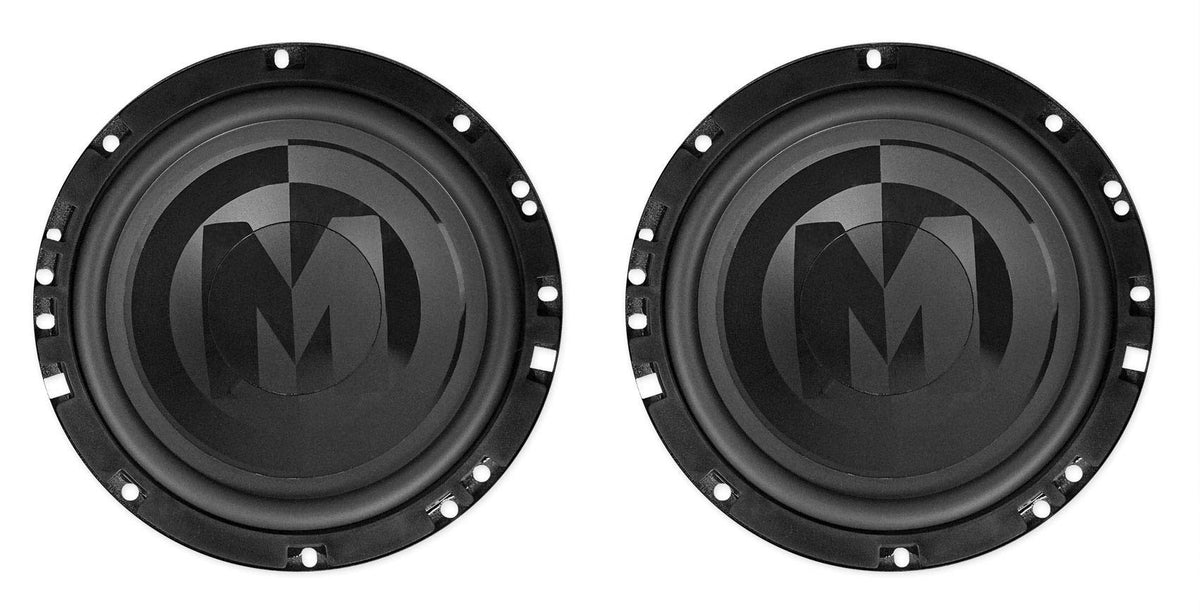

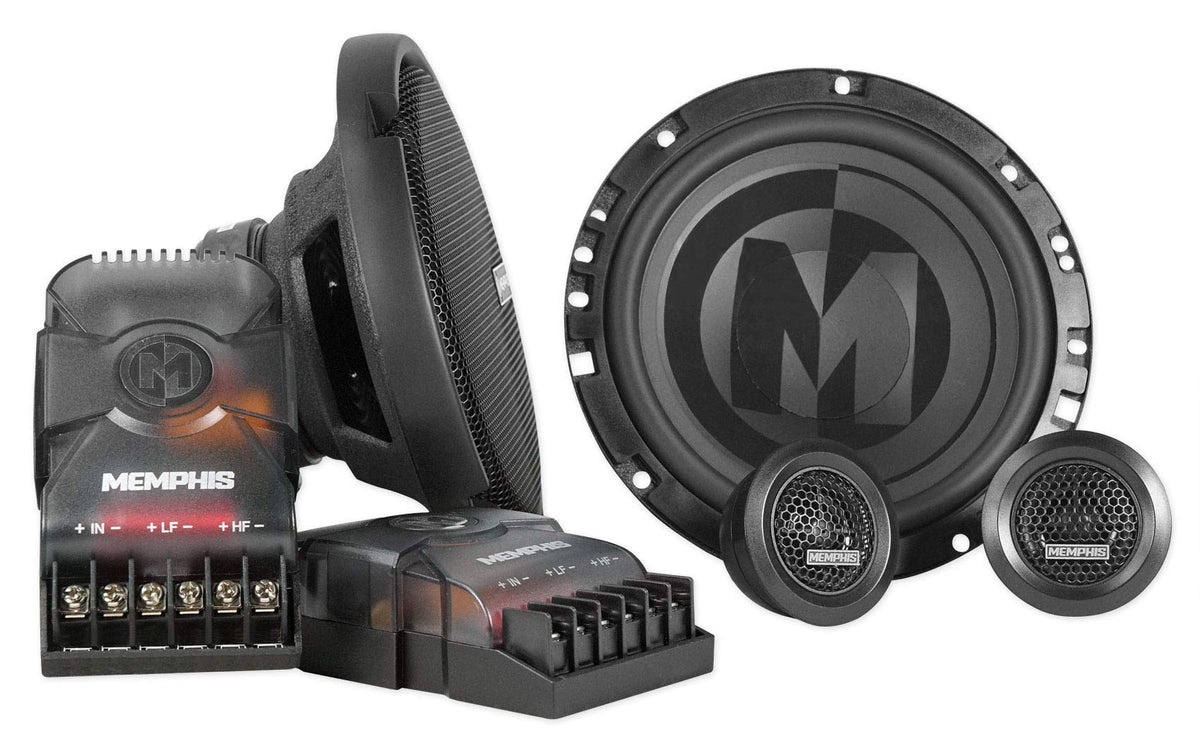

The PRX60C is a 2-way component system with separate 6.5-inch mids, separate 1-inch poly dome tweeters, and external crossovers. Separating the tweeters from the midrange drivers allows the installer to place high frequencies independently of the door speakers where the vehicle layout permits. The PRX5 is a 2-way coaxial design, combining its PEI dome tweeter and woofer in each 5.25-inch speaker.

Both speaker models use a 4-ohm nominal impedance for compatibility with typical car-audio speaker channels. The PRX60C is rated at 50 watts RMS and 100 watts peak, while each PRX5 is rated at 30 watts RMS and 60 watts peak. Their respective 88 dB and 87 dB sensitivity ratings make them practical choices for factory-radio replacement systems or appropriately power-matched aftermarket amplification.

The PRX5 uses a graphite-reinforced polypropylene cone, butyl rubber surround, and a pivoting tweeter arrangement. Its integrated 6 dB tweeter crossover is built into the coaxial speaker design. The PRX60C uses a polypropylene cone, butyl rubber surround, separate poly dome tweeters, and separate crossovers for a more configurable component installation.

This package works well for an installer planning a mixed-size system across compatible factory locations. Confirm the vehicle's speaker openings, mounting depth, and wiring requirements before purchase, because speaker size alone does not guarantee direct fitment. The included grilles can be useful for custom or exposed installations, while factory door-panel installations may use the vehicle's original grilles instead.

Key Features

• Mixed-Size Speaker Package: Combines 6.5-inch components with 5.25-inch coaxial speakers.
• PRX60C Component Set: Includes separate mids, tweeters, and external crossovers.
• PRX5 Pivot Tweeters: Allows high-frequency direction to be adjusted during installation.
• 4-Ohm Impedance: Matches common car-audio speaker-channel configurations.
• Butyl Rubber Surrounds: Used on both listed speaker models.

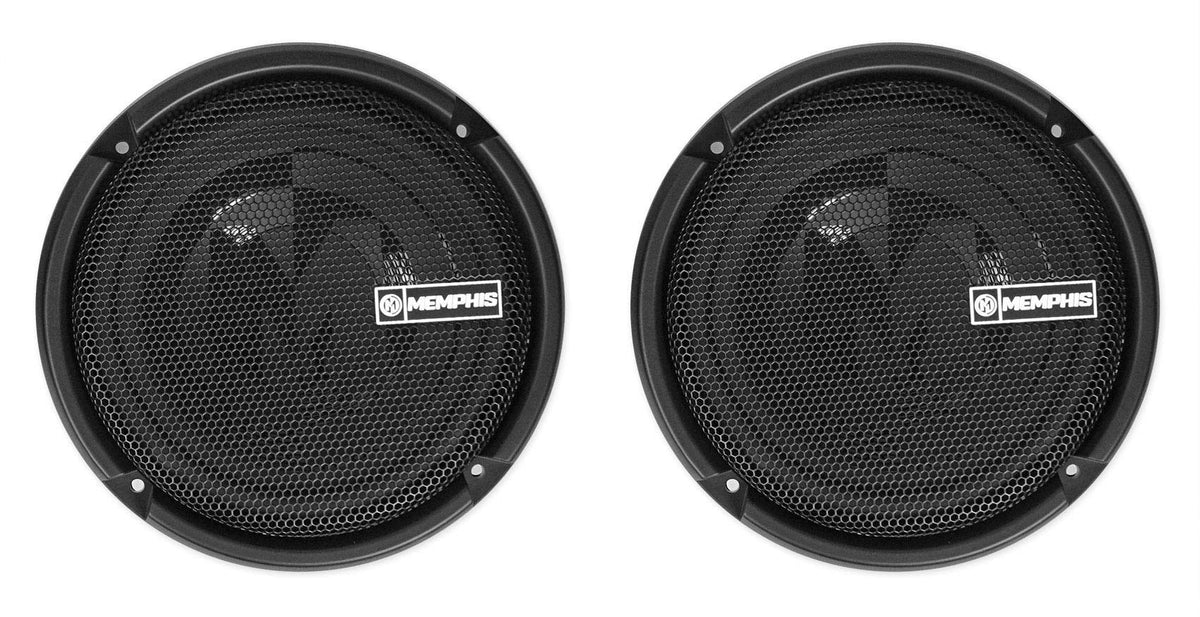

• Included Grilles: Both PRX5 and PRX60C specifications list grilles.

Design & Installation

The PRX5 coaxial speakers use graphite-reinforced polypropylene cones, PEI dome tweeters, integrated 6 dB tweeter crossovers, and butyl rubber surrounds. The PRX60C component set uses polypropylene midrange cones, butyl rubber surrounds, separate poly dome multi-mount tweeters, and separate crossover networks. Both models are part of Memphis Audio's Power Reference speaker line.

Verify the mounting location before installation: the PRX5 has a listed mounting depth of 2.125 inches, while the PRX60C has a listed mounting depth of 2.5 inches. Install the PRX60C tweeters and crossovers securely, route wiring away from moving mechanisms and sharp edges, and observe speaker polarity. Match each speaker channel to its 4-ohm load and RMS rating rather than relying on peak-power figures.
