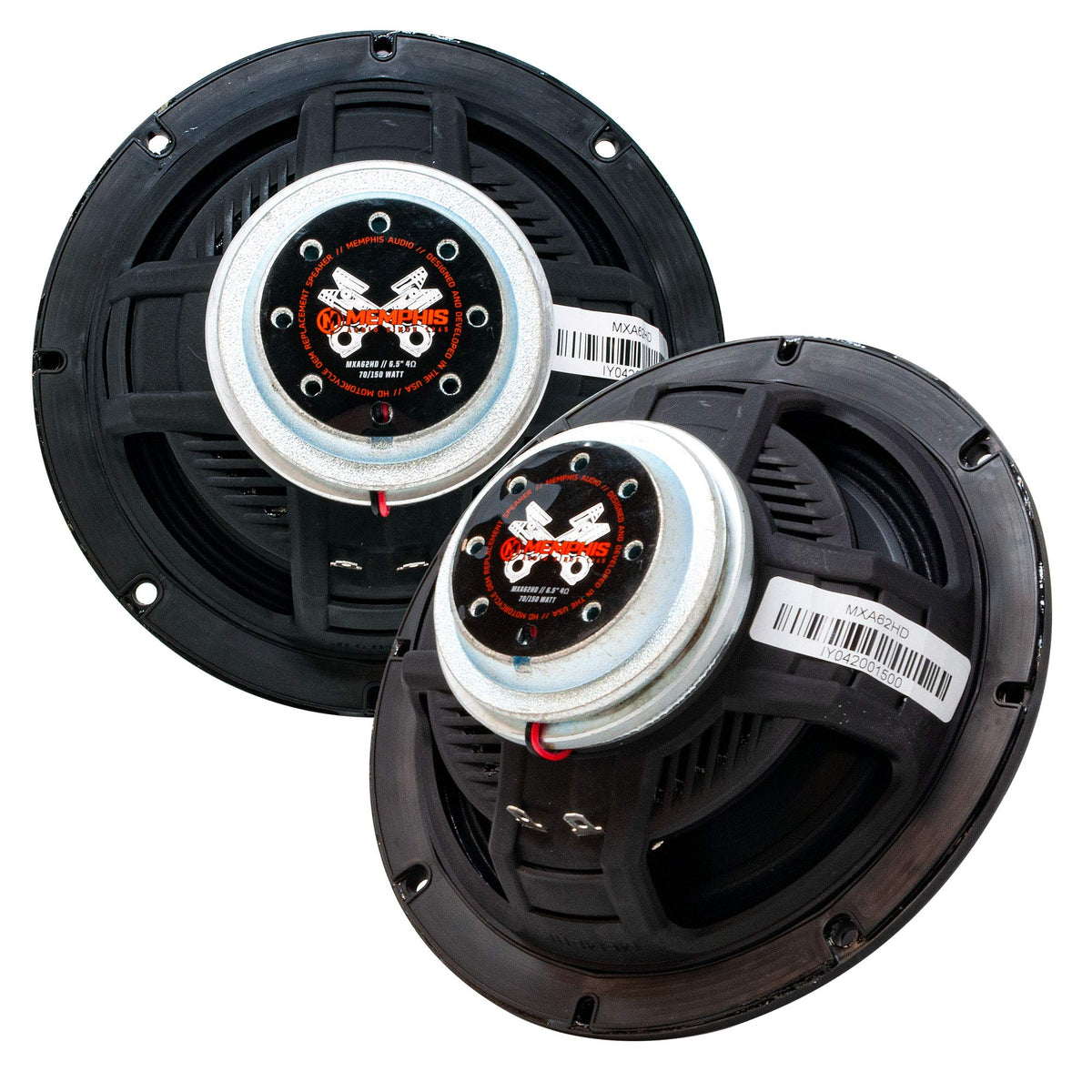

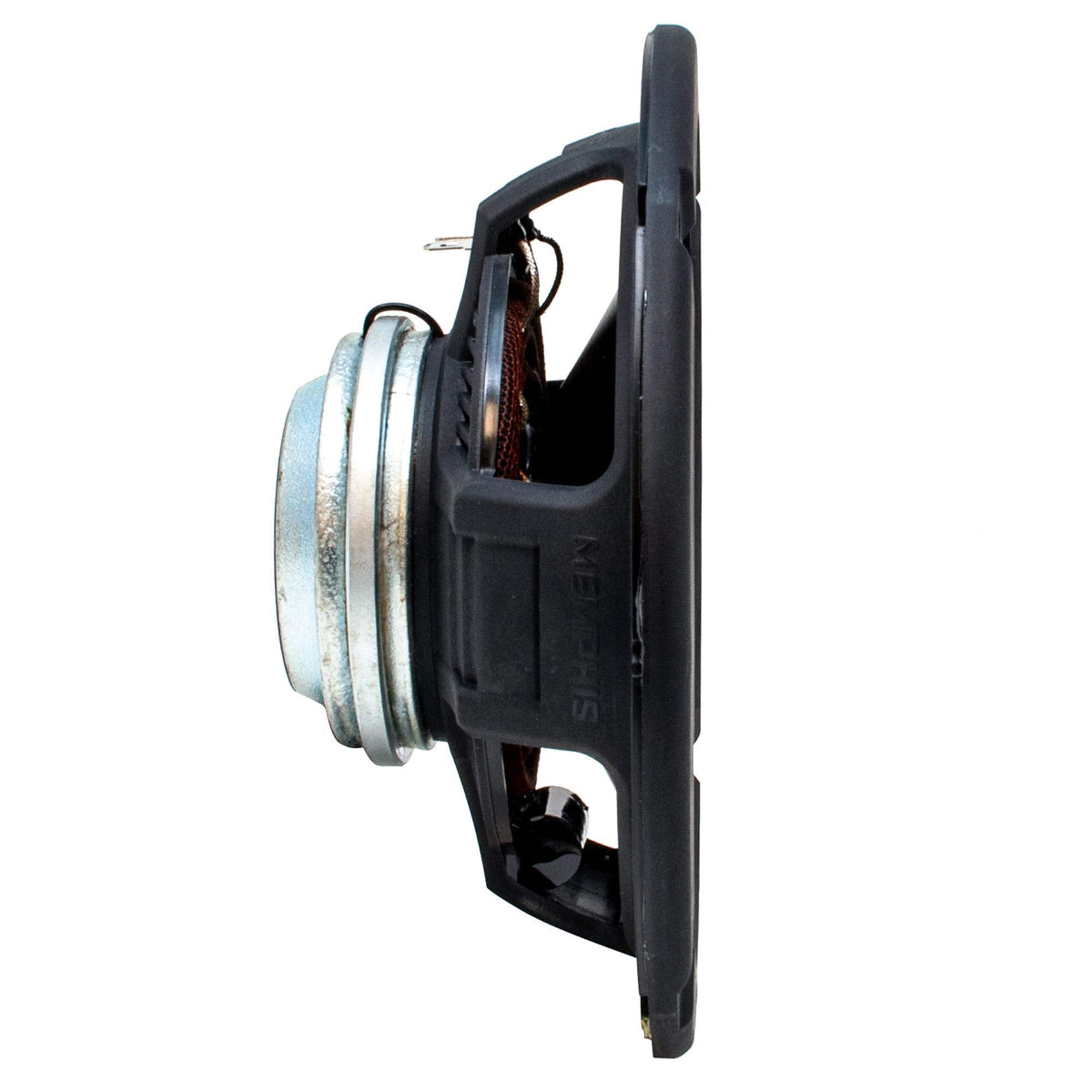

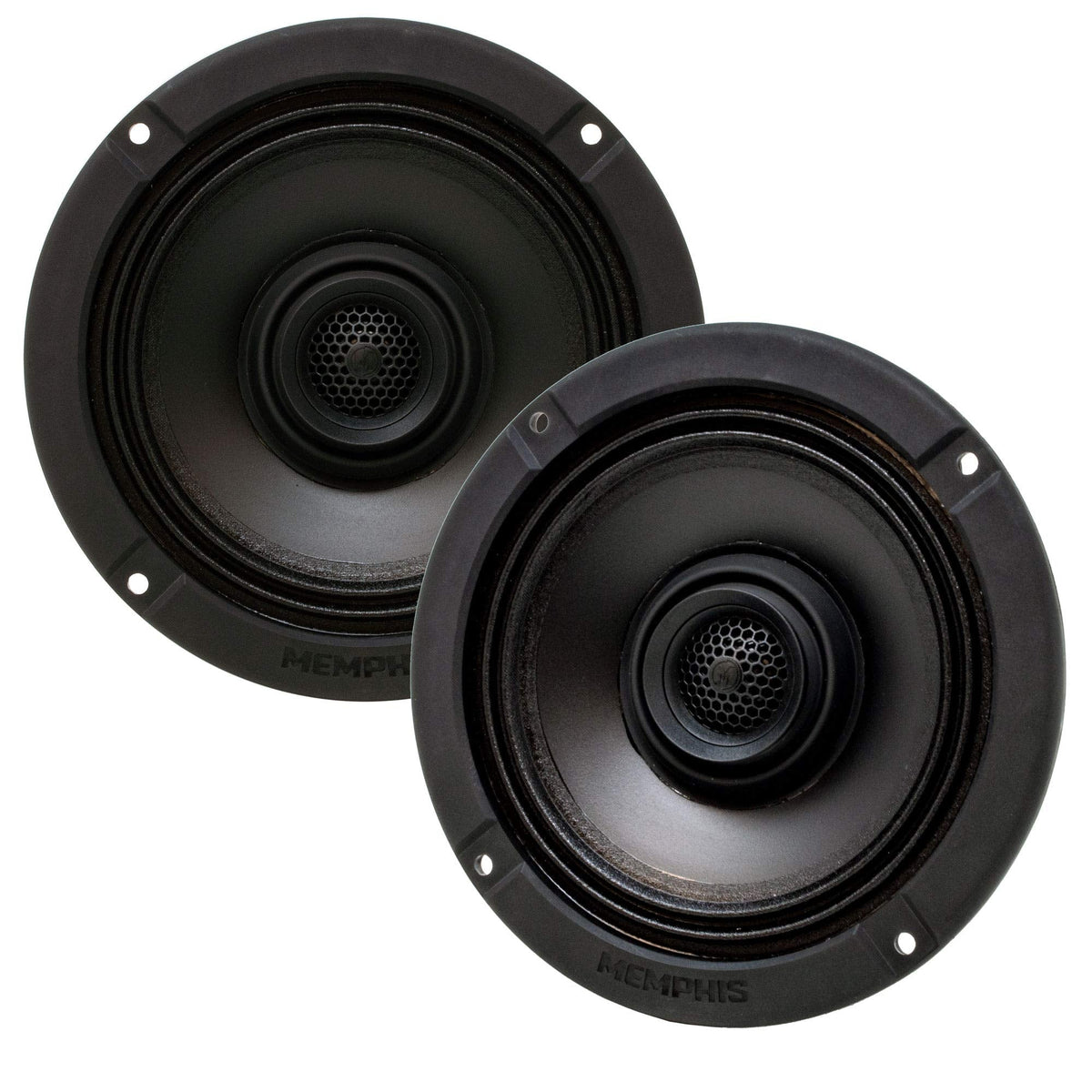

Memphis MXA62HD 6.5" Harley-Davidson Coaxial Speakers

The Memphis MXA62HD is a pair of 6.5-inch coaxial motorcycle speakers engineered as a direct-fit replacement for select Harley-Davidson factory speaker locations. It is intended for 2014-and-newer Street Glide, 2015-and-newer Road Glide, and compatible Tour-Pak locations. The set includes three grille sets to support these installation positions.

These speakers are built for riders replacing factory fairing or Tour-Pak speakers without custom fabrication. Their OEM-location fitment helps retain the motorcycle's original speaker placement while updating the speaker assembly. Installation should follow the applicable motorcycle service procedures and speaker polarity should be observed.

With a 75-watt RMS and 150-watt peak power rating, the MXA62HD is suited to motorcycle audio systems needing higher-power replacement speakers. Its 93 dB sensitivity supports efficient output from an appropriately matched audio system. The speaker uses a 35 mm voice coil and neodymium ring-magnet motor.

The MXA62HD combines a carbon-fiber-reinforced polypropylene cone with a low-profile proprietary film-dome tweeter. An integrated waveguide is used with the tweeter to improve low mid-range output. The integrated 6 dB crossover uses a high-power mylar capacitor to direct signal between the woofer and tweeter.

For outdoor motorcycle use, the speakers carry an IP66 weatherproof design and use weather-focused materials throughout the assembly. The Santoprene surround and front spider, along with the glass-reinforced polymer frame, address exposure and corrosion concerns. Riders seeking to add amplification can pair the speakers with Memphis' optional MXAHD14KIT and compatible Memphis amplifier; those components are sold separately.

Key Features

• OEM Direct-Fit Locations: Designed for select Street Glide, Road Glide, and Tour-Pak speaker positions.
• IP66 Weatherproof Design: Helps support use in exposed motorcycle audio applications.
• 75W RMS Power Handling: Matches systems requiring higher-power replacement speakers.
• Neodymium Motor System: Uses a neodymium ring magnet for the speaker motor.
• Film-Dome Tweeter: Low-profile tweeter includes an integrated waveguide for low mid-range output.

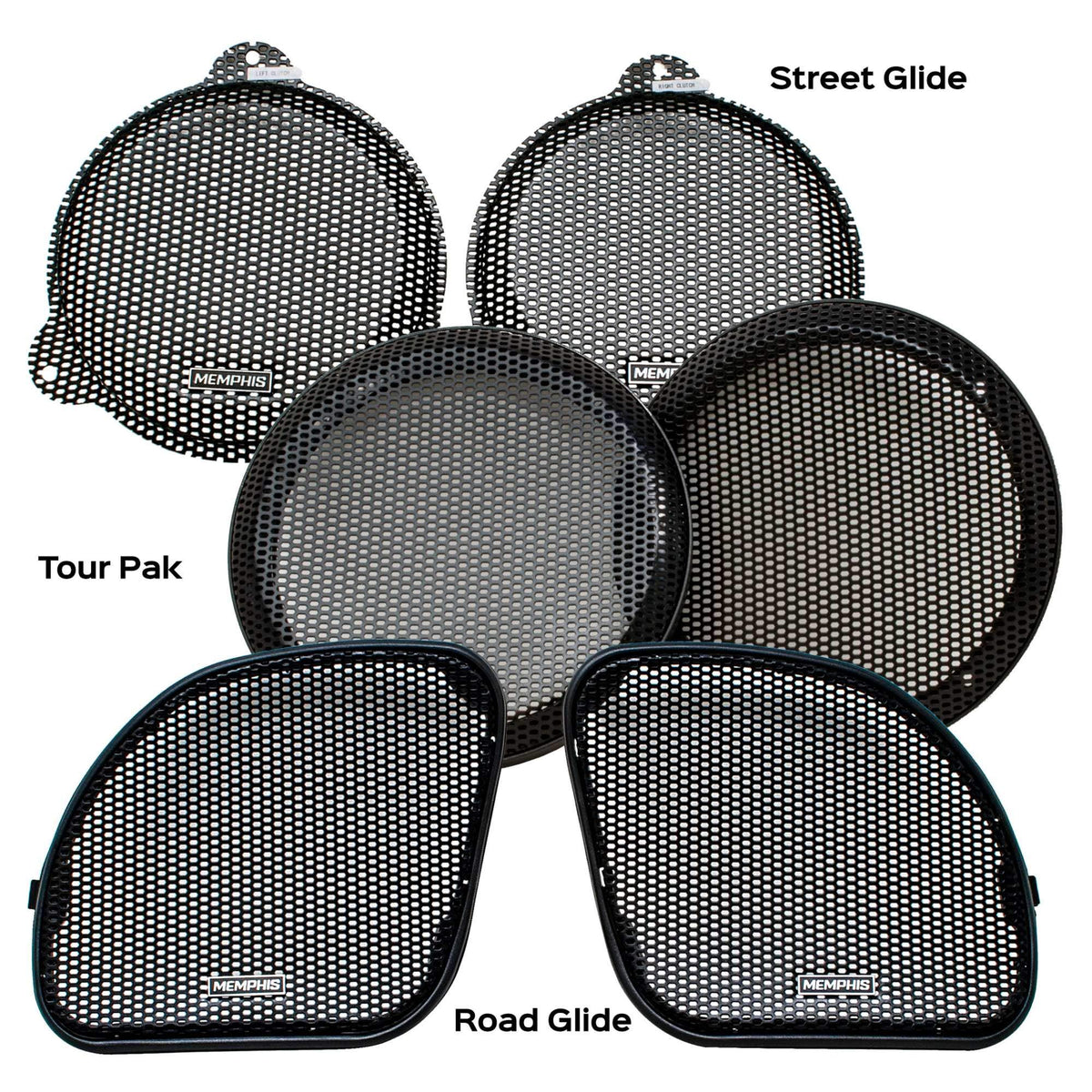

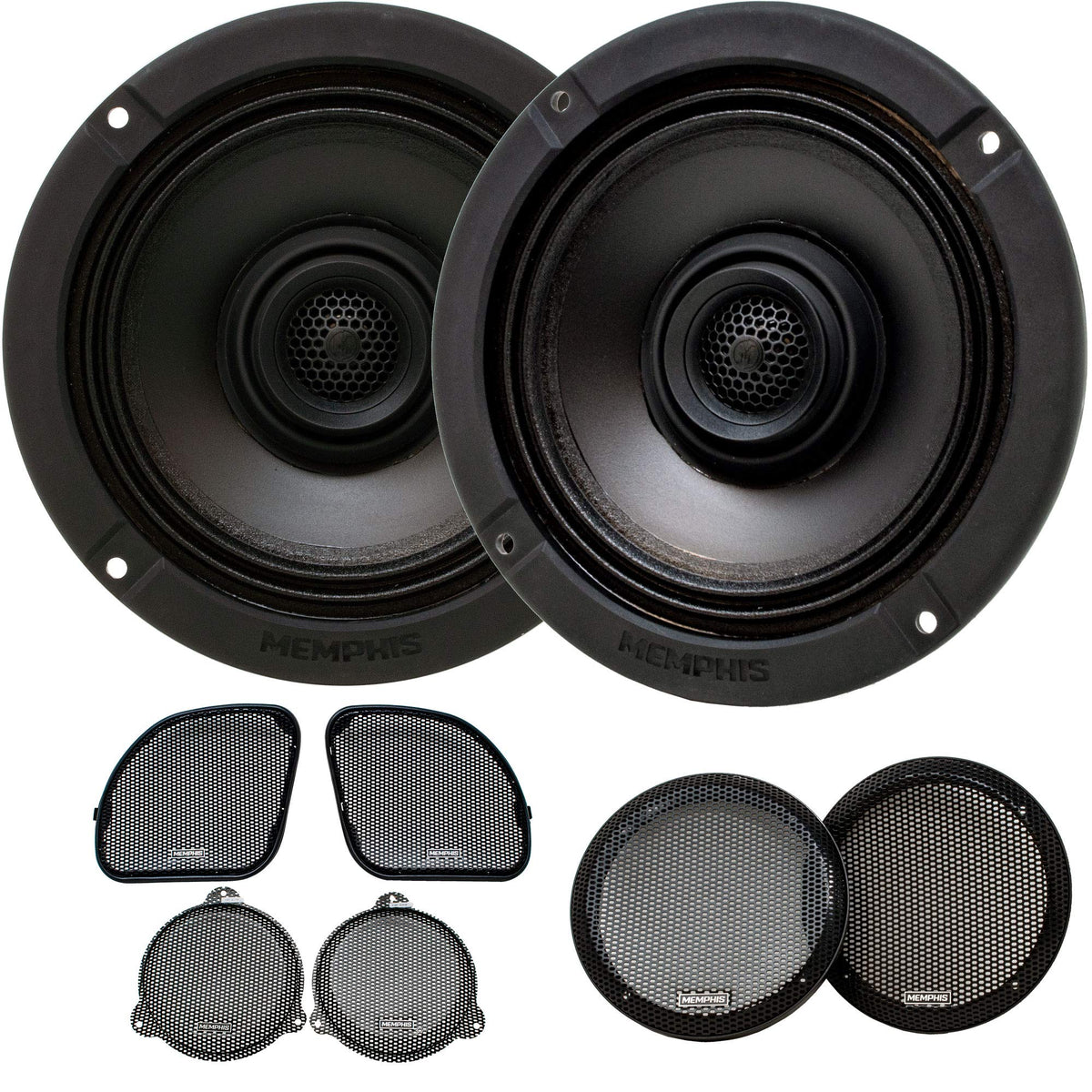

• Three Grille Sets: Includes Road Glide, Street Glide, and rear Tour-Pak grilles.

Design & Installation

The MXA62HD uses a carbon-fiber-reinforced polypropylene cone, Santoprene surround and front spider, high-temperature glass-reinforced polymer frame, and neodymium magnetic components. Its 35 mm voice coil supports the stated power rating, while the integrated crossover uses a high-power mylar capacitor. Integrated spade terminals provide the speaker connection points.

The speakers are designed to replace OEM speakers in 2014-and-newer Street Glide and 2015-and-newer Road Glide motorcycles, as well as Tour-Pak locations. Select the supplied grille that corresponds to the intended location, observe positive and negative speaker polarity, and verify fitment before installation. For an amplified upgrade path, the optional MXAHD14KIT provides an amplifier mounting location and plug-and-play harness for the factory Harley-Davidson radio without radio flashing.
