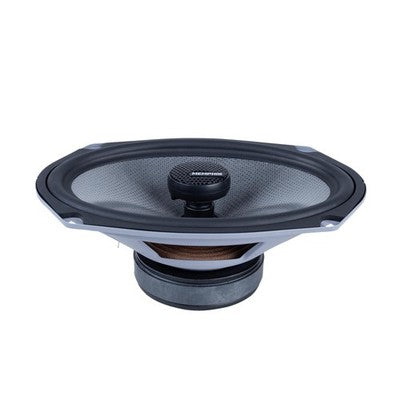

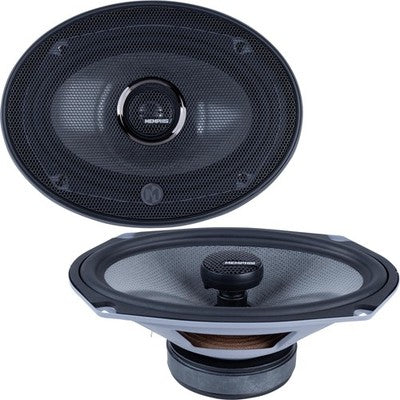

Memphis MS69 6x9" Convertible Car Speaker Set

The Memphis MS69 is a 6x9-inch MSeries convertible car speaker set designed for vehicle owners who want an upgrade path beyond a fixed coaxial speaker layout. Its removable, multi-mount tweeter allows the system to be used in a conventional coaxial configuration or arranged as a component-style installation. This flexibility helps accommodate vehicles with limited factory speaker locations as well as custom door, dash, or panel installations.

With a 75-watt RMS and 150-watt peak power rating, the MS69 is suited to systems using an aftermarket head unit or a properly matched external amplifier. Its 91 dB sensitivity supports efficient output from available power. The speaker is intended for listeners seeking accurate, full-range reproduction from a 6x9-inch format.

A carbon fiber cone forms the foundation of the woofer design, combining low moving mass with a durable construction. The rubber surround is designed to support controlled cone movement over time. Together, these materials support a clear, composed presentation through the speaker's operating range.

The center-mounted tweeter can swivel when the MS69 is configured as a coaxial speaker, allowing its output to be aimed more effectively toward the listening area. For a component-style layout, the tweeter can be removed and a phase plug installed in its place. This gives installers more freedom to position high frequencies where they work best in the vehicle.

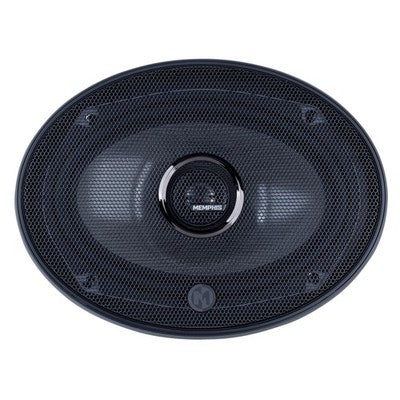

External passive crossovers divide the signal between the woofer and tweeter, while the MClip mounting solution provides a practical way to secure a crossover near the speaker or elsewhere in the installation. The crossover includes a selectable 0 dB or -3 dB tweeter setting for basic high-frequency level adjustment. A grille is included for installations where added driver protection or a finished appearance is needed.

Key Features

• Convertible Speaker Design: Supports coaxial or component-style system layouts.
• Multi-Mount Tweeter: Allows flexible tweeter placement for custom installations.
• Swivel Tweeter: Helps aim highs in coaxial speaker installations.
• Carbon Fiber Cone: Provides a lightweight, durable woofer diaphragm.
• External Passive Crossovers: Direct frequencies to the appropriate speaker drivers.
• MClip Crossover Mounting: Provides a removable crossover mounting method.

Design & Installation

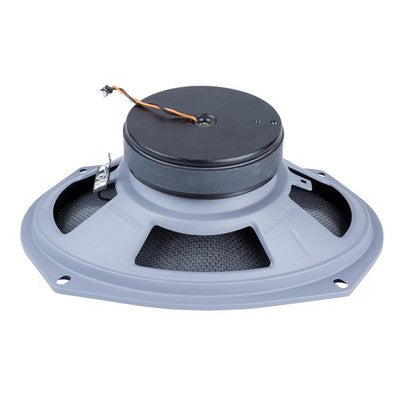

The MS69 uses a 6x9-inch carbon fiber woofer cone, rubber surround, removable tweeter assembly, external passive crossover network, and 13-ounce magnet. Its included grille can be used where the speaker is not fully protected by a factory panel or grille. The design supports either a center-mounted coaxial tweeter arrangement or a separated component-style layout.

Before purchase, confirm that the vehicle accepts a 6x9-inch speaker and provides at least 3 inches of mounting depth. In coaxial use, the tweeter remains mounted at the center of the woofer and can be aimed; in component use, remove the tweeter, install the phase plug, and mount the tweeter separately. Connect the external crossover between the amplifier or radio output and the woofer/tweeter, then use the MClip system or another secure location for crossover mounting.
