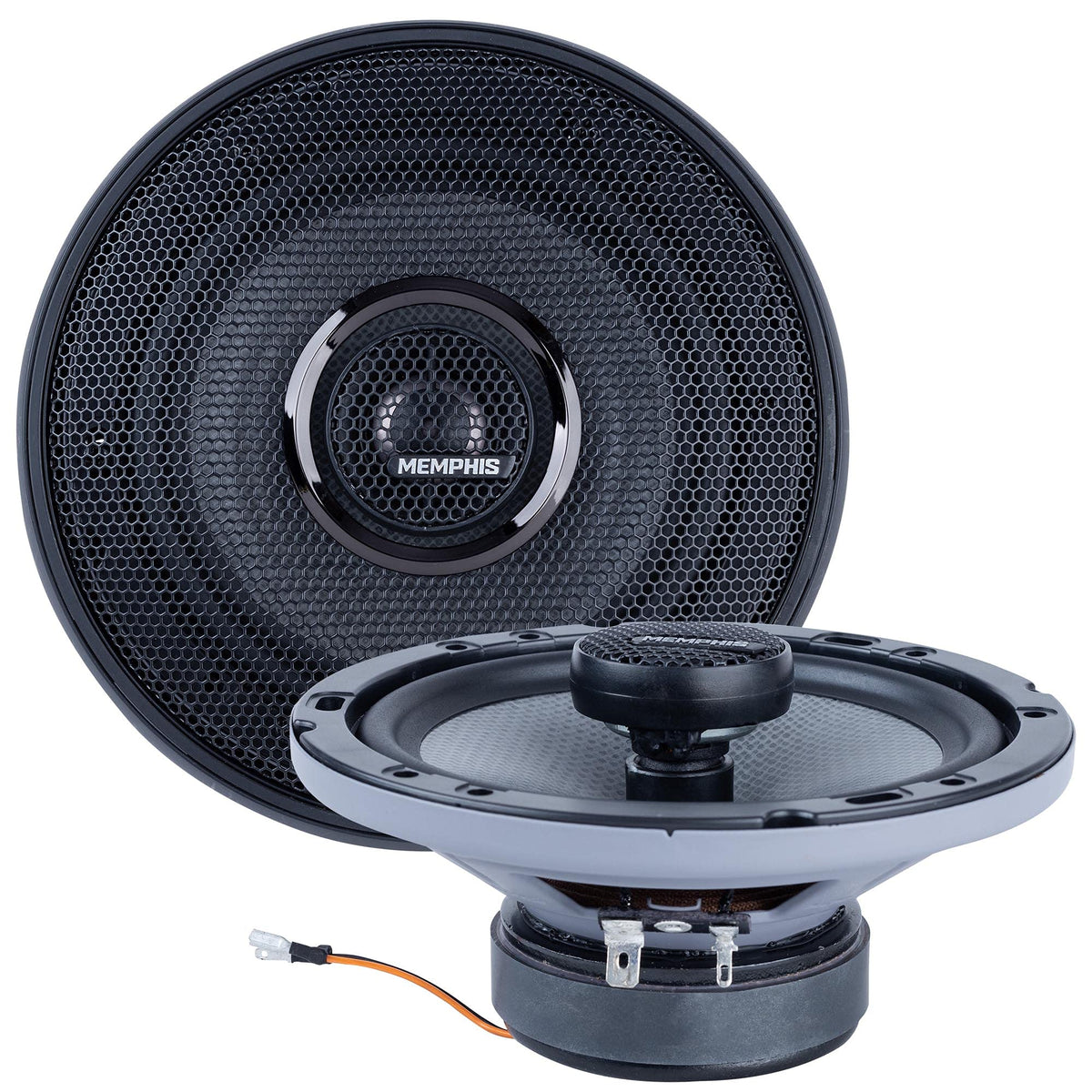

Memphis MS62V 6.5" Convertible Car Speaker Set

The Memphis MS62V is a 6.5-inch convertible car speaker set designed for vehicle owners who want more installation flexibility than a conventional coaxial speaker provides. Its removable tweeter arrangement lets the set be used in a coaxial-style layout or configured with separately mounted tweeters. This makes it a practical choice for upgrading factory speakers while preserving options for a more customized system later.

The set uses carbon-fiber woofer cones with rubber surrounds, pairing a rigid cone material with a durable suspension. Its 89 dB sensitivity and 75-watt RMS power handling support use with an aftermarket head unit or a properly matched external amplifier. The published frequency response is 72 Hz to 20 kHz, covering midbass and high-frequency duties in a full-range speaker position.

Each aluminum-dome tweeter can swivel when installed with the woofer, helping direct high frequencies toward the listening area. For a component-style installation, the tweeters can be removed from the woofers and mounted separately with the optional Memphis MSCKIT. This design allows the same speaker set to suit different vehicle layouts and staging goals.

External passive crossovers are included to route the appropriate signal to the woofer and tweeter. A selectable tweeter-level jumper provides flat or -3 dB tweeter output adjustment, allowing installers to tailor treble presence for the vehicle and mounting location. The included M-Clip brackets provide a mounting option for securing each crossover behind the speaker or elsewhere in the vehicle.

The MS62V is intended as a 4-ohm, 2-way replacement speaker set for compatible 6.5-inch locations. Before purchase, verify the 4.96-inch cutout requirement, 2.26-inch top-mount depth, and clearance behind the mounting surface. Grilles, crossovers, extension leads, hardware, and installation materials are included for the supplied coaxial configuration.

Key Features

• Convertible Layout: Use as coaxial speakers or separate the tweeters for component-style placement.
• Swivel Aluminum Tweeters: Direct high frequencies toward the listening position in coaxial installations.
• Carbon-Fiber Woofers: Rigid cone material supports controlled midrange and midbass reproduction.
• External Passive Crossovers: Separate woofer and tweeter signal duties for the included drivers.
• Tweeter-Level Adjustment: Select flat or -3 dB tweeter output at each crossover.
• M-Clip Mounting: Mount crossovers behind the speaker or at another suitable location.

Design & Installation

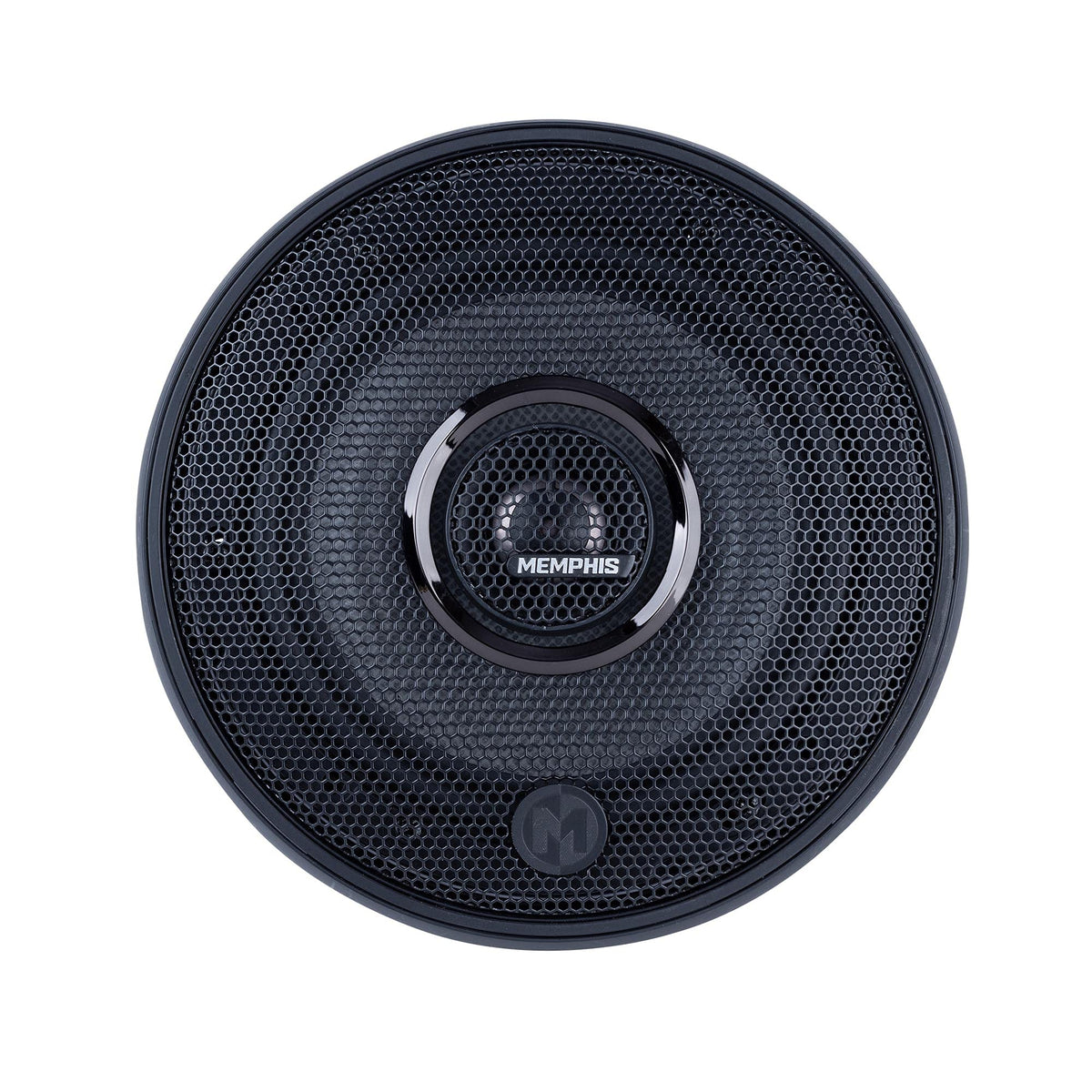

The MS62V combines carbon-fiber woofer cones, rubber surrounds, aluminum-dome tweeters, and separate passive crossovers in a 2-way design. The 10-ounce magnet and 4-ohm nominal impedance are suited to conventional car-audio speaker wiring. Black steel-mesh grilles with plastic frames are included for installations that need speaker protection or a finished appearance.

Confirm vehicle fitment before installation using the 4.96-inch cutout diameter, 2.26-inch top-mount depth, and 6.232-inch frame width and length. The factory-mounted tweeters can be used in the coaxial layout, while component-style mounting requires the separately sold MSCKIT. Connect the speaker system through the included crossovers; the crossover inputs accept bare wire or spade connectors up to 0.25 inch wide.
