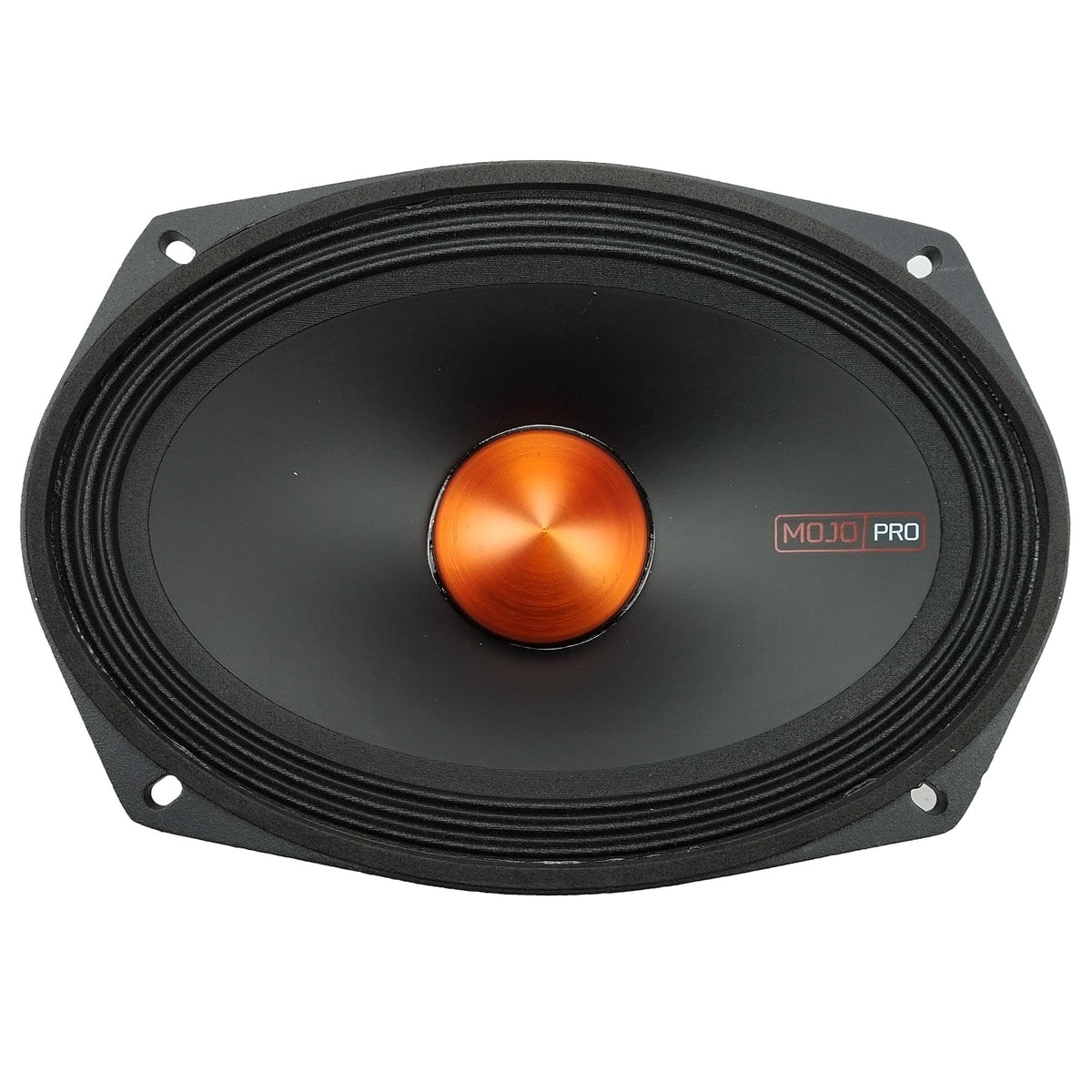

Memphis MJP69 6x9" MOJO Pro Neo Midrange Speaker

The Memphis MJP69 is a 6x9-inch MOJO Pro midrange speaker designed for high-output vehicle and powersports audio systems. Sold individually, it provides a direct building block for custom speaker layouts in cars, motorcycles, side-by-sides, and similar applications. Its 4-ohm load and 200-watt RMS power rating make it suited to a properly matched aftermarket amplifier channel.

This is a one-way pro-audio-style midrange driver rather than a full component set. It is intended to reproduce the upper-bass and midrange region with strong output, making it a practical choice when a system needs more presence and projection than factory speakers can provide. For a complete frequency range, pair it with appropriate tweeters, bass reinforcement, and crossover or DSP tuning as required by the system design.

The MJP69 uses a high-efficiency design rated at 102 dB sensitivity. That sensitivity helps it produce substantial output from available amplifier power while its 200-watt RMS and 400-watt peak ratings support amplified applications. Its published frequency response is 98 Hz to 20 kHz, though final performance depends on placement, installation, crossover settings, and vehicle acoustics.

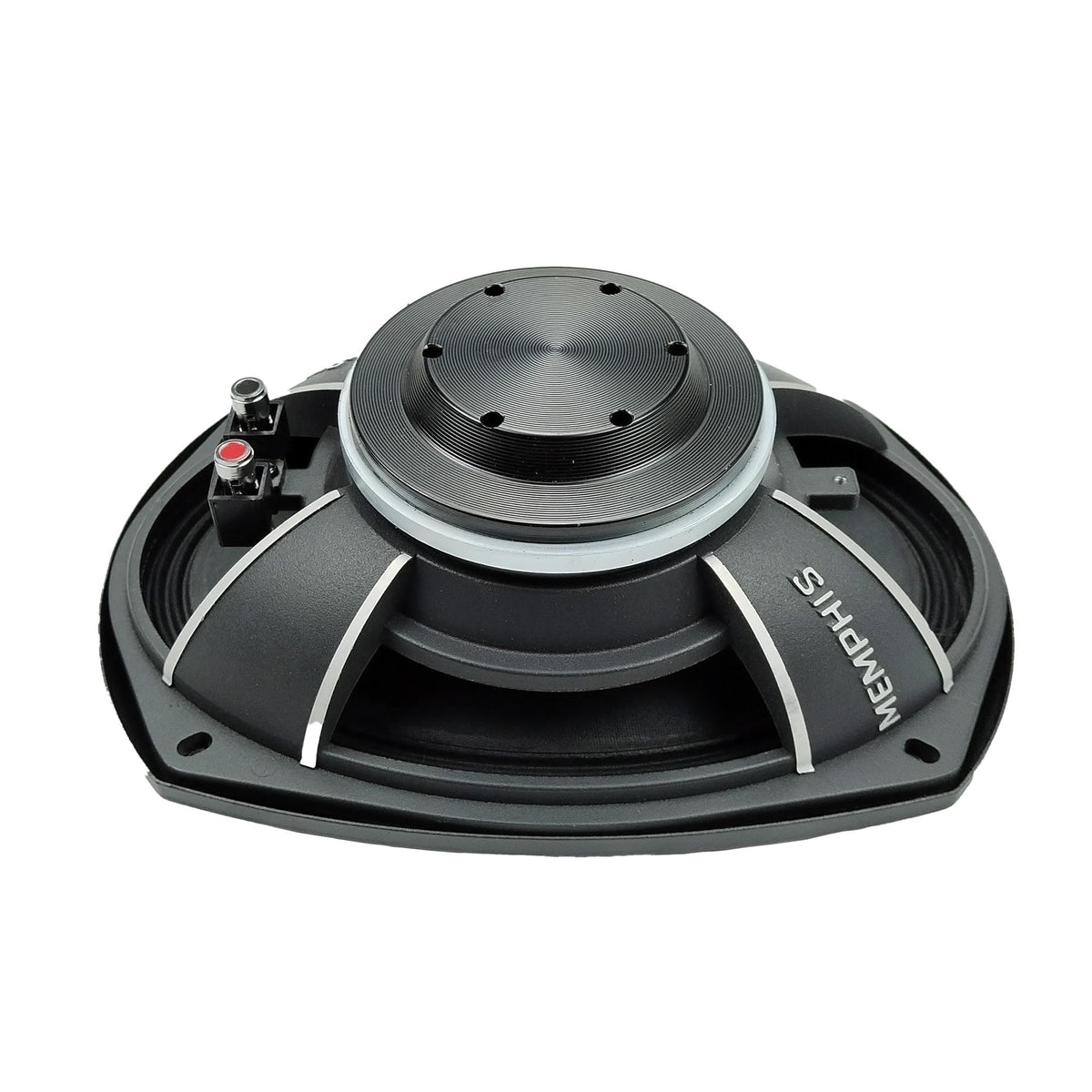

A low-profile neodymium magnet helps reduce rear mounting bulk and weight compared with larger conventional magnet structures. The speaker also uses a cast basket for structural support, an accordion cloth surround, and an aluminum dustcap. These materials support a durable pro-audio-oriented construction for demanding mobile installations.

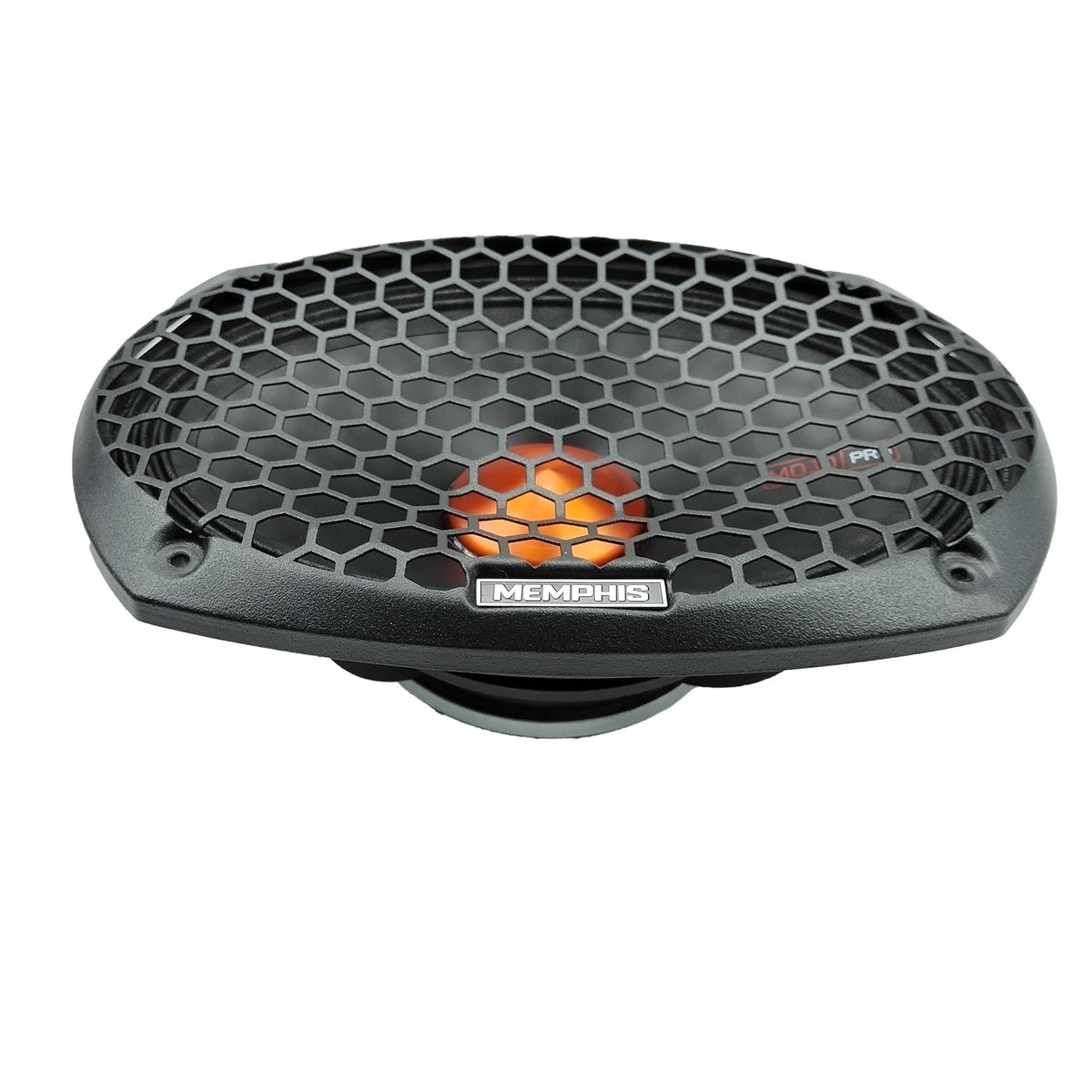

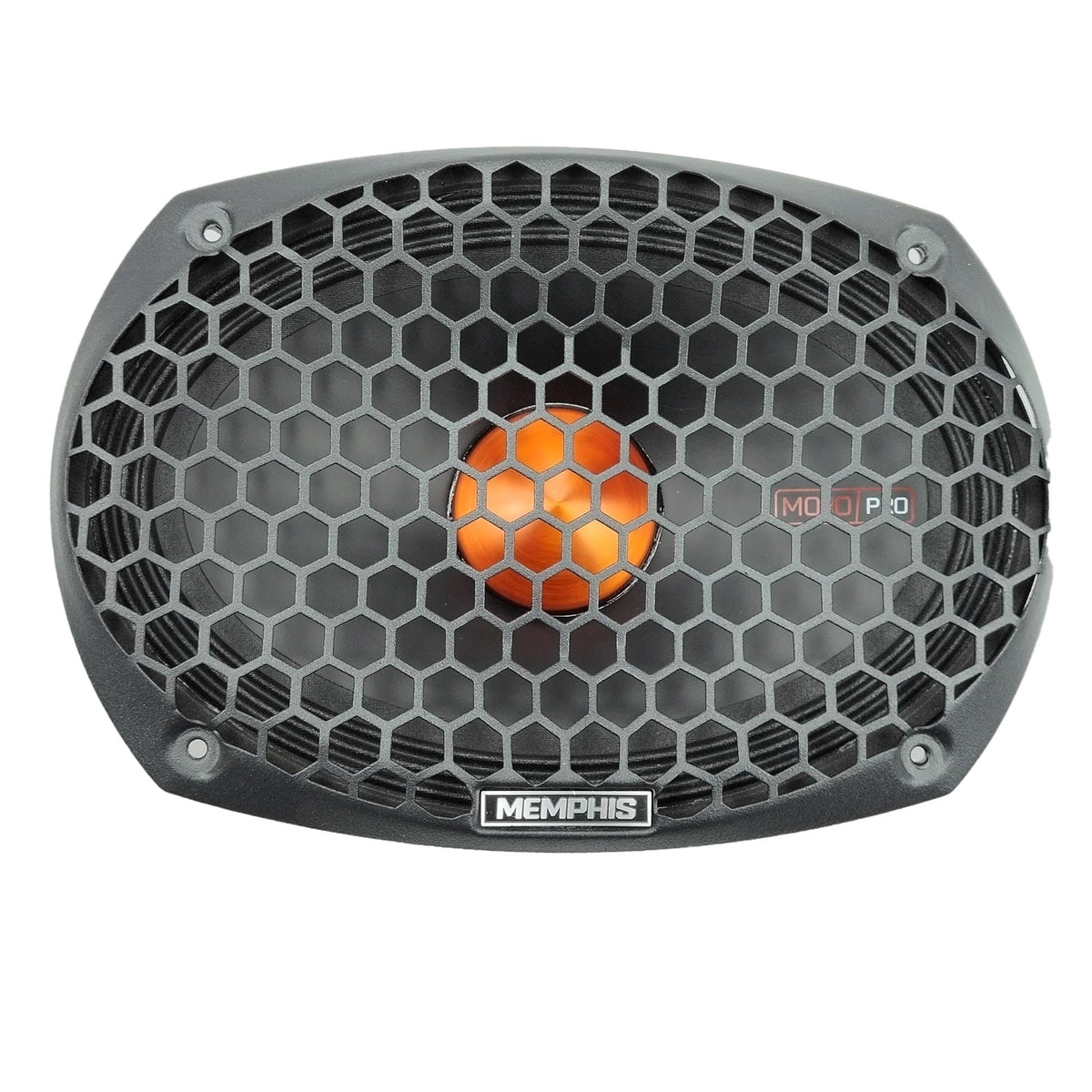

The treated cone is water resistant for installations exposed to limited moisture, such as motorcycle fairings and side-by-side speaker locations. A mesh grille is included to help protect the driver in exposed mounting positions. With its 6x9-inch format and 2.79-inch mounting depth, the MJP69 is best used after confirming available clearance and mounting-hole alignment in the intended location.

Key Features

• 200-Watt RMS Handling: Supports use with a suitably matched amplified channel.
• 102 dB Sensitivity: Helps deliver high output from available power.
• Water-Resistant Treated Cone: Suits installations with limited moisture exposure.
• Neodymium Magnet: Reduces magnet size and rear mounting bulk.
• Accordion Cloth Surround: Supports controlled cone movement in a durable design.
• Mesh Grille Included: Adds driver protection for exposed speaker locations.

Design & Installation

The MJP69 combines a treated water-resistant cone, accordion cloth surround, aluminum dustcap, cast basket, and low-profile neodymium magnet. Its 6x9-inch oval frame is configured as a single one-way midrange speaker with a 4-ohm nominal impedance. A mesh grille is included for added protection.

Confirm that the installation location has sufficient clearance for the 2.79-inch mounting depth and 8.94 x 6.14-inch mounting-hole pattern. Use an amplifier channel compatible with a 4-ohm speaker and set gain conservatively for the 200-watt RMS rating. Because this is sold individually, purchase the needed quantity for the planned system and add compatible tweeters, crossover networks, or DSP where the system design calls for them.
