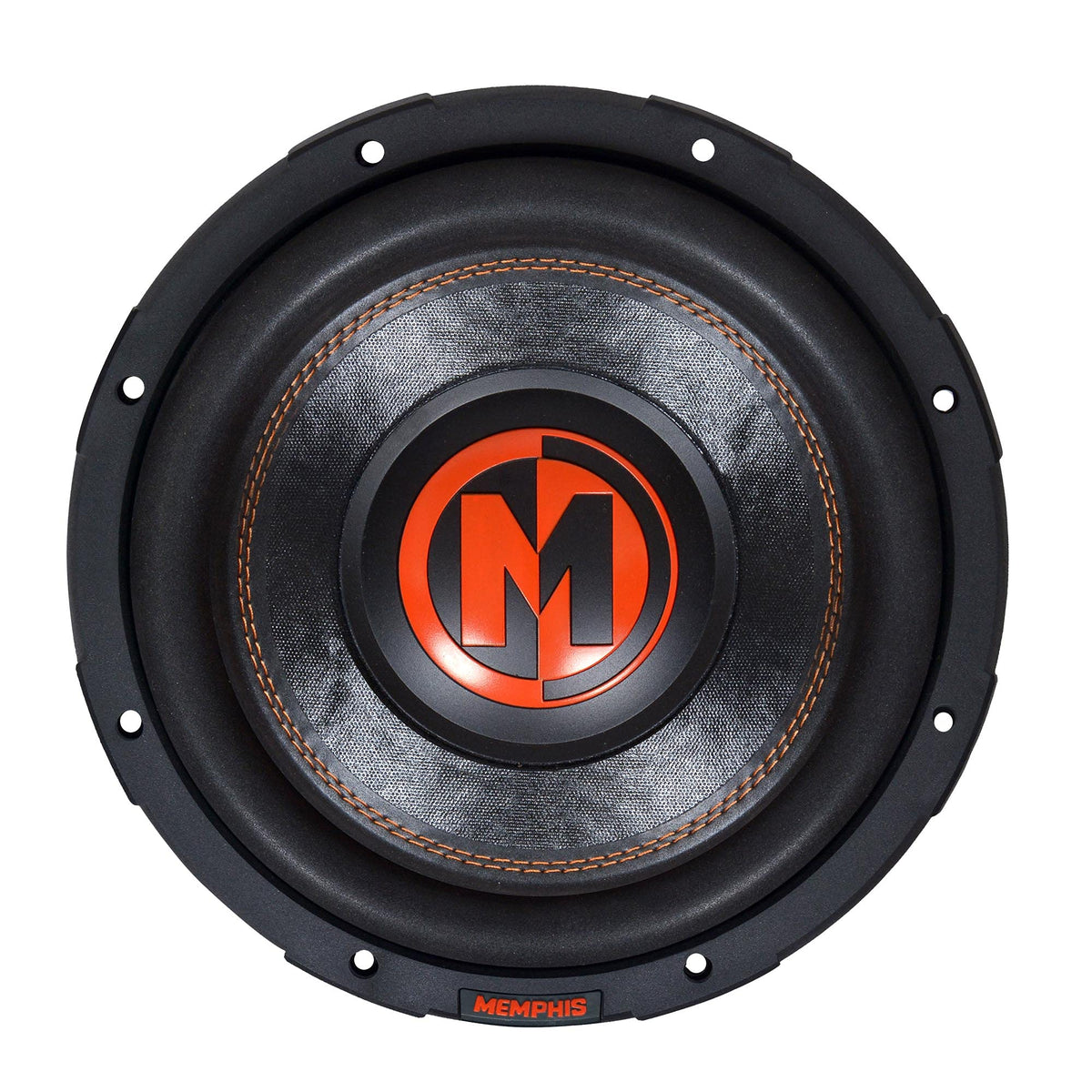

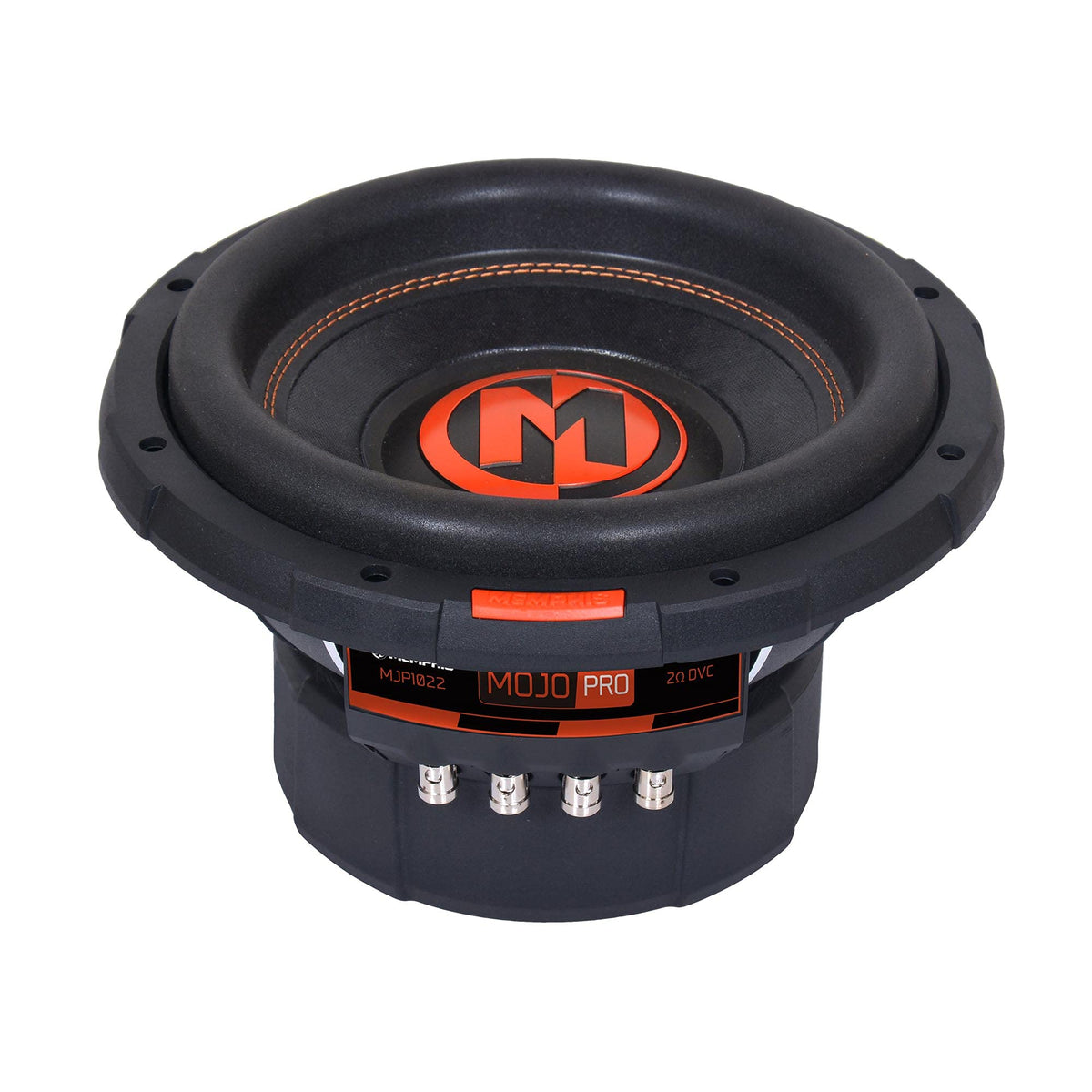

Memphis MJP1022 10" Dual 2-Ohm Component Subwoofer

The Memphis MJP1022 is a 10-inch MOJO Pro component subwoofer built for car-audio systems that need substantial low-frequency output from a compact driver. Its dual 2-ohm voice coils provide flexible wiring options for matching a compatible mono or multichannel amplifier. As an unboxed component subwoofer, it is intended for installation in a properly designed sealed or vented enclosure.

With a 750-watt RMS power rating and 1,500-watt peak rating, the MJP1022 is suited to systems designed around dedicated bass amplification. It uses a rigid paper cone and double-stitched foam surround to support controlled cone movement. The progressive spider helps manage excursion during higher-output playback.

The MJP1022 is designed for high-SPL-oriented installations while retaining practical enclosure options. Its specified sensitivity is 82.6 dB, with a resonant frequency of 35.3 Hz. The recommended sealed and vented enclosure volumes give installers a starting point for tuning the driver to available space and bass goals.

Memphis uses Direct Vent Voice Coil Cooling, cross-drilled front-plate venting, and a 2.5-inch voice coil to help manage heat during sustained operation. An aluminum shorting ring is used to reduce inductance. These engineering details support the driver’s intended use in amplified bass systems.

Dual 2-ohm voice coils can be wired in parallel for a 1-ohm final load or in series for a 4-ohm final load. This makes the MJP1022 useful when selecting an amplifier around its stable impedance range. Confirm amplifier capability, enclosure clearance, and wiring configuration before installation.

Key Features

• Dual 2-Ohm Voice Coils Provide 1-ohm parallel or 4-ohm series wiring options.
• 750-Watt RMS Rating Supports use with appropriately matched dedicated amplification.
• DVVC Cooling Direct vent voice-coil cooling helps manage operating heat.
• Rigid Paper Cone Provides a durable cone structure for bass reproduction.
• Double-Stitched Foam Surround Supports cone movement and long-term mechanical stability.
• Die-Cast Basket Provides a rigid mounting structure for the driver assembly.

Design & Installation

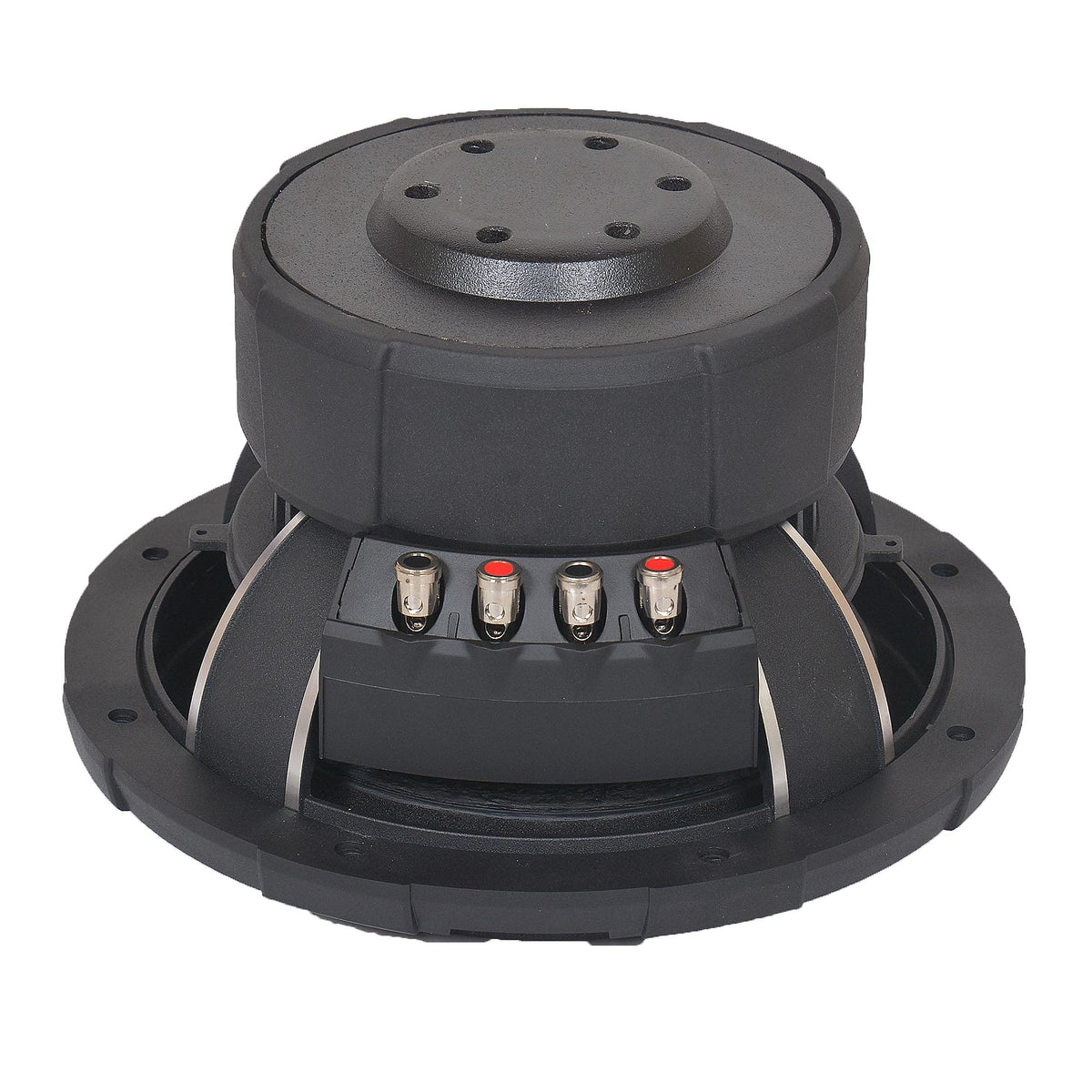

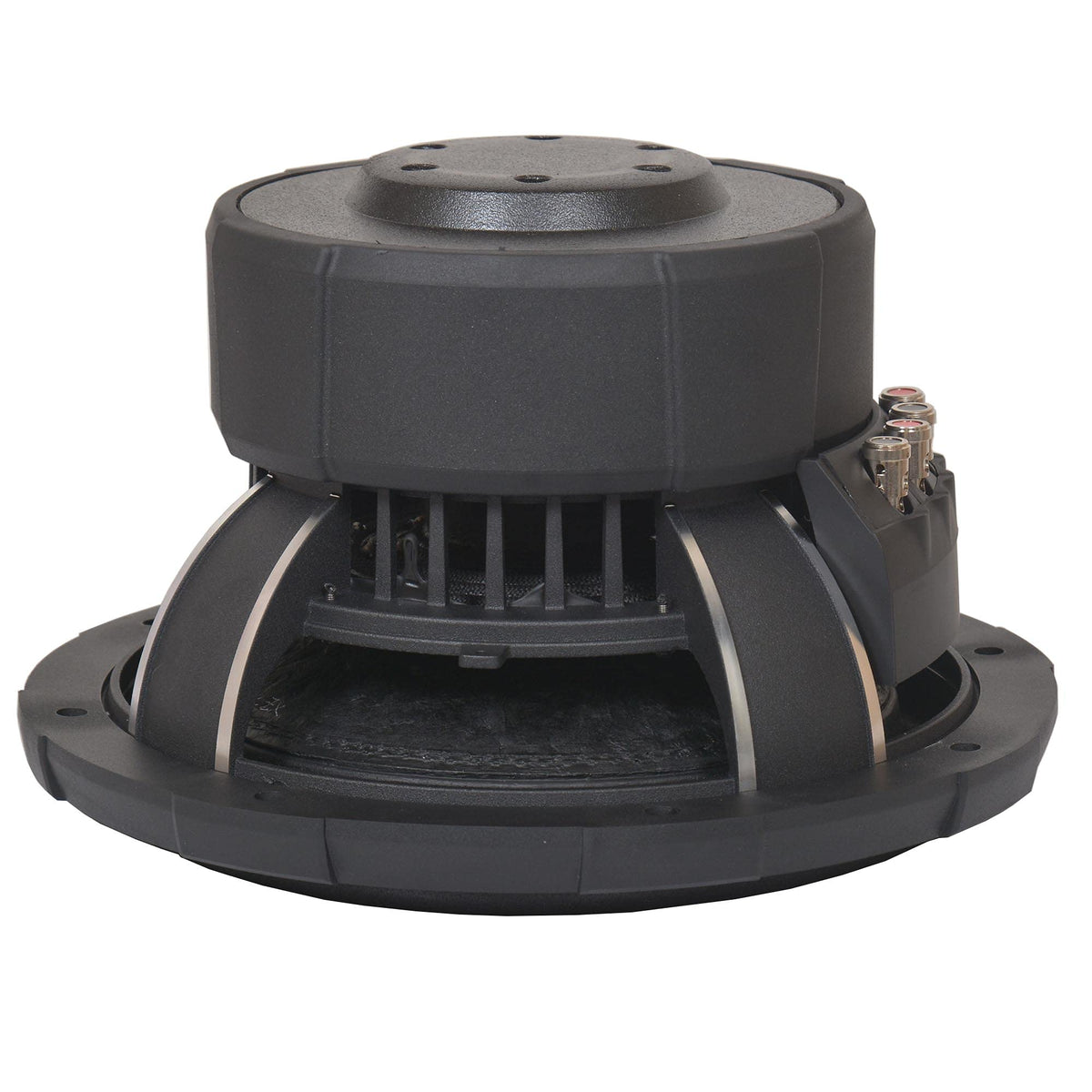

The MJP1022 combines a rigid paper cone, double-stitched foam surround, progressive spider, die-cast basket, and single-sided compression terminals. Its motor structure includes a 120-ounce magnet, 2.5-inch voice coil, cross-drilled front plate, and aluminum shorting ring. The frame outside diameter is 11.23 inches, with a 9.45-inch cutout requirement.

Allow at least 5.72 inches of mounting depth and use an enclosure built for the recommended gross internal volume. A single sealed enclosure is specified at 0.75 cubic feet, while a single vented enclosure is specified at 1.6 cubic feet with a 37 Hz tuning recommendation. Wire both voice coils consistently and use an amplifier that is stable at the chosen 1-ohm or 4-ohm final impedance.
