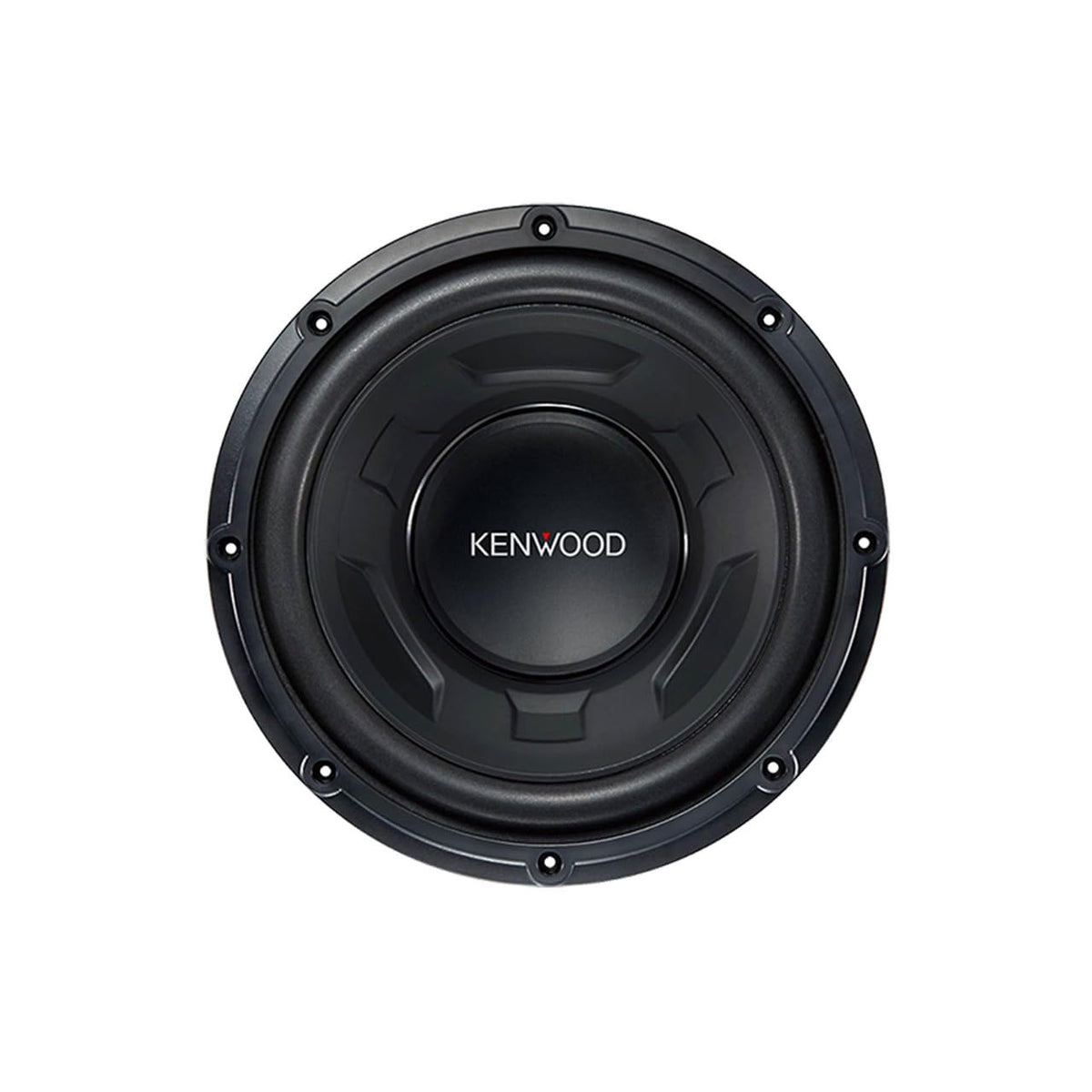

Kenwood KFC-W2542 10" Subwoofer

The Kenwood KFC-W2542 is a 10-inch passive car subwoofer designed to add dedicated low-frequency output to an aftermarket audio system. It is a practical choice for listeners who want more bass impact than full-range door speakers can provide. With a 4-ohm nominal impedance and 300-watt RMS power rating, it is intended for use with a compatible external amplifier.

This subwoofer is suited to single-subwoofer systems, compact custom installations, and upgrades where a 10-inch driver is the preferred fit. Its specified 44-300 Hz frequency response focuses its role on bass reproduction rather than full-range playback. The 82 dB sensitivity specification and 300-watt RMS rating give installers clear targets when selecting amplification.

Kenwood uses a polypropylene cone with a foam surround to support controlled cone movement. A steel basket provides the mounting structure, while the ferrite magnet assembly weighs 61.4 ounces. Together, these elements create a durable driver platform for a properly designed subwoofer enclosure.

The KFC-W2542 uses a 6-layer copper voice coil on an aluminum former. Kenwood's heat-dissipation design uses air convection created by diaphragm movement to help cool the voice coil during operation. This construction is intended to support heat resistance and sustained power handling.

For system planning, the KFC-W2542 requires an enclosure, an external amplifier, wiring, and an audio signal source or receiver with appropriate subwoofer connectivity. Its 9-1/16-inch cutout requirement and 5-1/4-inch mounting depth should be checked before building or selecting an enclosure. It can be used in recommended sealed or ported enclosure designs, depending on available space and the desired system approach.

Key Features

• 300W RMS Power Handling: Matches with an amplifier rated appropriately for continuous 4-ohm operation.
• 1300W Peak Power: Provides a published maximum short-term power-handling rating.
• Single 4-Ohm Configuration: Offers straightforward amplifier matching for a single-subwoofer system.
• 6-Layer Copper Voice Coil: Uses a multi-layer coil construction for heat resistance.
• Aluminum Voice-Coil Former: Supports the voice coil within the motor assembly.
• PP Cone and Foam Surround: Combines a polypropylene diaphragm with a compliant foam surround.

Design & Installation

The KFC-W2542 combines a polypropylene cone, foam surround, steel basket, and ferrite magnet structure. Its 61.4-ounce magnet and 6-layer copper voice coil with aluminum former are paired with a convection-based cooling approach. The driver has an overall width and height of 10-13/16 inches and a net weight of 10.14 pounds.

Plan for a 9-1/16-inch mounting cutout and at least 5-1/4 inches of mounting depth. Use an enclosure designed for a 10-inch subwoofer and pair the driver with a suitable external amplifier at its 4-ohm impedance. Confirm enclosure clearance, amplifier load capability, wiring, and crossover settings before installation.
