Kenwood KFC-P710PS 6.5" Component Speaker System

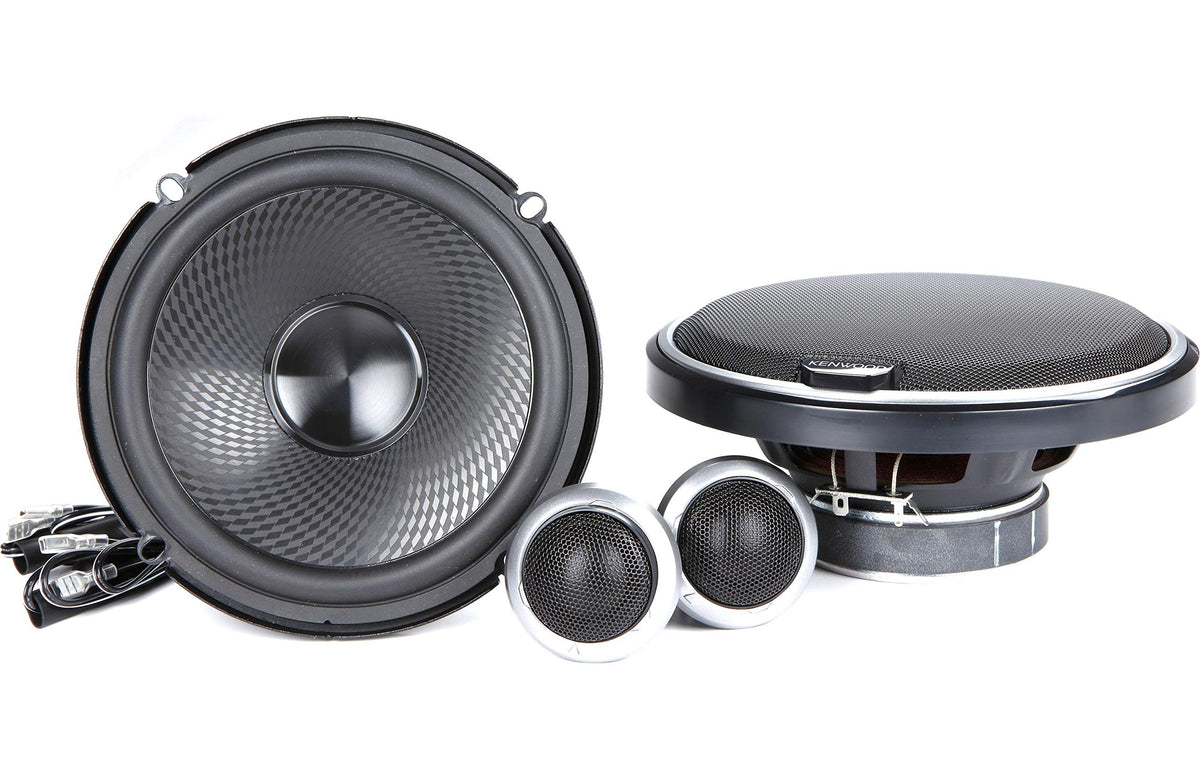

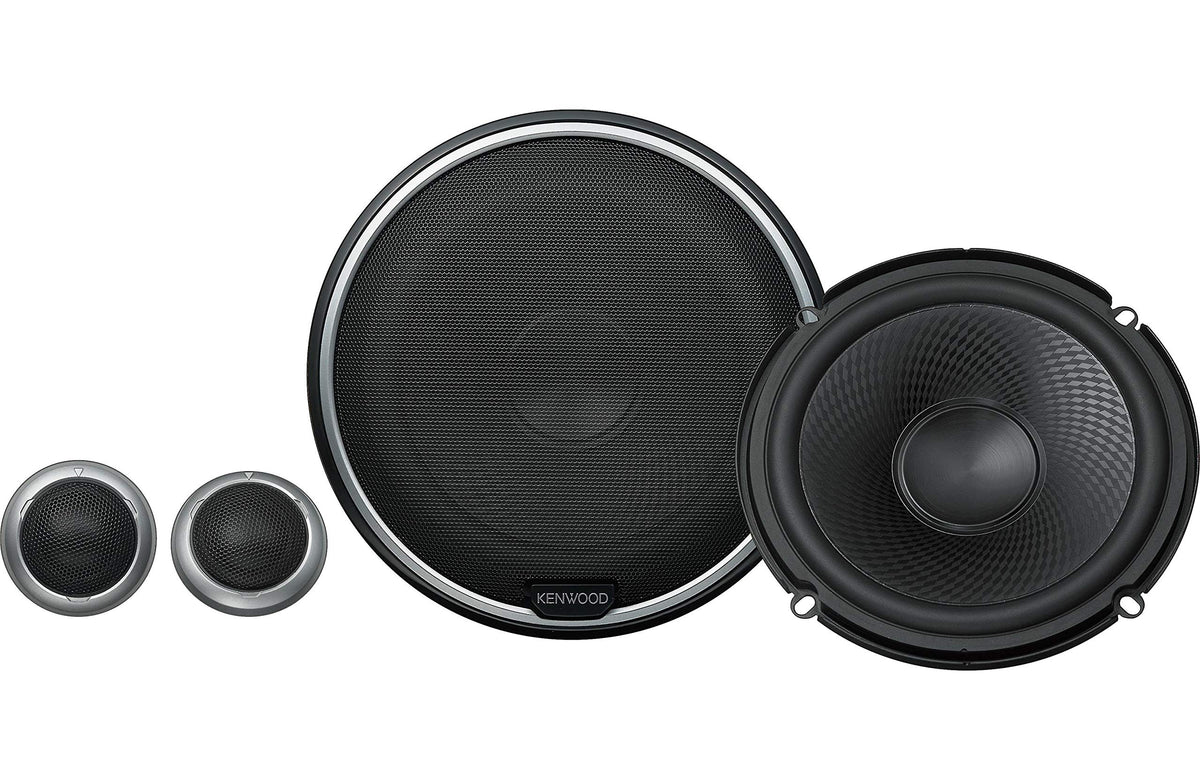

The Kenwood KFC-P710PS is a 6-1/2-inch component speaker system designed for vehicle audio upgrades that separate woofer and tweeter placement. It uses oversized 160 mm woofers alongside separate 1-inch tweeters and supplied in-line passive networks. This layout gives installers flexibility to position high-frequency drivers closer to the listening area while retaining dedicated woofers in the doors or other suitable locations.

With 80 watts RMS power handling and a 4-ohm nominal impedance, this set is suited to compatible aftermarket amplification or a properly matched factory-system upgrade. Its 280-watt peak power rating provides an additional short-term handling reference. The 86 dB sensitivity specification and 63 Hz to 24 kHz frequency response describe its operating range and efficiency rating.

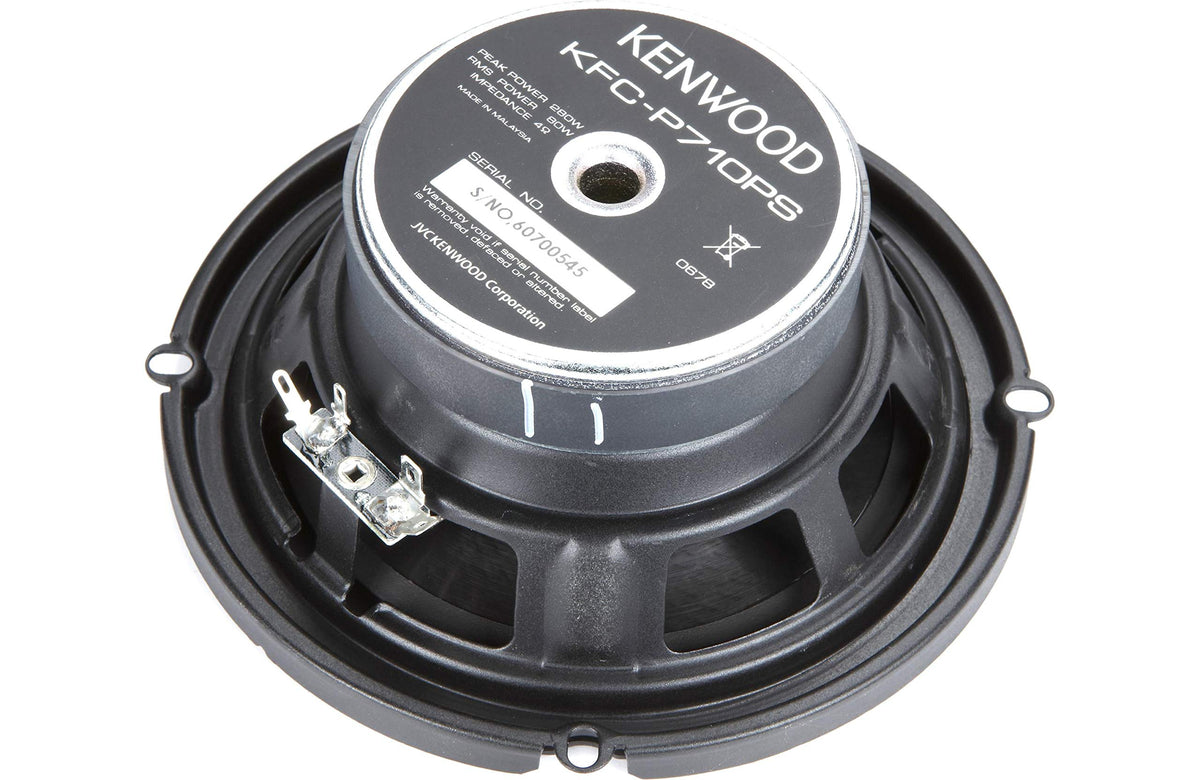

The woofer uses an injection polypropylene cone with Kenwood's Diamond Array Pattern diaphragm design. A rubber surround, black steel basket, and ferrite woofer magnet support the driver assembly. The separate 25 mm soft-dome tweeter uses a neodymium magnet.

A 4,900 Hz crossover frequency divides the signal between the woofer and tweeter through the included passive network. Using the supplied network is required by the installation instructions. This makes the KFC-P710PS a practical choice for a two-way component front-stage installation where separate tweeter mounting is desired.

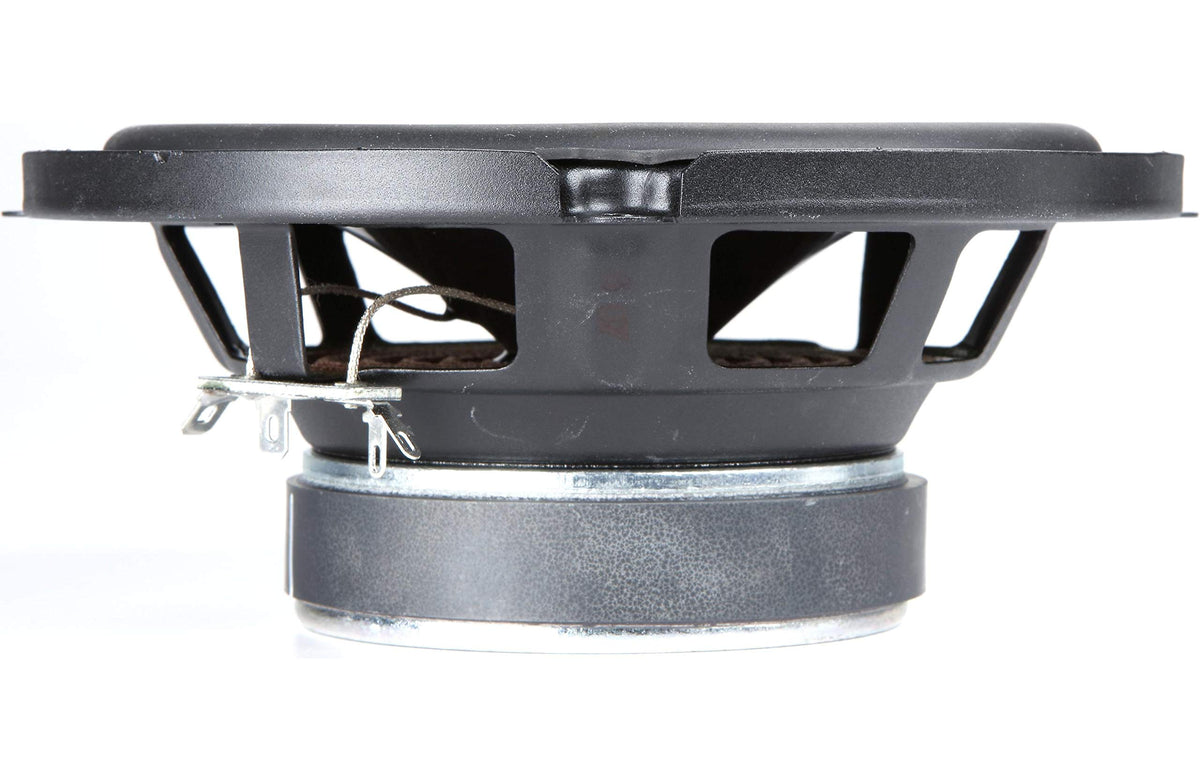

Fitment should be confirmed before purchase, especially in vehicles with limited door-panel or window-clearance space. The woofer requires a 4-15/16-inch cutout and 2-3/16-inch mounting depth. Supplied grilles and multiple tweeter mounting accessories support custom, flush, free, and certain GM-style installation approaches.

Key Features

• 6-1/2-Inch Component System: Separate woofers and tweeters allow more flexible speaker placement than a coaxial design.
• 80W RMS Handling: Supports amplifier matching up to the manufacturer's CEA-rated continuous power specification.
• Injection PP Woofer Cone: The polypropylene woofer diaphragm is paired with a rubber surround and steel basket.
• 1-Inch Soft-Dome Tweeter: A separate 25 mm tweeter is included for high-frequency reproduction.

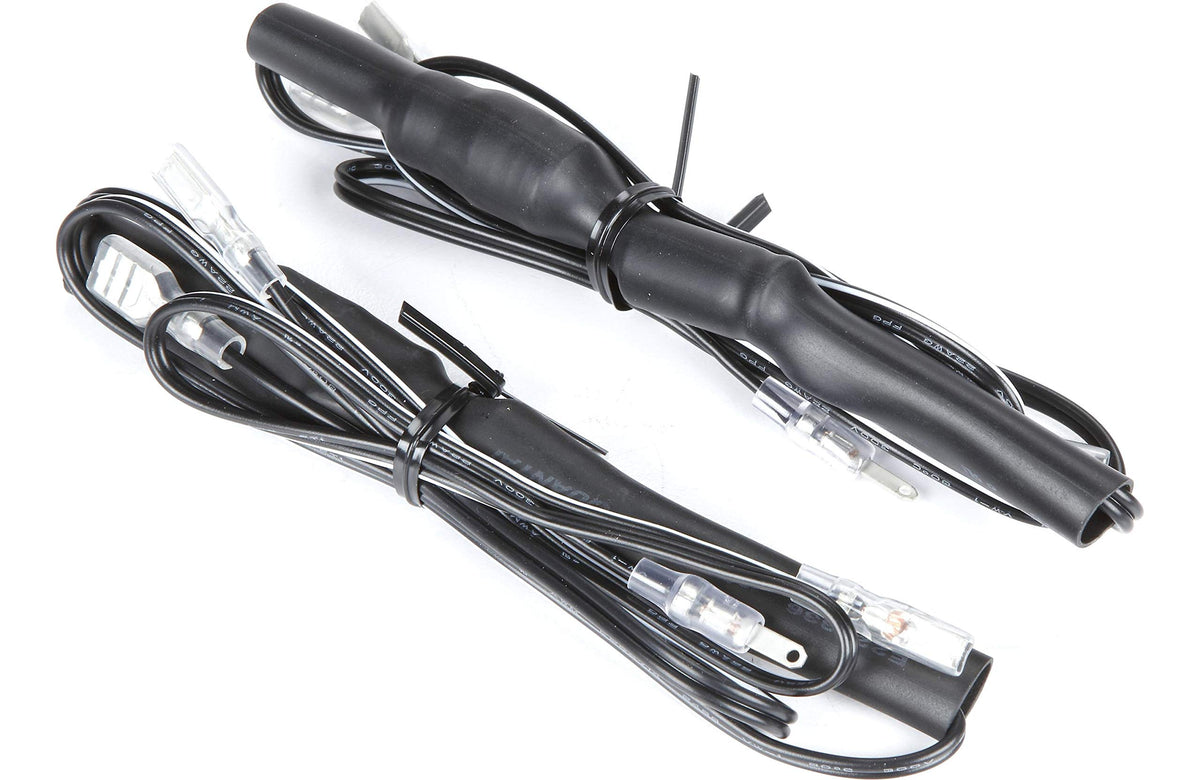

• Passive In-Line Networks: Included crossover networks direct the appropriate frequency range to each driver.

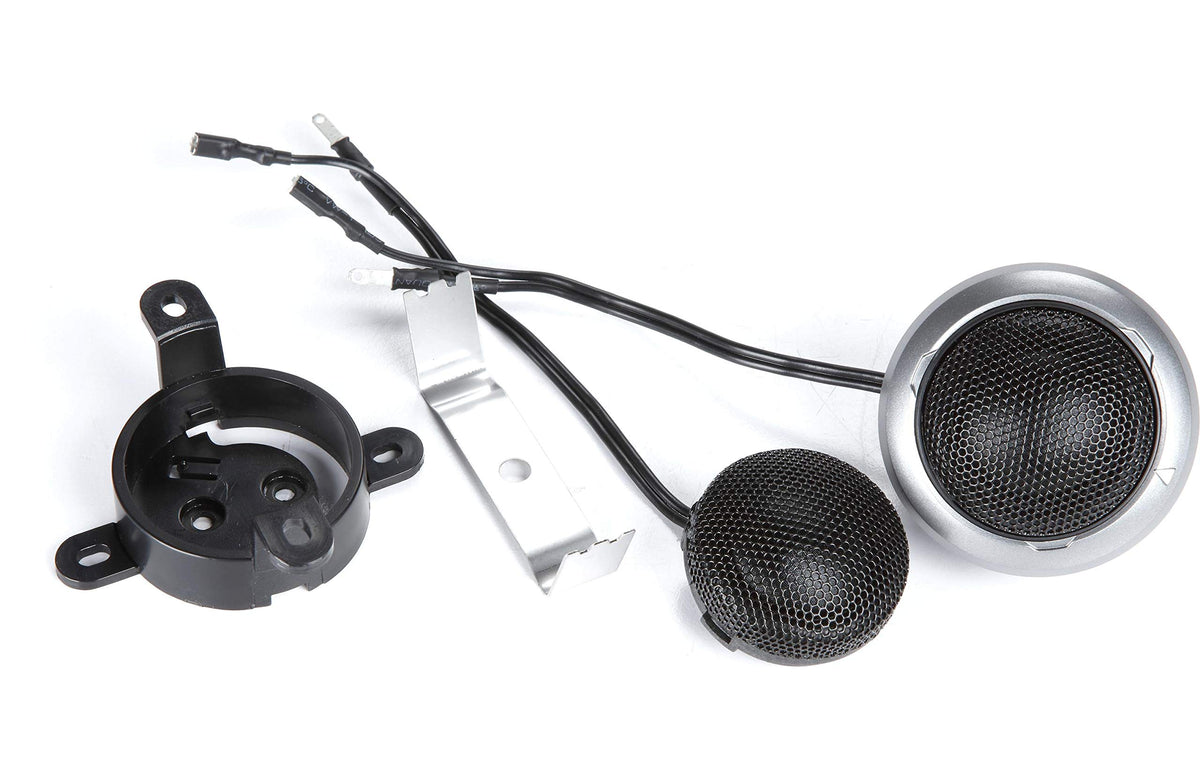

• Multiple Tweeter Mounts: Flush, free, and GM mounting accessories provide installation options.

Design & Installation

The KFC-P710PS combines an injection polypropylene woofer cone, rubber surround, black steel basket, and ferrite woofer magnet. Its 1-inch soft-dome tweeter uses a neodymium magnet. The woofer has an oversized 160 mm frame size, while the included grilles provide a finished appearance where exposed mounting is appropriate.

Confirm the 4-15/16-inch cutout diameter, 2-3/16-inch mounting depth, and clearance behind the mounting surface before installation. Speaker wire is not supplied; Kenwood recommends 12-22 AWG speaker wire terminated with female spade connectors. Connect the woofer and tweeter through the supplied passive crossover network, and use the included mounting hardware and tweeter brackets as appropriate for the vehicle.
