JVC CS-DR6931 6x9" 3-Way Coaxial Car Speakers

The JVC CS-DR6931 is a pair of 6 x 9-inch, 3-way coaxial car speakers designed to replace factory-installed speakers with a direct-fit style upgrade. Their shallow-profile design and low-height tweeter assembly help address clearance concerns that can arise behind factory grilles and interior panels. They are a practical choice for drivers seeking clearer, fuller sound from a factory radio or a compatible external amplifier.

Each speaker is rated for 70 watts RMS at 4 ohms, with 500 watts peak power handling. The 58 Hz to 21 kHz frequency response covers bass, midrange, and treble content for a broad full-range presentation. With 88 dB sensitivity, the pair can work with many standard car-audio systems while also leaving room for amplification in an upgraded system.

The CS-DR6931 uses a carbon mica woofer cone intended to balance low moving mass with rigidity. This construction helps the woofer respond to musical detail while maintaining a controlled foundation for lower frequencies. A hybrid rubber-and-cloth surround supports cone movement and is designed for the demands of an automotive environment.

A 2-5/8-inch PEI cone midrange and 19/32-inch PEI dome tweeter handle upper-frequency duties within the coaxial assembly. This 3-way layout places multiple drivers in each 6 x 9-inch location, making it suitable where separate component-speaker installation is not preferred. The small tweeter cover is designed to minimize interference with the woofer cone.

These speakers can be used as a straightforward pair replacement or as part of a larger car-audio refresh with an aftermarket receiver, amplifier, and subwoofer. Their 3-1/8-inch mounting depth should be checked against available vehicle depth before installation. Grilles, speaker wire leads, mounting screws, and speed clips are included for installation flexibility.

Key Features

• 6 x 9-Inch 3-Way Design: Combines woofer, midrange, and tweeter drivers in each speaker.
• 70W RMS Power Handling: Supports appropriately matched factory radios or amplifiers.
• Carbon Mica Woofer Cone: Provides a lightweight, rigid diaphragm for responsive sound.
• Hybrid Woofer Surround: Rubber-coated cloth supports efficient cone movement and durability.
• PEI Midrange And Tweeter: Handles midrange and high-frequency detail within the coaxial design.
• Low-Profile Tweeter Assembly: Helps improve fitment behind many factory speaker grilles.

Design & Installation

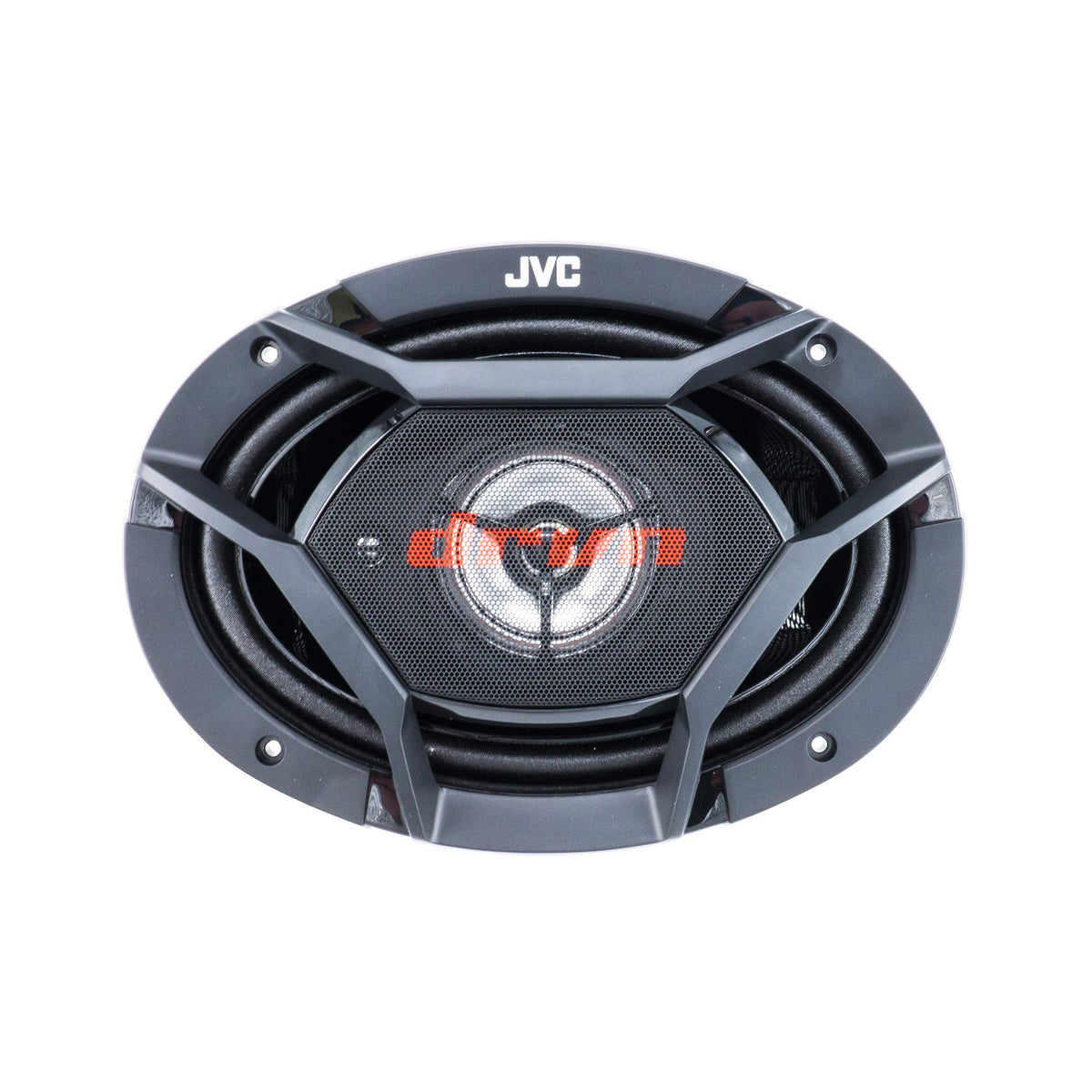

The CS-DR6931 pairs a ferrite-magnet carbon mica woofer with a hybrid rubber-and-cloth surround. Its 2-5/8-inch cone midrange uses a ferrite magnet, while the 19/32-inch dome tweeter uses a Poly-Ether Imide diaphragm. The included grilles provide added driver protection when the factory installation does not retain an existing grille.

Confirm the vehicle's 6 x 9-inch opening, mounting depth, cutout dimensions, and panel clearance before purchase. The speakers use a 4-ohm load and should be connected with correct positive and negative polarity; vehicle-specific speaker adapters or mounting brackets may be needed depending on the vehicle. For amplified systems, match the amplifier's RMS output per channel to the speaker's 70-watt RMS rating and use appropriate gain adjustment.
