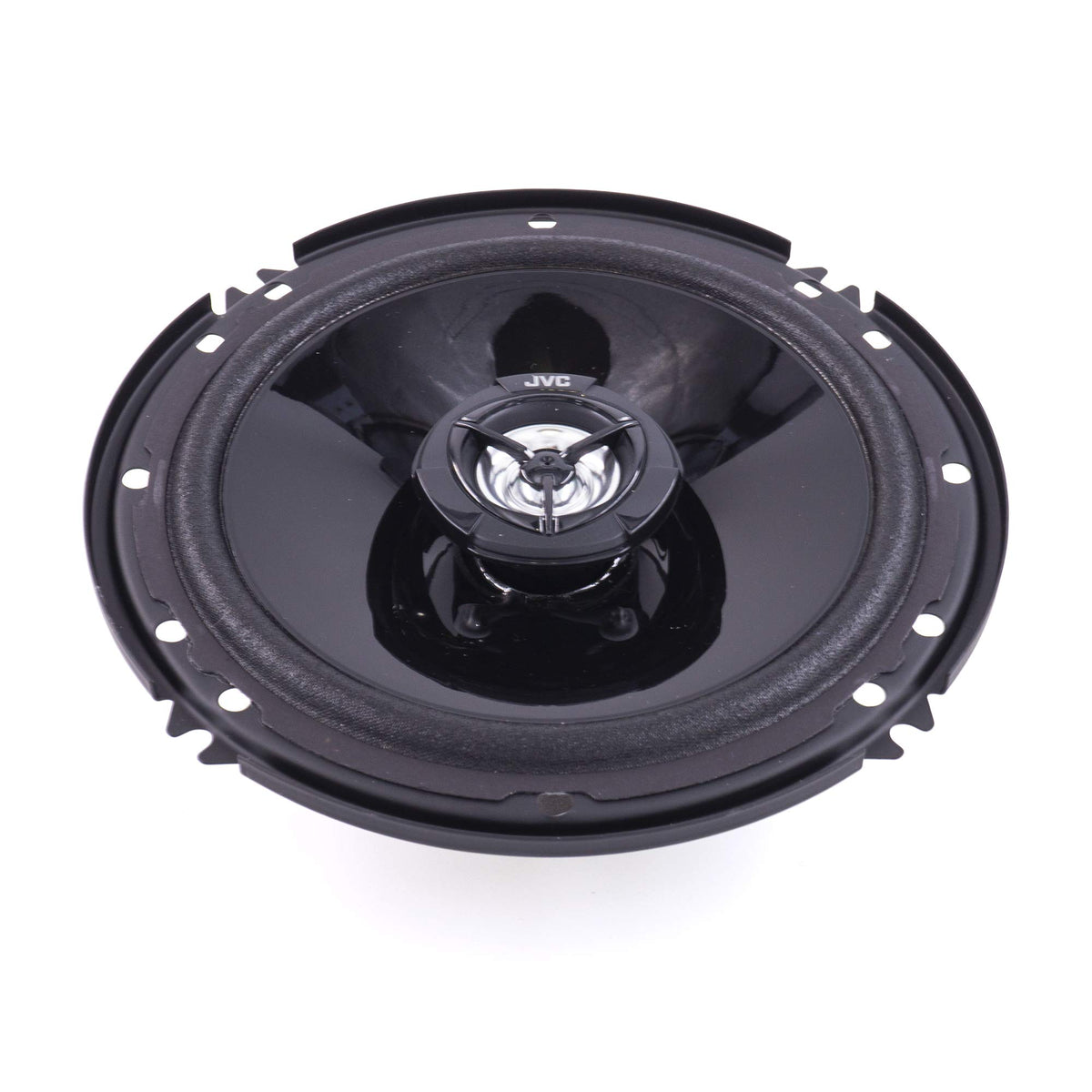

JVC CS-DR621 6.5" 2-Way Coaxial Car Speakers

The JVC CS-DR621 is a pair of 6.5-inch, 2-way coaxial car speakers designed to replace compatible factory door or rear-deck speakers. It provides a straightforward upgrade path for vehicles whose original speakers have become worn, damaged, or lacking in clarity. Its 4-ohm design is suited for connection to compatible car stereo or amplifier speaker outputs.

Each speaker is rated for 50 watts RMS power handling and 300 watts peak power handling. The 85 Hz to 23.8 kHz frequency response focuses on everyday full-range playback, covering midrange detail and high-frequency content while leaving the deepest bass to a subwoofer if one is part of the system. With 89 dB sensitivity, the CS-DR621 is intended for practical use in common vehicle audio installations.

A carbon mica woofer cone forms the foundation of the CS-DR621's sound reproduction. JVC pairs it with a hybrid surround made from rubber and cloth, balancing the flexibility needed for cone movement with a durable construction. This design supports responsive playback in the changing temperature and vibration conditions found in vehicles.

The integrated 1-inch balanced-dome tweeter uses a poly-ether imide diaphragm and a neodymium magnet. Its coaxial placement keeps the woofer and tweeter together in one speaker assembly, which can simplify a factory-speaker replacement. A compact tweeter cover is designed to reduce interference with the woofer cone.

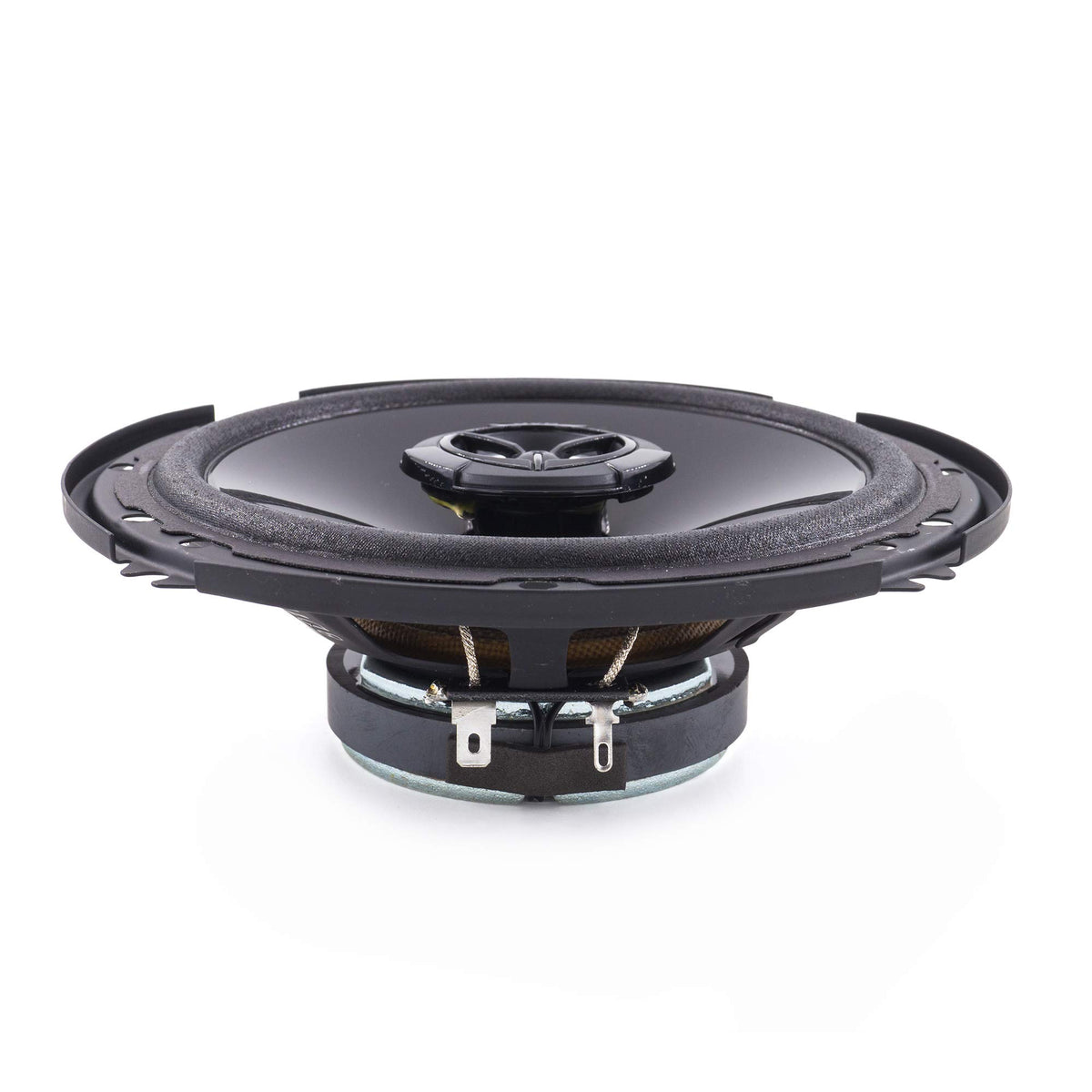

The CS-DR621 is part of JVC's DR Series and uses a shallow 1.75-inch mounting depth. That depth can help where door-panel clearance is limited, although vehicle-specific fitment should always be checked before purchase. It can be used as a direct replacement pair or as one stage of a larger system with an amplifier and subwoofer.

Key Features

• 6.5-Inch Coaxial Design: Combines woofer and tweeter in each speaker.
• 50W RMS Handling: Supports moderate continuous power from compatible audio systems.
• Carbon Mica Woofer: Lightweight, rigid cone material supports responsive playback.
• Hybrid Surround: Rubber-and-cloth surround supports cone movement and durability.
• 1-Inch PEI Tweeter: Balanced-dome tweeter handles upper-frequency detail.
• Shallow Mounting Depth: 44 mm depth helps with tighter mounting locations.

Design & Installation

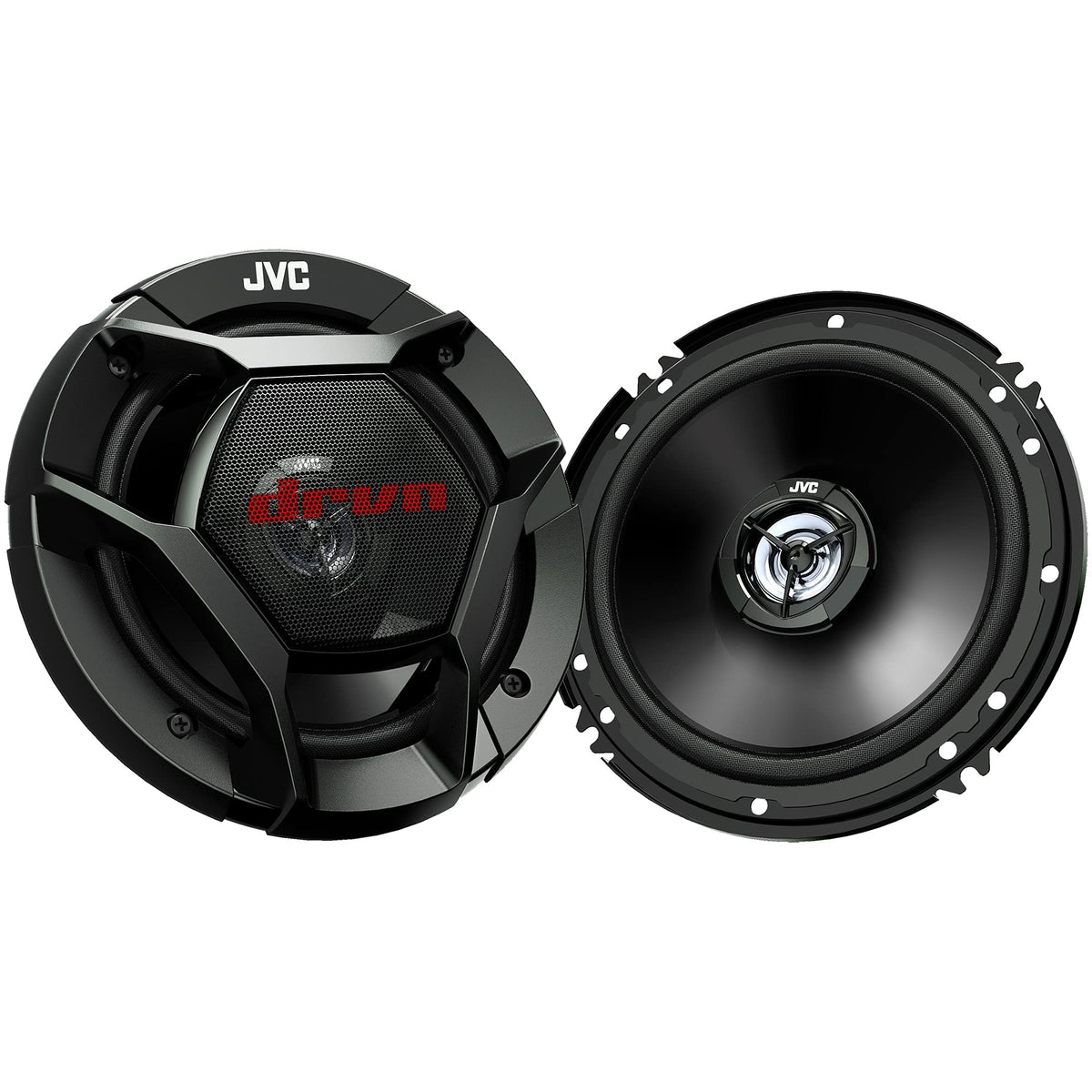

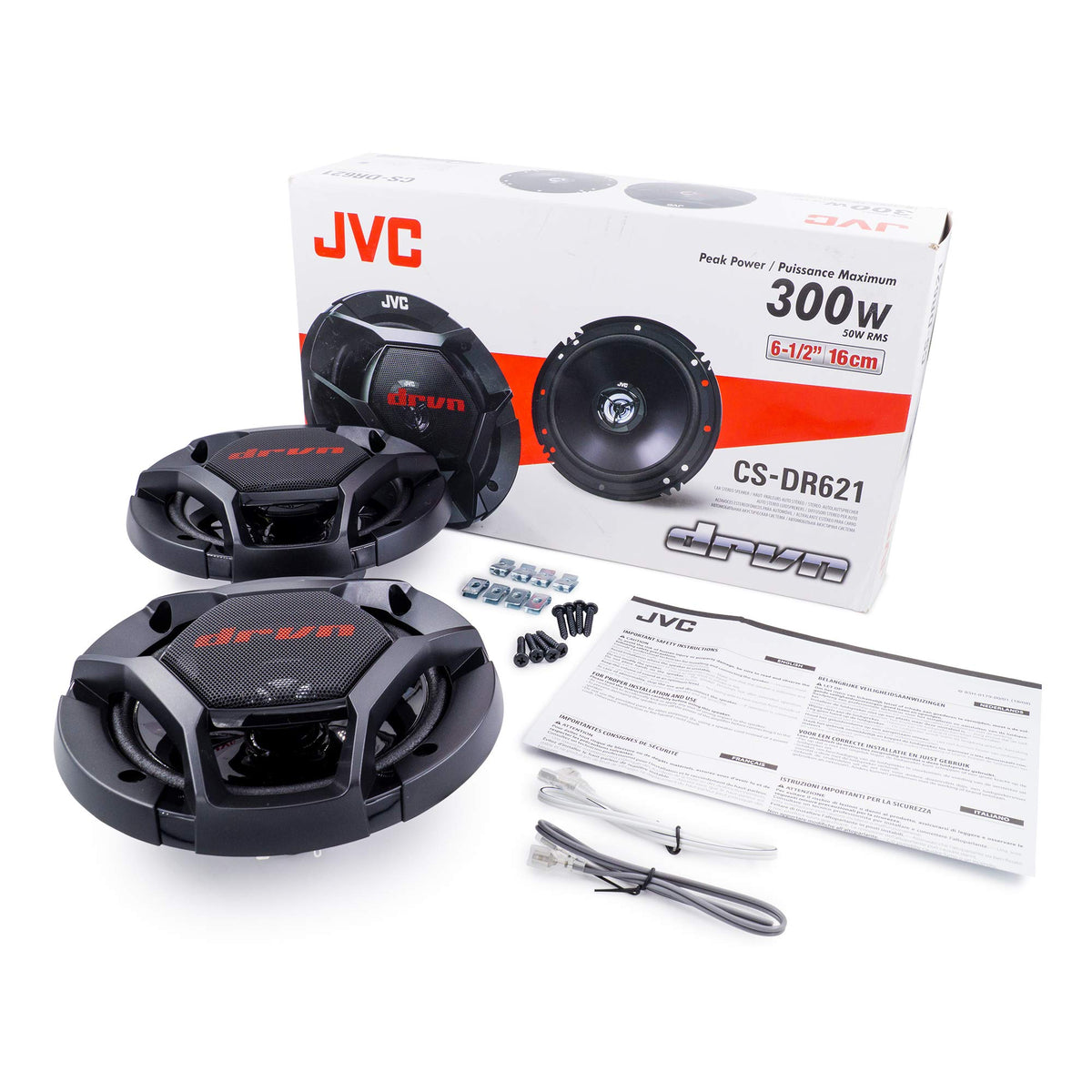

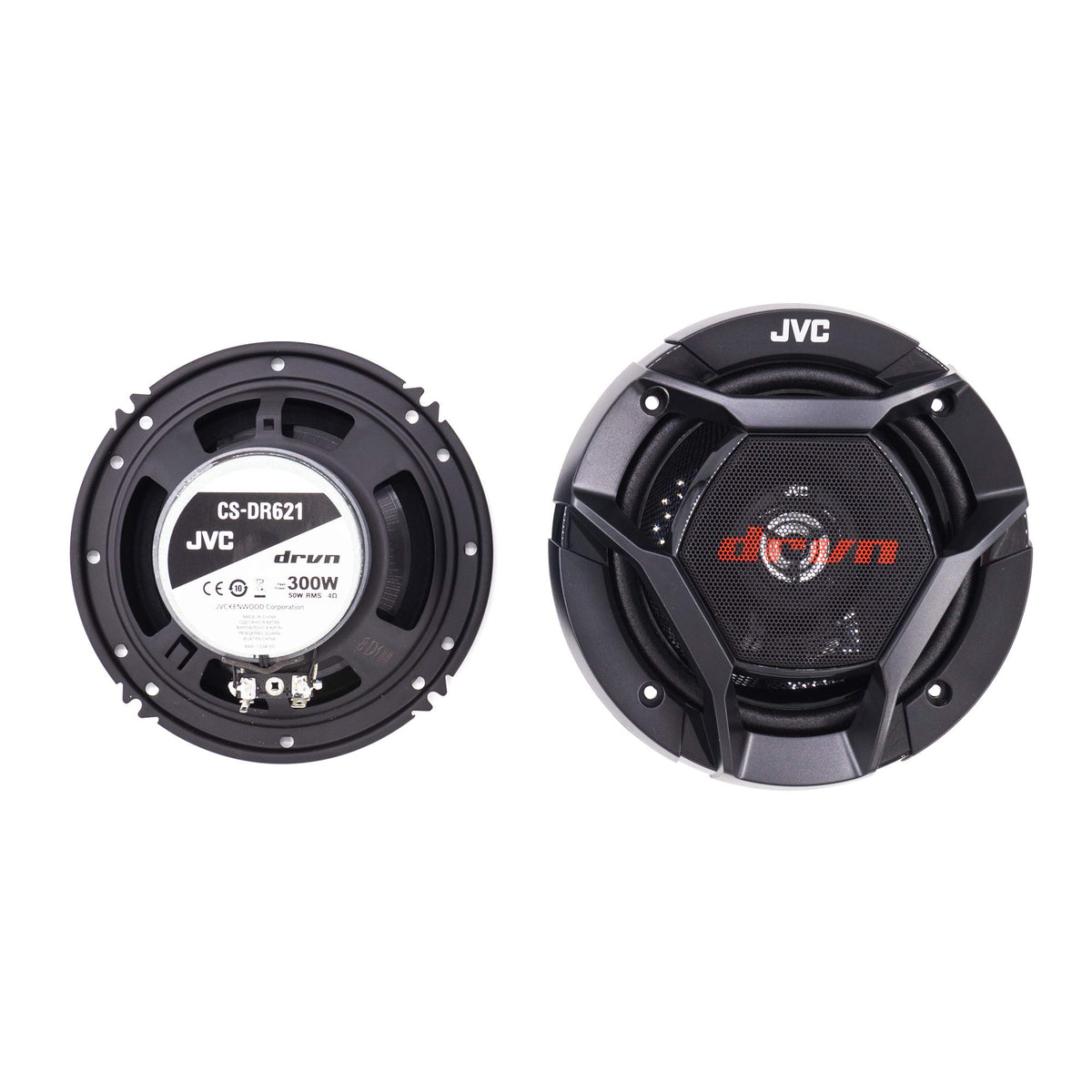

The CS-DR621 uses a ferrite woofer magnet, carbon mica cone, hybrid rubber-and-cloth surround, and neodymium-magnet PEI balanced-dome tweeter. JVC also uses a wide-opening grille design, with an opening ratio stated as 30% wider than its conventional model. The pair includes protective grilles and mounting hardware as illustrated in the instruction manual.

Confirm the vehicle's speaker opening, mounting depth, mounting-hole pattern, and factory connector before installation. JVC specifies a 44 mm (1.75-inch) mounting depth; adapter brackets or wiring harnesses may be necessary depending on the vehicle. Connect each speaker to a compatible 4-ohm channel, observe positive and negative polarity, and turn off amplifier power before making connections.
