JVC CS-DR6201MW 6.5" 2-Way Marine Speakers

The JVC CS-DR6201MW is a white 6.5-inch, 2-way coaxial marine speaker pair designed for boats, watercraft, and other exposed vehicle installations. It provides a practical replacement or upgrade for worn factory speakers where moisture and sunlight are everyday concerns. The pair combines dedicated woofers and tweeters in each speaker for full-range playback from a compact round mounting format.

Each speaker handles up to 50 watts RMS at 4 ohms, with a 150-watt peak rating. Its 60 Hz to 18.4 kHz frequency response supports clear midrange and high-frequency detail while covering useful upper-bass range. With 87 dB sound pressure level sensitivity, the speakers can be matched with compatible marine receivers or external amplification.

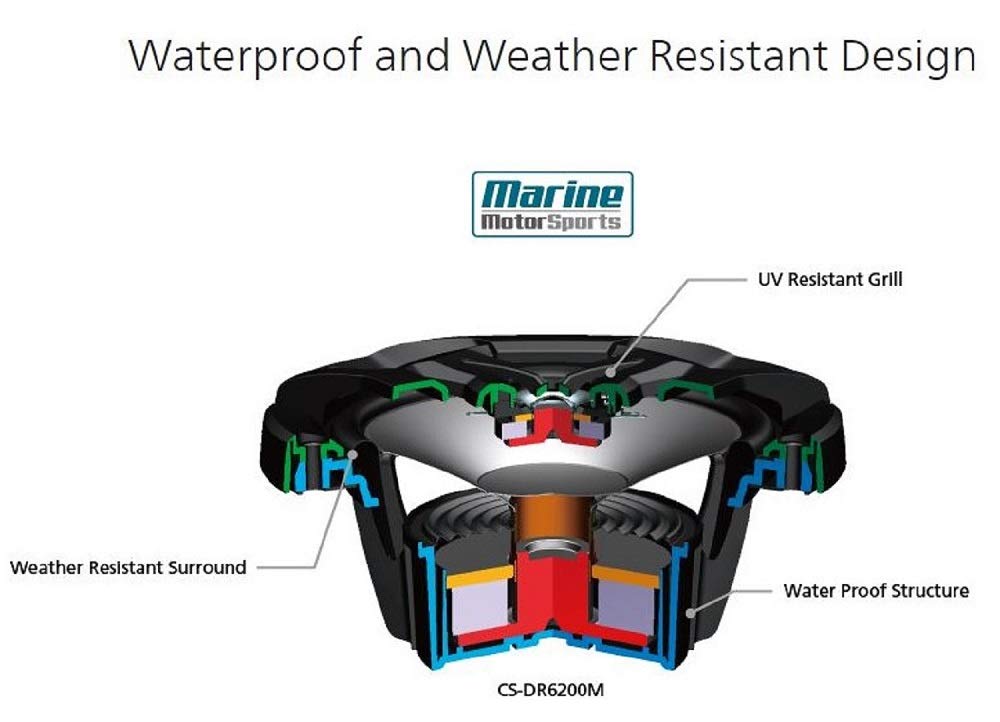

A water-resistant polypropylene woofer cone and thermoplastic elastomer surround are used to support operation in demanding outdoor environments. The balanced-dome tweeter uses a Poly-Ether Imide diaphragm for high-frequency reproduction. Ferrite magnets are used for both the woofer and tweeter assemblies.

The CS-DR6201MW uses UV-resistant white grilles, composite speaker baskets, and stainless-steel hardware. Its wide-opening grille design minimizes obstruction in front of the driver. These details make the speaker suited to installations where appearance and environmental durability both matter.

This pair is intended for standard 6.5-inch speaker locations when the mounting depth and cutout dimensions are appropriate. It works well as part of a marine stereo upgrade using a compatible 4-ohm amplifier or receiver. For larger systems, additional matched pairs can be installed in separate listening zones where the electrical system and amplifier capacity permit.

Key Features

• Marine-Oriented Construction: Water-resistant woofer cones and UV-resistant grilles suit exposed installations.
• 2-Way Coaxial Design: Woofer and balanced-dome tweeter are integrated in each speaker.
• 50W RMS Power Handling: Supports compatible marine receivers and amplifiers at 4 ohms.
• Polypropylene Woofer Cone: Provides a durable cone material for outdoor-use applications.
• PEI Balanced-Dome Tweeter: Helps reproduce upper-frequency detail in a compact assembly.
• White Wide-Opening Grille: Provides a marine-ready appearance with reduced grille obstruction.

Design & Installation

The CS-DR6201MW combines a waterproof polypropylene woofer cone with a thermoplastic elastomer surround, ferrite magnets, a composite basket, and a UV-resistant white grille. Stainless-steel hardware is specified for the speaker construction. Each speaker has a 6.5-inch woofer and a 1-inch balanced-dome tweeter.

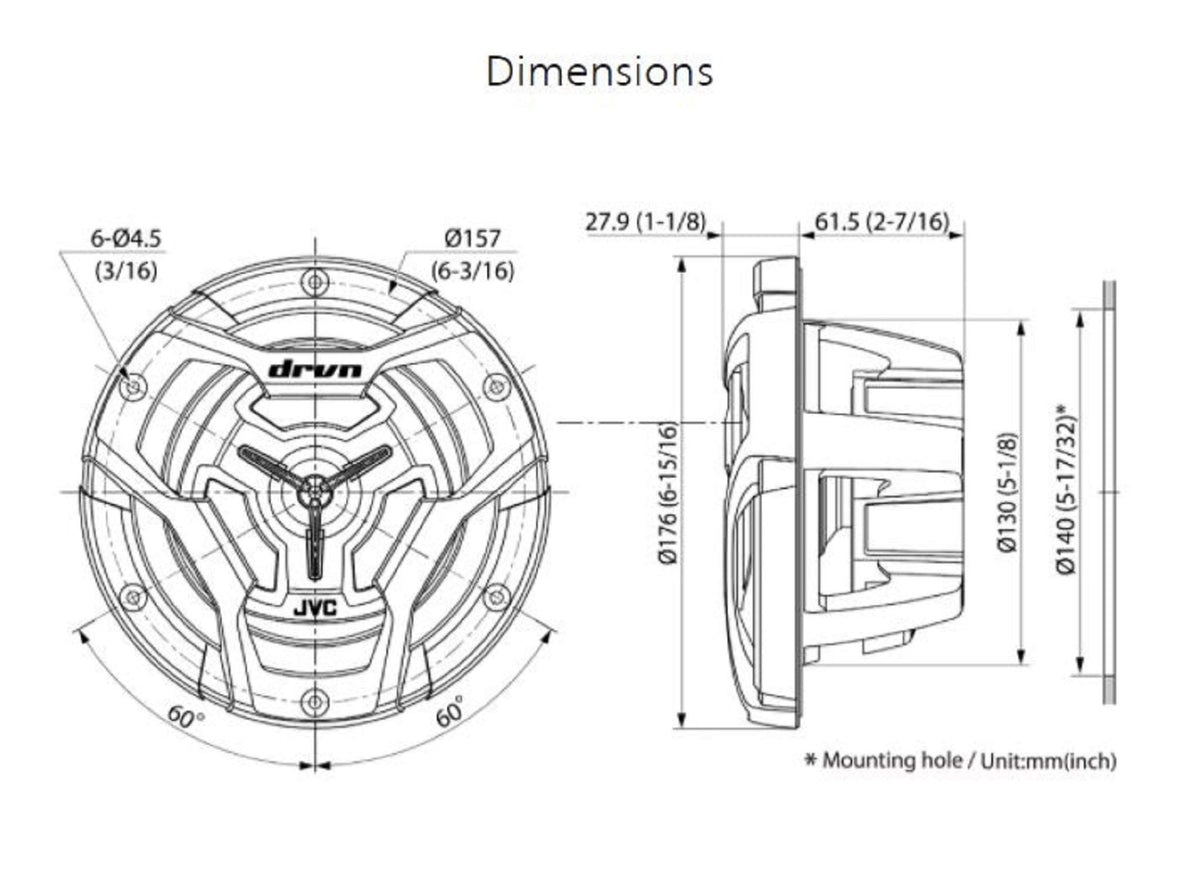

Confirm the available mounting depth before installation, as each speaker requires 61.5 mm (2-7/16 inches) of depth. A 5-1/8-inch cutout is listed by an authorized retailer, but the mounting surface should be measured before cutting. Connect each speaker to a compatible 4-ohm receiver or amplifier and observe the 50-watt RMS per-speaker power rating for sensible system matching.
