JVC CS-DR6200M 6.5" 2-Way Marine Coaxial Speakers

The JVC CS-DR6200M is a pair of 6.5-inch, 2-way coaxial marine speakers designed for boats and other exposed recreational installations. They provide a practical replacement or upgrade path where standard vehicle speakers may not suit wet, sunny, or changing outdoor conditions. Their 4-ohm design allows connection to many compatible marine receivers and amplifiers.

These speakers are intended for listeners who want full-range sound from a compact round speaker format without adding separate tweeters. The coaxial layout places a balanced-dome tweeter over each woofer, helping cover both midrange and high-frequency content from one mounting location. A 60 Hz to 18.4 kHz frequency response supports clear vocals, instruments, and upper-frequency detail.

JVC rates each speaker for 50 watts RMS and 150 watts peak power handling at 4 ohms. This makes the CS-DR6200M appropriate for systems powered by a compatible marine receiver or a modest external amplifier. Matching amplifier output to the 50-watt RMS rating helps support reliable operation.

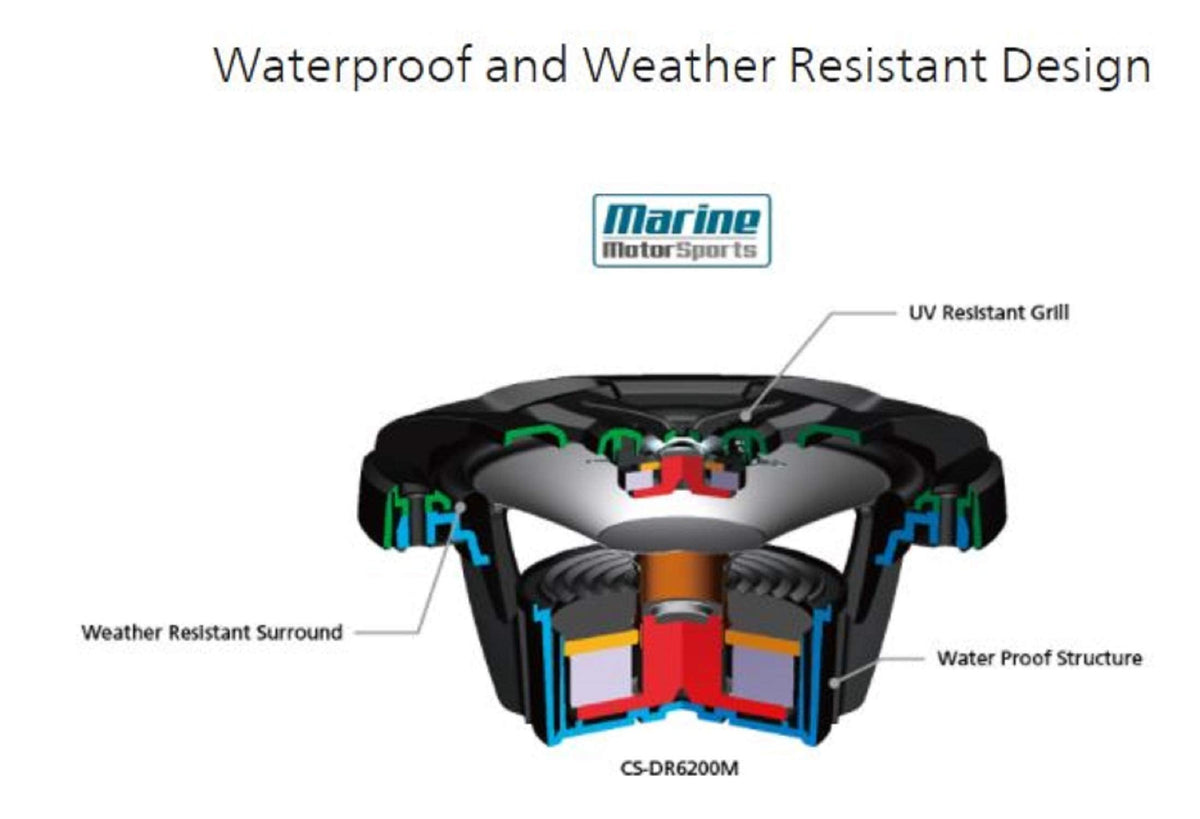

Durability-focused construction is central to the CS-DR6200M design. The woofers use waterproof polypropylene cones with thermoplastic-elastomer surrounds, while the grilles are UV resistant. Composite speaker baskets and stainless-steel hardware further support use in marine and motorsports environments.

The CS-DR6200M fits a straightforward full-range speaker upgrade system. Use a pair as primary speakers, or combine multiple pairs with a compatible marine receiver, amplifier, and subwoofer for broader coverage and bass extension. Its 6.5-inch format and 2-7/16-inch mounting depth should be checked against available panel clearance before installation.

Key Features

• 6.5-Inch Coaxial Design: Combines woofer and tweeter in each speaker for simple full-range installation.
• 50W RMS Power Handling: Supports pairing with compatible marine receivers or amplifiers.
• Waterproof PP Woofer Cone: Helps the woofer suit moisture-prone outdoor applications.
• UV-Resistant Grilles: Helps protect the speaker fronts in sun-exposed installations.
• 1-Inch PEI Balanced-Dome Tweeter: Handles upper-frequency reproduction within the coaxial assembly.
• Composite And Stainless Construction: Uses composite baskets and stainless-steel hardware for marine-oriented durability.

Design & Installation

The CS-DR6200M uses a black marine-oriented grille, composite basket, ferrite woofer and tweeter magnets, and stainless-steel hardware. Its waterproof polypropylene woofer cone and thermoplastic-elastomer surround are selected for use around moisture, while the UV-resistant grille is suited to exposed mounting locations. The wide-opening grille design minimizes obstruction in front of the speaker.

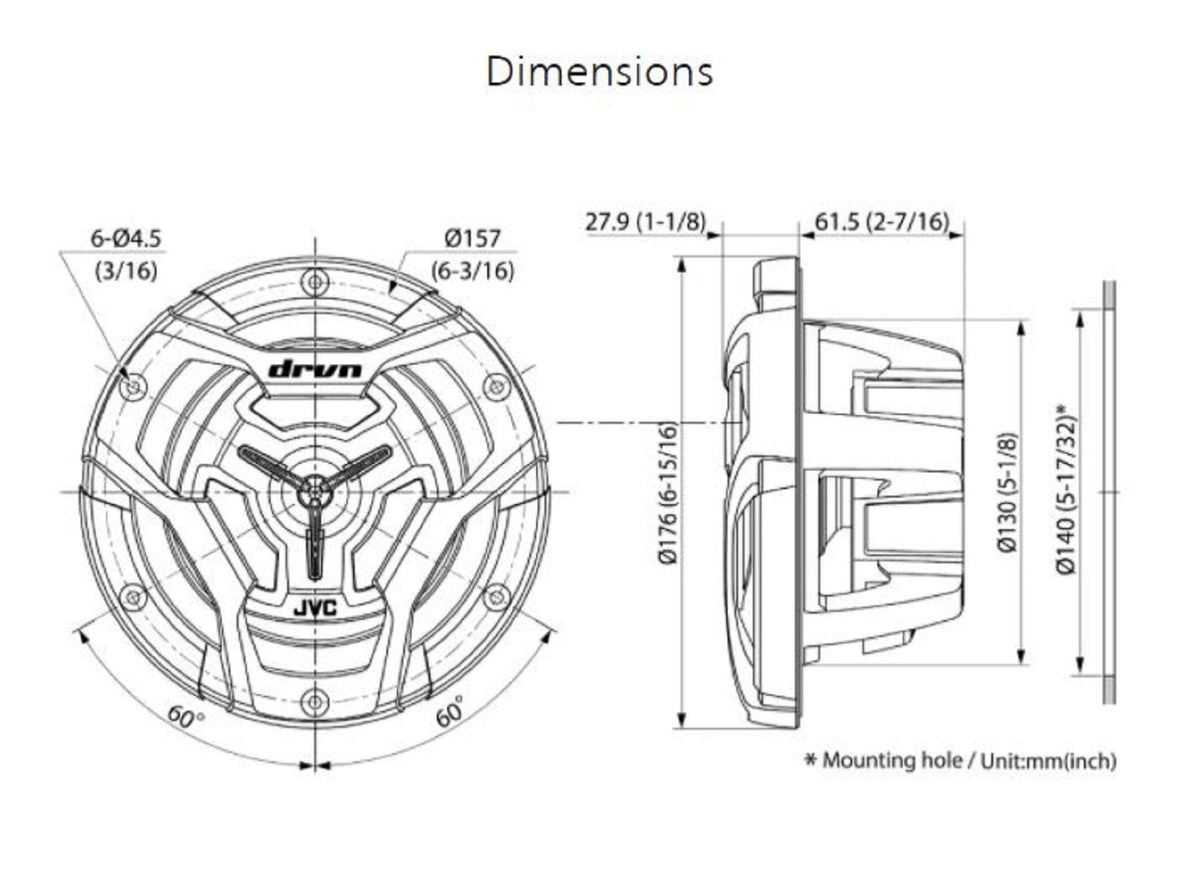

Verify that the mounting location accepts a 6.5-inch speaker and provides at least 2-7/16 inches of mounting depth; a 5-1/8-inch cutout is listed by a retailer. Connect each speaker to a compatible 4-ohm channel and size the amplifier around the 50-watt RMS rating per speaker rather than peak power. For best results, mount the pair in solid panels, use marine-appropriate wiring practices, and confirm clearance for the grille and rear basket before cutting.
