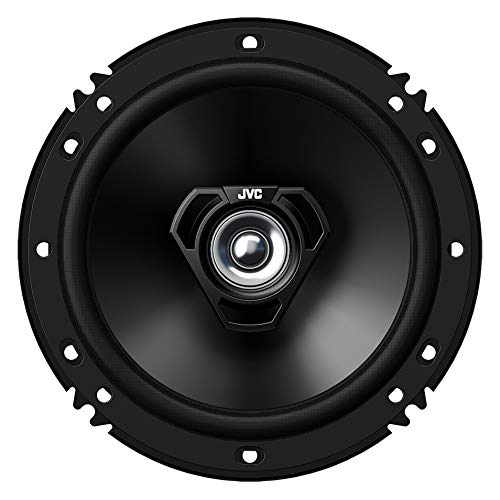

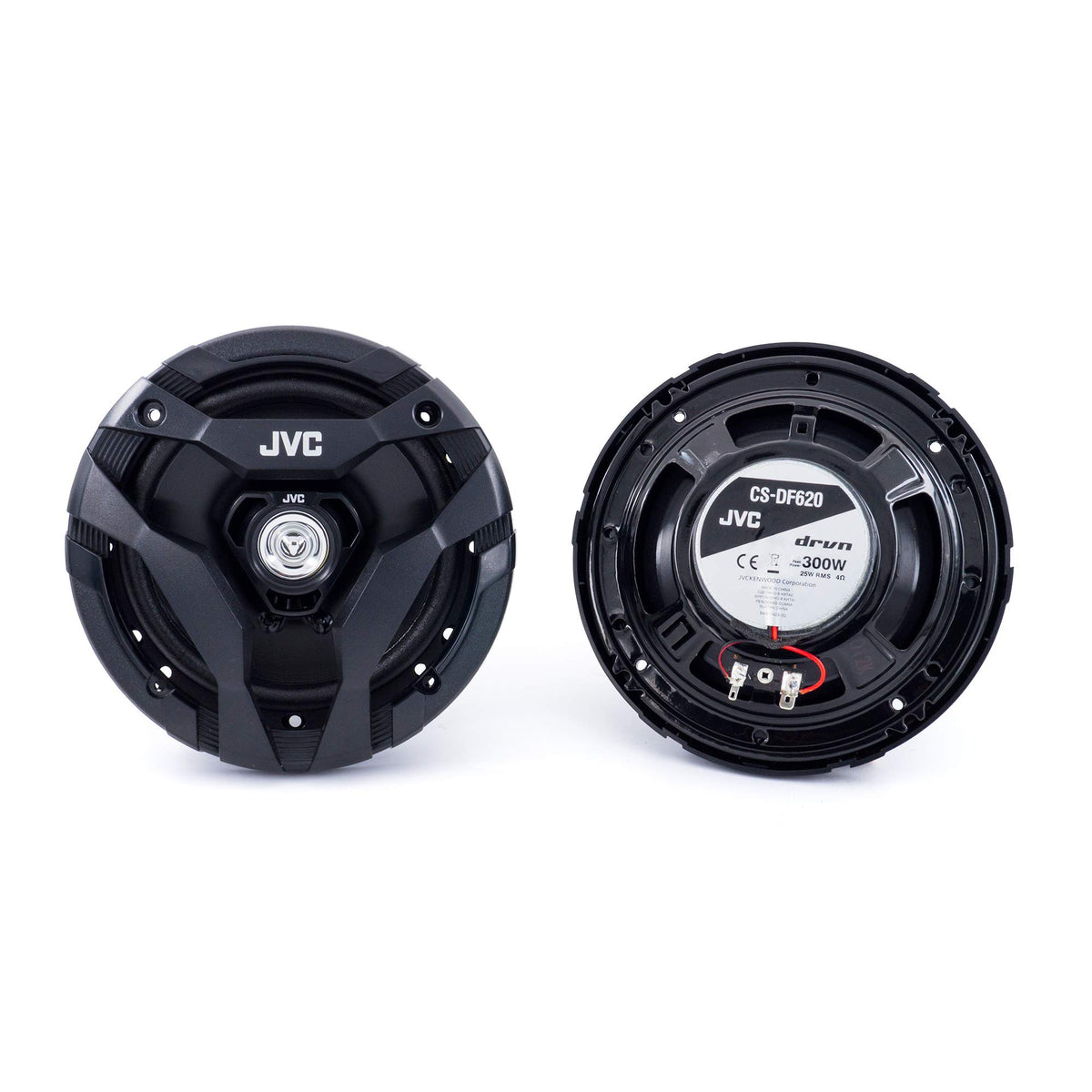

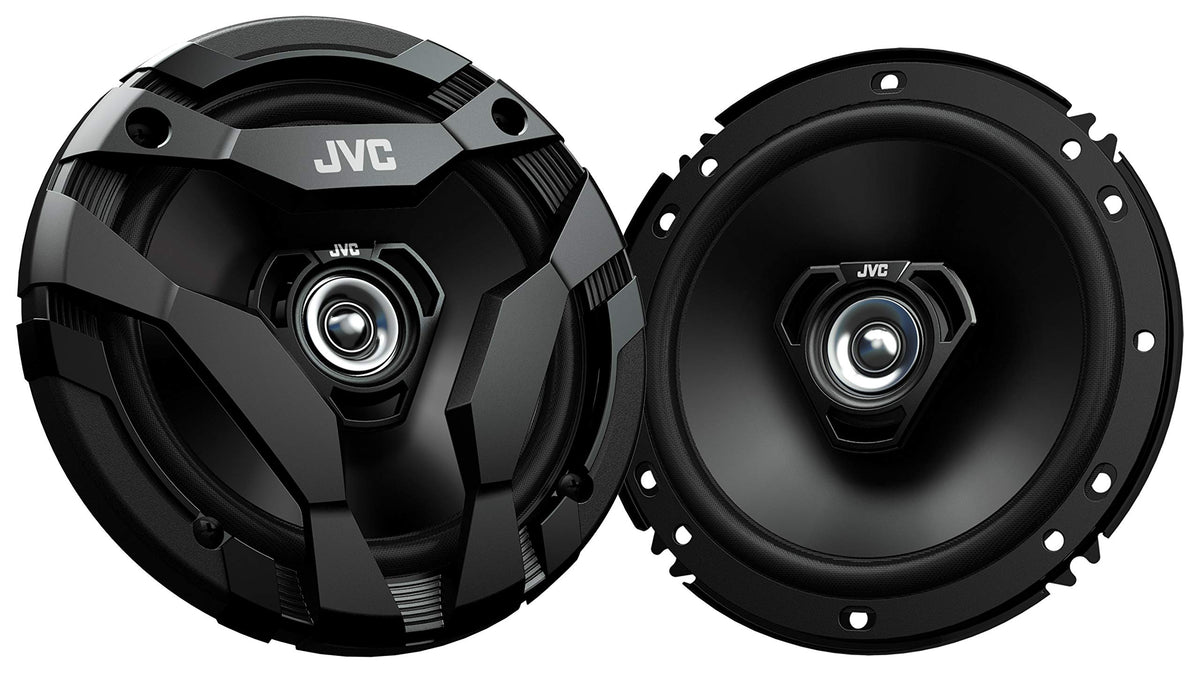

JVC CS-DF620 6.5" 2-Way Coaxial Car Speakers

The JVC CS-DF620 is a pair of 6.5-inch, 2-way coaxial car speakers designed as a practical replacement for worn or basic factory speakers. Each speaker combines a woofer and tweeter in one assembly, helping simplify an upgrade where space and installation depth are limited. Their 4-ohm design is appropriate for common car-audio speaker circuits.

These speakers are suited to drivers who want a straightforward front- or rear-speaker refresh while retaining a factory radio or using a modest aftermarket amplifier. JVC rates each speaker at 25 watts RMS and 300 watts peak power. The 86 dB sound pressure level and shallow 46 mm mounting depth support use in many conventional speaker locations, subject to vehicle-specific fitment checks.

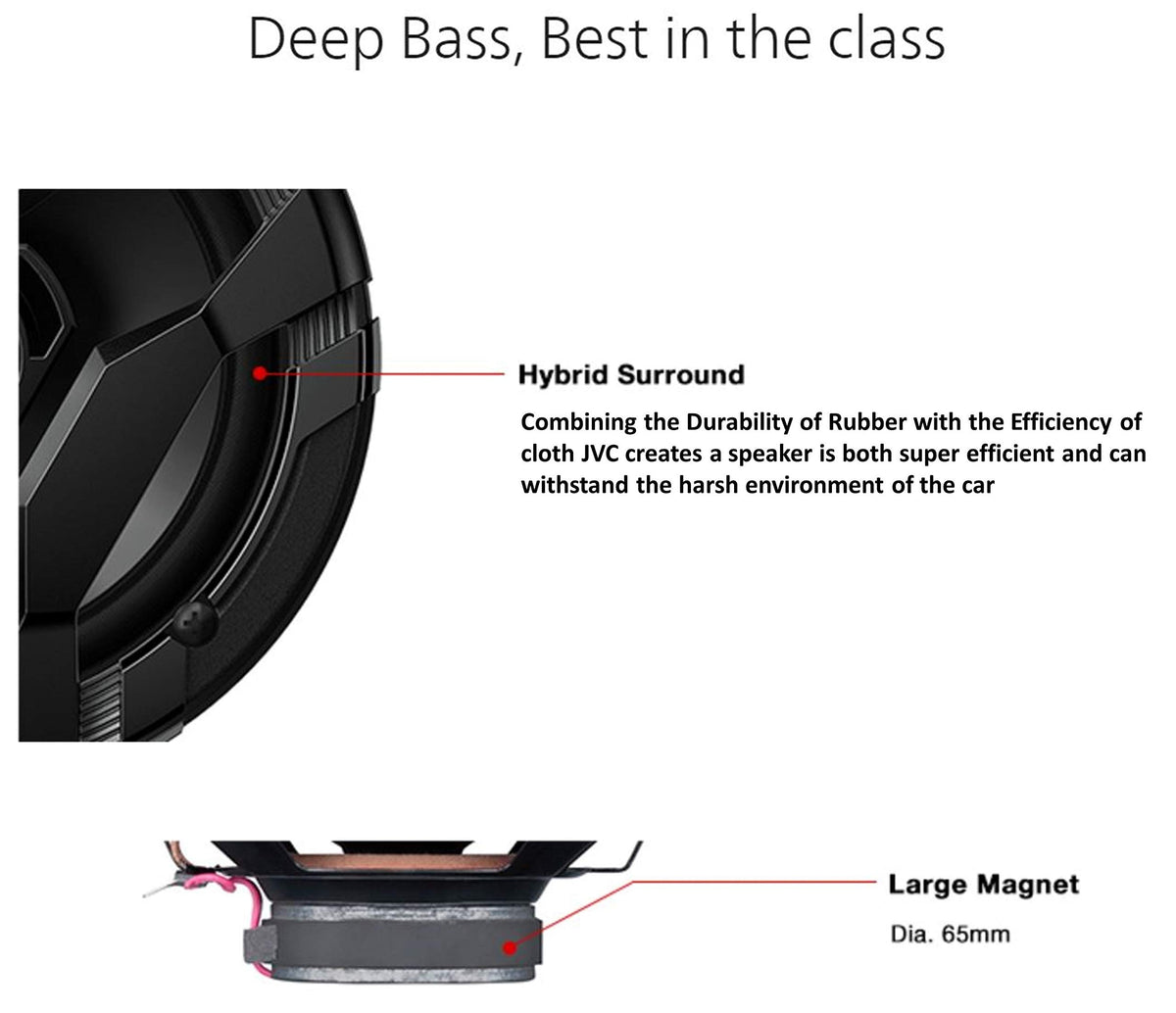

The CS-DF620 uses a polypropylene injection-molded woofer cone paired with JVC's Hybrid Surround, which combines rubber and cloth materials. This construction is intended to support cone movement while providing a durable surround for the automotive environment. A ferrite woofer magnet completes the driver assembly.

A 1-inch balanced-dome tweeter handles the upper-frequency range in the coaxial design. Its zero-protrusion layout helps reduce the chance of contact with many factory speaker grilles. The stated frequency response is 70 Hz to 19 kHz, providing full-range coverage for a basic car-audio system.

For a balanced upgrade, pair the CS-DF620 with a compatible 4-ohm head unit or amplifier and verify both mounting depth and cutout dimensions before installation. The package includes speaker grilles, wiring, screws, and mounting clips for the speakers themselves. Vehicle-specific adapter brackets, harness adapters, and other installation parts may still be needed depending on the vehicle.

Key Features

• 6.5-Inch Coaxial Design: Combines woofer and tweeter in each speaker for a compact full-range replacement.
• 25W RMS Power Handling: Supports moderate-power factory-radio and amplifier installations.
• 300W Peak Power: Rated for short-duration peak handling per speaker.
• Hybrid Surround: Rubber-and-cloth surround supports cone movement and durability.
• Balanced-Dome Tweeter: A 1-inch tweeter reproduces high-frequency detail without a protruding profile.
• Shallow 46 mm Depth: Helps accommodate installations with limited door or panel clearance.

Design & Installation

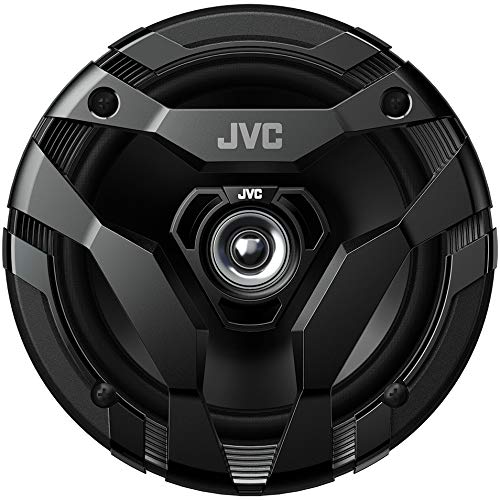

The CS-DF620 uses a polypropylene injection cone, ferrite woofer magnet, and Hybrid Surround made from rubber and cloth. Its black coaxial layout incorporates a 1-inch balanced-dome tweeter with zero protrusion, helping it sit behind many factory-style grilles. Protective grilles are included for installations where the speakers are exposed.

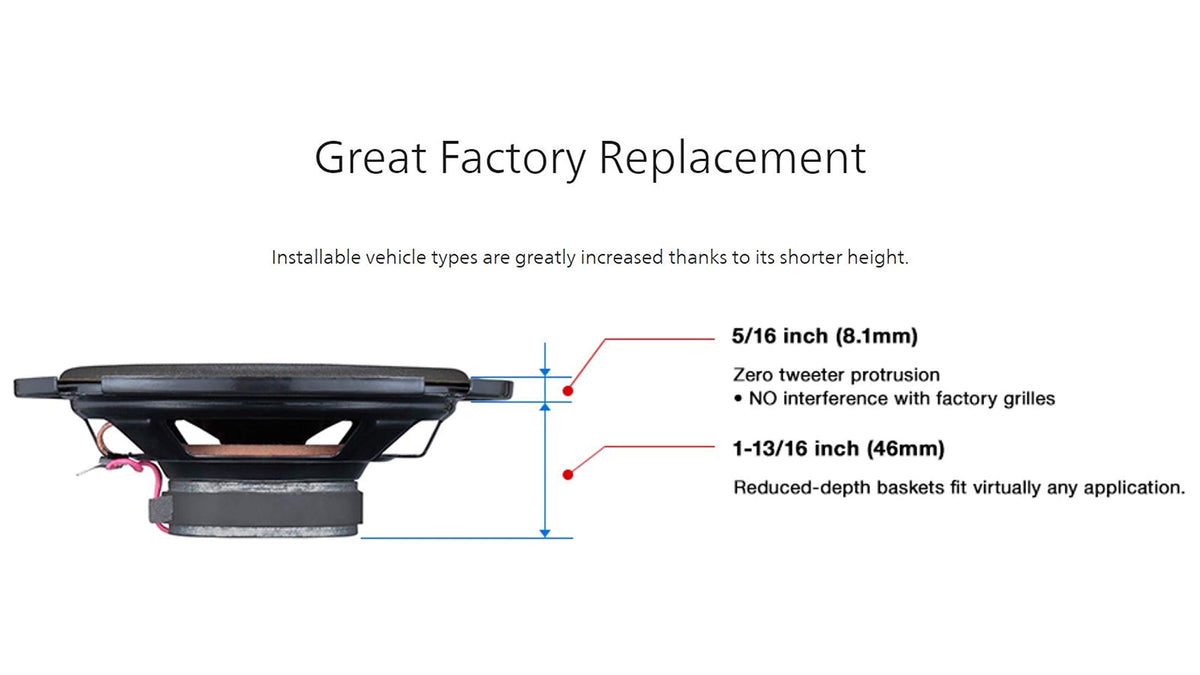

Confirm that the vehicle accepts a 6.5-inch speaker and has at least 46 mm (1-13/16 inch) of mounting depth before purchase. The included hardware consists of two grilles, two 12-inch speaker-wire lengths, eight 1-inch screws, and eight speed clips. Use the supplied wire or appropriate vehicle-specific adapters, observe speaker polarity, and match the speakers to a compatible 4-ohm source.
