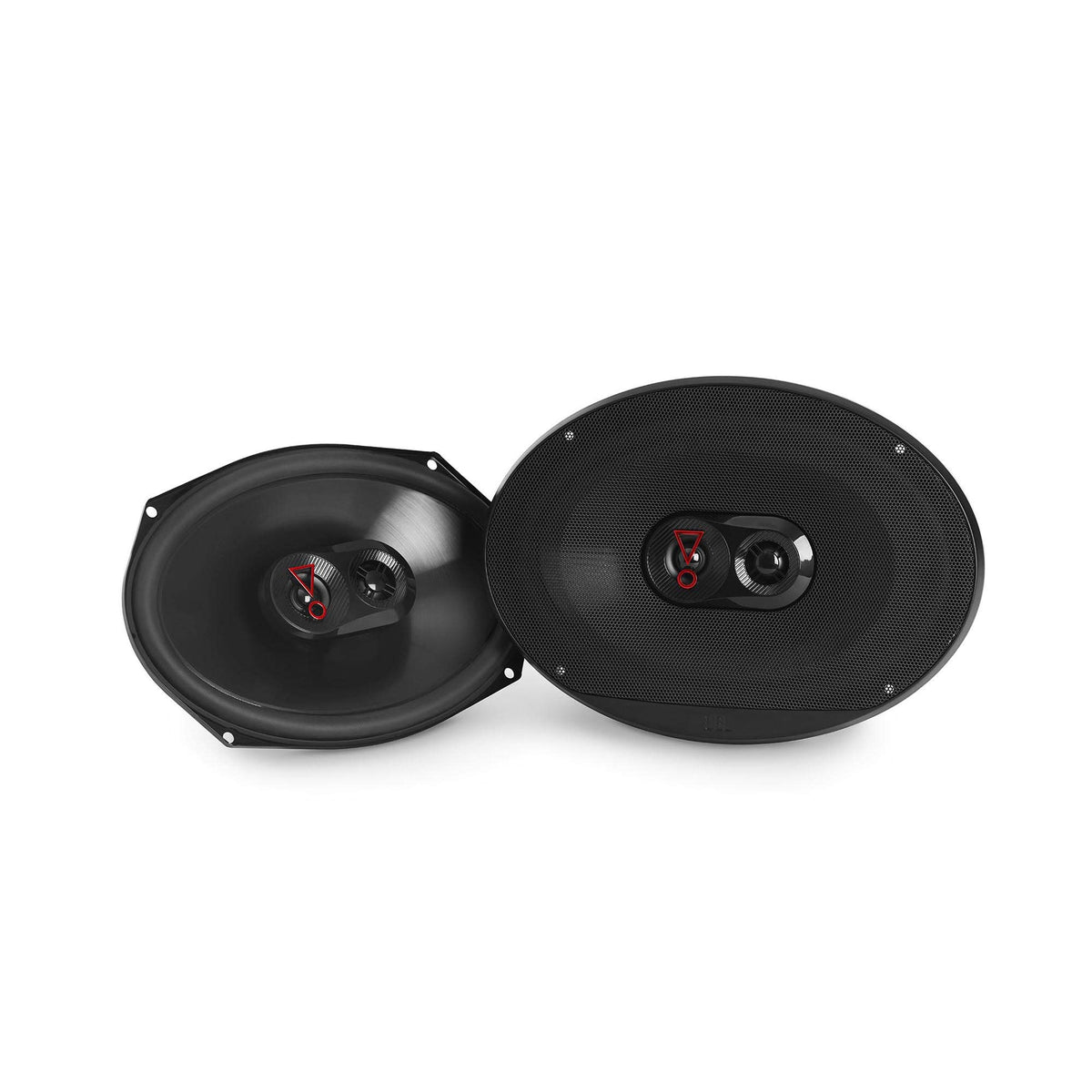

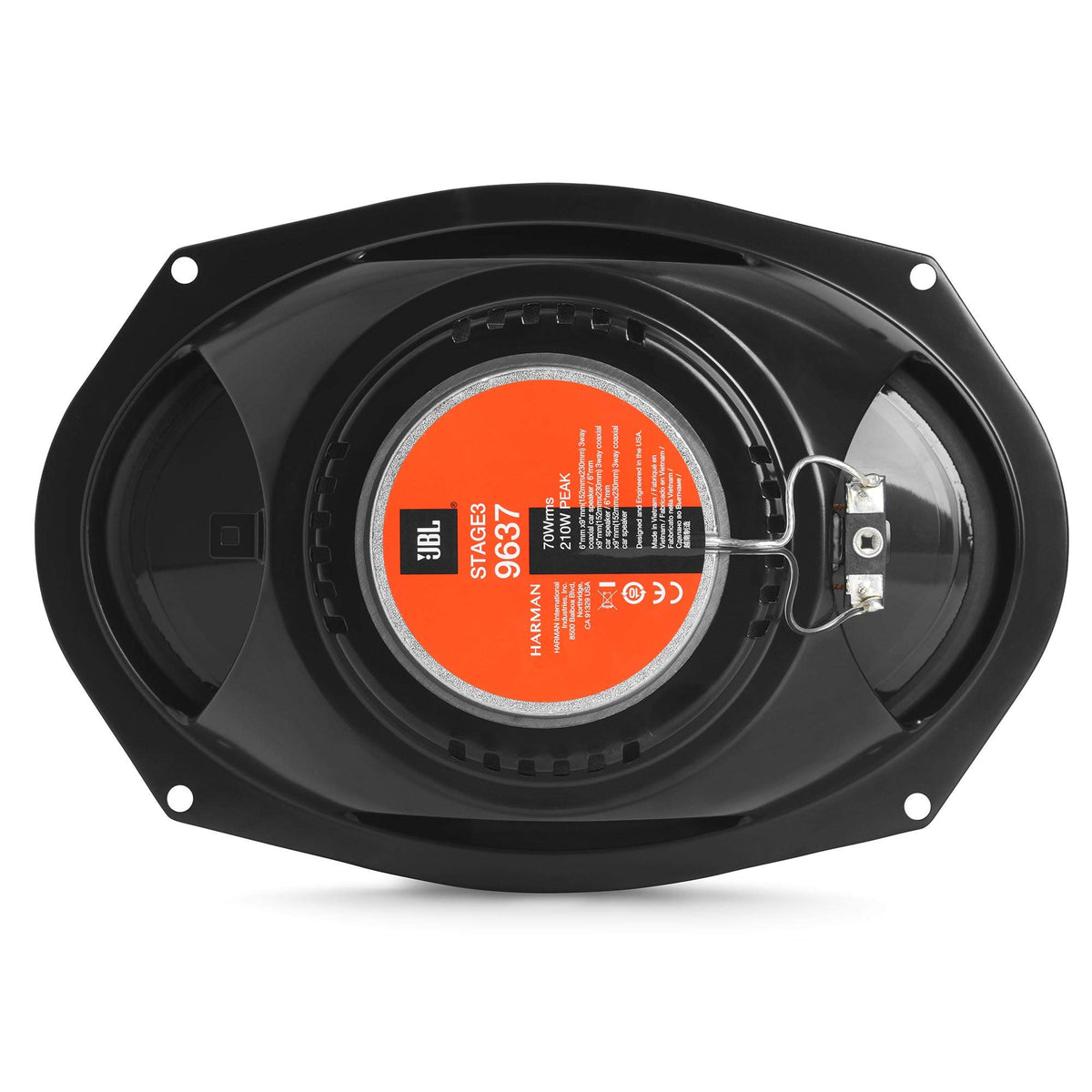

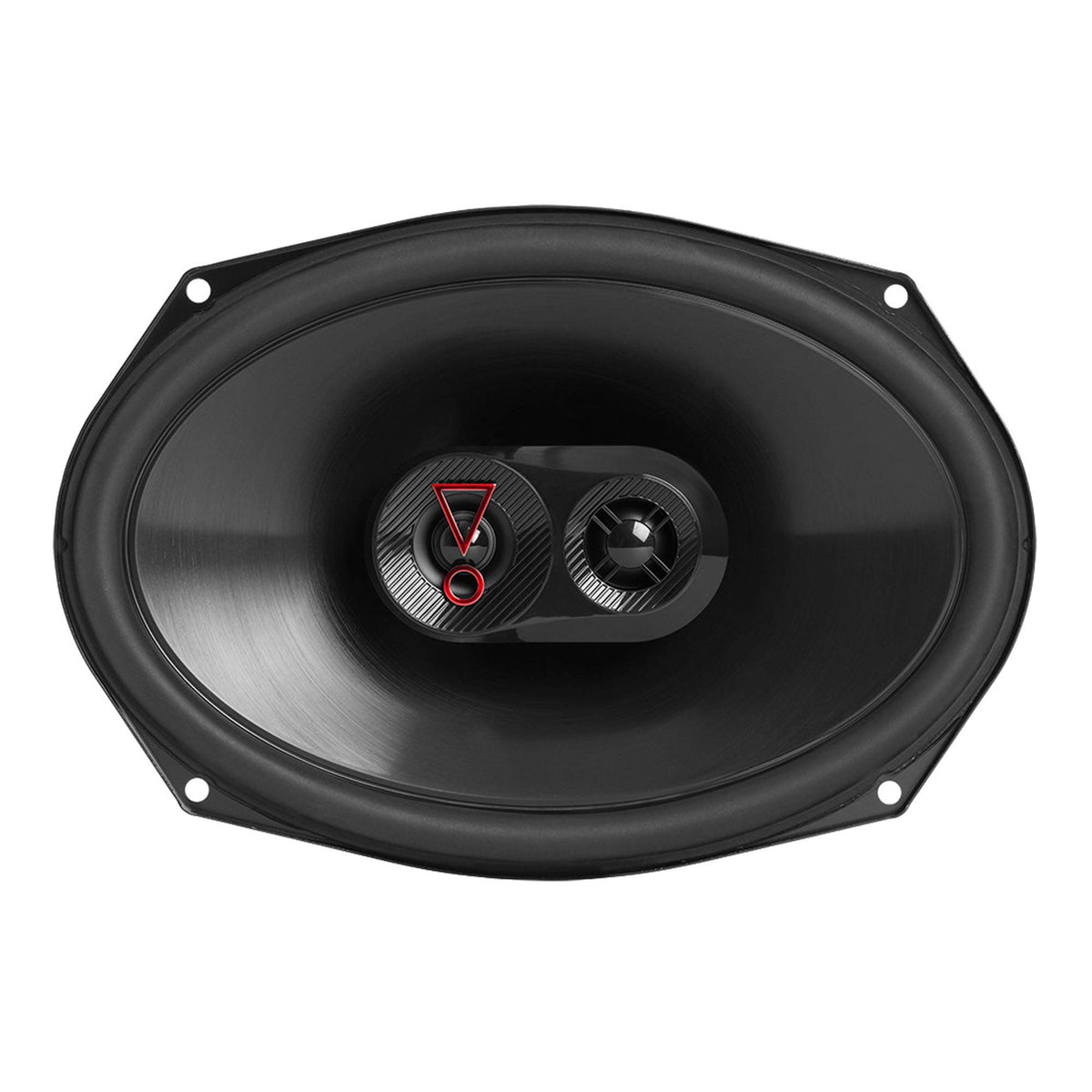

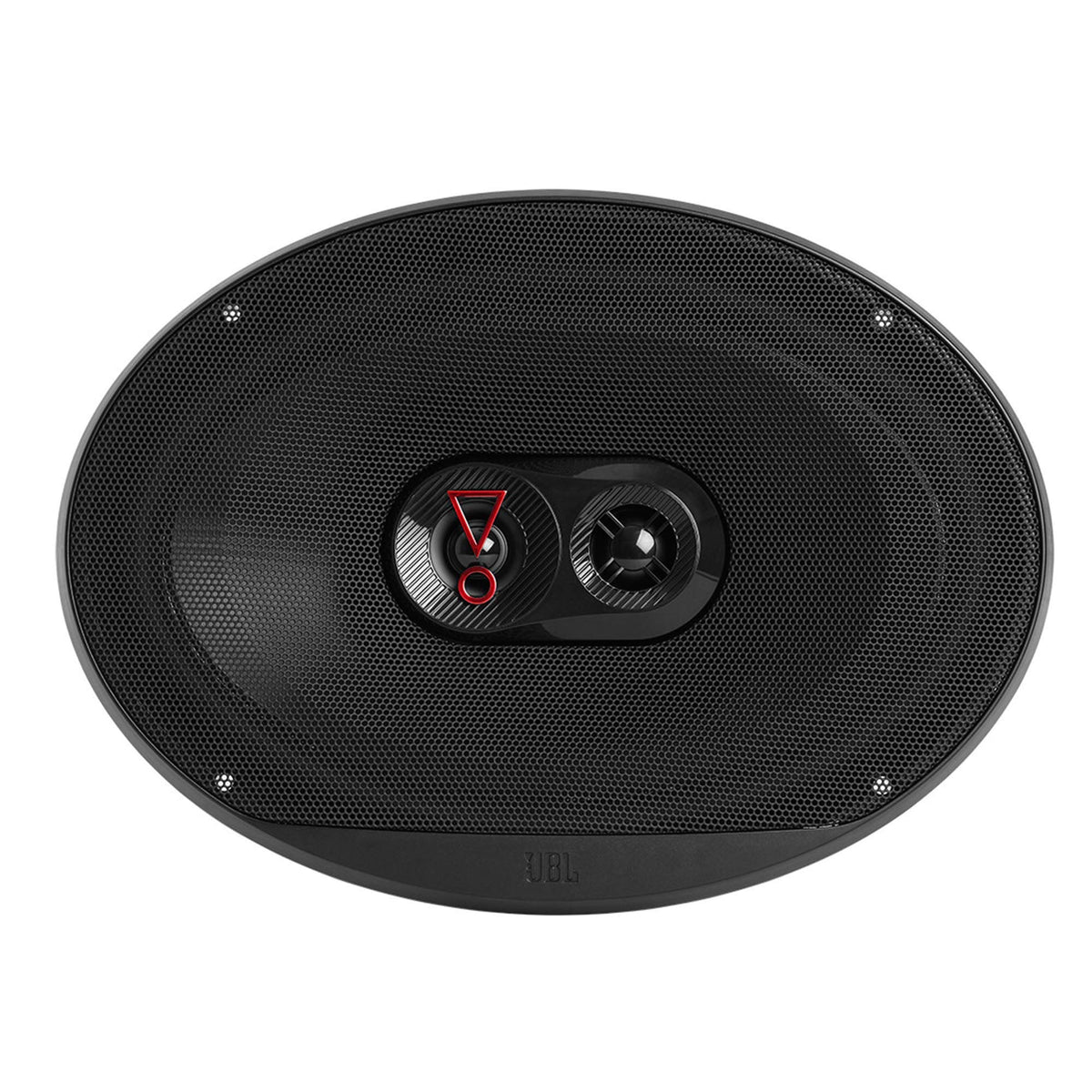

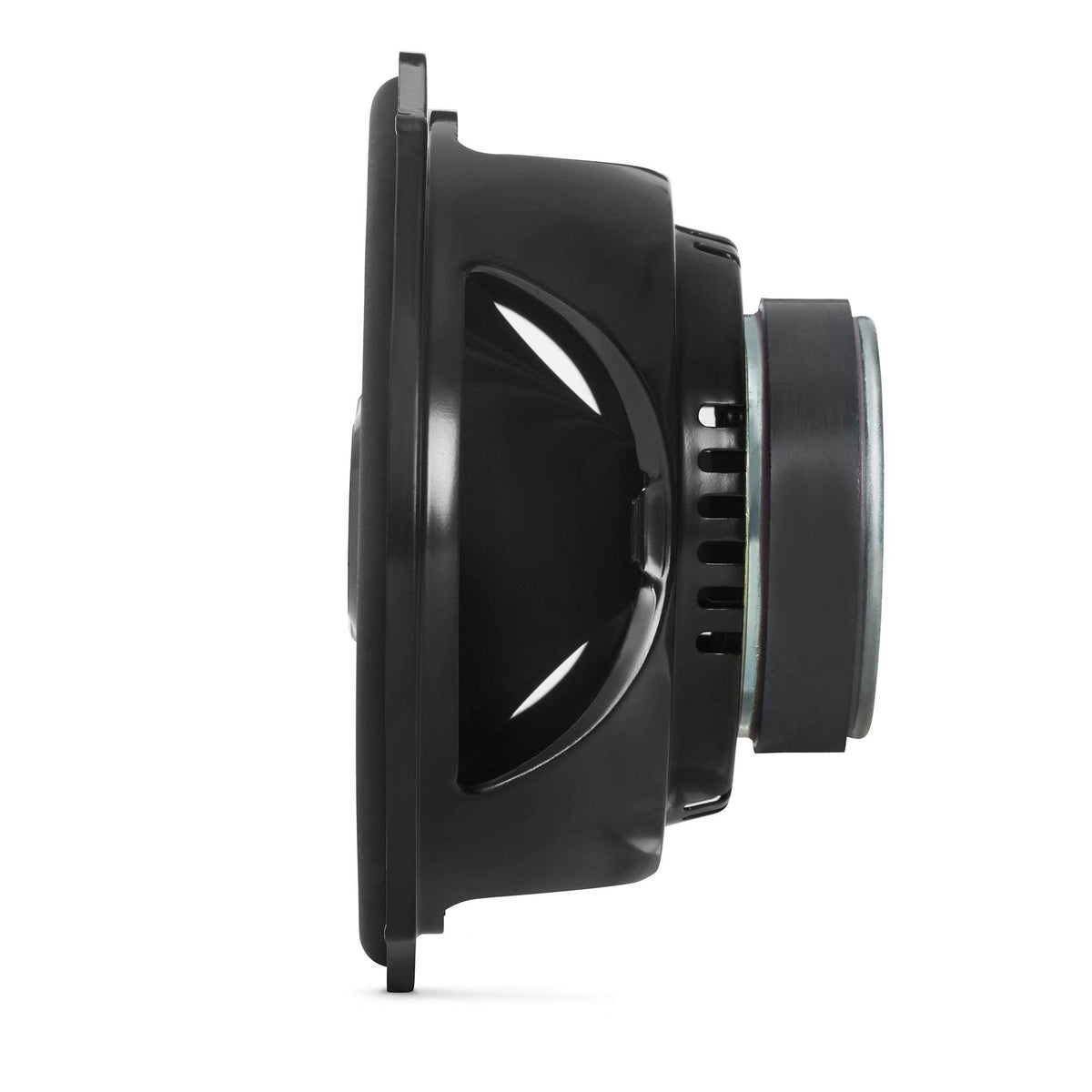

JBL Stage3 9637 (STAGE39637AM) 6" x 9" Three-Way Speakers

The JBL Stage3 9637 is a pair of 6" x 9" three-way car speakers designed for replacing compatible factory-installed speakers. They provide a practical upgrade path for drivers seeking fuller, more detailed sound from a factory head unit or an aftermarket amplified system. The pair includes grilles and basic mounting hardware for installations where the vehicle does not already provide a suitable speaker grille.

With a 75-watt RMS power rating per speaker and 93 dB sensitivity measured at 2.83V/1m, these speakers are suited to systems that need efficient output without requiring extreme amplifier power. Their 50 Hz to 20 kHz frequency response is intended to cover low, midrange, and high-frequency content through the integrated three-way design. The nominal 3-ohm impedance is designed to draw effectively from compatible car-audio amplifiers or head units.

JBL uses Plus One™ polypropylene woofer cones, which move the surround attachment outward to increase usable cone area. This design is intended to improve efficiency and help the woofer produce stronger output in a factory-speaker replacement application. The larger cone area also supports the low-frequency foundation expected from the 6" x 9" format.

An edge-driven dome tweeter is incorporated to provide broad, smooth high-frequency response. Combined with the three-way arrangement and a specified 5 kHz crossover point, the speaker is built to distribute musical detail across its integrated drivers. This makes the Stage3 9637 suitable for listeners who want a single coaxial speaker assembly rather than a separate-component installation.

The Stage3 9637 is engineered around common vehicle speaker locations, but physical fitment should always be confirmed before purchase. Its supplied grilles can be useful for custom rear-deck, enclosure, or other exposed-mount applications, while many factory locations use their existing interior trim instead. For a complete system upgrade, pair the speakers with a source unit or amplifier that is stable with a 3-ohm speaker load.

Key Features

• Three-Way Speaker Design: Integrates multiple drivers in each 6" x 9" speaker for broad frequency coverage.
• Plus One™ Woofer Cones: Polypropylene cones provide increased cone area for efficient output.
• Edge-Driven Dome Tweeters: Designed for broad and smooth high-frequency response.
• 75W RMS Power Handling: Supports compatible factory-upgrade and amplified car-audio systems.
• 3-Ohm Nominal Impedance: Helps compatible source units and amplifiers deliver usable output.
• Vented Basket Frame: Helps manage voice-coil heat during sustained playback.

Design & Installation

These speakers use Plus One™ polypropylene woofer cones and a vented basket-frame design. The vented basket is designed to help cool the voice coil, while the oval 6" x 9" frame supports placement in compatible factory or custom speaker locations. Each speaker also includes an integrated dome tweeter assembly as part of its three-way configuration.

Confirm the vehicle's 6" x 9" opening, mounting depth, mounting-hole pattern, and clearance behind the panel before installation. The package includes two speakers, two grilles, eight screws, and eight speed clips; vehicle-specific wiring adapters, mounting brackets, sealing materials, and tools may be needed depending on the application. Observe correct positive and negative speaker polarity and verify that the connected radio or amplifier supports a 3-ohm load.
