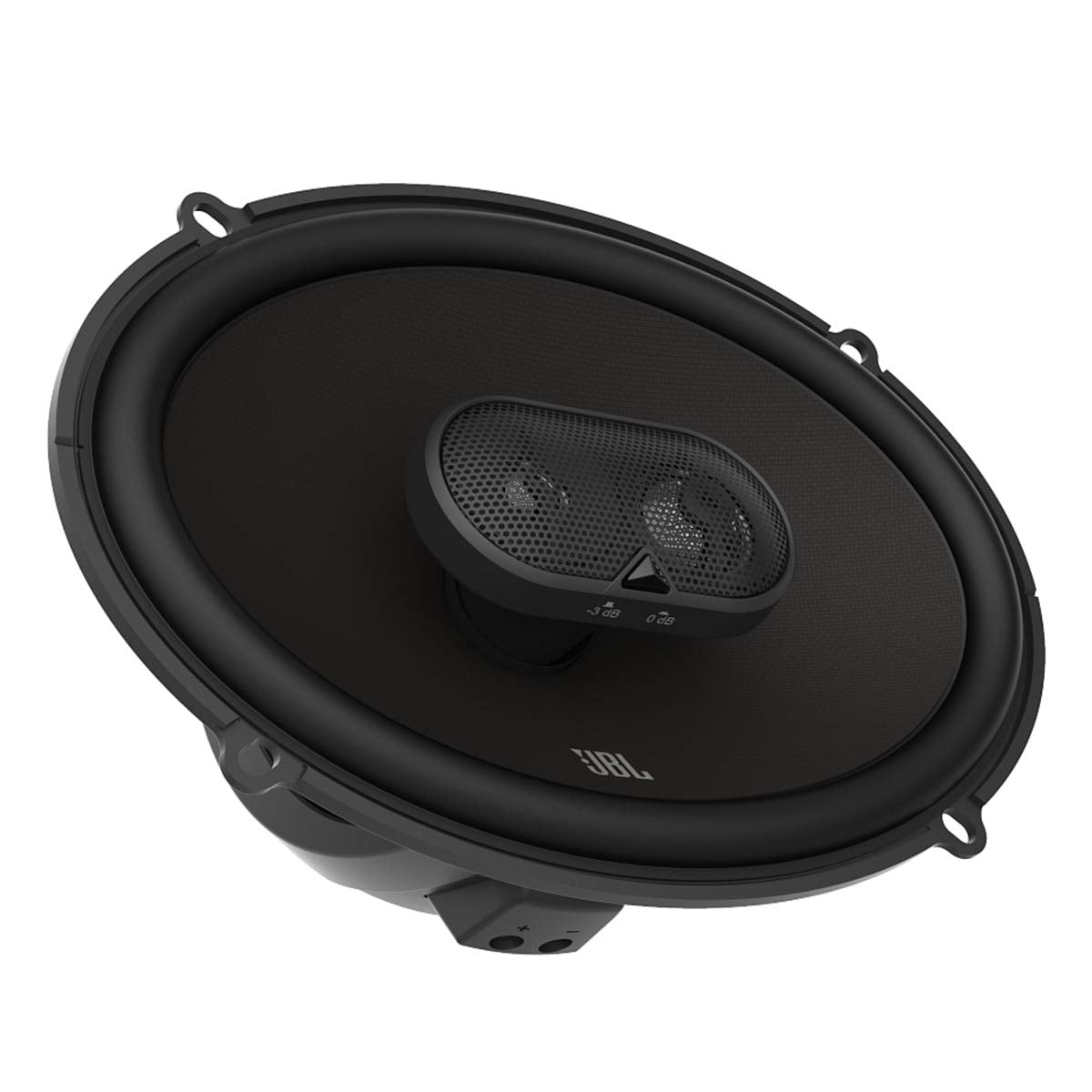

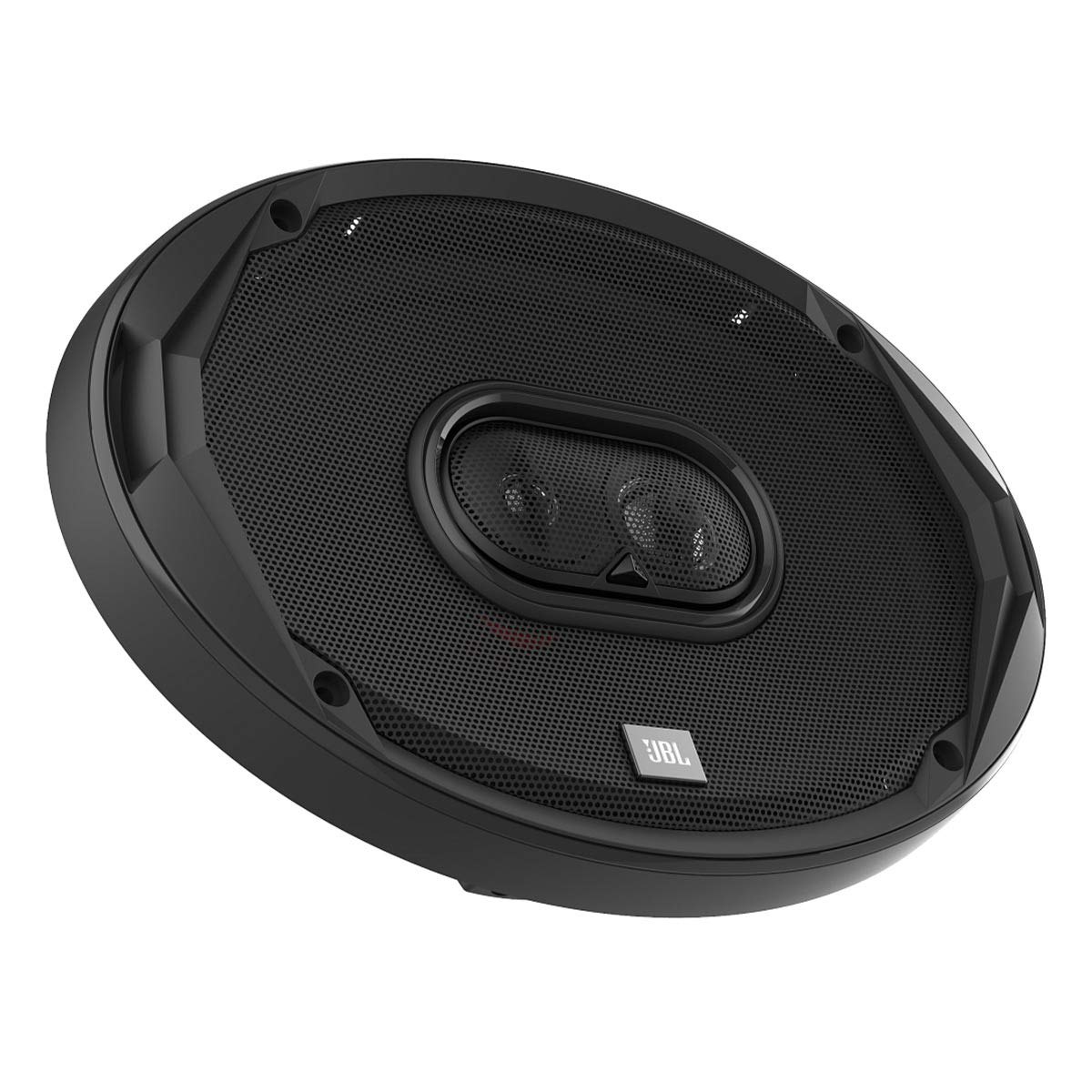

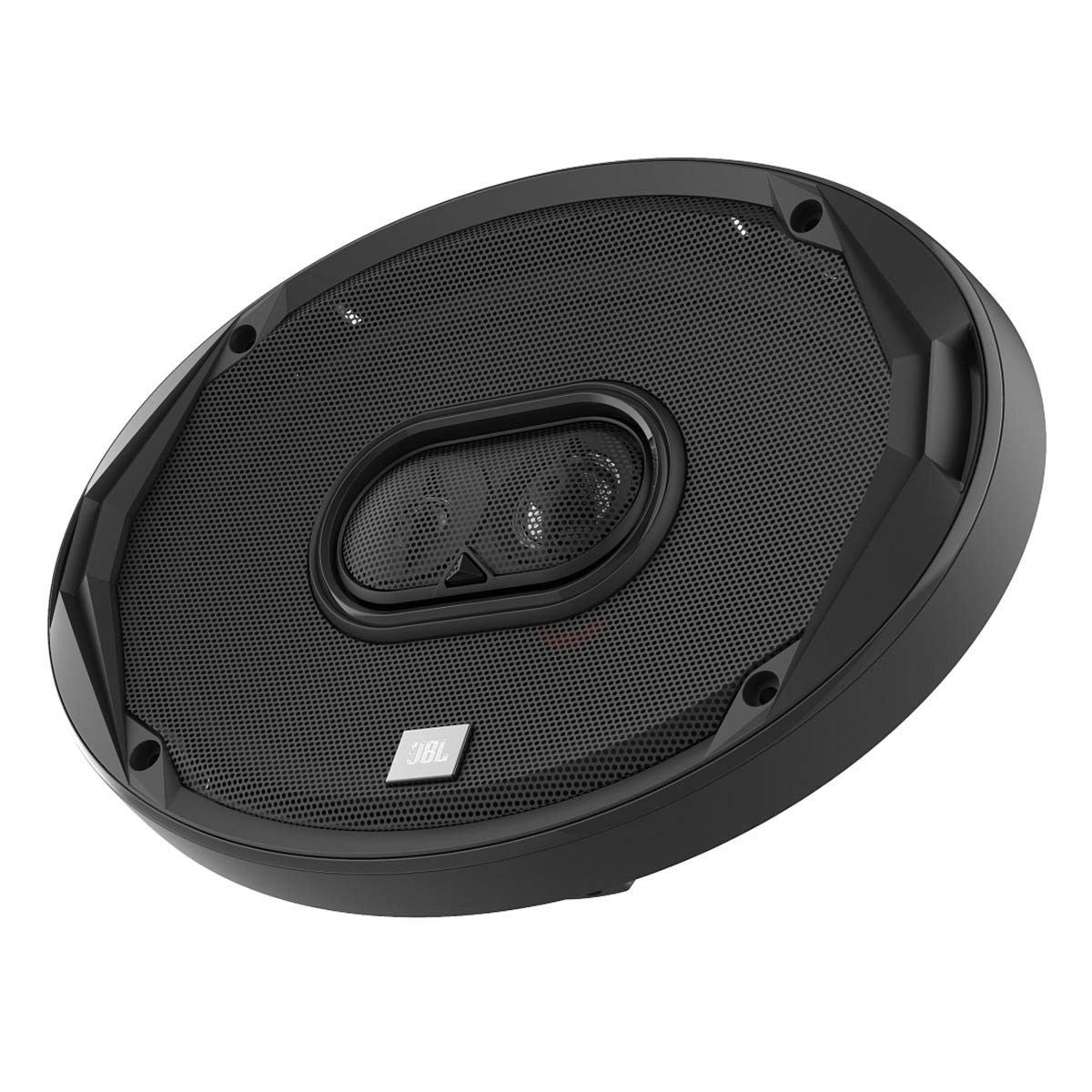

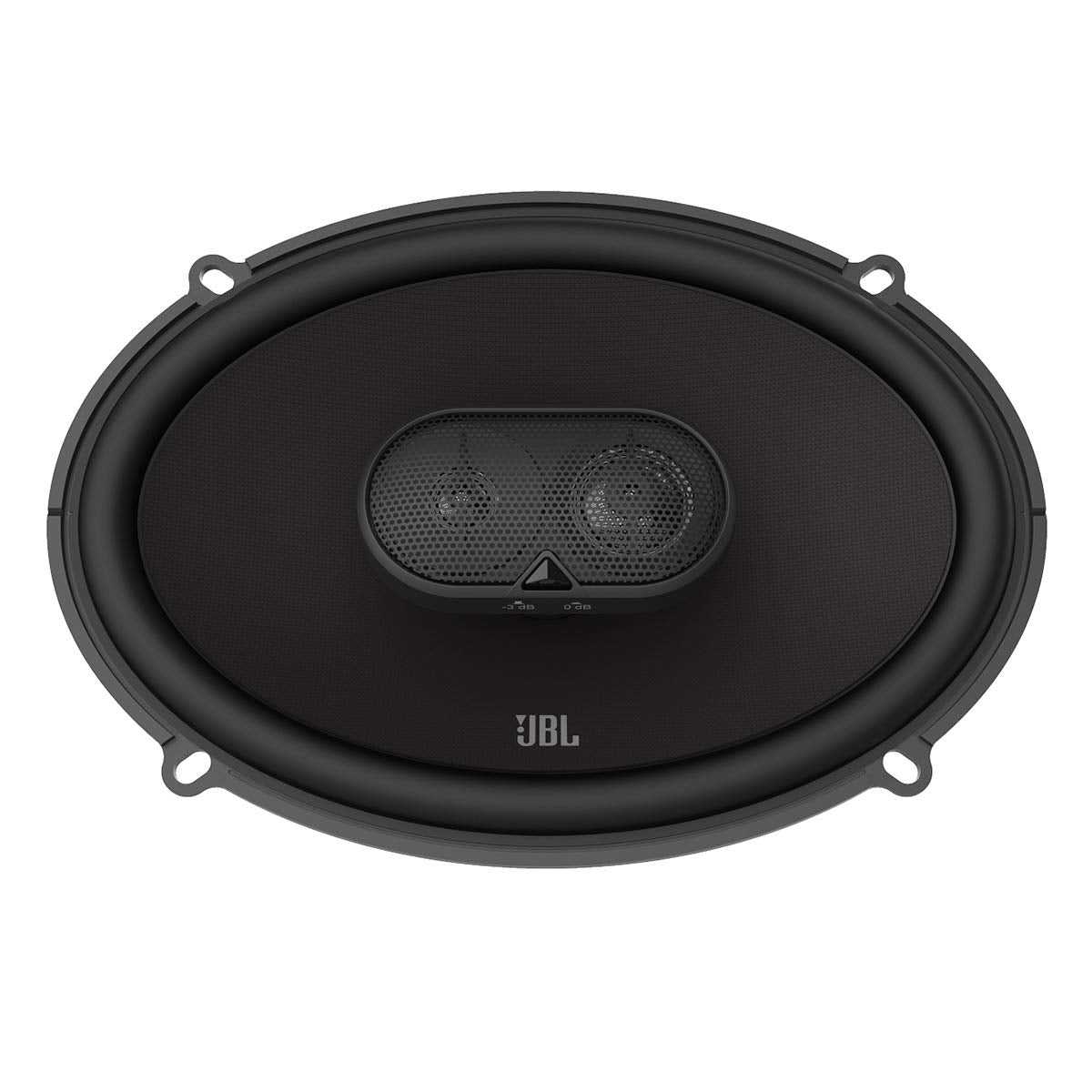

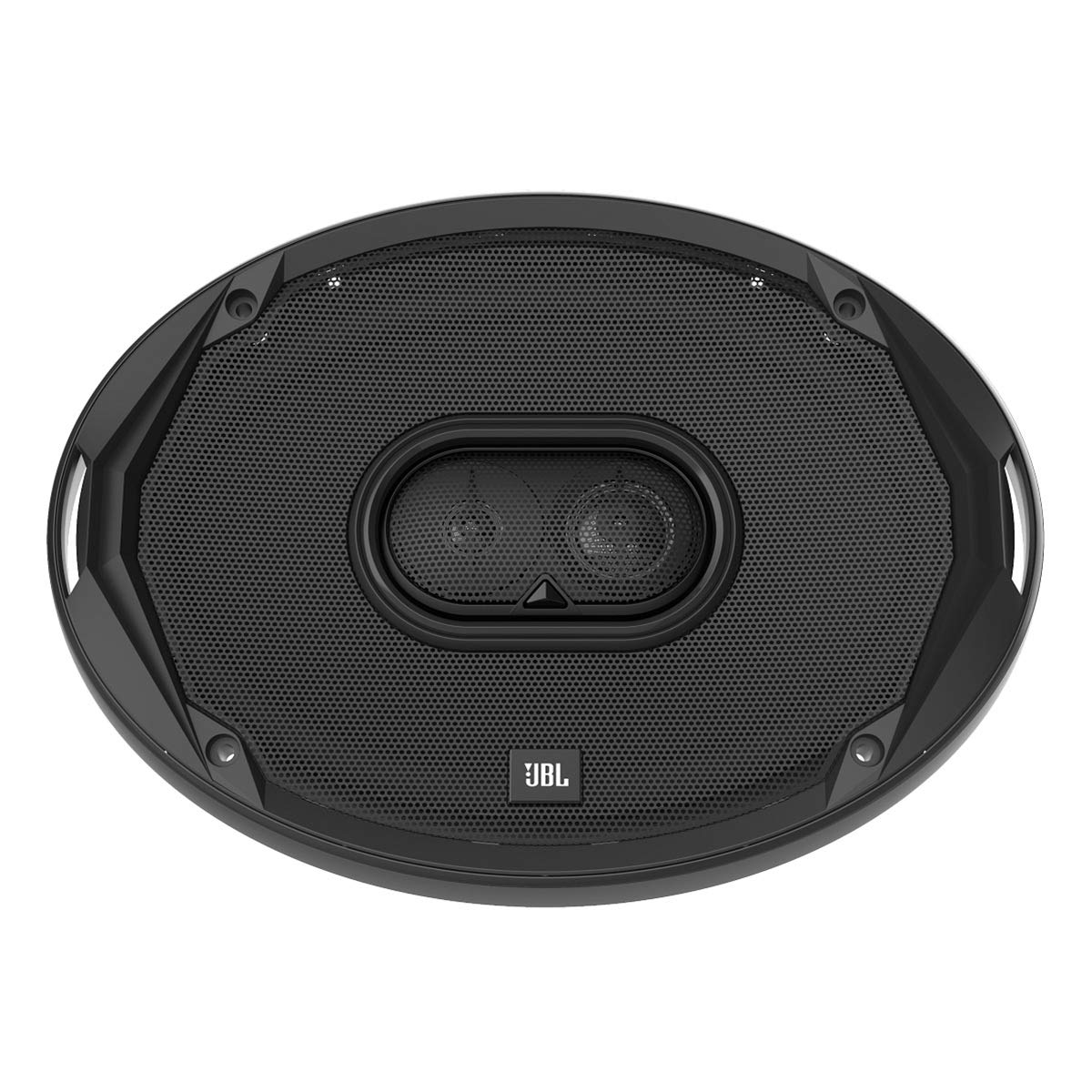

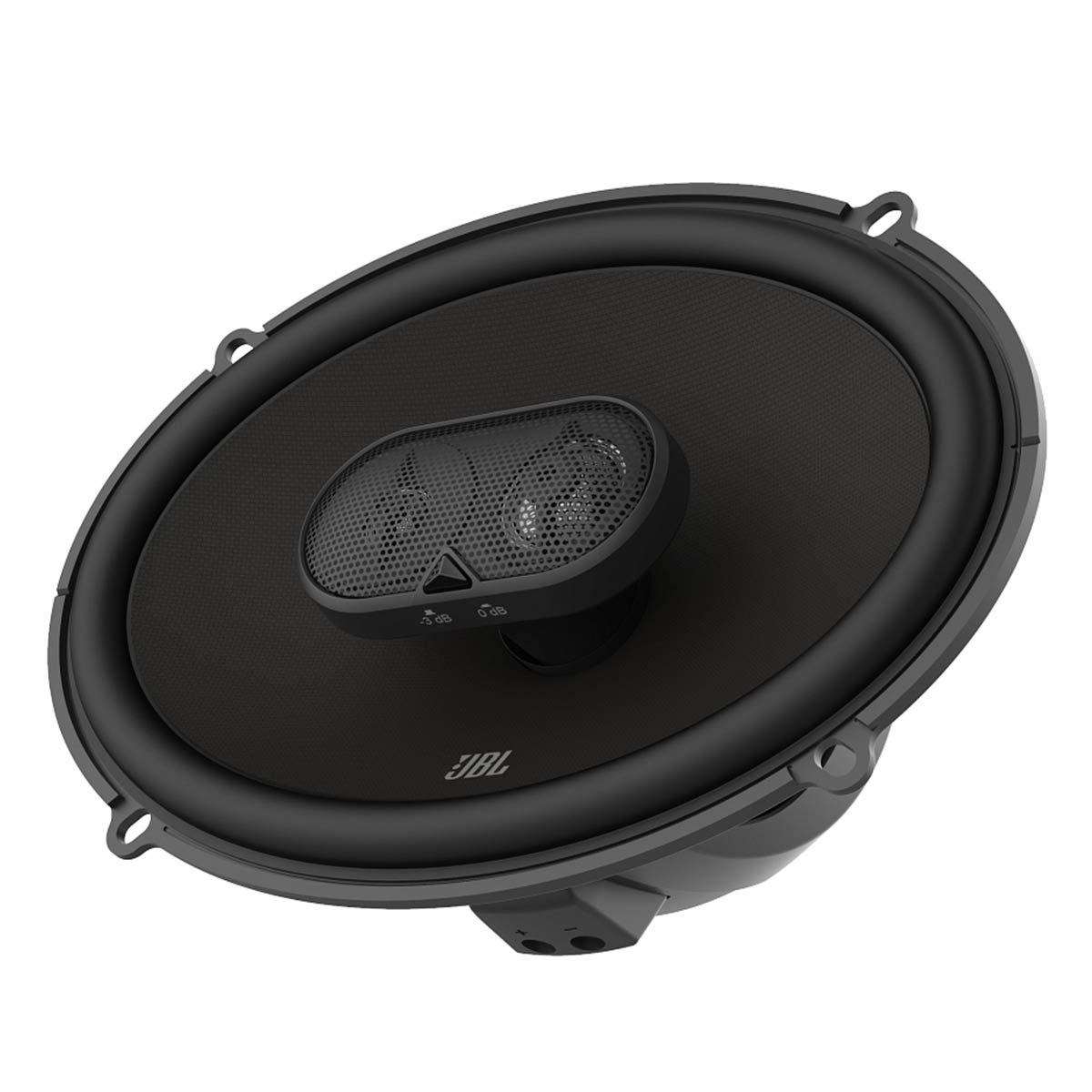

JBL Stadium 962M 6" x 9" 3-Way Car Speakers

The JBL Stadium 962M is a pair of 6 x 9-inch, three-way car speakers designed for drivers replacing factory speakers or building a more capable aftermarket audio system. Its 3-ohm design and 94 dB sensitivity help it make effective use of power from compatible factory or aftermarket audio systems. The speakers are supplied as a pair and include grilles, spacers, mounting hardware, and foam gaskets.

These speakers are intended for listeners who want fuller bass response and greater high-frequency detail from a 6 x 9-inch location. JBL rates the Stadium 962M at 120 watts RMS and 360 watts peak power per speaker, with a 35 Hz to 40 kHz frequency response. That combination supports use in doors, rear decks, or other vehicle locations that accept the required 6 x 9-inch mounting dimensions.

The three-way coaxial layout combines a glass-fiber woofer with integrated midrange and tweeter elements. JBL's Plus One glass-fiber woofer technology extends the cone area toward the basket edge, while the rubber surround supports controlled cone movement. The edge-driven aluminum dome midrange and tweeter are designed to maintain detail at higher frequencies.

A selectable 0 dB or -3 dB tweeter-output setting allows the upper-frequency level to be adjusted for the speaker's installation position. This can be useful when a speaker is mounted low in a door or in a more reflective location. The system's specified crossover point is 3.9 kHz.

The Stadium 962M can be powered by a compatible head unit, though its 120-watt RMS rating also makes it appropriate for an external amplifier matched to its power handling and 3-ohm impedance. Verify vehicle mounting clearance, cutout dimensions, and amplifier stability before installation. For a balanced upgrade, pair the speakers with suitable source equipment, wiring, and installation adapters where required by the vehicle.

Key Features

• Three-Way Coaxial Design: Combines woofer, midrange, and tweeter elements in each speaker.
• Plus One Glass-Fiber Woofer: Uses a rigid, lightweight cone for defined low-frequency output.
• Aluminum Dome Drivers: Edge-driven midrange and tweeter elements extend high-frequency detail.
• Selectable Tweeter Level: Choose 0 dB or -3 dB output for installation tuning.
• 3-Ohm Impedance: Helps compatible systems draw more usable amplifier power.
• Included Installation Hardware: Grilles, spacers, gaskets, screws, and clips are supplied.

Design & Installation

The Stadium 962M uses a black multi-element coaxial design with a Plus One glass-fiber woofer cone, rubber surround, and edge-driven aluminum dome midrange and tweeter elements. The speakers include protective grilles and foam gaskets, while the supplied spacers provide an additional fitment option. Each speaker has a 6 x 9-inch nominal size and a 3-way layout.

Confirm that the vehicle has sufficient space for the 9-15/32 by 6-21/32-inch cutout and 3-5/32-inch top-mount depth before installation. Use the supplied screws, speed clips, foam gaskets, and spacers as appropriate for the mounting surface; vehicle-specific adapter brackets or harnesses may still be needed. Disconnect the vehicle battery before wiring, observe speaker polarity, and use an amplifier or receiver that is compatible with a 3-ohm speaker load.
