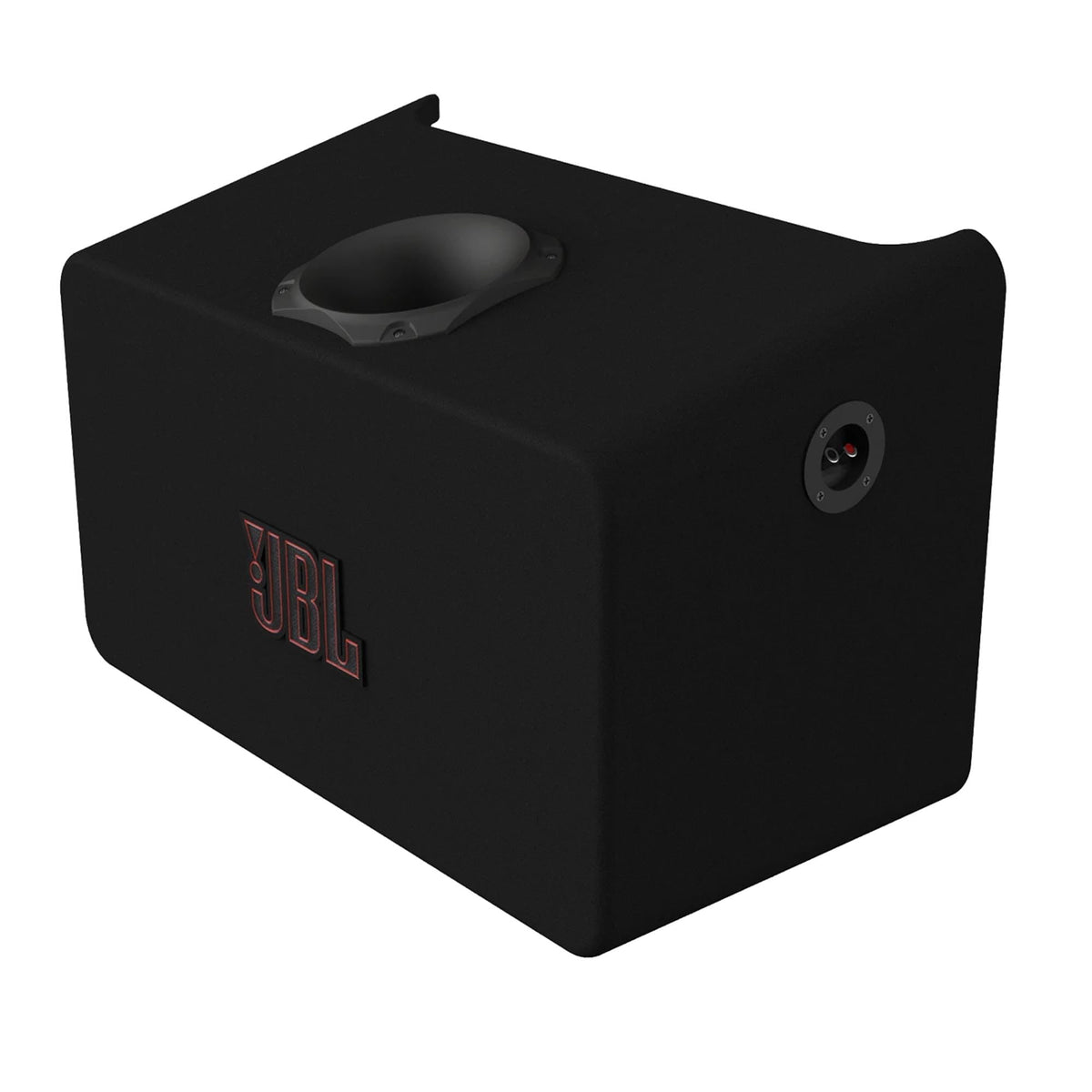

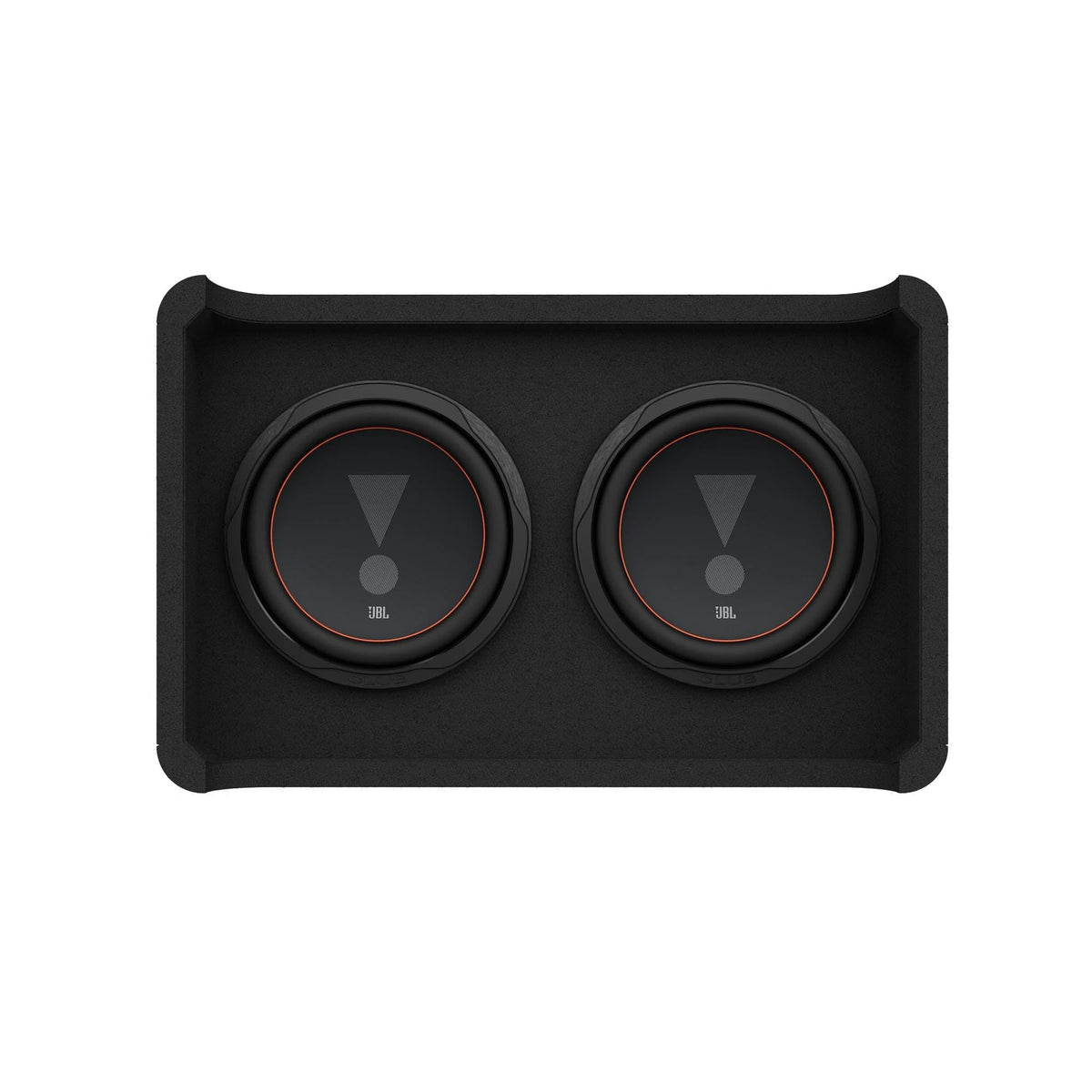

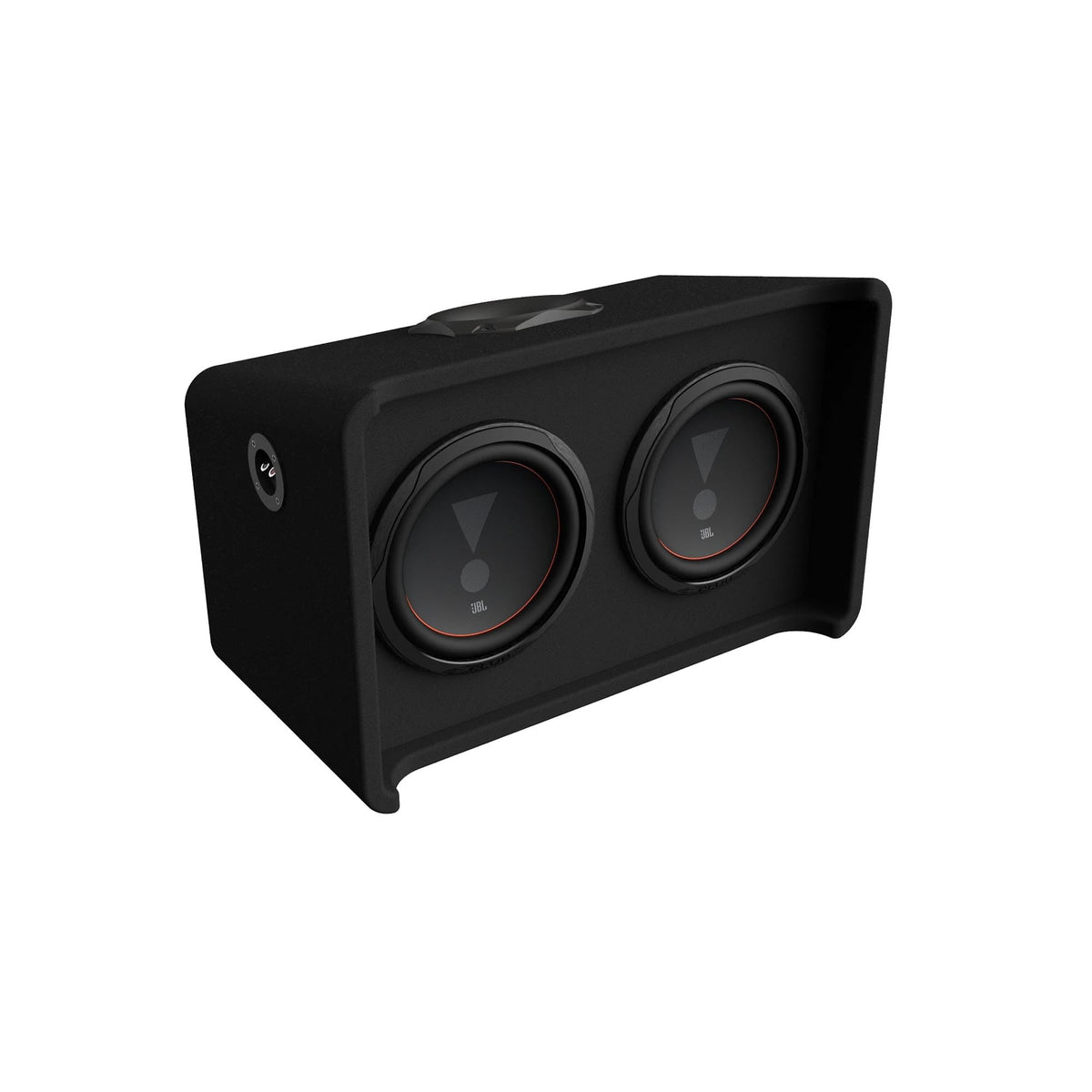

JBL CLUB1000D Dual 10" Ported Subwoofer Enclosure

The JBL CLUB1000D is a loaded, ported car subwoofer enclosure with two 10-inch polypropylene drivers. It is designed for vehicle audio systems that need added low-frequency output without separately selecting subwoofers and building a box. Its 2-ohm nominal impedance makes it intended for use with a compatible external car amplifier.

With 700 watts RMS and 1,400 watts peak power handling, the CLUB1000D is suited to bass-focused upgrades in cars, trucks, and SUVs with sufficient cargo-space clearance. The enclosure’s specified frequency response extends from 30Hz to 400Hz at -6dB. JBL rates sensitivity at 86dB measured at 1W/1m.

The enclosure uses JBL Slipstream Port Technology, a double-flared port design intended to reduce air turbulence in the port. This design helps limit port noise and distortion associated with moving air through a conventional port. It is a practical choice for listeners seeking a ported enclosure character with strong low-end presence.

Its wedge-shaped cabinet and rounded-corner design allow flexibility when positioning the enclosure in a trunk or cargo area. The cabinet measures 26 inches wide and uses two different depths, helping it fit against angled seating or cargo-area surfaces. A removable JBL logo badge lets the visible branding be positioned to suit the installation.

The CLUB1000D can be integrated into a system with an aftermarket amplifier, wiring, and source unit. JBL specifies at least 10 AWG speaker wire for connections to this dual-subwoofer enclosure. Secure mounting in a trunk or cargo-area corner helps keep the enclosure stable while preserving usable vehicle space.

Key Features

• Dual 10-Inch Drivers: Two polypropylene subwoofers provide a ready-to-install bass enclosure.
• 700W RMS Handling: Supports substantial continuous power from a compatible amplifier.
• 2-Ohm Nominal Load: Designed for an amplifier stable at 2 ohms.
• Slipstream Port Technology: Double-flared port design helps reduce turbulence and port noise.
• Wedge Cabinet Shape: Supports flexible placement in trunks and cargo areas.
• Removable Logo Badge: Lets you choose the JBL badge placement.

Design & Installation

The CLUB1000D uses a 13/16-inch (21mm) MDF enclosure with a black carpet covering. Its wedge-box profile incorporates rounded corners and a ported design, while the two 10-inch drivers use polypropylene cones. The black finish is suited to a traditional trunk or cargo-area installation.

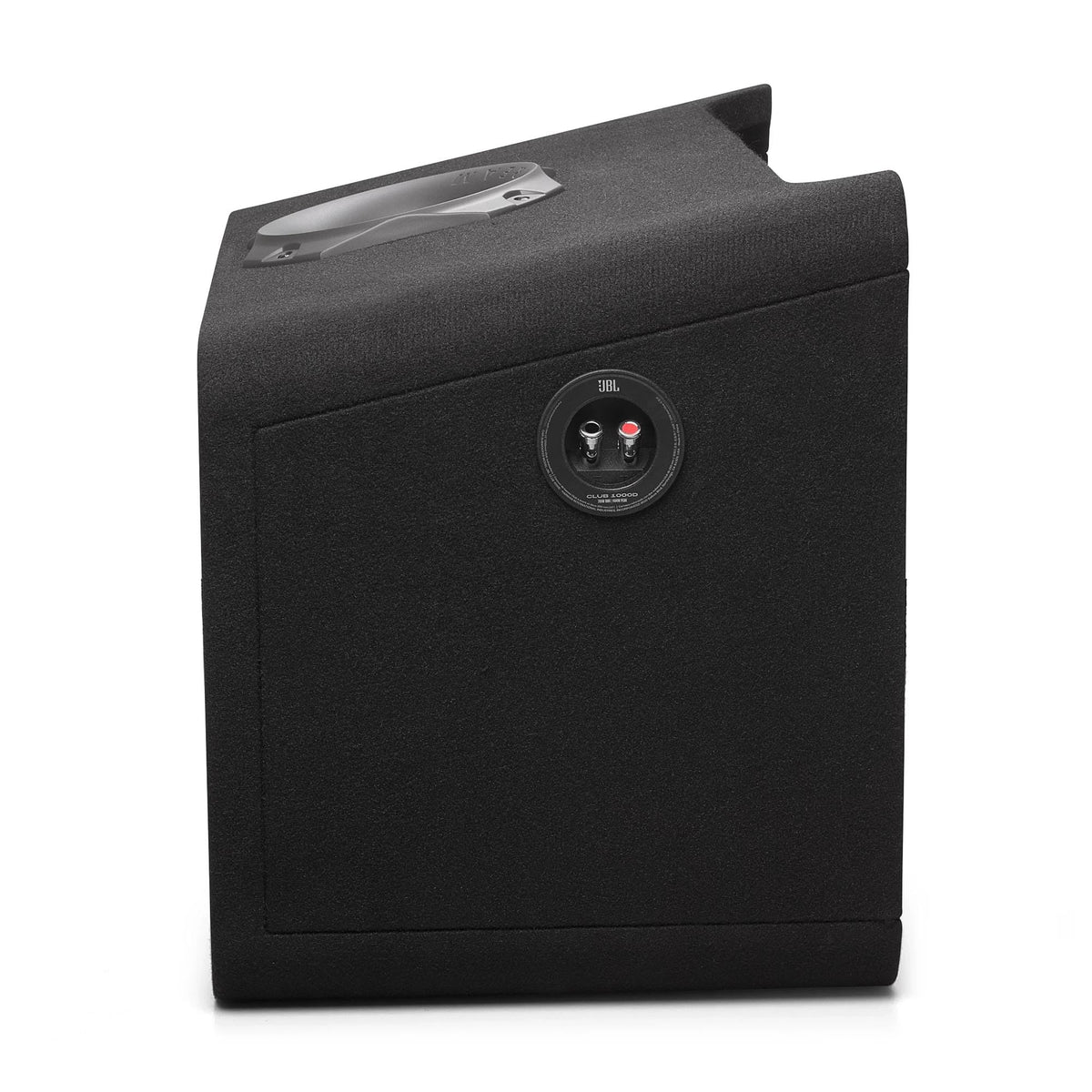

Connect the enclosure’s positive and negative terminals to a compatible amplifier while observing correct polarity. JBL specifies a minimum 10 AWG (5mm²) speaker wire for the CLUB1000D, and recommends securing the enclosure to its mounting surface in a trunk or cargo-area location that does not interfere with cargo, folding rear seats, or the trunk lid. Confirm available clearance using its 26-inch width, 17-inch maximum depth, and 14-1/8-inch height before installation.
