JBL Club 64CSQ 6.5" Component Speaker System

The JBL Club 64CSQ is a 6-1/2-inch, two-way component speaker system designed for upgrading a vehicle's front-stage sound. It separates the woofer and tweeter so each can be placed where it works best in the vehicle. The system includes external crossovers to direct the appropriate frequencies to each driver.

This set is intended for listeners who want a more detailed and adjustable alternative to factory full-range door speakers. Its 95-watt RMS power rating supports use with compatible aftermarket amplification, while its 3-ohm nominal impedance and 93dB sensitivity make it suitable for many car-audio upgrade paths. The 48Hz-21kHz frequency response covers bass and midrange from the woofer along with high-frequency detail from the separate tweeters.

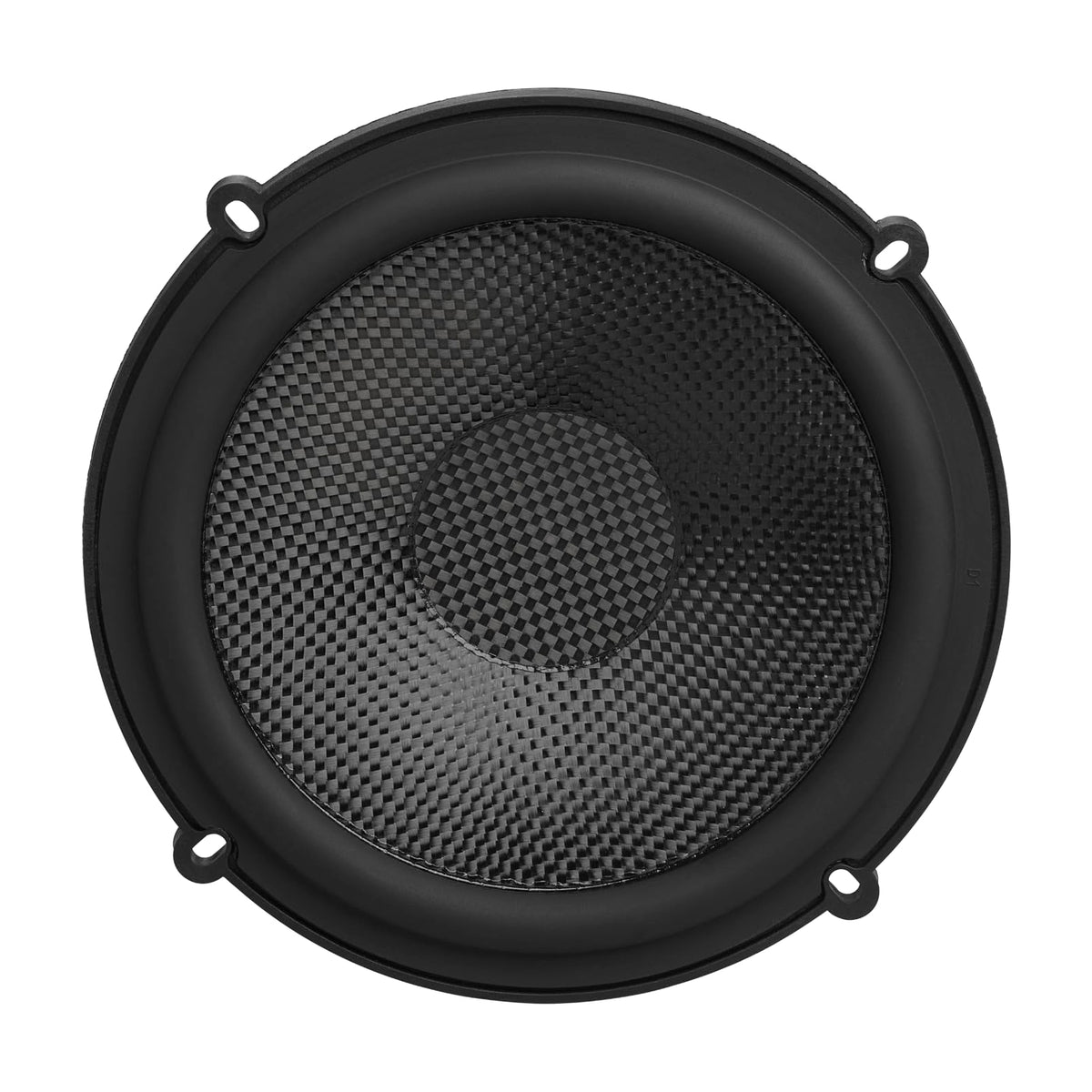

The woofer uses a carbon-fiber cone with JBL Plus One architecture. This design increases cone area relative to similarly sized speakers, helping the 6.5-inch woofer move air efficiently. The result is a focused foundation for vocals, instruments, and midbass in a properly installed vehicle system.

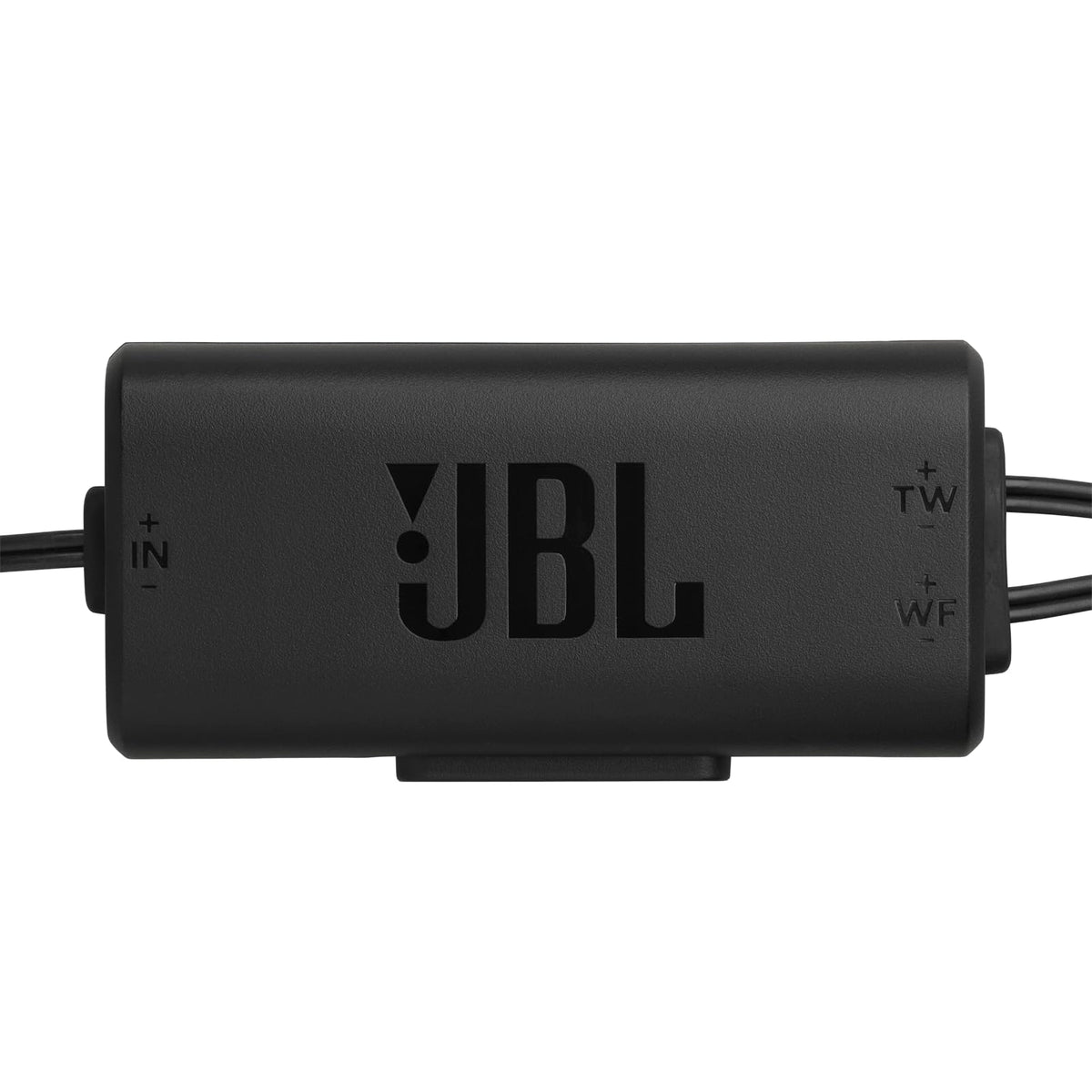

For the upper frequencies, the Club 64CSQ uses edge-driven silk-dome tweeters. The supplied crossovers use a 5kHz crossover point, and their tweeter output can be set to 0dB or +3dB. That adjustment can help tailor treble balance around the selected tweeter location.

The component format gives installers flexibility for door, dash, sail-panel, or A-pillar-oriented layouts where vehicle fitment allows. JBL includes multiple tweeter mounting pieces, including Starfish and I-Mount hardware, along with woofer grilles and adapter rings. It is a practical choice for a front-speaker upgrade paired with a compatible head unit or amplifier.

Key Features

• Two-Way Component System: Separate woofers and tweeters allow more flexible driver placement than a coaxial speaker.
• Carbon-Fiber Woofer: The woofer cone is designed for accurate, clear musical reproduction.
• Plus One Architecture: Increased cone area helps the woofer deliver stronger low-frequency output for its size.
• Edge-Driven Silk-Dome Tweeters: Separate silk-dome tweeters provide smooth high-frequency reproduction.
• Adjustable Tweeter Level: Select 0dB or +3dB output to better match the tweeter installation location.

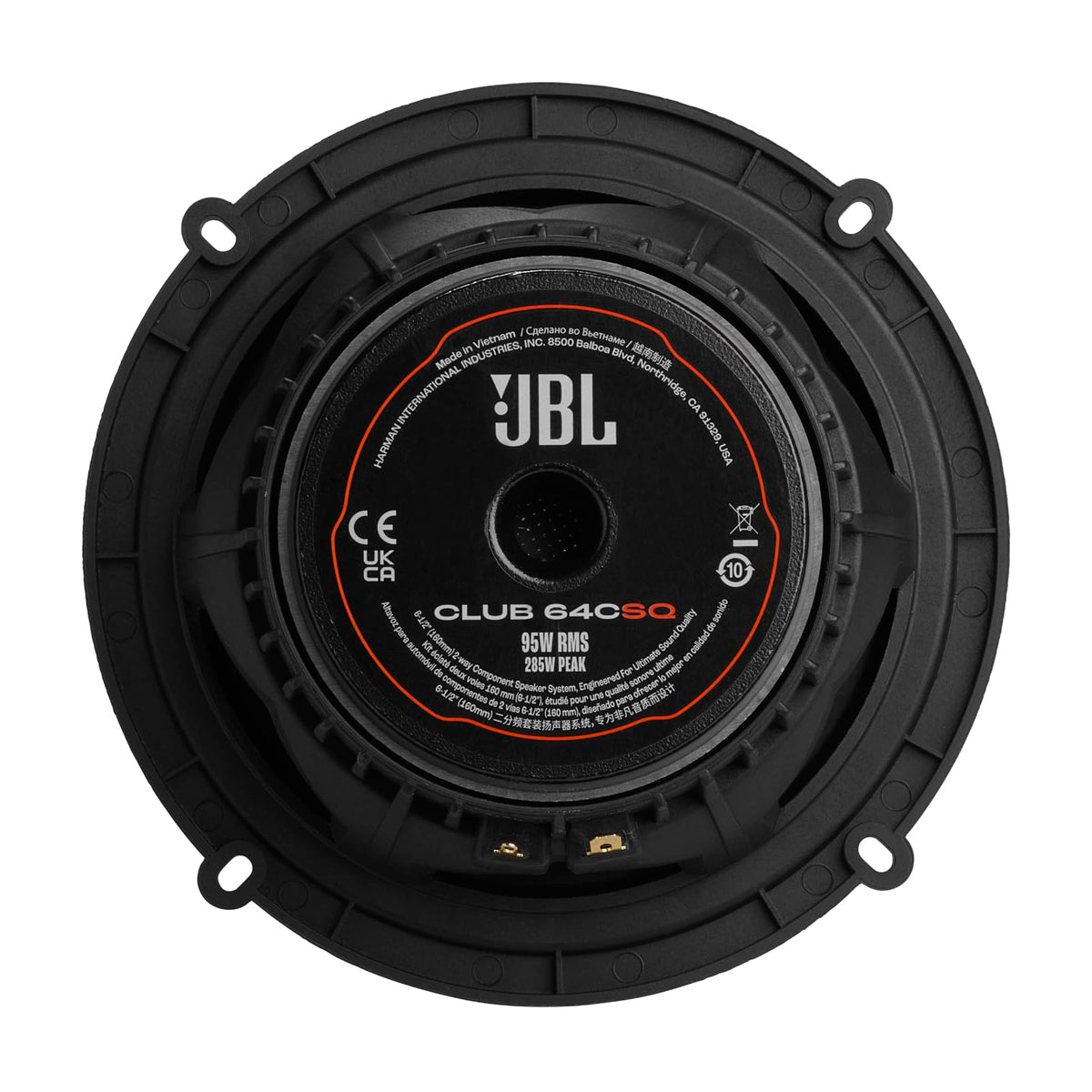

• Y40 Ferrite Magnet: The woofer motor uses a Y40 ferrite magnet to support high sensitivity.

Design & Installation

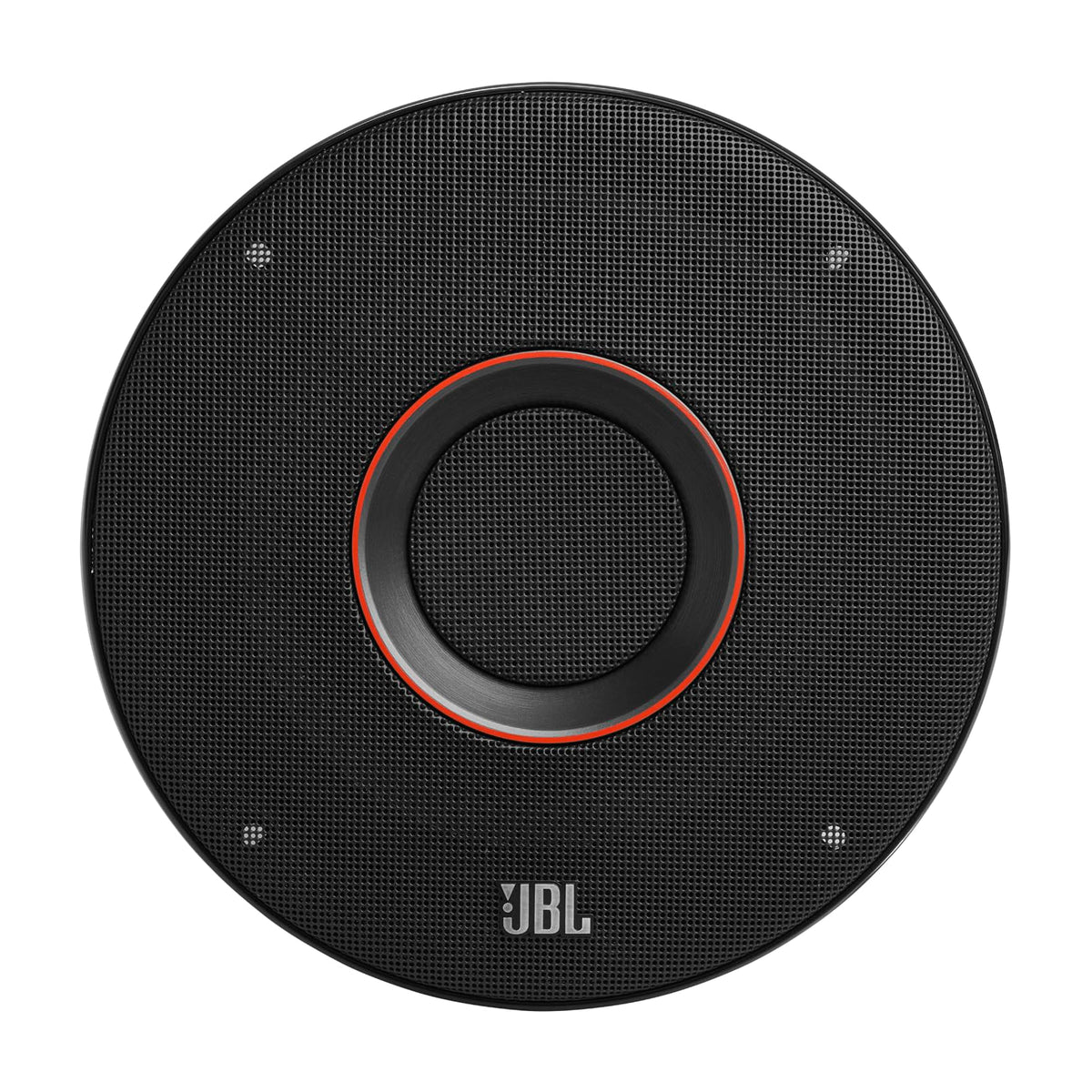

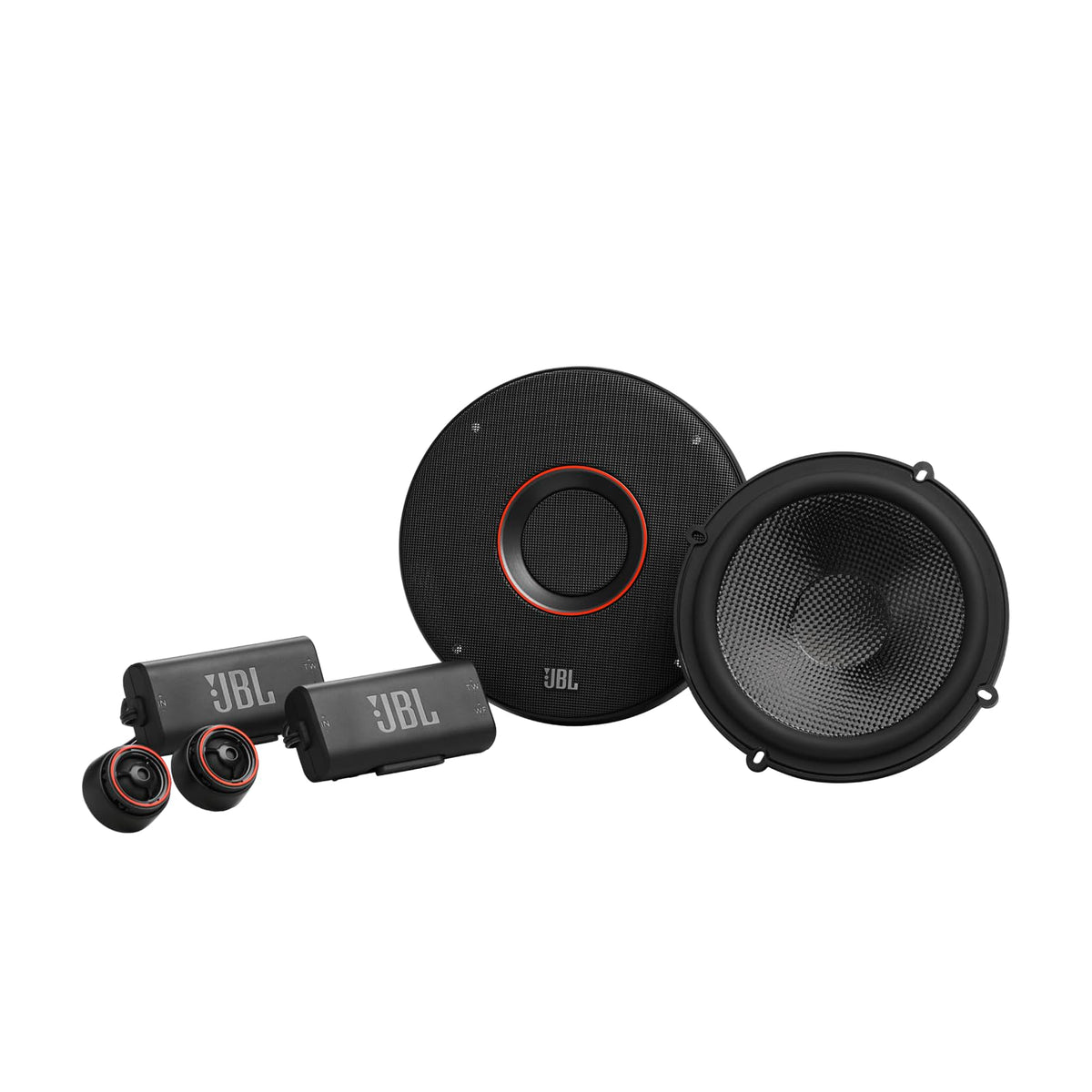

The Club 64CSQ combines carbon-fiber woofer cones, Y40 ferrite magnets, silk-dome tweeters, and separate passive crossovers. The set includes protective woofer grilles, multi-hole adapter rings, a foam gasket, and JBL logo badges. Its separate-driver design allows the tweeters and woofers to be positioned independently when the vehicle and installation plan permit.

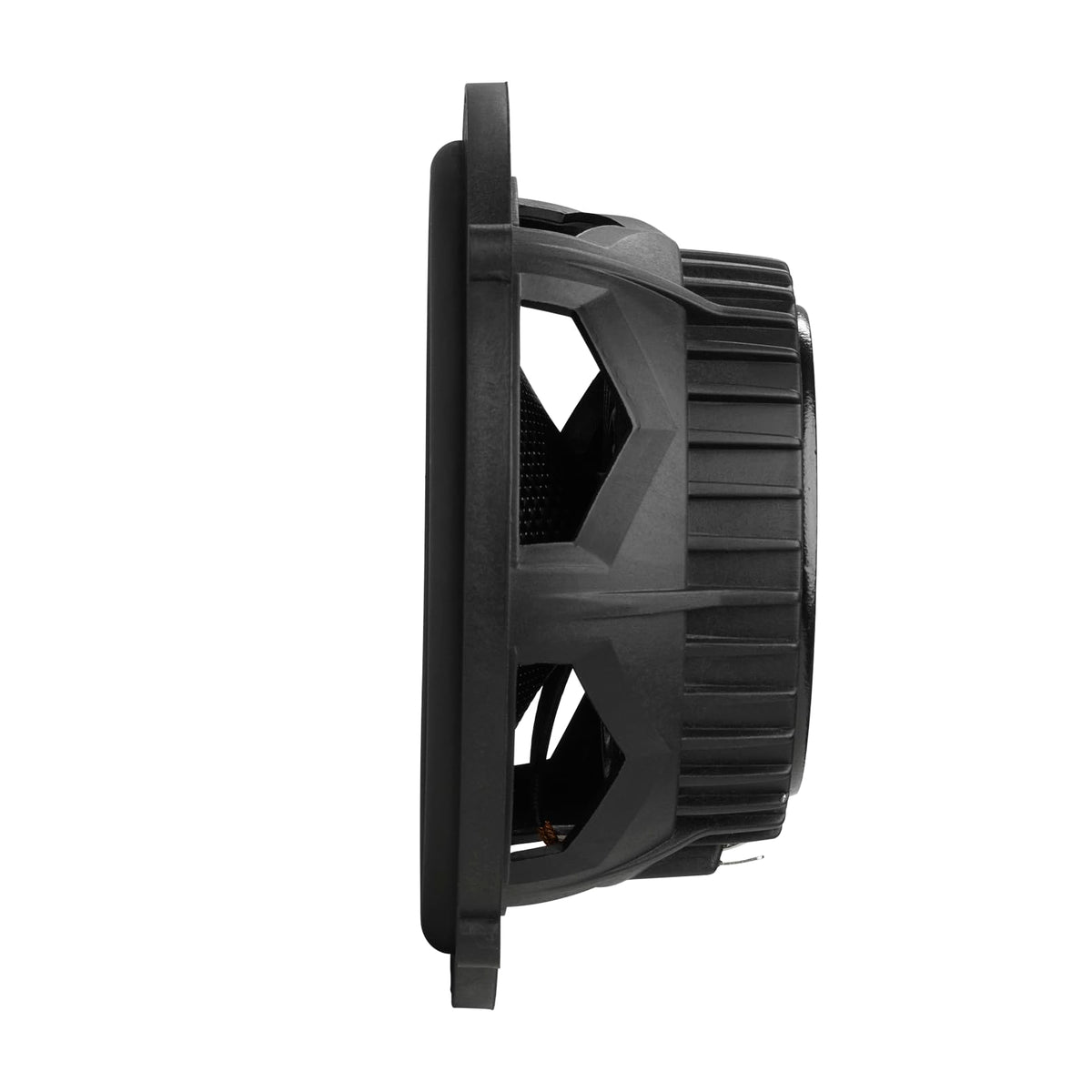

Confirm vehicle-specific woofer opening, mounting depth, and wiring requirements before purchase. JBL lists a 158.2mm woofer outside diameter, 128.3mm cutout diameter, and 51.5mm mounting depth; the I-Mount tweeter hardware uses a 1-3/4-inch cutout and 1-inch mounting depth. Use the included crossovers between the audio source or amplifier and the individual woofer and tweeter, and set the tweeter level to 0dB or +3dB as needed.
